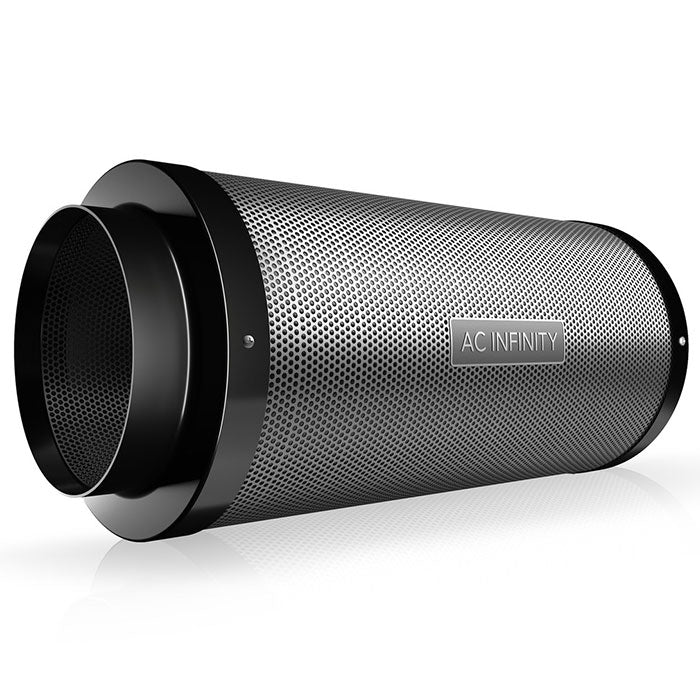

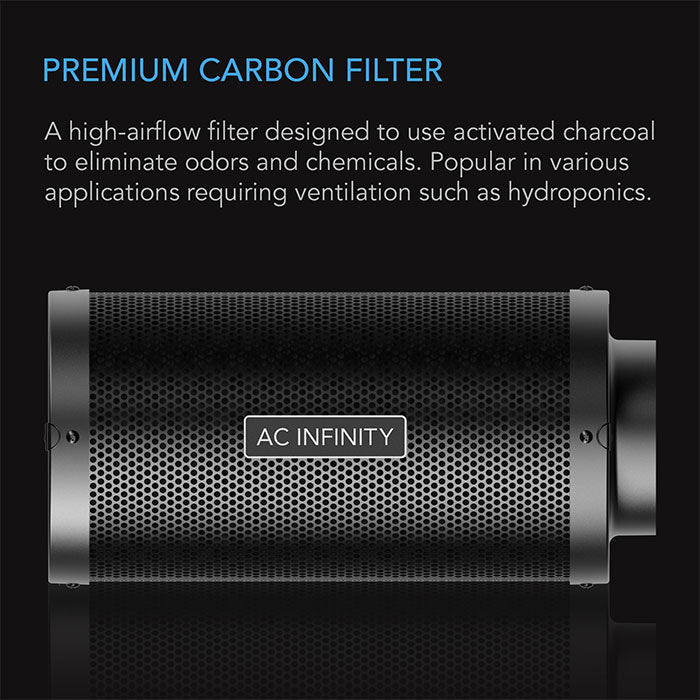

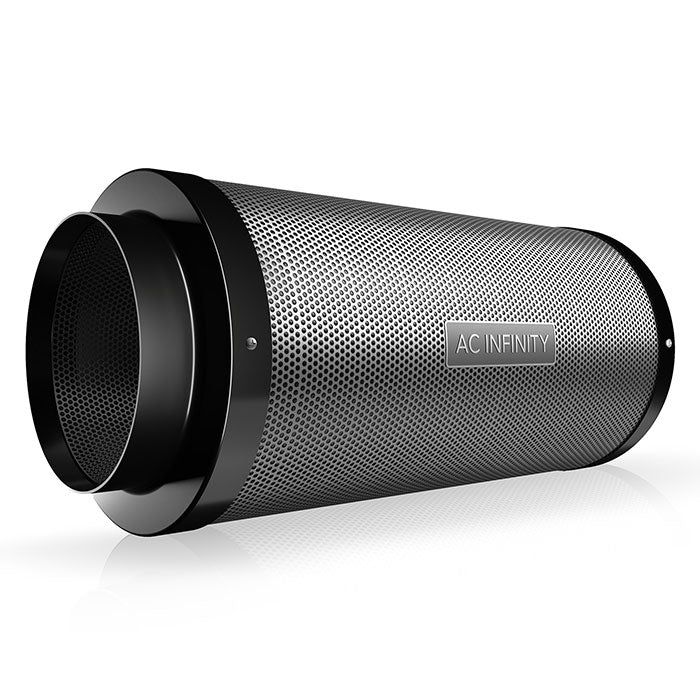

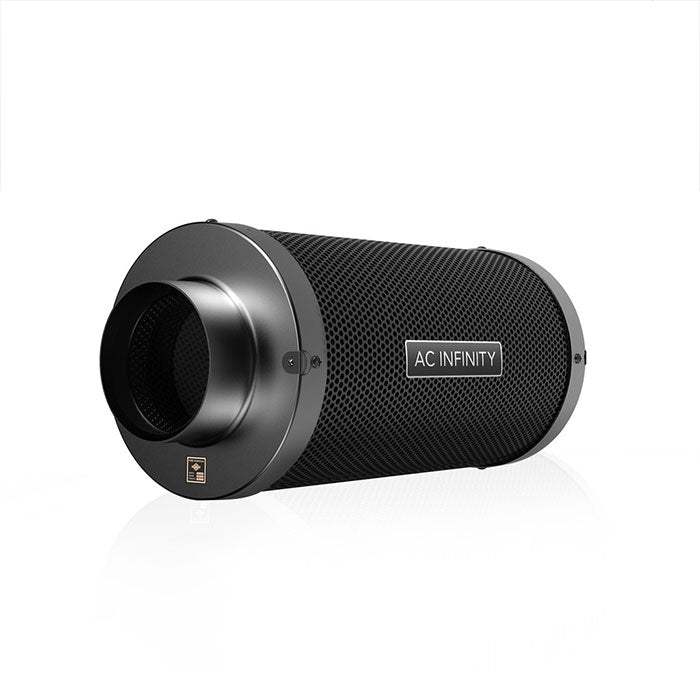

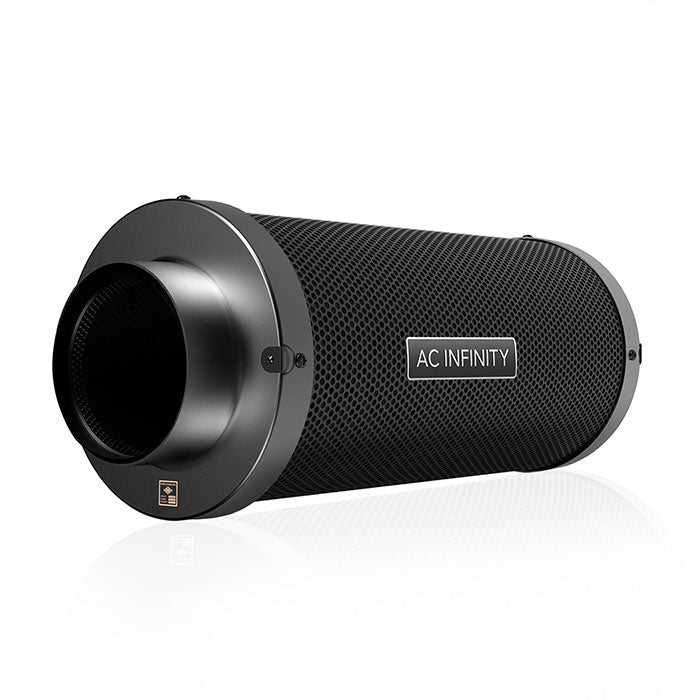

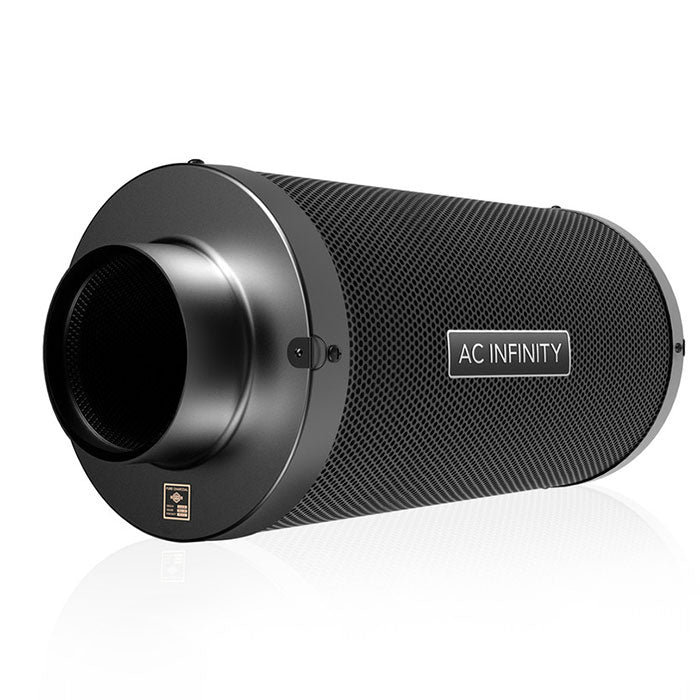

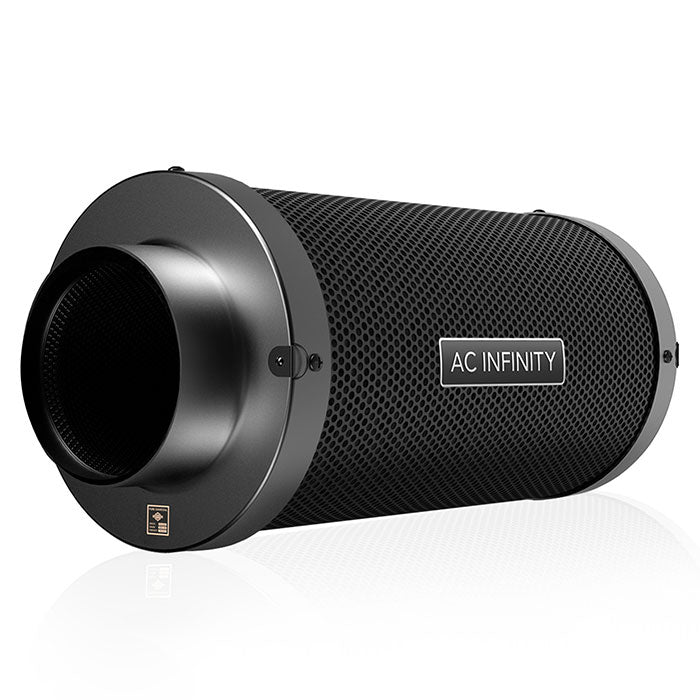

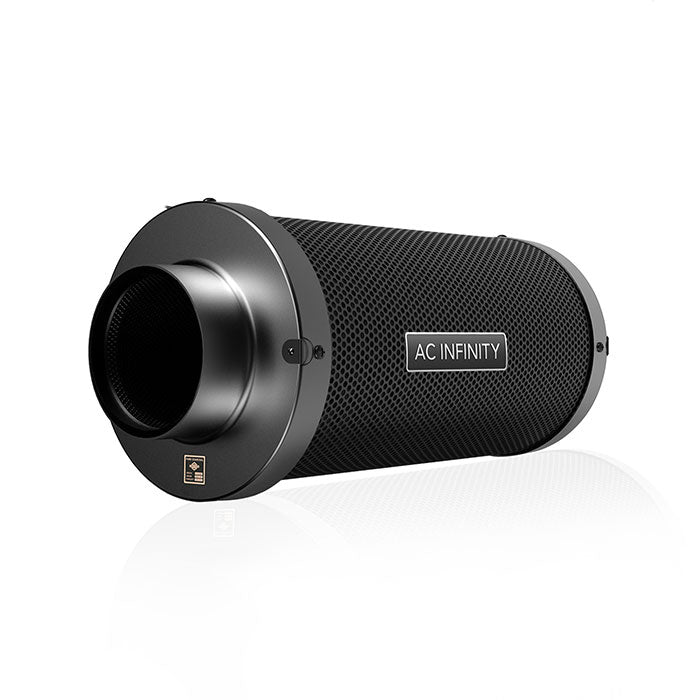

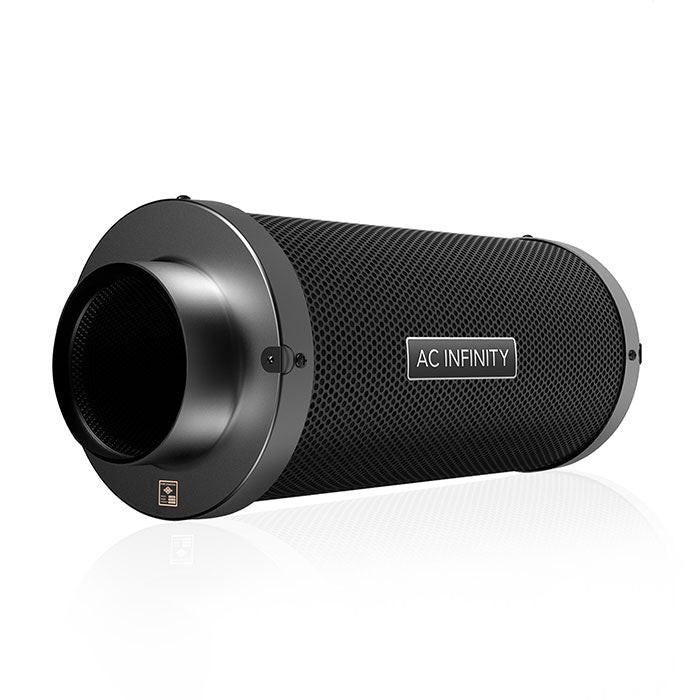

AC Infinity Australian Charcoal Duct Carbon Filter Installation GuideThe high-airflow duct filter is designed to use activated carbon to eliminate odors and chemicals, popularly used for hydroponics, grow rooms, kitchens, smoking areas, and other ventilation projects. Features premium-grade Australian Virgin charcoal bed. The filter can be used in conjunction with an inline duct fan to act as both an intake and exhaust configuration. Heavy-duty construction contains aluminum flanges and dual-sided galvanized steel mesh. The flanges can also be reversed to prolong the life of the filter. Includes two machine washable pre-filter cloths to prevent carbon residue and two hanging straps for easy installation.
Each carbon filter features premium-grade Australian Virgin charcoal bed rated at 1200+ IAV. It achieves a 38mm charcoal bed thickness and wider mesh openings thanks to a higher microporosity and surface area rating. This combination not only enables a higher adsorption rate without restricting free airflow, but it also allows the carbon filter to last up to 33% longer.
- Designed to eliminate odors and chemicals for grow tents and hydroponics rooms.
- Features premium-grade Australian charcoal with higher adsorption and longer life rating.

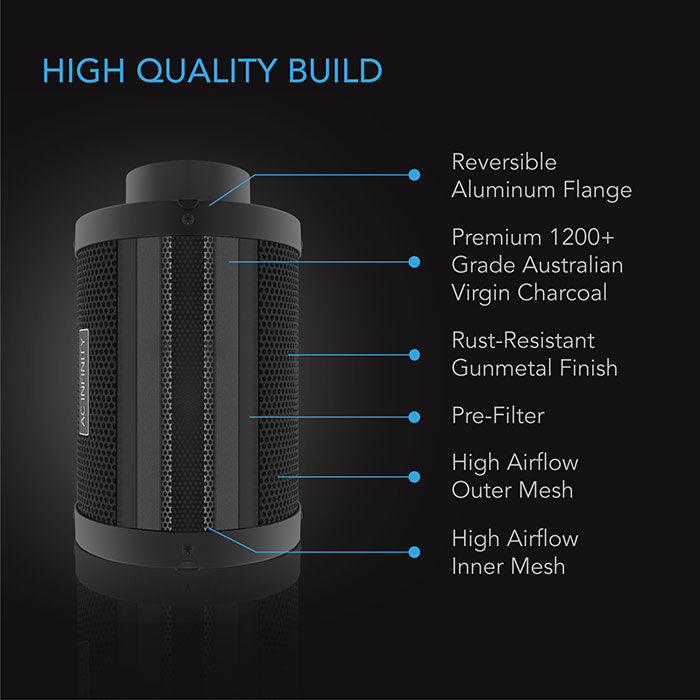

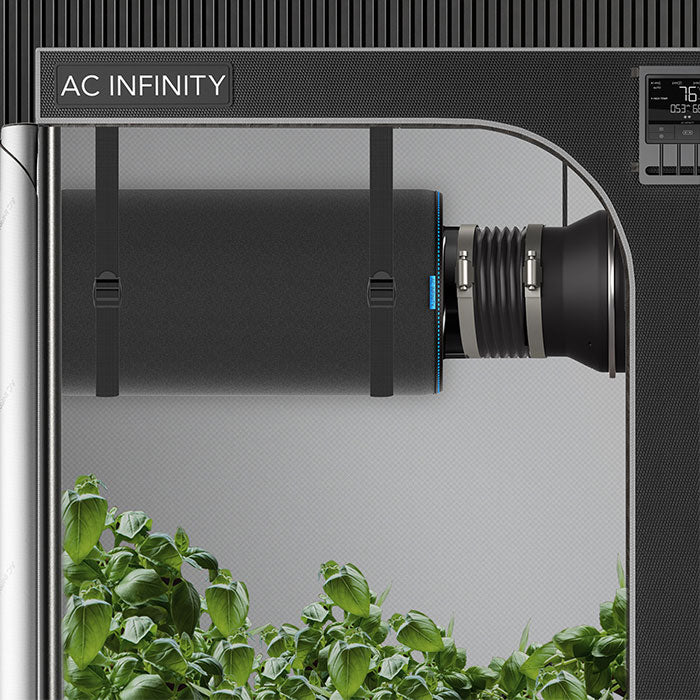

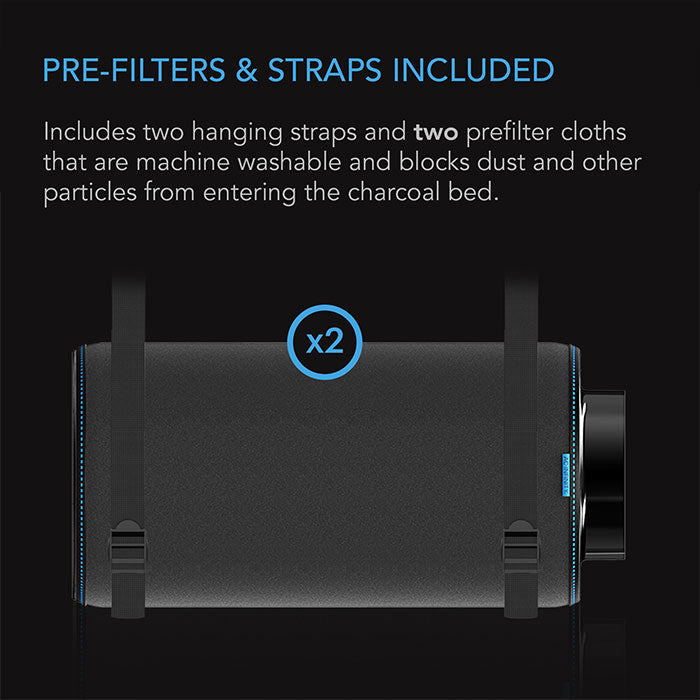

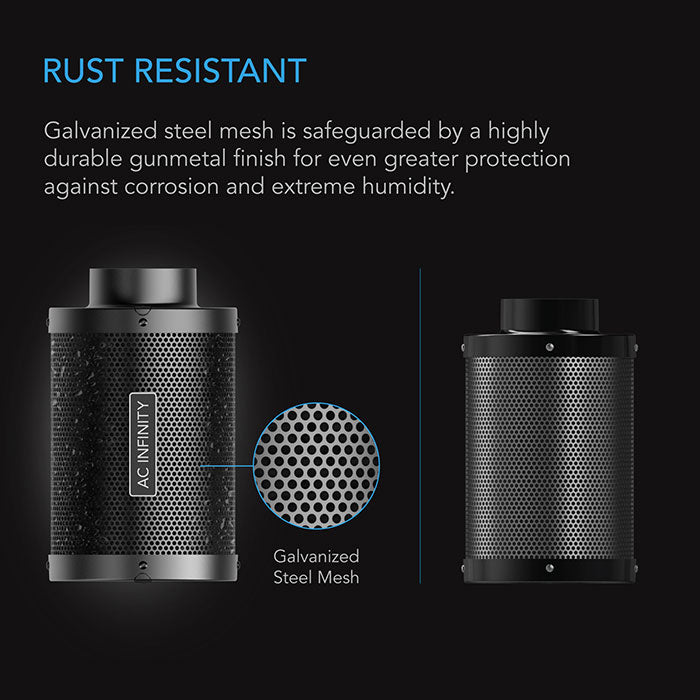

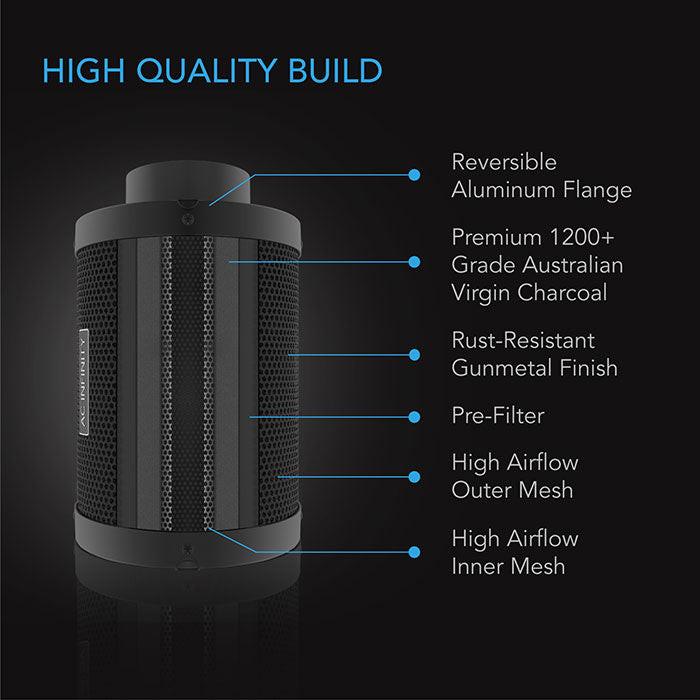

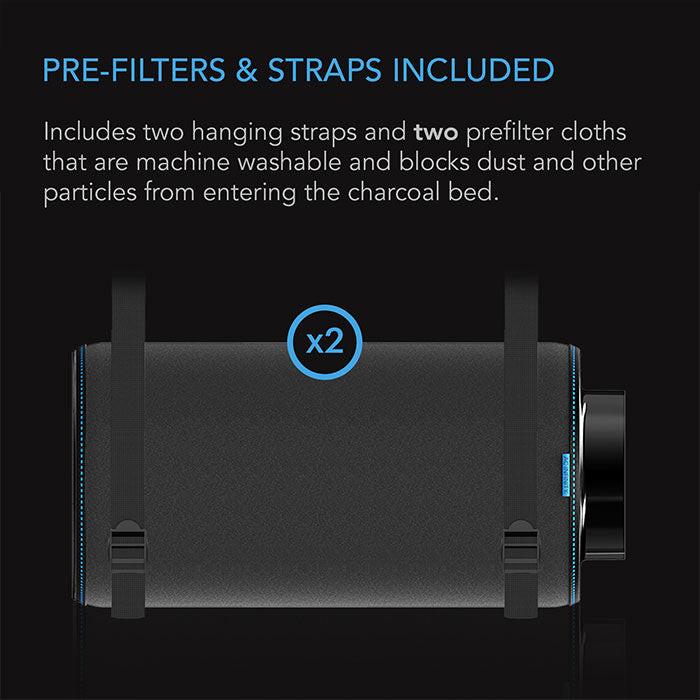

- Contains heavy-duty aluminum flanges, galvanized steel meshing, two hanging straps, and two clothed pre-filters.

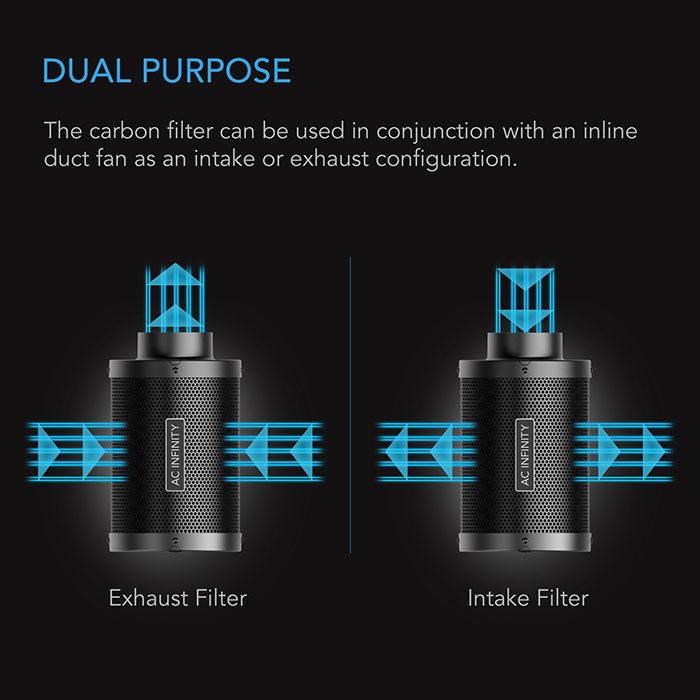

- Enables maximum airflow passthrough for both intake and exhaust configurations.
- Carbon: Australian RC412 at 1200+ IAV
Specifications for AC Infinity Carbon Filters
Size | 4" | XL 4" | 6" | XL 6" |
---|---|---|---|---|
Airflow Rating | 210 CFM | 300 CFM | 410 CFM | 520 CFM |
Dimensions | 4" x 13" | 4" x 16" | 6" x 16" | 6" x 20" |
Weight | 9 lbs. | 10 lbs. | 18 lbs. | 20 lbs. |
Carbon Type | Australian Virgin RC412 | |||
Bed Thickness | 38mm | |||
Recommended Tent Size | 2x2-4x4 | 2x4-4x4 | 5x5-5x9 | 5x5-5x9 |
Size | 8" | XL 8" | 10" | 12" |
---|---|---|---|---|
Airflow Rating | 770 CFM | 930 CFM | 1249 CFM | 1668 CFM |
Dimensions | 8" x 20" | 8" x 23" | 10" x 24" | 12" x 28" |
Weight | 23 lbs. | 25 lbs. | 40 lbs. | 50 lbs. |
Carbon Type | Australian Virgin RC412 | |||
Bed Thickness | 38mm | |||
Recommended Tent Size | 8x8 | 8x8 | 10x10 | 10x10 |
Brand | AC Infinity |
---|---|
SKU | AI-CF |
Hazardous Material | false |
