AC Infinity Product Documents

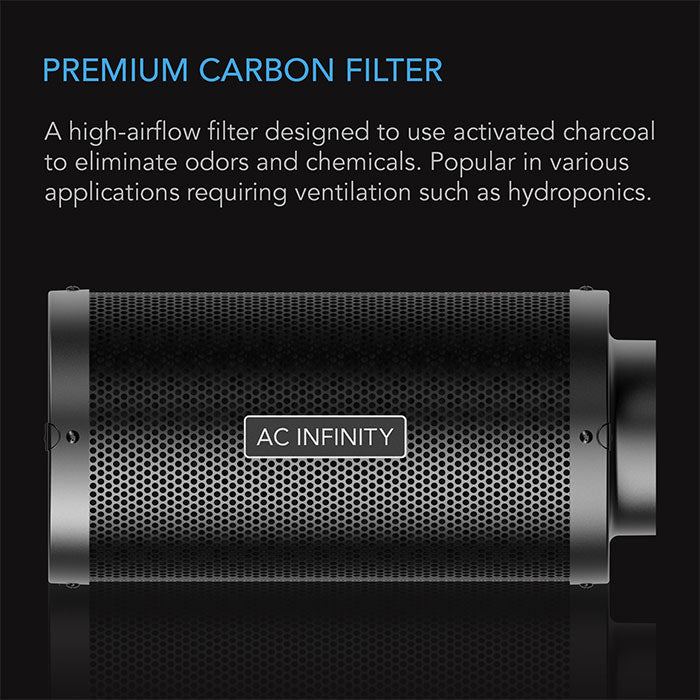

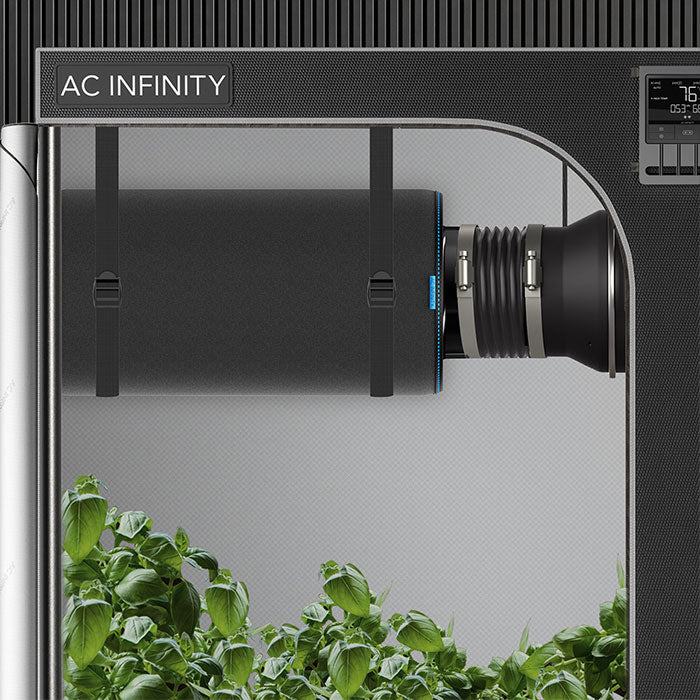

AC Infinity Australian Charcoal Duct Carbon Filter Installation GuideThe high-airflow duct filter is designed to use activated carbon to eliminate odors and chemicals, popularly used for hydroponics, grow rooms, kitchens, smoking areas, and other ventilation projects. Features premium-grade Australian Virgin charcoal bed. The filter can be used in conjunction with an inline duct fan to act as both an intake and exhaust configuration. Heavy-duty construction contains aluminum flanges and dual-sided galvanized steel mesh. The flanges can also be reversed to prolong the life of the filter. Includes two machine washable pre-filter cloths to prevent carbon residue and two hanging straps for easy installation.
Each carbon filter features premium-grade Australian Virgin charcoal bed rated at 1200+ IAV. It achieves a 38mm charcoal bed thickness and wider mesh openings thanks to a higher microporosity and surface area rating. This combination not only enables a higher adsorption rate without restricting free airflow, but it also allows the carbon filter to last up to 33% longer.
- Designed to eliminate odors and chemicals for grow tents and hydroponics rooms.
- Features premium-grade Australian charcoal with higher adsorption and longer life rating.

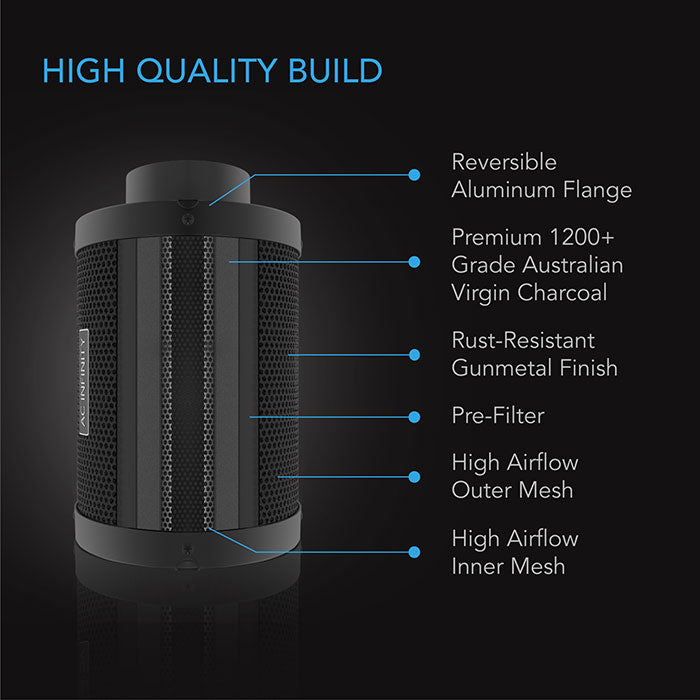

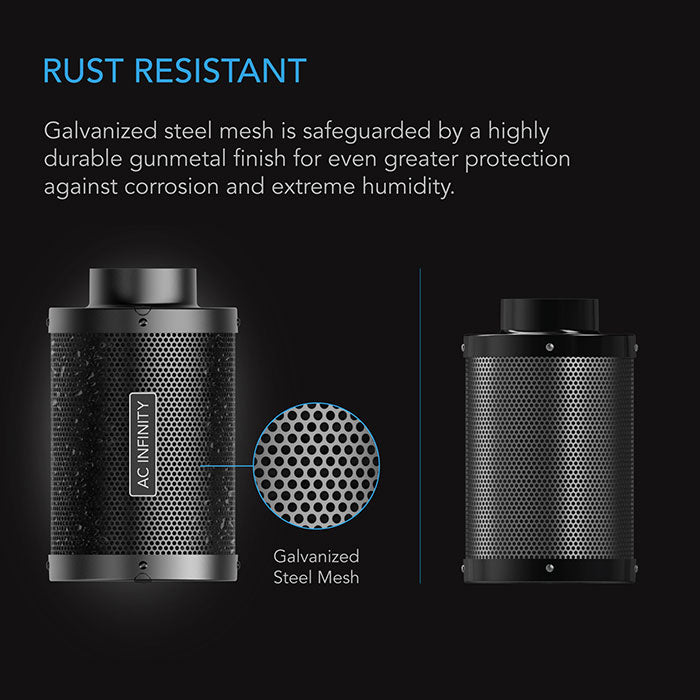

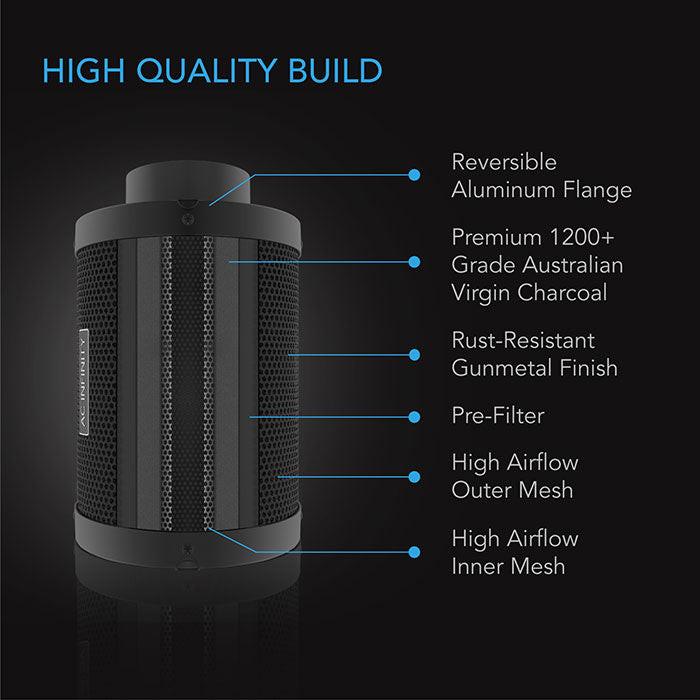

- Contains heavy-duty aluminum flanges, galvanized steel meshing, two hanging straps, and two clothed pre-filters.
- Enables maximum airflow passthrough for both intake and exhaust configurations.
- Carbon: Australian RC412 at 1200+ IAV

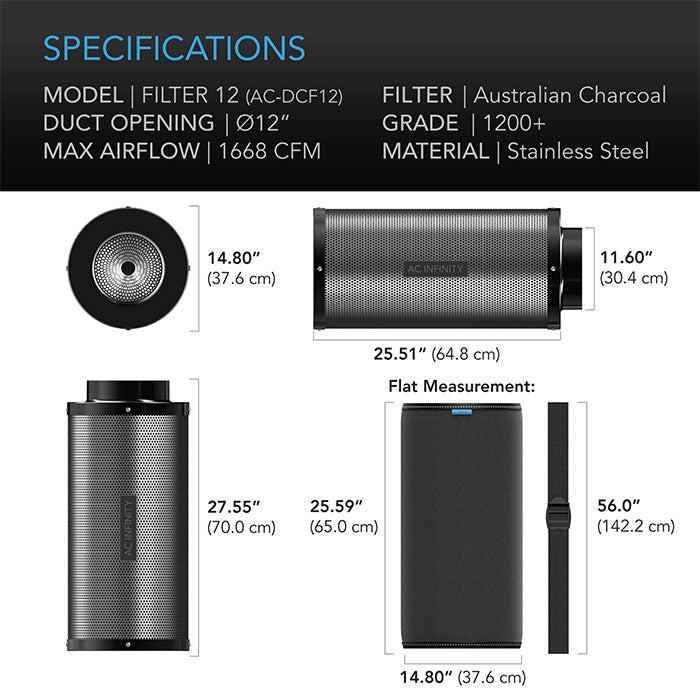

Specifications for AC Infinity Carbon Filters
| Size | 4" | XL 4" | 6" | XL 6" |
|---|---|---|---|---|
| Airflow Rating | 210 CFM | 300 CFM | 410 CFM | 520 CFM |
| Dimensions | 4" x 13" | 4" x 16" | 6" x 16" | 6" x 20" |
| Weight | 9 lbs. | 10 lbs. | 18 lbs. | 20 lbs. |
| Carbon Type | Australian Virgin RC412 | |||
| Bed Thickness | 38mm | |||
| Recommended Tent Size | 2x2-4x4 | 2x4-4x4 | 5x5-5x9 | 5x5-5x9 |
| Size | 8" | XL 8" | 10" | 12" |
|---|---|---|---|---|
| Airflow Rating | 770 CFM | 930 CFM | 1249 CFM | 1668 CFM |
| Dimensions | 8" x 20" | 8" x 23" | 10" x 24" | 12" x 28" |
| Weight | 23 lbs. | 25 lbs. | 40 lbs. | 50 lbs. |
| Carbon Type | Australian Virgin RC412 | |||
| Bed Thickness | 38mm | |||
| Recommended Tent Size | 8x8 | 8x8 | 10x10 | 10x10 |
| Brand | AC Infinity |
|---|---|
| SKU | AC-DCF12 |
| Weight (lb.) | 50.0000 |
| Lead Time | 3-5 |
| Width (in.) | |
| Height (in.) | |
| Length (in.) | |
| Hazardous Material | false |
| UPC | 819137021617 |
| Prop 65 | false |
| CFM Rating | 1668 CFM |
| Flange Size | 12" Diameter |
| Flange Included | Yes |
The AC Infinity Duct Carbon Filter
What odors and chemicals does the AC Infinity Australian Charcoal Duct Carbon Filter, 12" x 28" - 1668 CFM help eliminate?
The AC Infinity Australian Charcoal Duct Carbon Filter, 12" x 28" - 1668 CFM uses activated carbon to eliminate odors and chemicals. The carbon filter suits hydroponics rooms, grow rooms, kitchens, smoking areas, and ventilation projects.
Can the AC Infinity Australian Charcoal Duct Carbon Filter, 12" x 28" - 1668 CFM work with an inline duct fan?
The AC Infinity Australian Charcoal Duct Carbon Filter, 12" x 28" - 1668 CFM works with an inline duct fan in intake and exhaust configurations.
What duct connection and airflow rating does the AC Infinity Australian Charcoal Duct Carbon Filter, 12" x 28" - 1668 CFM provide?
The AC Infinity Australian Charcoal Duct Carbon Filter, 12" x 28" - 1668 CFM provides a 12-inch diameter flange and a 1668 CFM airflow rating.
What carbon construction supports odor control and airflow in the AC Infinity Australian Charcoal Duct Carbon Filter, 12" x 28" - 1668 CFM?
The AC Infinity Australian Charcoal Duct Carbon Filter, 12" x 28" - 1668 CFM uses Australian Virgin RC412 charcoal rated at 1200+ IAV with a 38mm charcoal bed. The filter provides wider mesh openings, higher microporosity, maximum airflow passthrough, and a service life rated up to 33% longer.

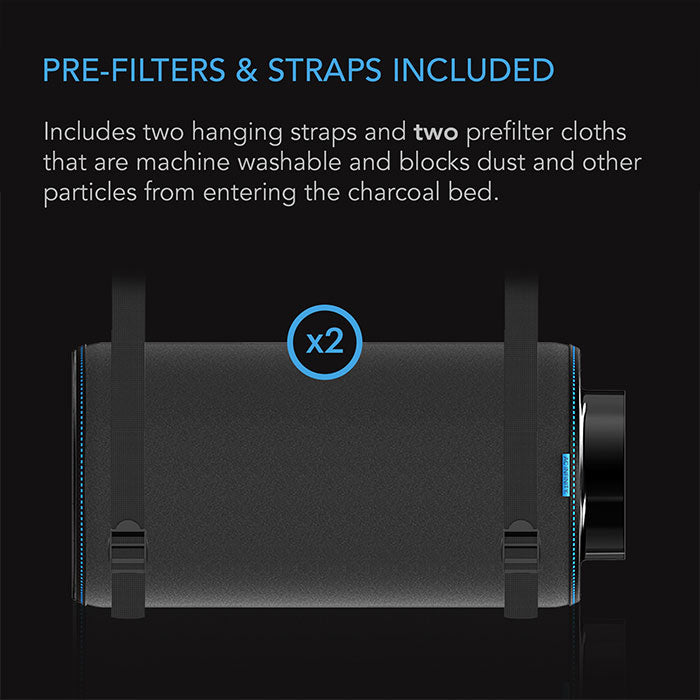

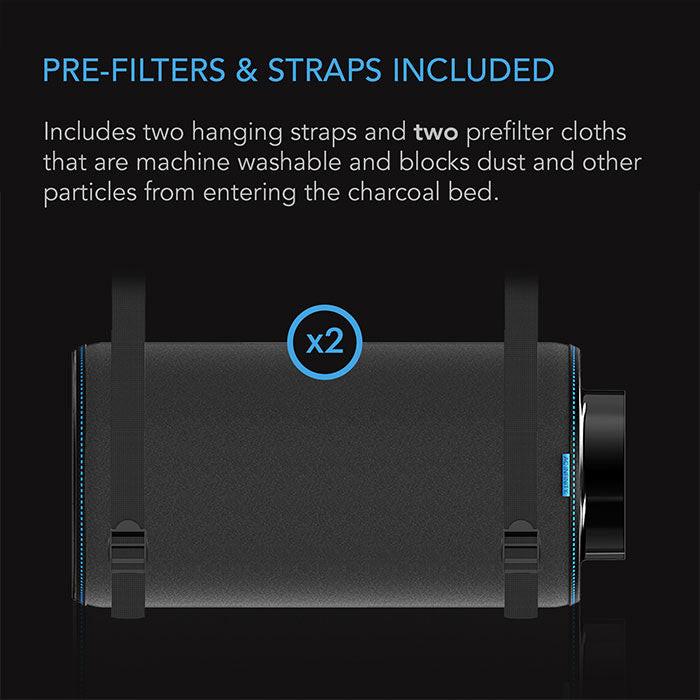

What installation accessories come with the AC Infinity Australian Charcoal Duct Carbon Filter, 12" x 28" - 1668 CFM?
The AC Infinity Australian Charcoal Duct Carbon Filter, 12" x 28" - 1668 CFM includes two machine-washable pre-filter cloths and two hanging straps. The filter also includes aluminum flanges and galvanized steel mesh.

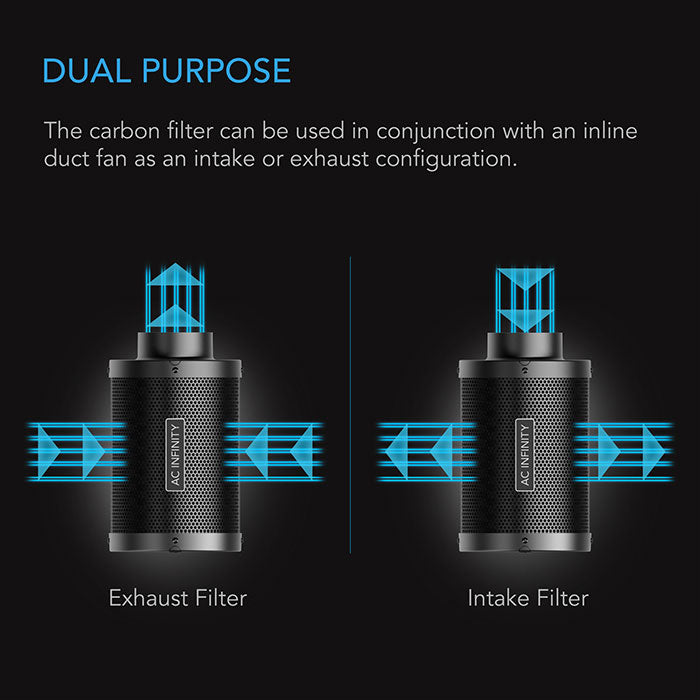

How can the AC Infinity Australian Charcoal Duct Carbon Filter, 12" x 28" - 1668 CFM be configured for ventilation?
The AC Infinity Australian Charcoal Duct Carbon Filter, 12" x 28" - 1668 CFM supports intake and exhaust configurations. The filter flanges can be reversed to prolong filter life.
