AC Infinity Product Documents

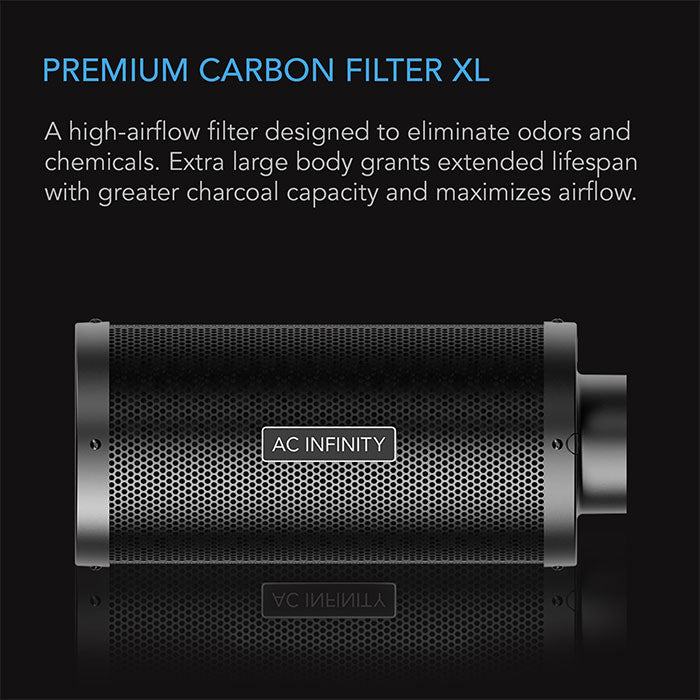

AC Infinity XL Australian Charcoal Duct Carbon Filter ManualThe high-airflow duct filter is designed to use activated carbon to eliminate odors and chemicals, popularly used for hydroponics, grow rooms, kitchens, smoking areas, and other ventilation projects. Features premium-grade Australian Virgin charcoal bed. The filter can be used in conjunction with an inline duct fan to act as both an intake and exhaust configuration. Heavy-duty construction contains aluminum flanges and dual-sided galvanized steel mesh. The flanges can also be reversed to prolong the life of the filter. Includes two machine washable pre-filter cloths to prevent carbon residue and two hanging straps for easy installation.
Each carbon filter features premium-grade Australian Virgin charcoal bed rated at 1200+ IAV. It achieves a 38mm charcoal bed thickness and wider mesh openings thanks to a higher microporosity and surface area rating. This combination not only enables a higher adsorption rate without restricting free airflow, but it also allows the carbon filter to last up to 33% longer.
- Designed to eliminate odors and chemicals for grow tents and hydroponics rooms.
- Features premium-grade Australian charcoal with higher adsorption and longer life rating.

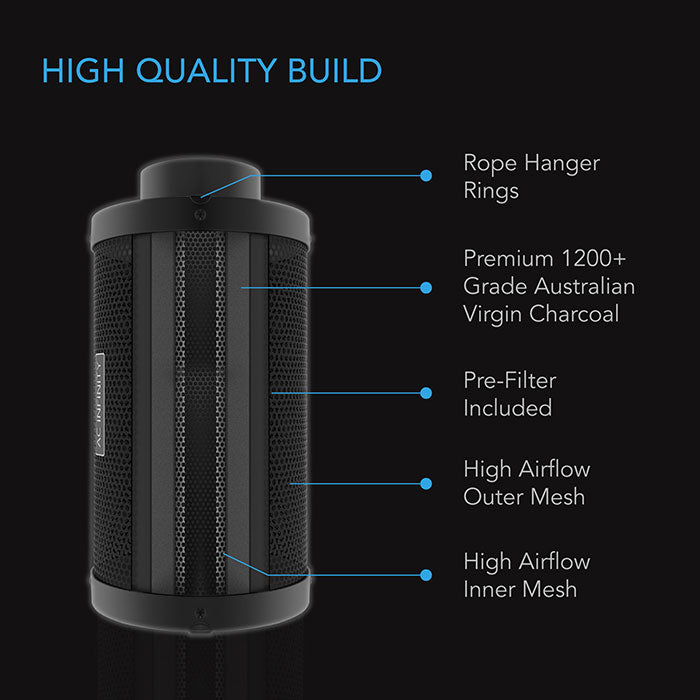

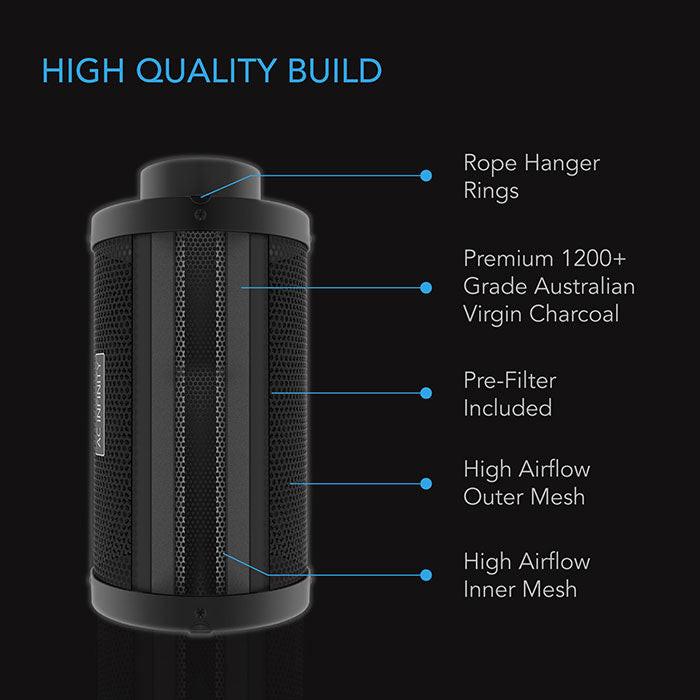

- Contains heavy-duty aluminum flanges, galvanized steel meshing, two hanging straps, and two clothed pre-filters.
- Enables maximum airflow passthrough for both intake and exhaust configurations.
- Carbon: Australian RC412 at 1200+ IAV

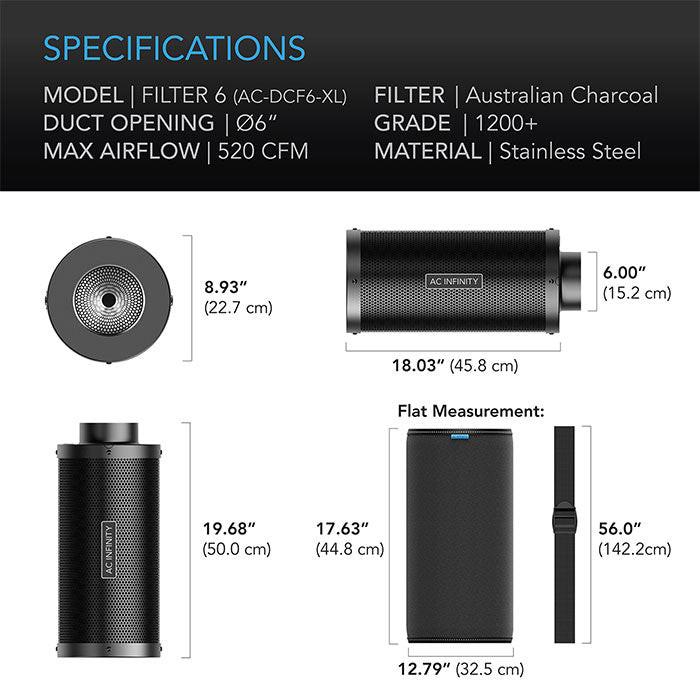

Specifications for AC Infinity Carbon Filters
| Size | 4" | XL 4" | 6" | XL 6" |
|---|---|---|---|---|
| Airflow Rating | 210 CFM | 300 CFM | 410 CFM | 520 CFM |
| Dimensions | 4" x 13" | 4" x 16" | 6" x 16" | 6" x 20" |
| Weight | 9 lbs. | 10 lbs. | 18 lbs. | 20 lbs. |
| Carbon Type | Australian Virgin RC412 | |||
| Bed Thickness | 38mm | |||
| Recommended Tent Size | 2x2-4x4 | 2x4-4x4 | 5x5-5x9 | 5x5-5x9 |
| Size | 8" | XL 8" | 10" | 12" |
|---|---|---|---|---|
| Airflow Rating | 770 CFM | 930 CFM | 1249 CFM | 1668 CFM |
| Dimensions | 8" x 20" | 8" x 23" | 10" x 24" | 12" x 28" |
| Weight | 23 lbs. | 25 lbs. | 40 lbs. | 50 lbs. |
| Carbon Type | Australian Virgin RC412 | |||
| Bed Thickness | 38mm | |||
| Recommended Tent Size | 8x8 | 8x8 | 10x10 | 10x10 |
| Brand | AC Infinity |
|---|---|
| SKU | AC-DCF6-XL |
| Weight (lb.) | 20.0000 |
| Lead Time | 3-5 |
| Width (in.) | |
| Height (in.) | |
| Warranty | 2 Year |
| Length (in.) | |
| Hazardous Material | false |
| UPC | 819137023017 |
| Prop 65 | false |
| CFM Rating | 520 CFM |
| Flange Size | 6" Diameter |
| Flange Included | Yes |
The AC Infinity Duct Carbon Filter
What odors and chemicals does the AC Infinity XL Australian Charcoal Duct Carbon Filter remove?
The AC Infinity XL Australian Charcoal Duct Carbon Filter uses activated carbon to eliminate odors and chemicals from ventilation air. The carbon filter suits grow rooms, hydroponics rooms, kitchens, smoking areas, and other ventilation projects.
Can the AC Infinity XL Australian Charcoal Duct Carbon Filter work with an inline duct fan?

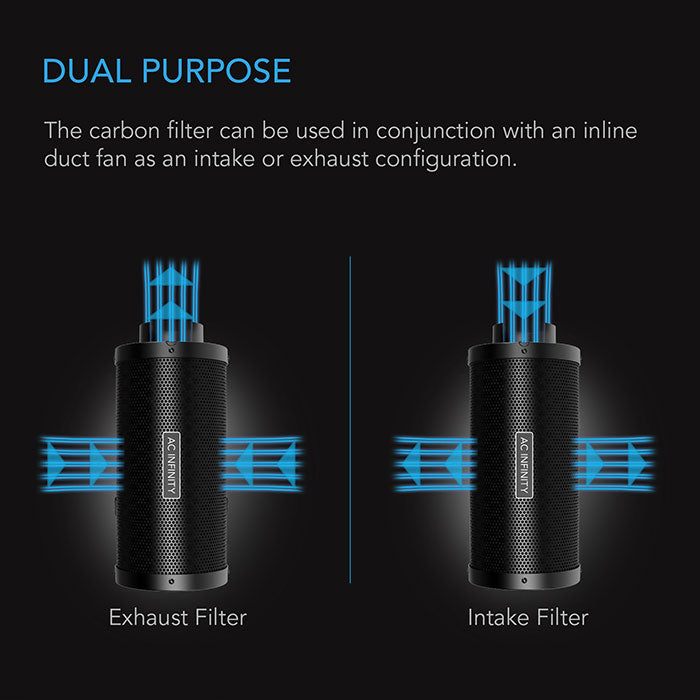

The AC Infinity XL Australian Charcoal Duct Carbon Filter works with an inline duct fan in intake or exhaust configurations. The filter provides maximum airflow passthrough for both setup types.
Which ventilation setup fits the AC Infinity XL Australian Charcoal Duct Carbon Filter?
The AC Infinity XL Australian Charcoal Duct Carbon Filter uses a 6-inch diameter flange, measures 6 inches by 20 inches, and carries a 520 CFM airflow rating. The filter suits ventilation systems using compatible 6-inch ducting and airflow requirements.
What installation and carbon-protection accessories come with the AC Infinity XL Australian Charcoal Duct Carbon Filter?

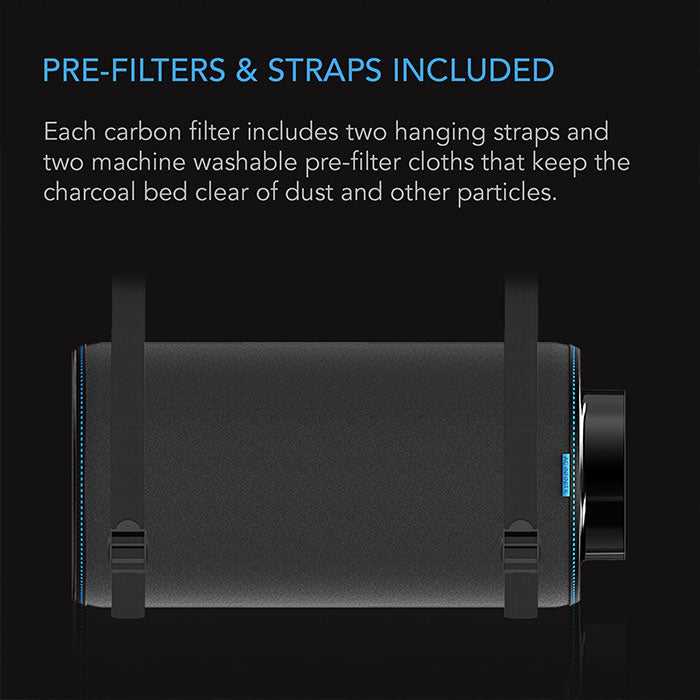

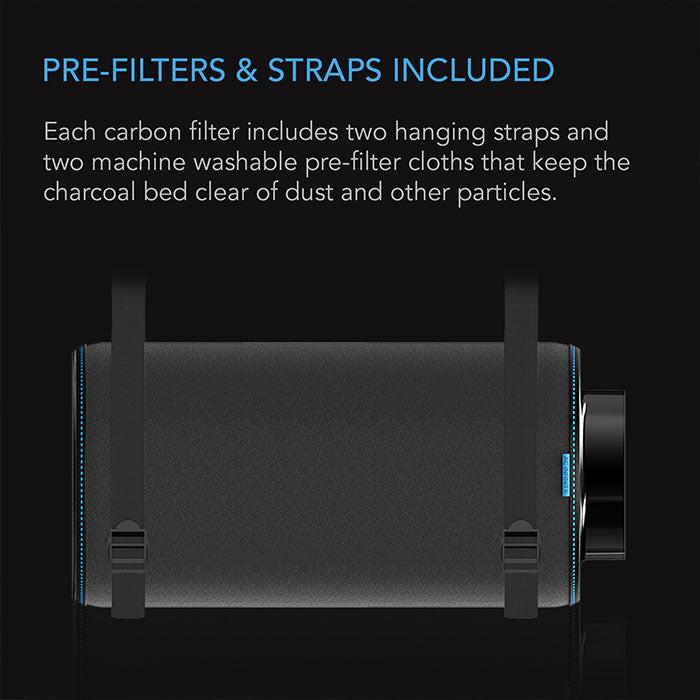

The AC Infinity XL Australian Charcoal Duct Carbon Filter includes two machine-washable pre-filter cloths and two hanging straps. The filter also contains aluminum flanges and dual-sided galvanized steel mesh.
How does the carbon construction support filtration performance and service life?
The AC Infinity XL Australian Charcoal Duct Carbon Filter uses Australian Virgin RC412 charcoal rated at 1200+ IAV with a 38mm charcoal bed. Higher microporosity, increased surface area, and wider mesh openings support higher adsorption, unrestricted free airflow, and a lifespan up to 33% longer.
Can the AC Infinity XL Australian Charcoal Duct Carbon Filter be adjusted to extend filter life?
The AC Infinity XL Australian Charcoal Duct Carbon Filter has reversible flanges that can be reversed to prolong filter life.
