TrolMaster Aqua-X Controller ComparisonThe Aqua-X Series is a professional-grade irrigation control system. It is a fully customizable modular-designed system. Installation is simple and the system is easy to expand.
Aqua-X Models

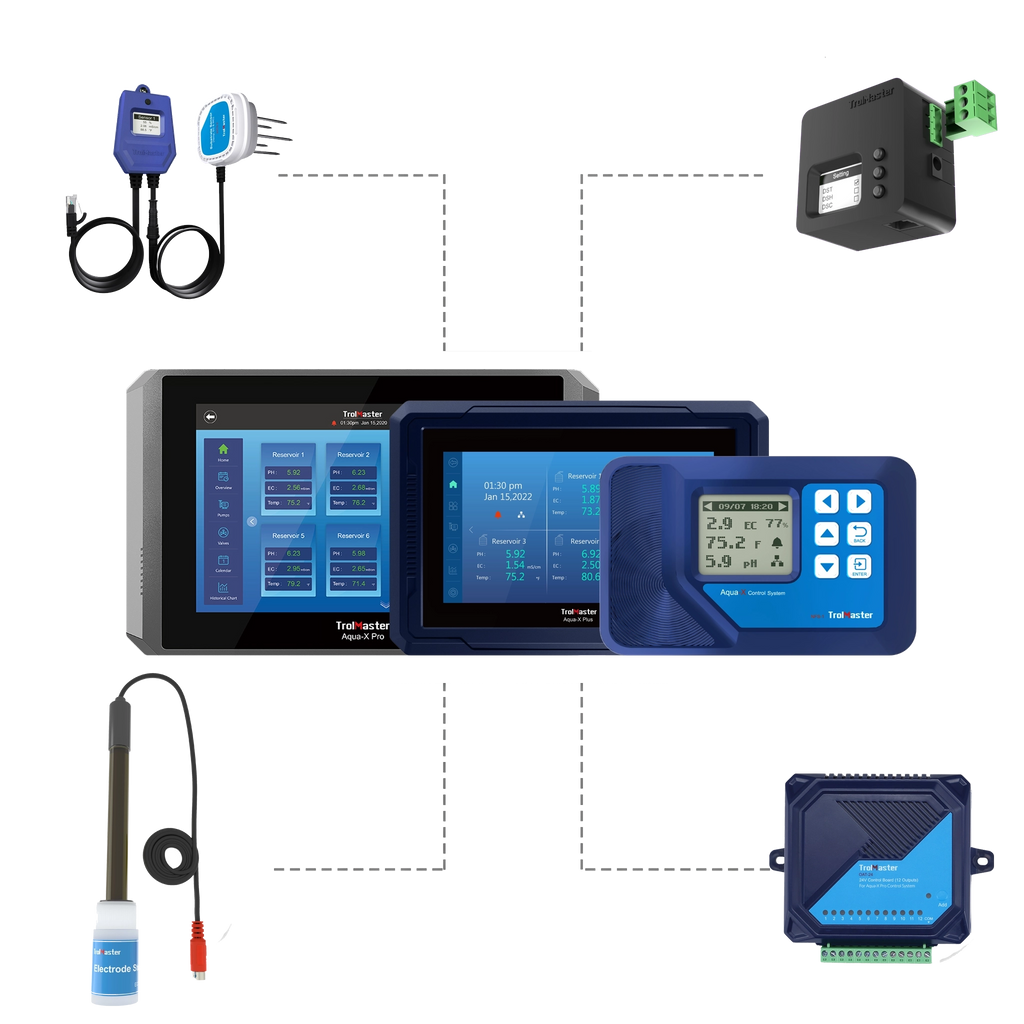

The entry-level Aqua-X (NFS-1) handles up to 30 irrigation zones of 24V solenoid valves or 120V pumps, monitors pH, EC and water temperature, reads up to eight water content sensors, and includes a water detector for leak alerts and watering confirmation. The Aqua-X Plus (NFS-3) upgrades to a 7" touchscreen, controls up to 240 devices, tracks up to 25 sensors including grow medium moisture, temperature and EC, and can use WCS-1/WCS-2 sensor readings to drive automated crop steering, along with Multiple Pump Link functions for pairing pumps and valves. At the top of the line, the Aqua-X Pro (NFS-2) offers a 10" touchscreen, capacity for up to 300 pumps and 300 solenoids, up to 50 sensors and 50 irrigation schedules, and flexible triggering by timer, moisture sensor or the DFM-1 flow meter, with feed-on-demand, feed-by-volume and reservoir auto-fill. Every model connects to the free TrolMaster app, so growers can check settings and receive alerts from anywhere.
Aqua-X Water Monitoring
The TrolMaster pH probes provide accurate and reliable monitoring on the pH of the water being monitored. The PHH probe connects to the main controller via the sensor board AMP-2 or AMP-3. The TrolMaster EC and temperature probes provide accurate and reliable monitoring of the EC and temperature of the water being monitored. The PCT probe connects to the main controller via the sensor board AMP-2 or AMP-3.
- Aqua-X Reservoir EC + Temp Sensor
- Aqua-X Inline EC + Temp Sensor
- Aqua-X Drop-In/Inline Heavy-Duty EC + Temp Sensor
- Aqua-X Reservoir pH Sensor
- Aqua-X Inline pH Sensor
- Aqua-X Drop-In/Inline Heavy-Duty Nutrient pH Sensor
Aqua-X Control Boards
- Aqua-X 110 Volt Control Board
- Aqua-X 24 Volt 6 Output Control Board
- Aqua-X 24 Volt 12 Output Control Board for Aqua-X Pro & Plus
- Hydro-X Universal Air Conditioner Remote Control Station
Aqua-X Water Detection
Aqua-X Controller Comparison
| Quick Look | Aqua-X (NFS-1) |
Aqua-X Plus (NFS-3) |
Aqua-X Pro (NFS-2) |
|---|---|---|---|
| Size | Backlit 128 x 128 LCD Display | 7" LCD Color Display | 10.1" LCD Screen |
| Control | Button Control | Touchscreen | Touchscreen |
| Save / Copy / Import / Export Data | Micro-SD | Micro-SD | USB |
| Firmware Update | Micro-SD | Micro-SD / Online | USB / Online |
| Package Content | Aqua-X Controller x1 Water Detector Sensor x1 Touch Spot x1 Mounting Plate x1 |
Aqua-X Plus Controller x1 AMP-3 Sensor Board x1 RJ12 Cable Set x1 Mounting Plate x1 |
Aqua-X Pro Controller x1 AMP-3 Sensor Board x1 RJ12 Cable Set x1 Mounting Plate x1 |
| Product Capacity | |||
| MAX. Number Of Water Sensors | |||
| Sensor BoardModule to connect the Aqua-X & pH / EC Sensor | Max. 1 pc (AMP-2) | Max. 5 pcs (AMP-3) | Up to 50 Sensor Boards (AMP-3) & Water Detectors (WD-1/2) in combination |
| PPH-1/2/3Water pH Sensor | Max. 1 pc | Max. 5 pcs | Up to 50 Sensor Boards (AMP-3) & Water Detectors (WD-1/2) in combination |
| PCT-1/2/3Water EC & Temp Sensor | Max. 1 pc | Max. 5 pcs | Up to 50 Sensor Boards (AMP-3) & Water Detectors (WD-1/2) in combination |
| MAX. Number Of Water Detector | |||
| WD-1/2Water Detectors | Max. 25 pcs | Max. 20 pcs | Up to 50 Sensor Boards (AMP-3) & Water Detectors (WD-1/2) in combination |
| WCS-1/2Water Content Sensors | Max. 8 pcs | Max. 20 pcs | Up to 50 Sensor Boards (AMP-3) & Water Detectors (WD-1/2) in combination |
| DFM-1/2/3Digital Flow Meter | — | — | Up to 50 Sensor Boards (AMP-3) & Water Detectors (WD-1/2) in combination |
| MAX. Number Of Control Modules in Combination | |||
| OA6-2424V - 6 outputs | Up to 5 pcs in combination | Up to 10 pcs in each pumps & valves channels (Up to 120 pumps + 120 valves in total) | Up to 50 control modules in each pumps & valves channels (Up to 600 pumps + 600 valves in total)* |
| DSV-124V | Up to 5 pcs in combination | Up to 10 pcs in each pumps & valves channels (Up to 120 pumps + 120 valves in total) | Up to 50 control modules in each pumps & valves channels (Up to 600 pumps + 600 valves in total)* |
| OA6-110110V & 1.5A - 6 outputs | Up to 5 pcs in combination | Up to 10 pcs in each pumps & valves channels (Up to 120 pumps + 120 valves in total) | Up to 50 control modules in each pumps & valves channels (Up to 600 pumps + 600 valves in total)* |
| DSP-1/2110V / 240V & 10A | Up to 30 individual schedule outputs | Up to 10 pcs in each pumps & valves channels (Up to 120 pumps + 120 valves in total) | Up to 50 control modules in each pumps & valves channels (Up to 600 pumps + 600 valves in total)* |
| DSD-1Dry Contact & 6A | Up to 30 individual schedule outputs | Up to 10 pcs in each pumps & valves channels (Up to 120 pumps + 120 valves in total) | Up to 50 control modules in each pumps & valves channels (Up to 600 pumps + 600 valves in total)* |
| OAT-2424V - 12 outputs | — | Up to 10 pcs in each pumps & valves channels (Up to 120 pumps + 120 valves in total) | Up to 50 control modules in each pumps & valves channels (Up to 600 pumps + 600 valves in total)* |
| OM-8Dry Contact / 12A - 8 outputs | — | — | Up to 50 control modules in each pumps & valves channels (Up to 600 pumps + 600 valves in total)* |
| *Each OM-8 uses 8 of the 50 available control module addresses | |||
| Internet Connectivity | |||
| Remote Control / Monitoring | App | App | Web-based Program / App |
| Irrigation Control | |||
| Water EC & pH & Temp Monitoring | ✓ | ✓ | ✓ |
| Medium EC & Temp Monitoring | ✓ | ✓ | ✓ |
| Medium Moisture Level Monitoring | ✓ | ✓ | ✓ |
| Watering Confirmation Monitoring | ✓ | — | — |
| Leaking Detection | ✓ | ✓ | ✓ |
| Recycle Timer | ✓ | ✓ | ✓ |
| Individual Time Schedules | 12 schedules per day | Up to 50 schedules per day | Up to 50 schedules per day |
| Linked Master Pump | Max. 1 pc | Max. 120 pcs | Max. 300 pcs |
| Advanced Features | |||
| Multi-Zone Monitoring | — | ✓ | ✓ |
| Feed by Volumewith DFM-1/2 | — | — | — |
| Liquid Volume Monitoring | — | — | ✓ |
| Crop Steeringwith WCS-1/2 | — | ✓ | ✓ |
| Auto-Filling for Reservoirs | — | ✓ | ✓ |
| Calendar Reminders | — | — | ✓ |
| Calendar Control - Predetermined "Recipes" | — | — | ✓ |
