TrolMaster Aqua-X Water Detector + Touch Spot for watering confirmation

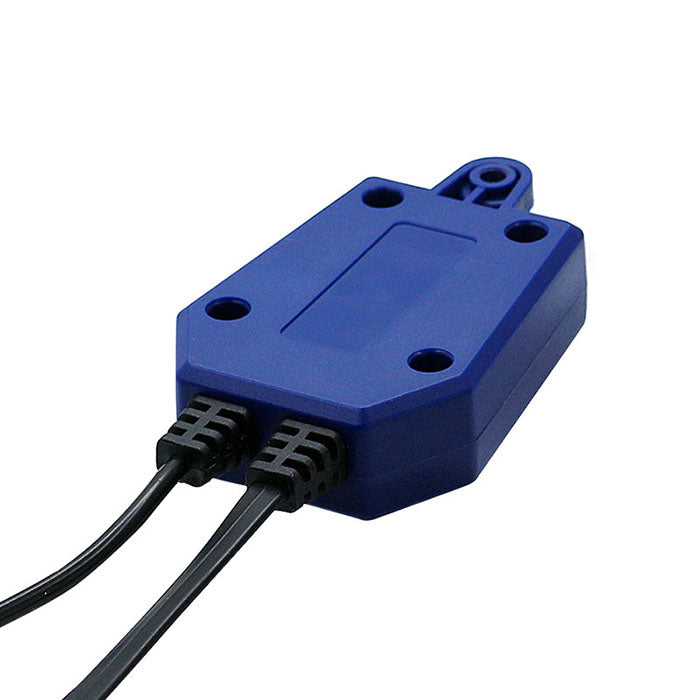

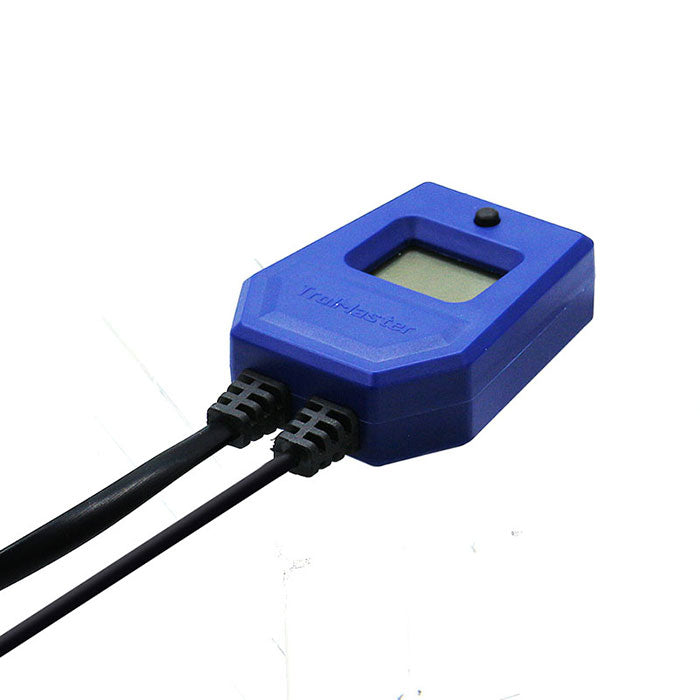

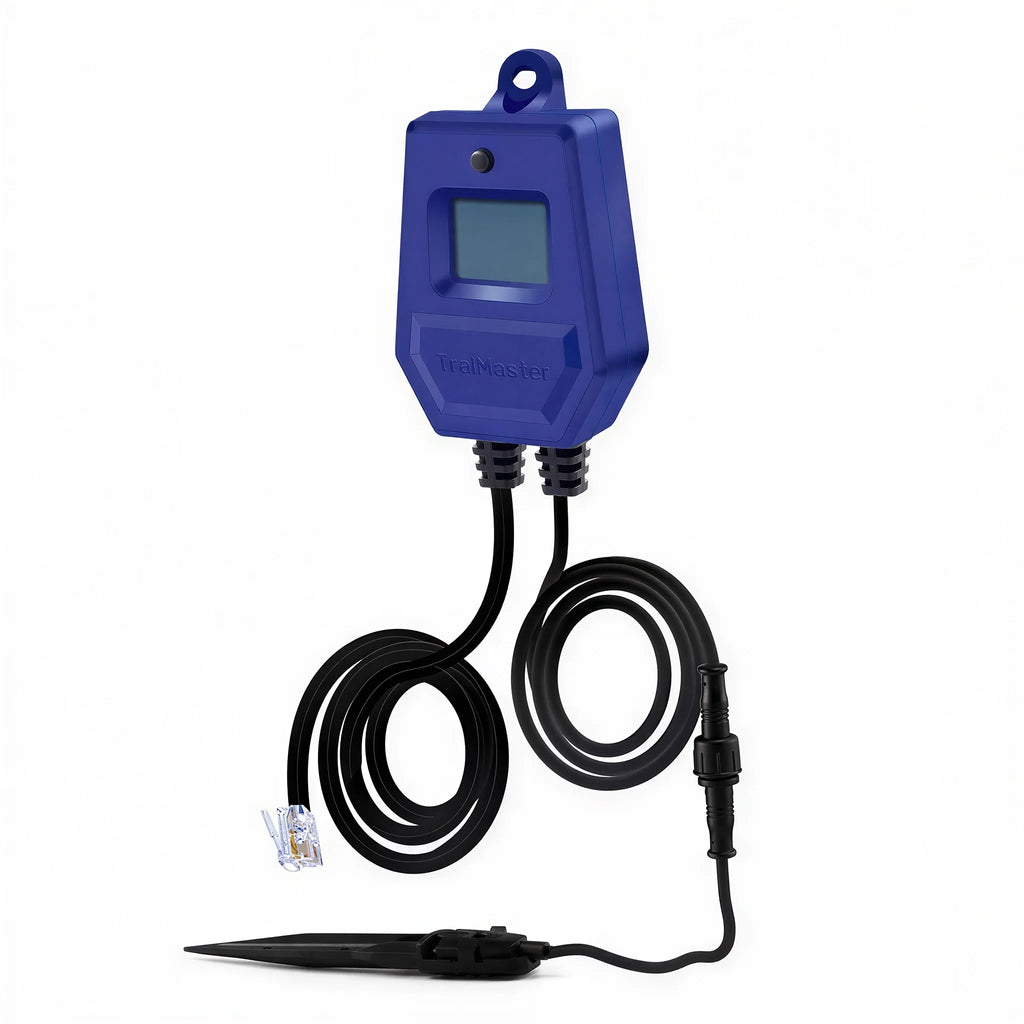

Aqua-X Water Detector （WD-1）

The WD-1 water detector can be used in one of two ways. First, it can be used to simply monitor the floor or a space for water… as a leak-detector. The other way the WC-1 can be used is as a water-verification monitor. When used in this way, the water detector is placed where runoff will accumulate (or where water is being introduced to the growing medium).

Each output (solenoid or pump) on the Aqua-x can be “assigned” to a specific WD-1. Every time the solenoid or pump assigned to the WD-1 is activated by the Aqua-X, the WD-1 must detect water within a adjustable delay time. If water is not detected (pump or solenoid failure) the Aqua-x will send out a user alert notifying of the “irrigation failure”. Up to 25 WD-1 can be connected to a single Aqua-x.

Package Contents:

• Water Detector
• Touch Spot
• RJ12 T-Splitter
• 16ft RJ12 Cable

Features:

• LCD Display, Easy Operation
• Addressing Button

Specifications:

• Working Environments: Temperature 32°-122°F, Humidity <90%
• Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
