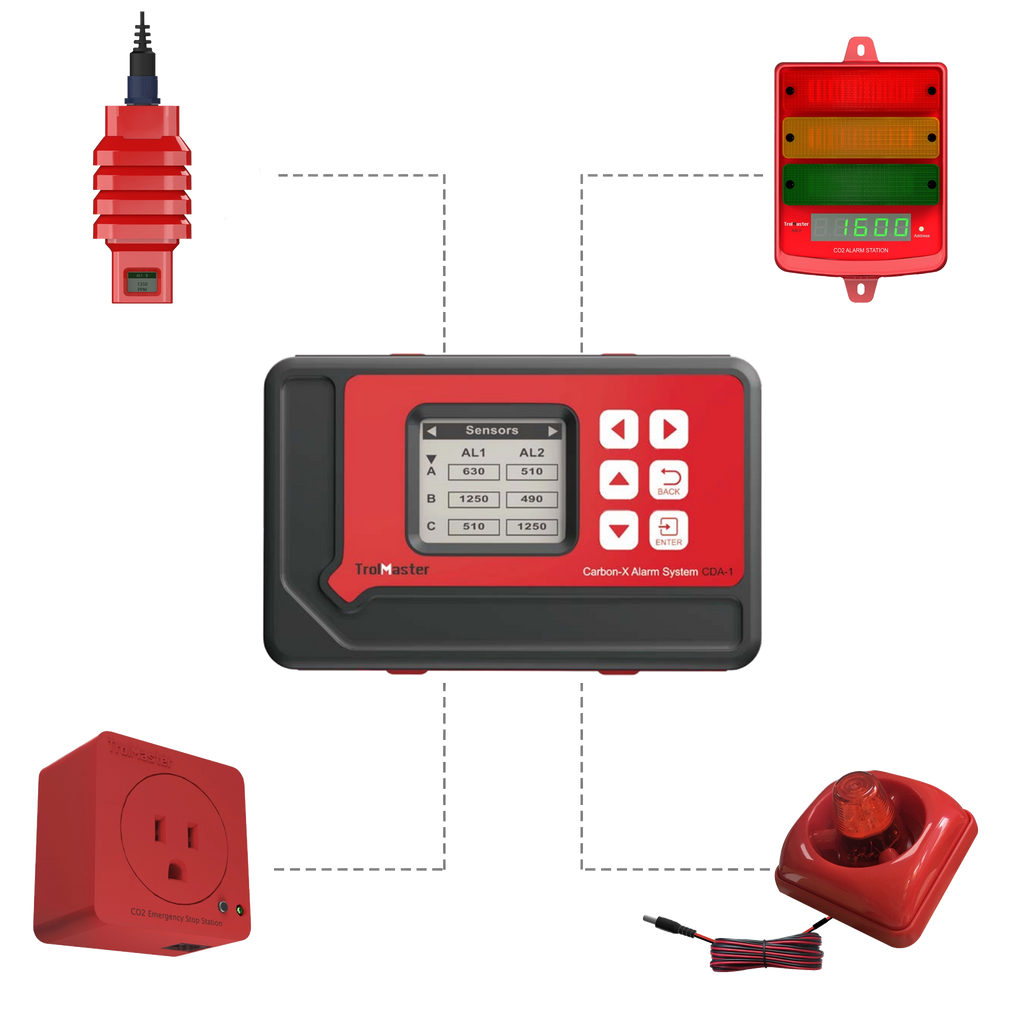

The TrolMaster Carbon-X System is designed to protect customers and workers near commercial indoor growing areas that use supplemental CO2, satisfying all local and state regulations. The system has a modular structure, allowing you to customize the system to fit your unique requirements, being able to monitor up to 13 zones.
The Carbon-X system offers both high level alerts, as well as low level alerts. The sensors will constantly monitor the CO2 level of the areas. If unsafe levels of CO2 are detected, the system can shut down CO2 flow, vent the area, turn on visual and audible alarms and even send signals to a fire alarm panel. The system can control up to 40 outputs total. Each output can be linked to an individual sensor or all sensors for a customized programming.
There are five types of outputs that can be connected to the system.
- AS-1 and AS-2 CO2 Alarm Stations are audio-visual alarm modules.
- DSE-1 CO2 Emergency Stop Station controls the main Co2 solenoid. It will automatically shut it off if any fault or high CO2 level is detected.
- DSC-1 is a 120V controlled outlet that turns on devices like ventilation fans if any fault or high CO2 level is detected.
- DSD-1 is a Dry Contact output. Both N/O and N/C connections are provided on the DSD-1 and it can interface to the fire alarm panel.
The Carbon-X system also provides internet connectivity to a cloud service that will send push alerts to Trolmaster’s smart phone APP and send alert emails to email accounts.
Carbon-X Sensor
The ability to read up to 30,000 ppm CO2 is critical to the proper operation and safety of an emergency CO2 system like the Carbon-X. The MBS-K30 is Trolmasters newest CO2 sensor, which incorporates a NDIR 0-30,000 ppm sensor in a self-aspirated enclosure. The MBS-K30 also features a built-in LCD display that will constantly display the current CO2 level (ppm). Each of the zones / rooms monitored by the Carbon-X can have 1 or 2 MBS-K30 CO2 sensors installed in order to satisfy local code requirements.
Carbon-X Control Alarms
- Carbon-X CO2 LED Alarm Station
- Carbon-X CO2 LED Alarm Station, Amber Light
- Carbon-X CO2 LED Alarm Station, Blue Light
- Carbon-X CO2 Alarm Station
Carbon-X Emergency Control
Carbon-X - Overview
Carbon-X - Introducing
