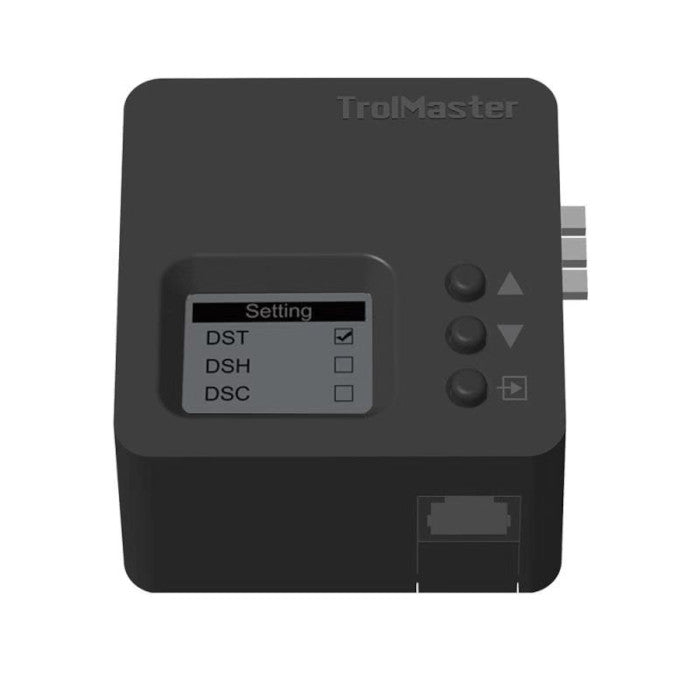

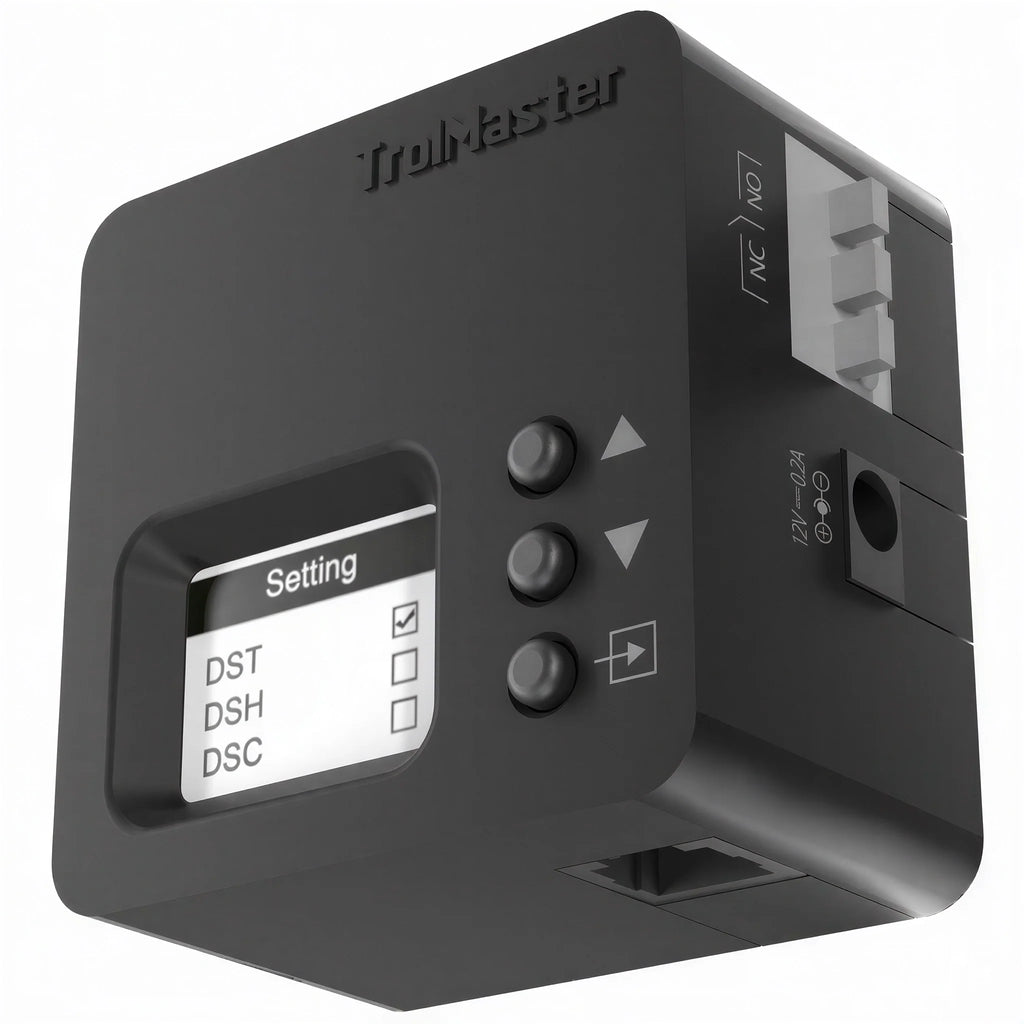

The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to user’s who want to connect & control devices to the Hydro-X using a dry-contact or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices.*
The DSD-1 plugs into a standard Nema 120 volt 15/20-amp power outlet to provide operating power to the DSD-1 circuitry. Then the user can use any voltage (up to 240 volts @ 10-amps) to connect their control voltage from their equipment to the common, normally open and/or normally closed contacts on the DSD-1. Almost any device that requires a dry-contact or relay to activate will work with the DSD-1.
The DSD-1 can be configured to work as the other Trolmaster power modules work. The DSD-1 connects into the devices line on the Hydro-X and can be set to control an almost infinite number and types of devices such as: Lighting contactors,Light Deprivation curtains,Pump contactors,Temperature devices,Humidity devices,CO2 devices
Whats Included:
- 1 x Dry Contact Station DSD-1
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specs:
- Input Voltage: 100~240VAC, 50/60Hz
- Output Current: 10A
- Output Voltage: 100~240VAC, 50/60Hz
- Working Environment: Temperature 32-122F, Humidity<90%
- Packaging Dimensions: 3.3" x 3.15" x 3.5"
| Brand | TrolMaster |
|---|---|
| SKU | DSD-1 |
| Weight (lb.) | 1.0000 |
| Lead Time | 2-3 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| Prop 65 | false |
| ETL Listed | Yes |
| UL Listed | No |
| Controller Functions | Multi-Function Control |
| Amps | 10A |
| Voltage | 24 Volts |
| Frequency | 50/60Hz |
TrolMaster Hydro-X Dry Contact Station Single Pack with Cable Set
What does the TrolMaster DSD-1 Dry Contact Station do with Hydro-X?
The TrolMaster DSD-1 connects devices requiring dry-contact or relay activation to the Hydro-X system. The module supports normally open and normally closed contact configurations.
Which equipment can the TrolMaster DSD-1 control?
The TrolMaster DSD-1 can control devices such as lighting contactors, light deprivation curtains, pump contactors, temperature devices, humidity devices, and CO2 devices. TrolMaster should confirm compatibility for a particular device.
How does the TrolMaster DSD-1 connect to a Hydro-X system?
The TrolMaster DSD-1 connects into the Hydro-X devices line and can be configured like other TrolMaster power modules.
What cable accessories are included with the TrolMaster DSD-1?
The TrolMaster DSD-1 package includes one 16-foot RJ12 cable, one 4-foot RJ12 cable, and one RJ12 T-splitter.
What power and control connection requirements apply to the TrolMaster DSD-1?
The TrolMaster DSD-1 plugs into a standard NEMA 120-volt 15/20-amp power outlet for operating power. Equipment control connections support any voltage up to 240 volts at 10 amps through common, normally open, and normally closed contacts.
