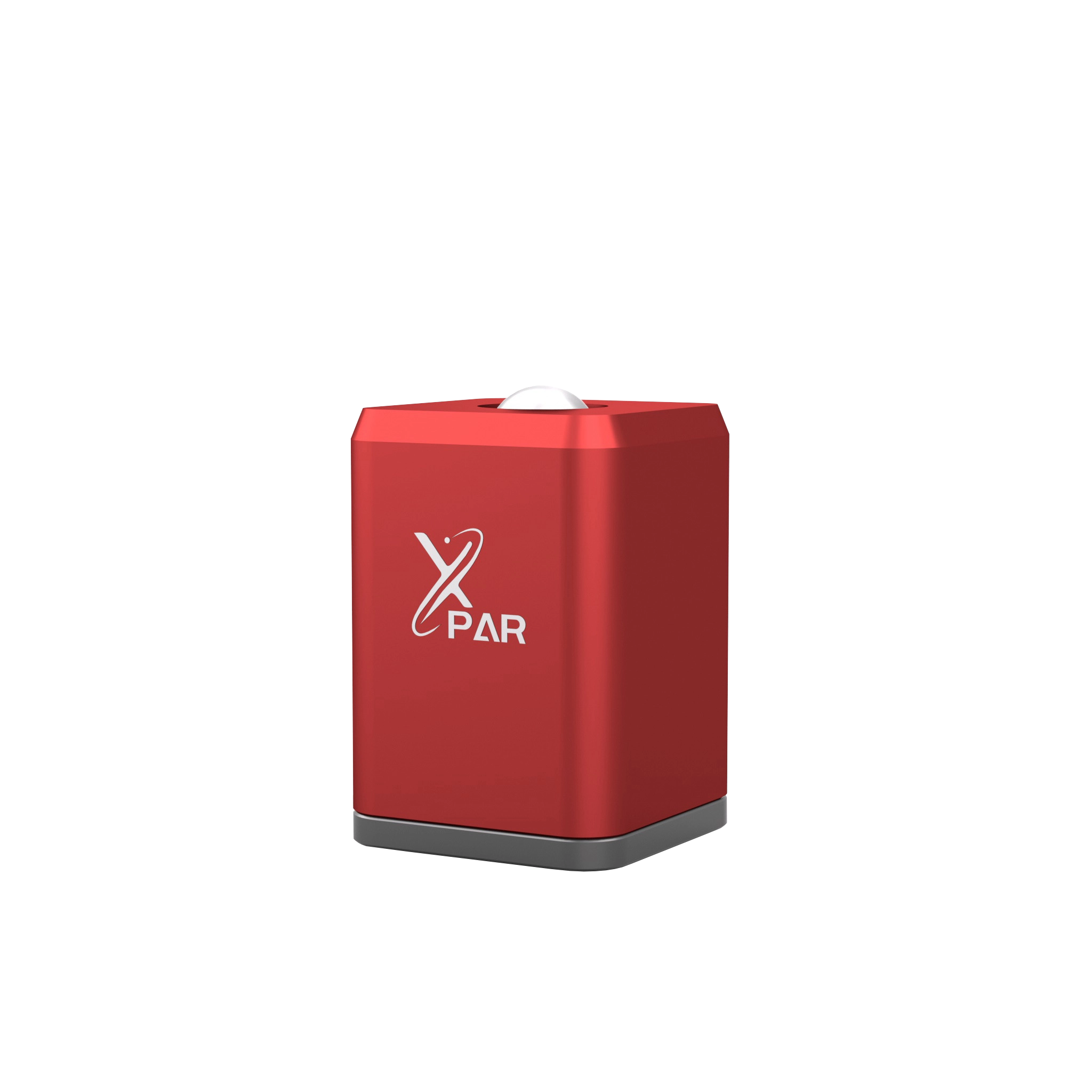

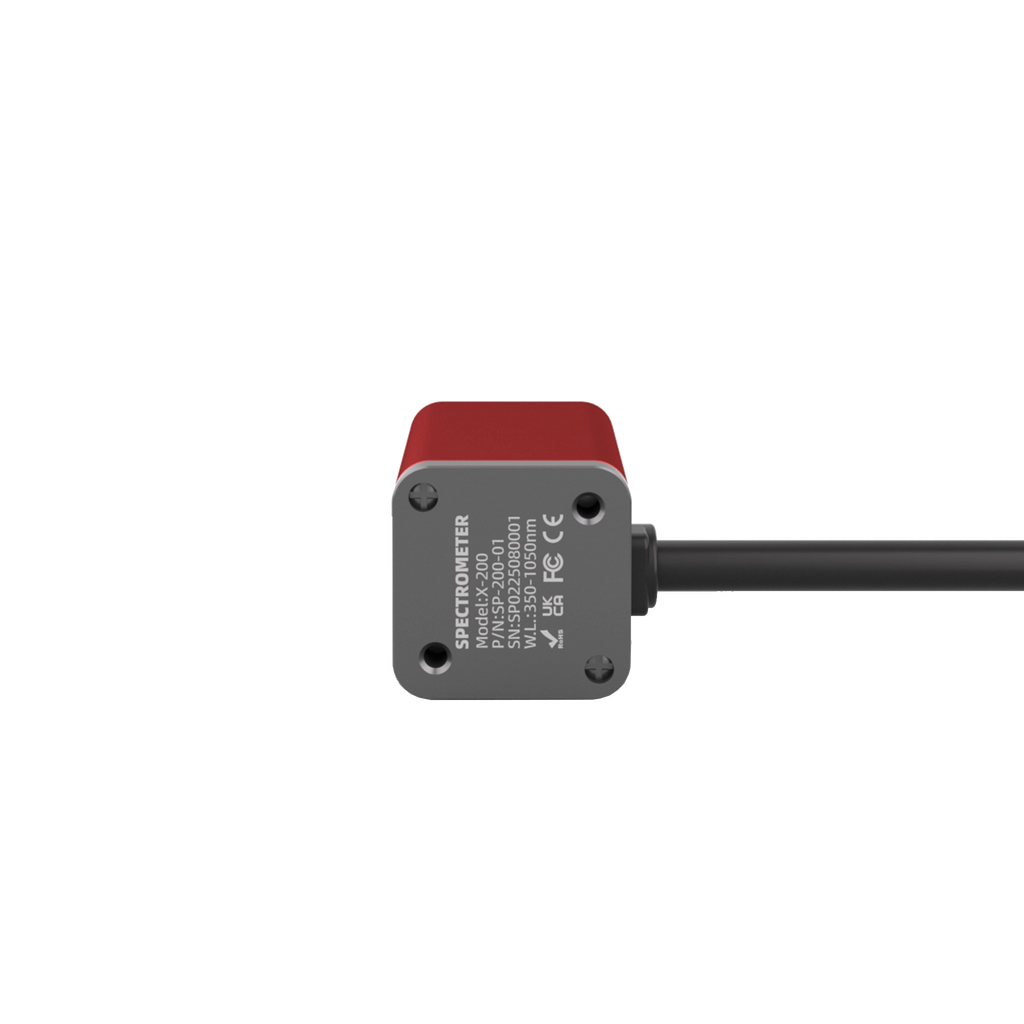

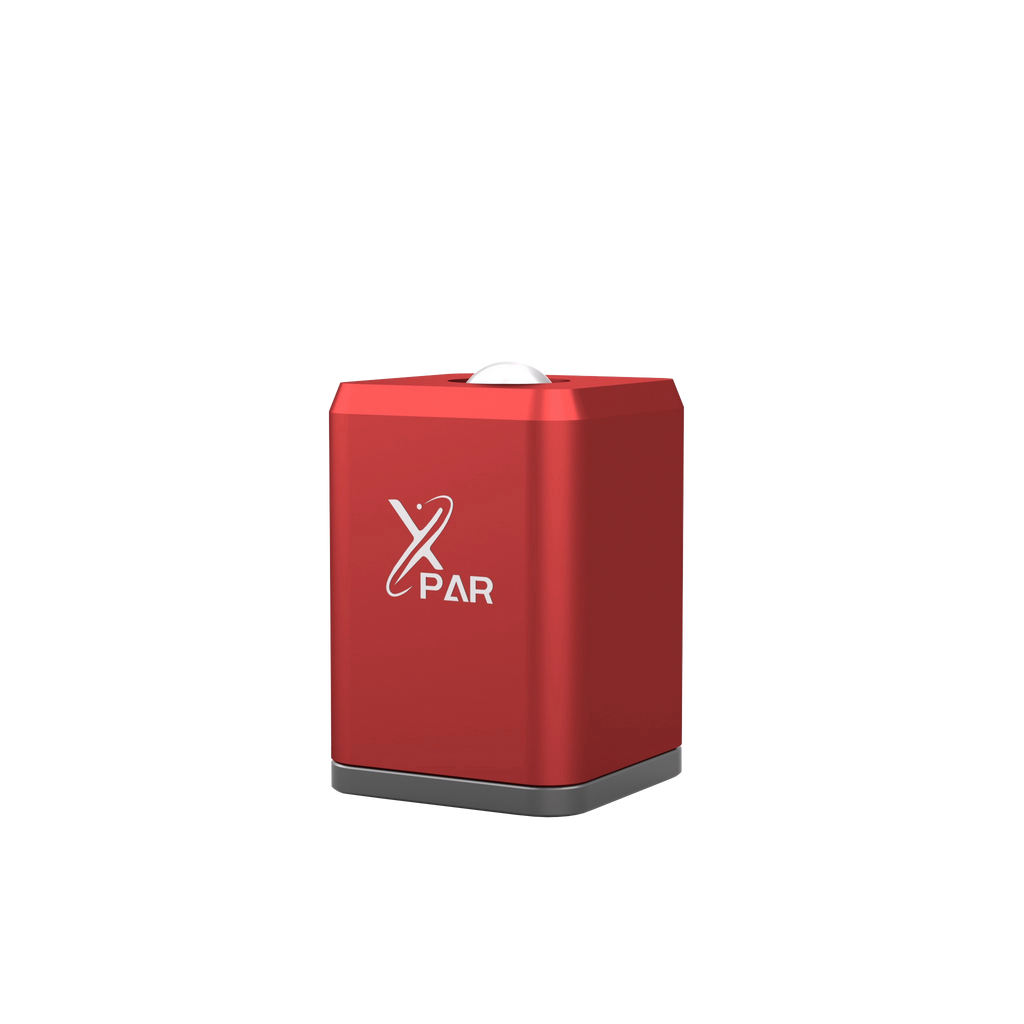

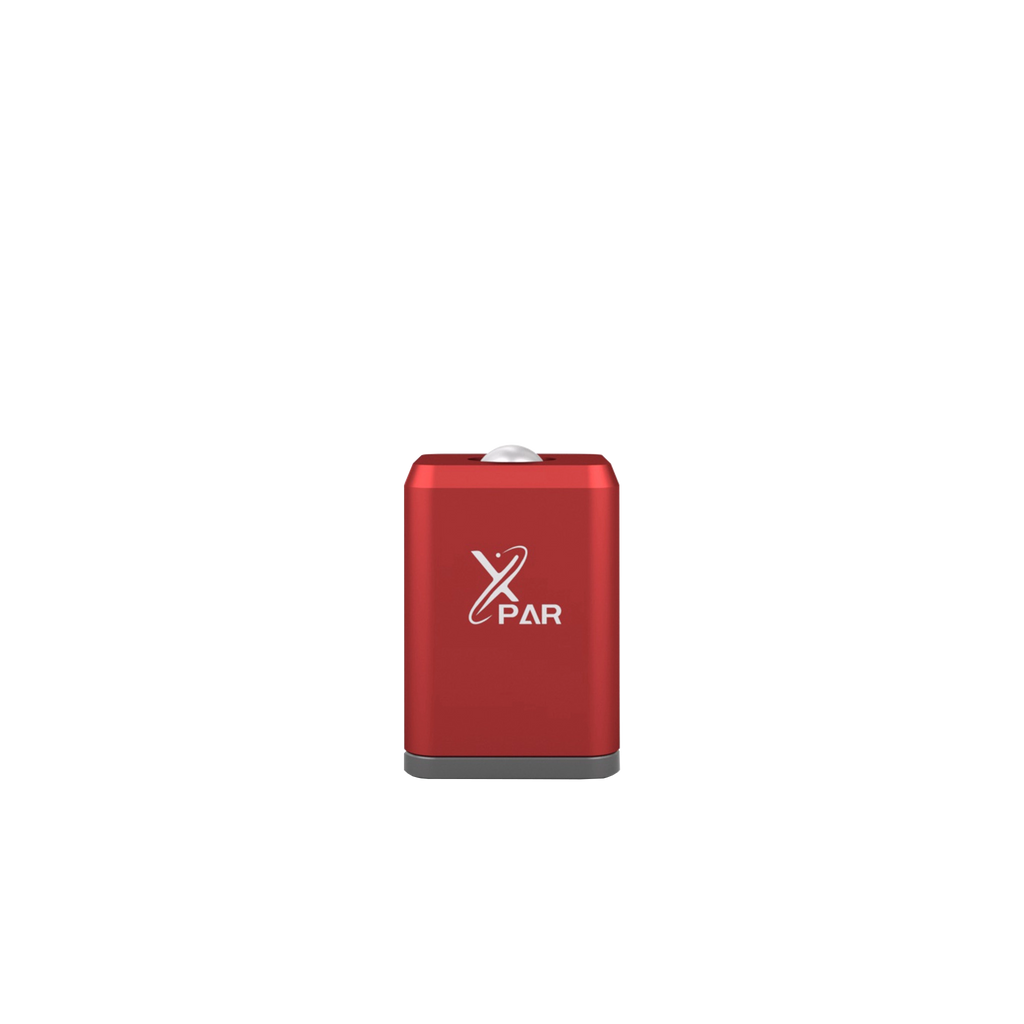

Performance Photon X-PAR 200 Spectrometer

SKU: X-200
No reviews
Performance Photon Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 2-3 business days

Price:
$1,171.65

Performance Photon Product Documents

Performance Photon Data Sheet Performance Photon Spec Sheet

X-200 Spectrometer delivers precise 350-1050nm spectrum and PFD analysis for all types of light sources, specfically designed for controlled-enviornment agriculture.

Multi-Indicator Analysis:

  • Spectral Power Distribution(SPD)
  • TPFD in Custom Wavebands;
  • PFD in different wavebands
  • DLI
  • R/B Ratio
  • R/FR Ratio
  • Peak Wavelength
  • Peak Wavelength Value
  • PAR Irradiance
  • Illuminance
  • CCT
  • CRI
  • Chlorophyll-A
  • Chlorophyll-B
  • Integration Time

Features:

Smaller Body, Stronger Performance
Enhanced micro spectro-chip with 1nm spectral resolution delivers lab-grade accuracy in an even more comapct design-deal for greenhouses, vertical farms, grow rooms, and lighting R&D

Advanced Metrics Analysis
Transforms complex light data into actionable insights, helping growers fine-tune lighting and improve plant performance.

Wide Spectrum Coverage
Full-spectrum visibility from 350-1050nm, enables accurate evalution and optimization across all growth stages.

Custom Wavelength Range
Supports user-defined wavelength ranges for tailored analysis and precise light management

Algorithm-Based Calibration

X-200 uses advanced algorithm-based calibration, combining NIST-traceable reference standard device and quartz halogen working standards with intelligent computation to achieve high-prevision spectral and PPFD measurements, ensuring accuracy up to ±5% (typically ±3%)

Performance Photone Zenith Angle

Specifications

Calibration Uncertainty ± 5%
Measurement Range 0 to 999,999 µmol m⁻² s⁻¹; 0 – 200,000 lx (lux)
Measurement Repeatability Less than 5%
Long-term Drift (Non-stability) Less than 2% per year
Non-linearity Less than 1% (up to 6000 µmol m⁻² s⁻¹)
Spectral Range 350 to 1050 nm
Spectral Resolution 1 nm
Wavelength Repeatability ± 1 nm
Directional (Cosine) Response ± 5% at 75° zenith angle
Tilt Error Less than 0.5%
Temperature Response Less than 0.15% per °C
Uncertainty in Daily Total Less than 5%
Accepted Light Sources All light sources including Natural, LED, Fluorescent, Incandescent, Gas Vapour, HID
Housing Weatherproof anodized aluminum case
IP Rating IP68
Warranty 3 years against defects in materials and workmanship
Mobile Operating Systems Android & iOS
Size 25 L × 25 W × 40 H (mm)
Weight 94 g

Accessories List

Standard Accessories Sensor × 1

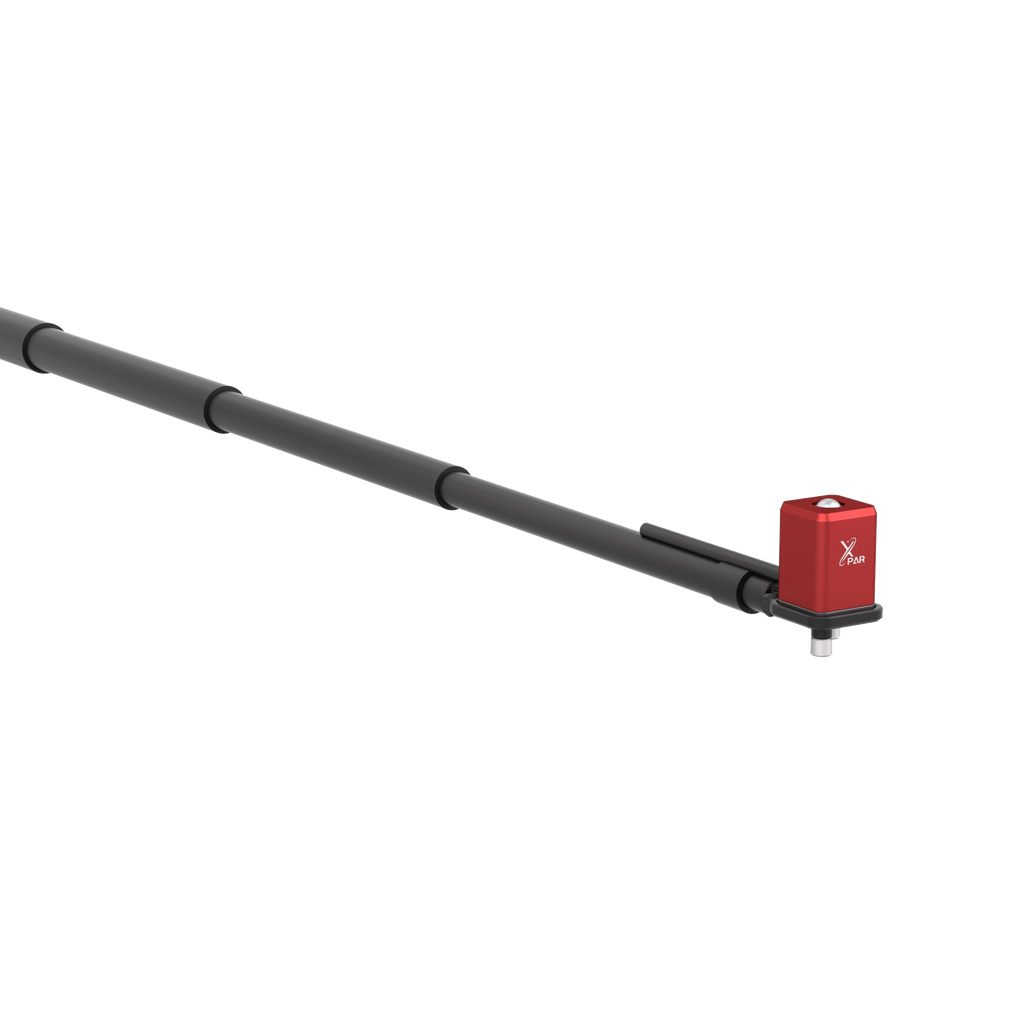

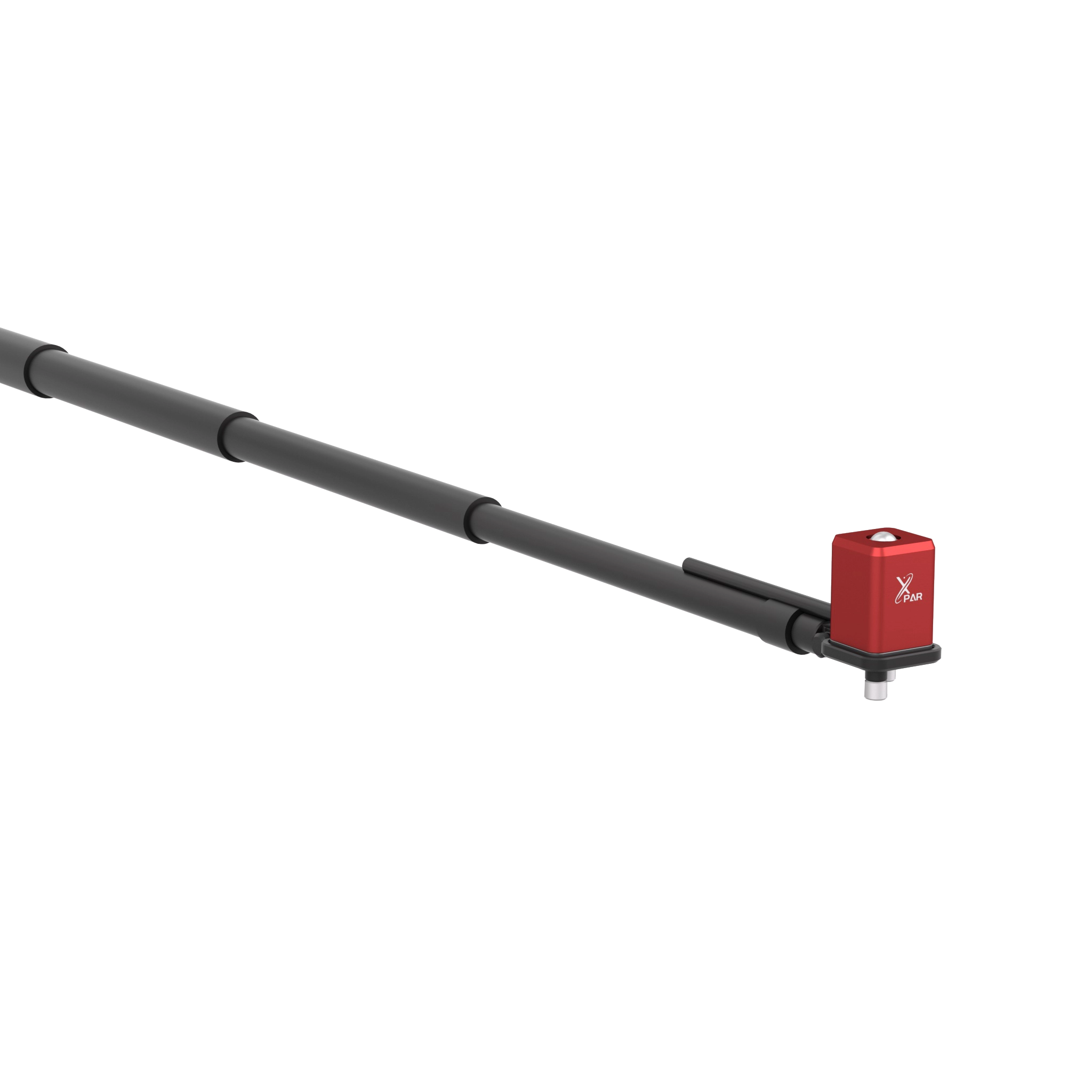

Telescopic Support × 1
Extension Rod (1m) × 1
Sensor Cover × 1
Optional Accessories Leveling Plate
Rod-based Mounting Bracket
Bluetooth Datalogger
Gimbal Mounting Bracket
XPAR ANALYZER APP
