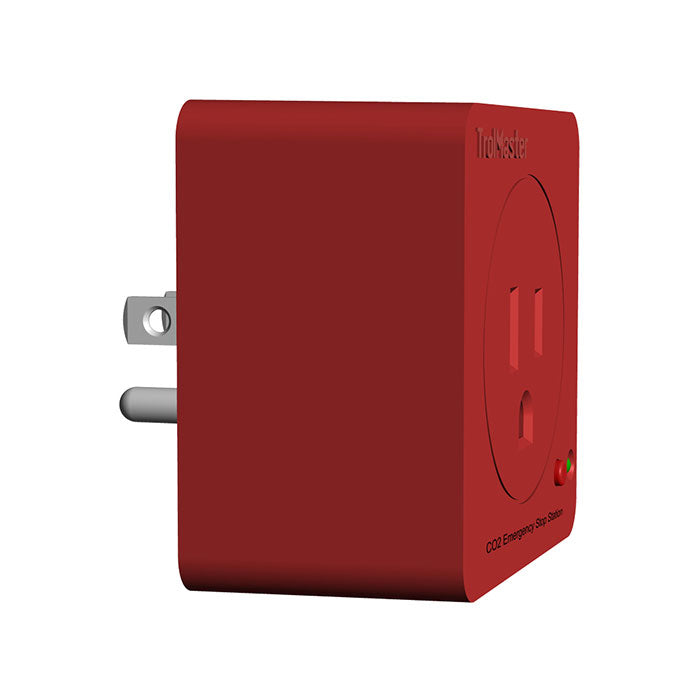

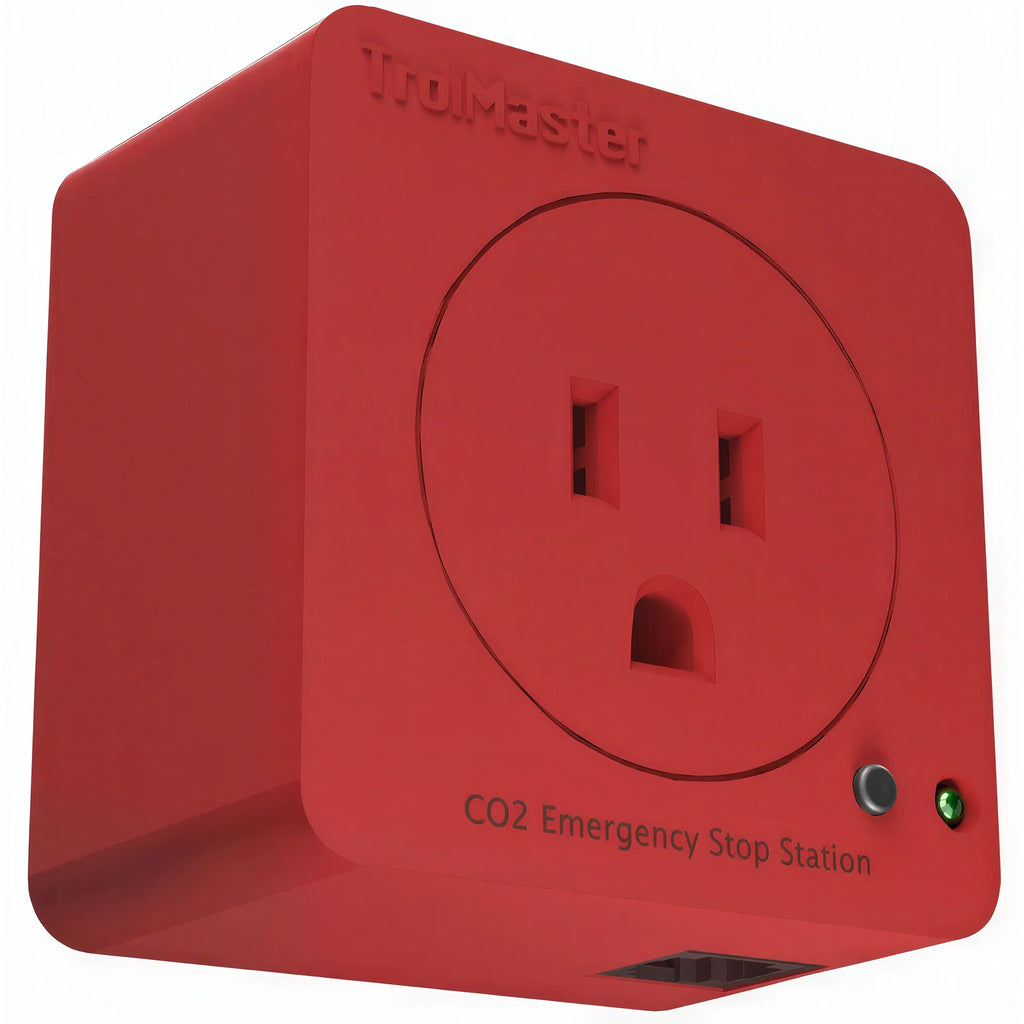

Carbon-X CO2 Emergency Stop Station (DSE-1)
The DSE-1 CO2 Emergency Stop Station provides a simple method to shut off the CO2 supply when any fault or high CO2 level is detected. It is a 120V controlled outlet that supplies the power to CO2 solenoid valves in normal operation . The Carbon-X will then automatically shut off DSE-1 power if any fault or high CO2 level is detected within any of the installed CO2 sensors. If the DSE-1 loses communication with the Carbon-X, the power supply will also be disabled.
Features
- LED Power Indicator
- RJ12 Cable Socket
- Addressing
- Plug & Play
'
- 1 x Emergency Stop Device Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specifications
- Input Voltage: 100~240 VAC, 50/60Hz
- Output Current: 10A
- Output Voltage: 100~240 VAC, 50/60Hz
- Working Environments: Temperature 32-122 F, Humidity<=90%
- Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
- G.W. per pack: 0.34kgs
Brand | TrolMaster |
---|---|
SKU | DSE-1 |
Weight (lb.) | 4.0000 |
Lead Time | Ships in 2-3 Business days |
Length (in.) | |
Width (in.) | |
Height (in.) | |
Warranty | 3 Year |
Hazardous Material | false |
Prop 65 | false |
ETL Listed | Yes |
UL Listed | No |
Controller Functions | CO2 Control |
Amps | 10 Amps |
Voltage | |
Frequency | 50/60Hz |
