TrolMaster Product Documents
Carbon-X CO2 Alarm Station 2（AS-2）

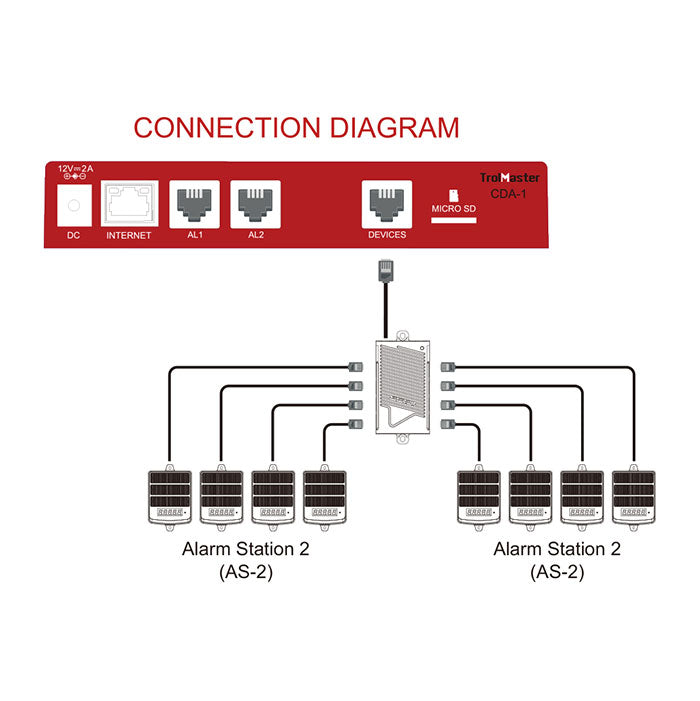

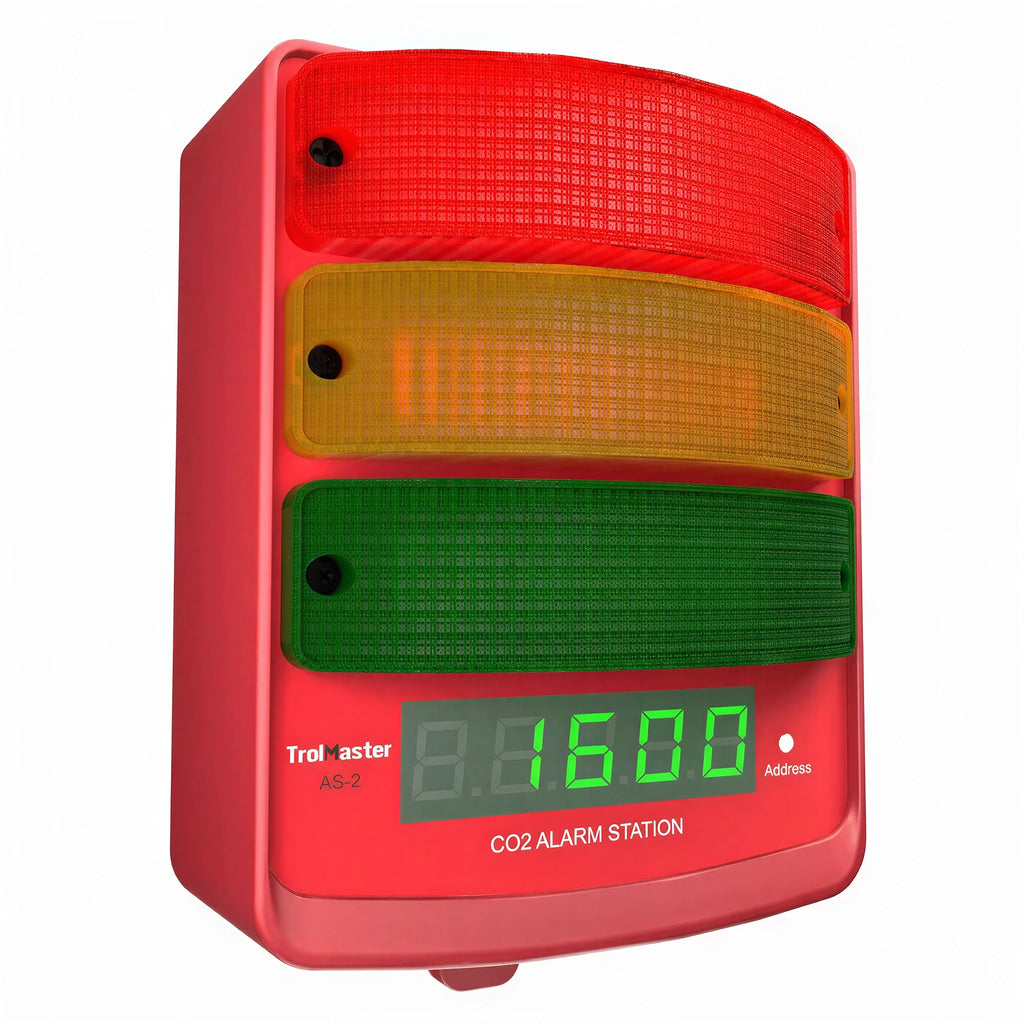

p>The AS-2 CO2 Alarm Station combines an audio-visual alarm module with a color-coded LED display indicator and an LCD digital ppm level reading. It is designed to be mounted outside of the space to be monitored, and will display the CO2 ppm level. The DSA-1 can be linked to either the low or the high level CO2 sensors, or it can linked to both sensors for complete redundancy.
The green LED indicator shows the CO2 level is below 800ppm which means the room is safe to entry. The yellow LED indicator shows CO2 level equal or above 800ppm which means supplemental CO2 is in use. The AS-2 will sounds an audible alarm and blinking red LED indicator in the event of the CO2 level going above normal or safe levels.
Please Note: The AS-2 requires the SPH-1 for supplemental power.
- Color-coded LED display indicator
- LED Digital Reading
- Plug & Play
Package Contents
- 1x Alarm Station 2
- 1x 16ft RJ12 Cable
Specifications
- Working Environments: Temperature 32-122°F, Humidity<=90%
- Package Dimensions: 275mm(L) x 164mm(W) x 62mm(H)
| Brand | TrolMaster |
|---|---|
| SKU | AS-2 |
| Weight (lb.) | 5.0000 |
| Lead Time | 2-3 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| Prop 65 | false |
| ETL Listed | Yes |
| UL Listed | No |
| Controller Functions | CO2 Control |
What does the TrolMaster Carbon-X AS-2 CO2 Alarm Station do?
The TrolMaster Carbon-X AS-2 combines an audio-visual CO2 alarm, a color-coded LED indicator, and an LCD digital ppm reading. The TrolMaster Carbon-X AS-2 displays CO2 levels for the monitored space.
Where should the TrolMaster Carbon-X AS-2 CO2 Alarm Station be mounted?
The TrolMaster Carbon-X AS-2 should be mounted outside the space being monitored. The TrolMaster Carbon-X AS-2 displays the monitored space CO2 ppm level.
How does the TrolMaster Carbon-X AS-2 indicate CO2 levels and unsafe conditions?
The TrolMaster Carbon-X AS-2 shows a green LED below 800 ppm, a yellow LED at or above 800 ppm, and a blinking red LED with an audible alarm when CO2 rises above normal or safe levels.
What power accessory does the TrolMaster Carbon-X AS-2 require?
The TrolMaster Carbon-X AS-2 requires the SPH-1 for supplemental power.
What comes with the TrolMaster Carbon-X AS-2 CO2 Alarm Station?
The TrolMaster Carbon-X AS-2 package includes one Alarm Station 2 and one 16-foot RJ12 cable.
What operating environment suits the TrolMaster Carbon-X AS-2?
The TrolMaster Carbon-X AS-2 operates in temperatures from 32 to 122°F and humidity up to 90%.
