CO2 sensor for Carbon-X（MBS-K30）

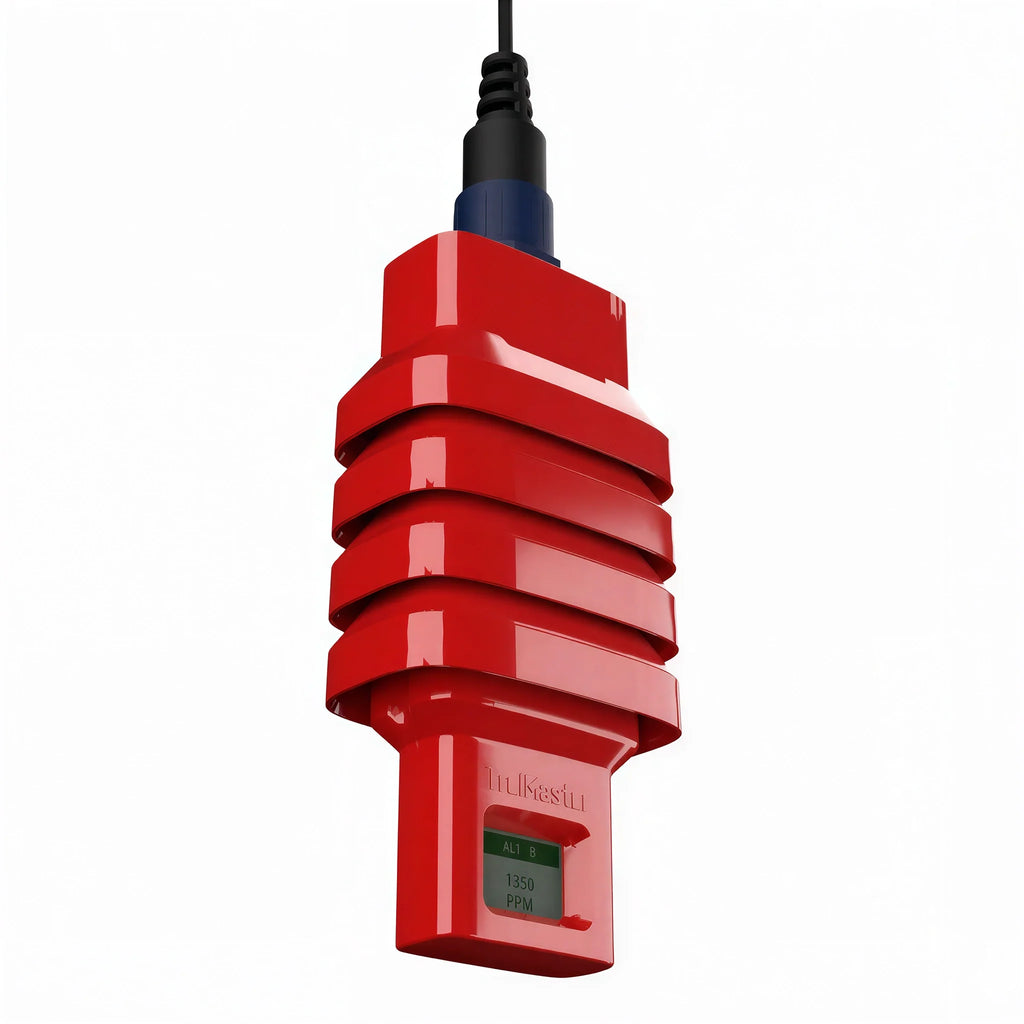

The ability to read up to 30,000 ppm CO2 is critical to the proper operation and safety of an emergency CO2 system like the Carbon-X. The MBS-K30 is Trolmasters newest CO2 sensor, which incorporates a NDIR 0-30,000 ppm sensor in a self-aspirated enclosure.

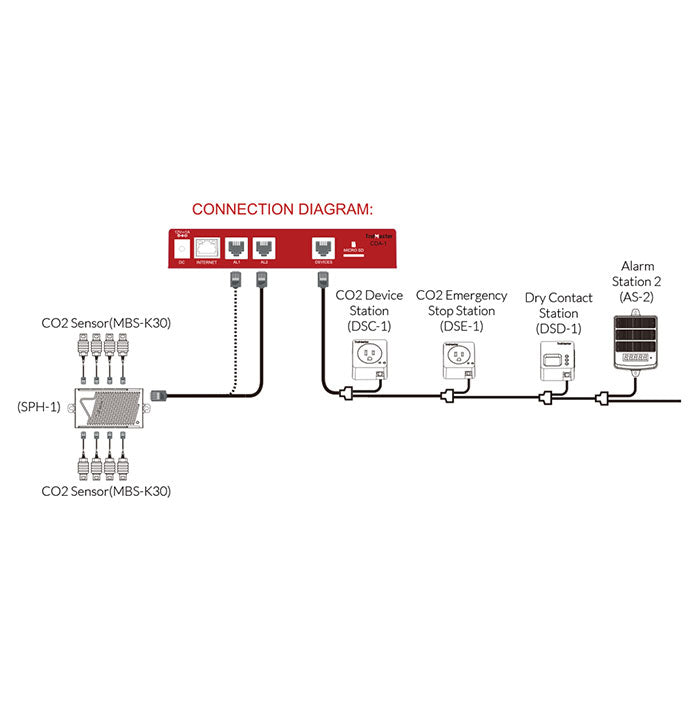

The MBS-K30 also features a built-in LCD display that will constantly display the current CO2 level (ppm). Each of the zones / rooms monitored by the Carbon-X can have 1 or 2 MBS-K30 CO2 sensors installed in order to satisfy local code requirements.
Features
- LED Display
- Plug & Play
Package Content
- 1x MBS-K30
- 1x 16ft RJ12 Cable
- 1x T-Shape Splitter
Specifications
- Working Environment: Temperature 32-122°F, Humidity<=90%
- Package Dimensions: 275mm(L) x 164mm(W) x 62mm(H)
| Brand | TrolMaster |
|---|---|
| SKU | MBS-K30 |
| Weight (lb.) | 4.0000 |
| Lead Time | Ships in 2-3 Business days |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 1 Year |
| Hazardous Material | false |
| Prop 65 | false |
| ETL Listed | Yes |
| UL Listed | No |
| Controller Functions | CO2 Control |
