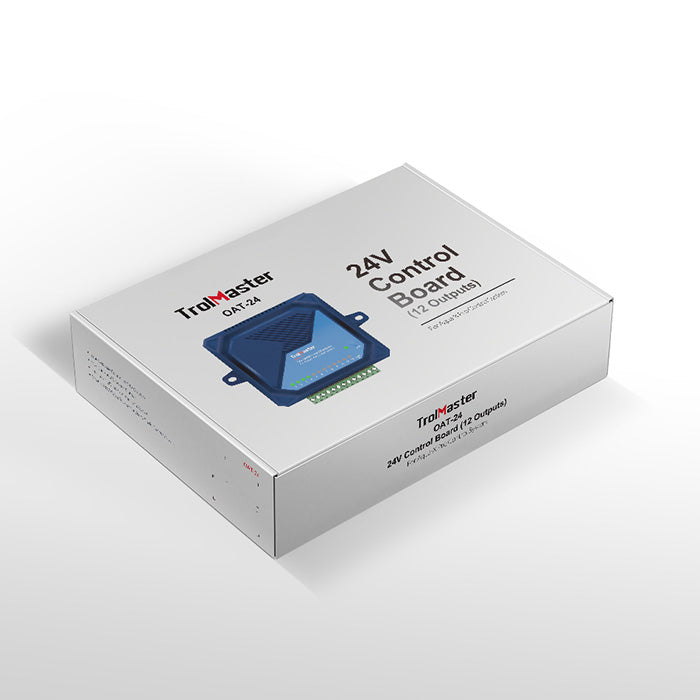

The OAT-24 module is specifically designed for the Aqua-X Pro Irrigation Control System. It features 12 individual 24V outputs that can control up to 12 individual 24-volt irrigation solenoids.
By using multiple OAT-24 modules, the Aqua-X Pro Irrigation Control System could manage up to 600 individually controlled 24V valves. Each of the solenoid valves can be independently configured by the users with one of the five control modes. Those 5 modes are feed by: Recycle, Schedule, Demand, Volume, or Auto-fill.
With the ability to control up to 600 solenoids using one of the 5 available control modes, users could easily manage irrigation schedules for multiple nutrients, rooms, and irrigation zones.
*NOTE: If more than one OAT-24 is connected to the NFS Controller, you CAN’ T share a common wire from one OAT-24 to another OAT-24.
Included:
Specifications:
| Brand | TrolMaster |
|---|---|
| SKU | OAT-24 |
| Weight (lb.) | 1.9200 |
| Height (in.) | |
| Prop 65 | false |
| Lead Time | 2-3 |
| Length (in.) | |
| Width (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| ETL Listed | No |
| UL Listed | No |
| Amps | 1.7A |
What can the TrolMaster OAT-24 control?
The TrolMaster OAT-24 controls up to 12 individual 24-volt irrigation solenoids. Each output provides up to 24VAC and 0.5A.
Which Aqua-X system is compatible with the TrolMaster OAT-24?
The TrolMaster OAT-24 is specifically designed for the Aqua-X Pro Irrigation Control System and is identified for Aqua-X Pro and Plus systems in the product name.
Which irrigation control modes does the TrolMaster OAT-24 support?
The TrolMaster OAT-24 supports Recycle, Schedule, Demand, Volume, and Auto-fill control modes for independently configured solenoid valves.
Can the TrolMaster OAT-24 expand irrigation control for multiple rooms and zones?
Multiple TrolMaster OAT-24 modules can manage up to 600 individually controlled 24-volt valves for multiple nutrients, rooms, and irrigation zones. A common wire cannot be shared from one OAT-24 module to another OAT-24 module when multiple modules connect to the NFS Controller.
What is included with the TrolMaster OAT-24?
The TrolMaster OAT-24 package includes one OAT-24 module, one 16-foot RJ12 cable, one power cable, and one 13-pin Phoenix-type connector.
What power requirements should growers check before installing the TrolMaster OAT-24?
The TrolMaster OAT-24 accepts 100 to 240V input power at 50/60Hz and has a maximum input current of 1.7A.
