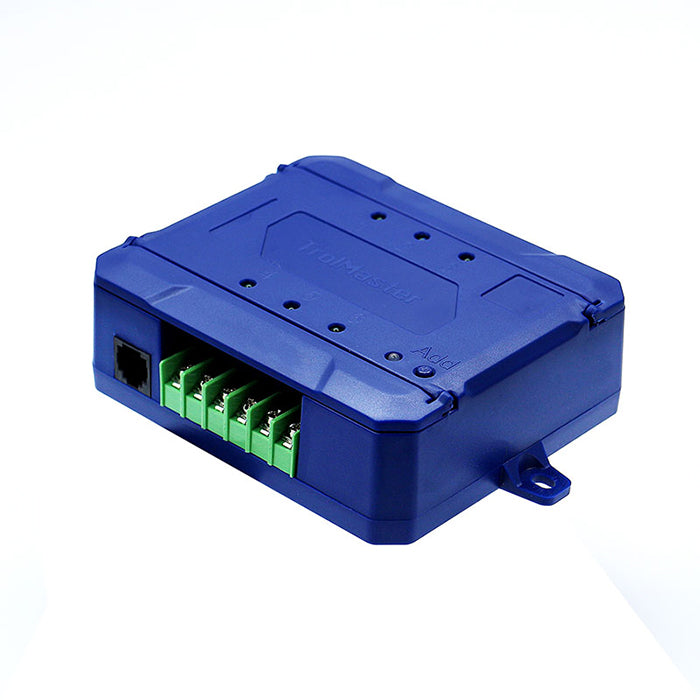

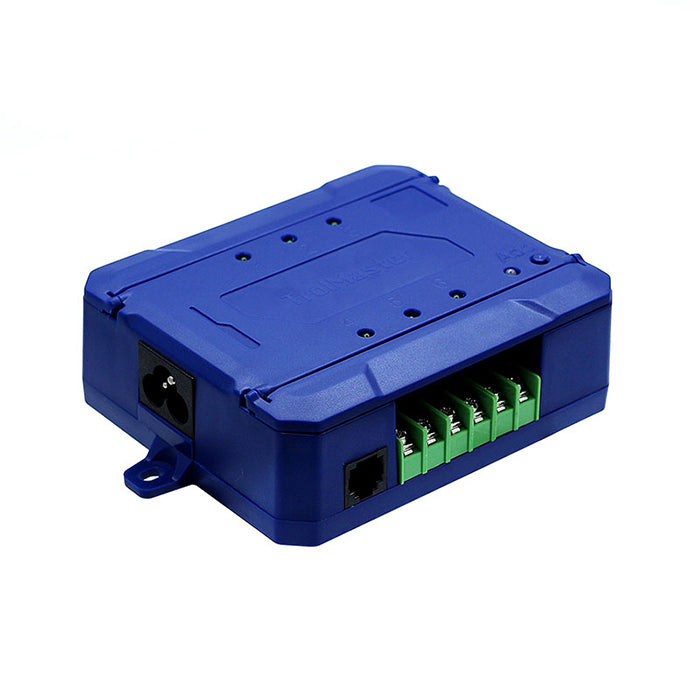

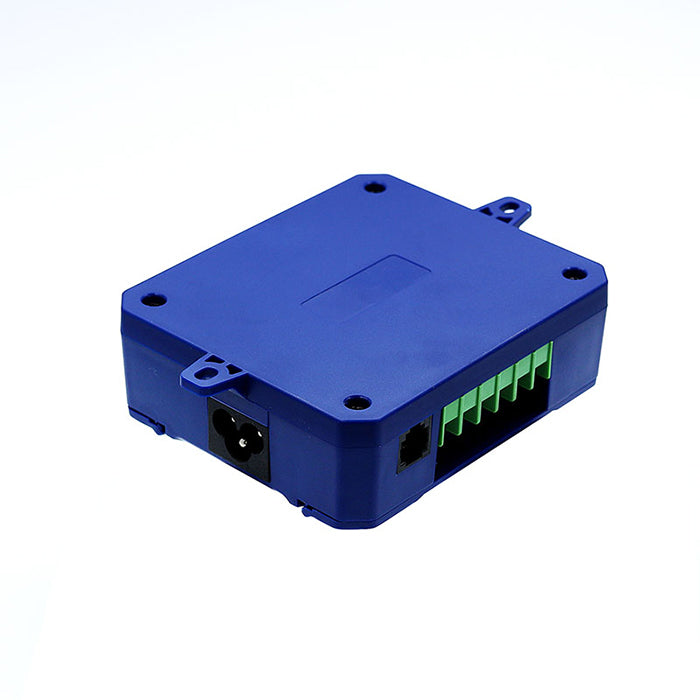

TrolMaster Aqua-X Control Board, 24V Instructions TrolMaster Aqua-X Product ListAqua-X 24V Control Board （OA6-24）
The OA6-24 control board is designed to control multiple 24vac solenoid valves.
It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.

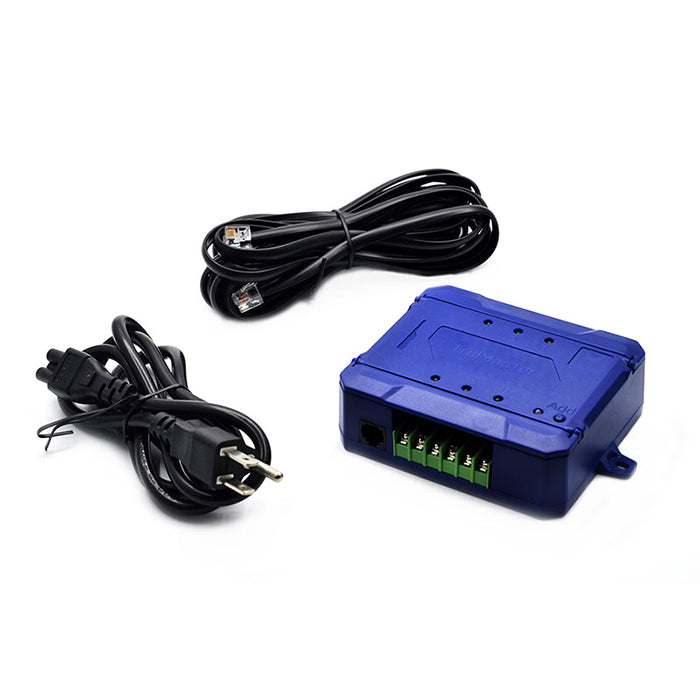

Package Contents:
- 24V Control Board
- 16ft RJ12 Cable
Features:
- LED Power Indicator
- Addressing Button
- 6 Individually-Controlled 24V Outputs

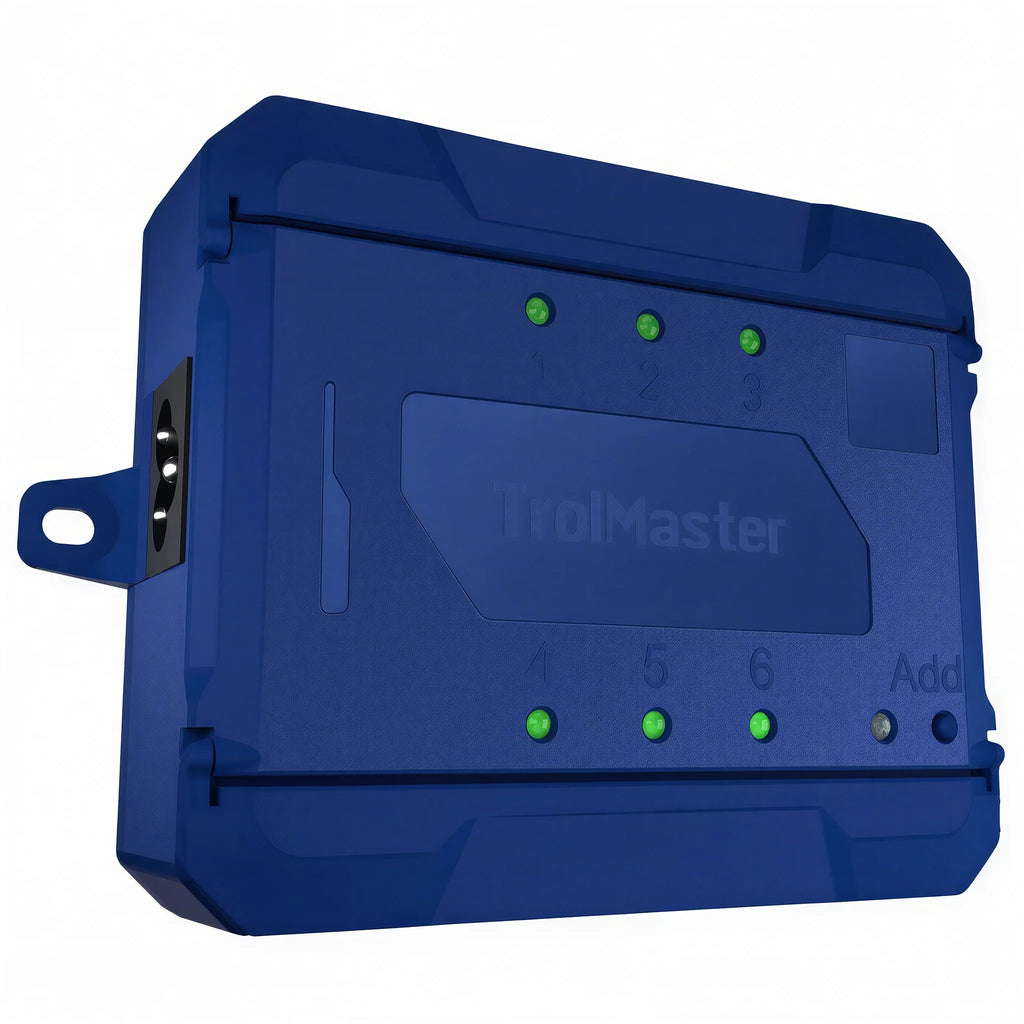

- Individual LED Indicator for Each Output
- Double RJ12 Cable Sockets for Daisy Chain Connectivity
Specifications:
- Input Voltage: 110-240 VAC
- Max Input Current: 0.2A
- Max Output Voltage/Current: 24VAC/0.2A per output
- Working Environments: Temperature 32°-122°F, Humidity <90%
- Packaging Dimensions: 275mm(L) x 164mm(W) x 40mm(H)
| Brand | TrolMaster |
|---|---|
| SKU | OA6-24 |
| Weight (lb.) | 2.0000 |
| Height (in.) | |
| Prop 65 | false |
| Lead Time | 2-3 |
| Length (in.) | |
| Width (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| ETL Listed | Yes |
| UL Listed | No |
What can the TrolMaster Aqua-X Control Board control?
The TrolMaster Aqua-X Control Board controls up to 6 24VAC solenoid valves with individual timer settings. Each output includes an individual LED indicator.
Can the TrolMaster Aqua-X Control Board expand irrigation control beyond 6 valves?
The TrolMaster Aqua-X Control Board supports up to 5 OA6-24 boards connected to a single Aqua-X, providing up to 30 individually controlled outputs. Double RJ12 cable sockets support daisy chain connectivity.
Can the TrolMaster Aqua-X Control Board activate a pump with irrigation zones?
The TrolMaster Aqua-X Control Board provides an automatic pump link when connected to a DSP-1. Activation of any 24VAC irrigation zone on the control board automatically turns on the pump through the DSP-1.
What is included with the TrolMaster Aqua-X Control Board?
The TrolMaster Aqua-X Control Board package includes one 24V control board and one 16-foot RJ12 cable.
