TrolMaster Product Documents

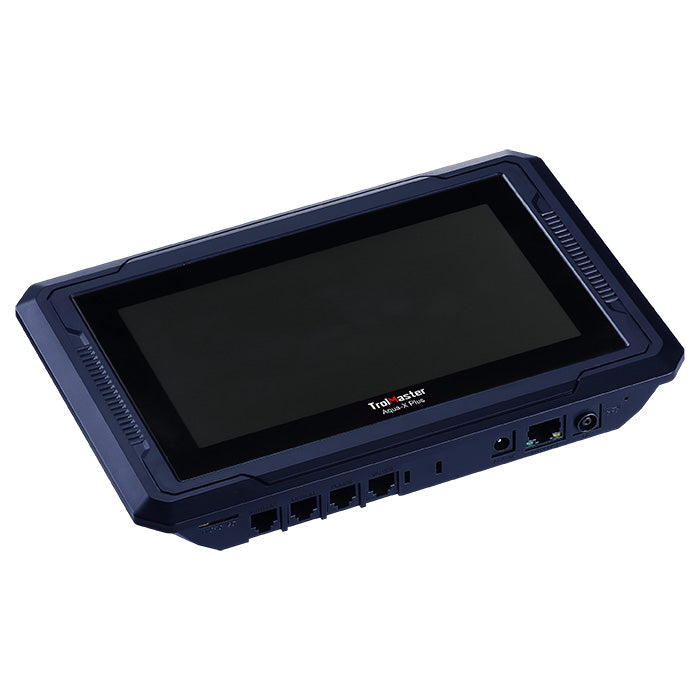

Aqua-X Plus SpecsheetThe Aqua-X Plus Controller From TrolMaster Is One Of The most Advanced & Robust Irrigation Controllers On The Market

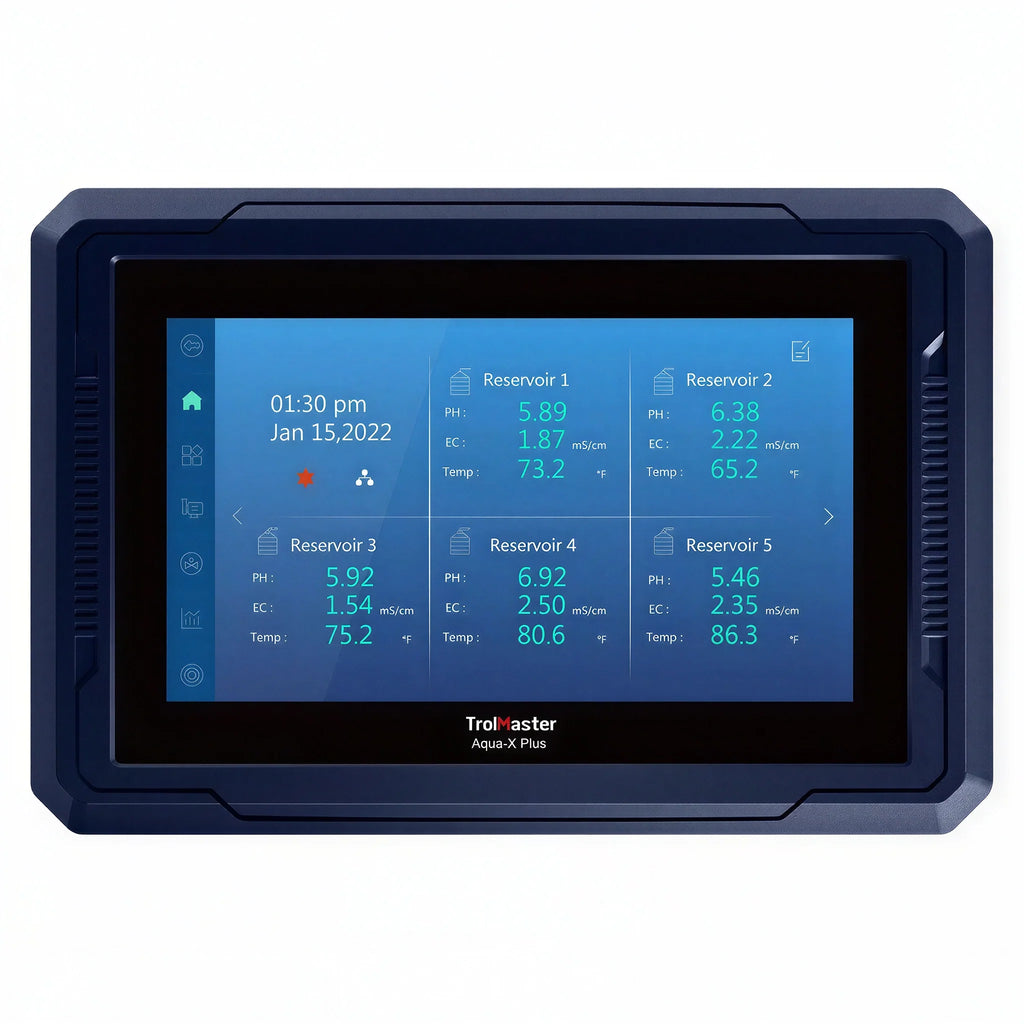

The Aqua-X Plus (NFS-3) is a professional-grade multi-zones irrigation control system. It has an 800x480 7” LCD touch-screen monitor, features multiple advanced pump and solenoid control functions, and has greatly expanded device control capacity. Not only can you monitor how much nutrients your plants are getting, you will also get access to Crop Steering Strategies only available on the Aqua-X Plus (NFS-3)
As with all of the main controllers from TrolMaster, the Aqua-X Plus works with TrolMaster’s free app and can be connected to your internet directly using a standard CAT5 network cable. Along with controlling 240 total devices, the NFS-3 can also monitor up to 25 individual sensors including pH, EC, Temp, WC%, Grow Medium Temp and Grow Medium EC. You can view the recorded historical data directly on the NFS-3 or on your smartphone, and also receive warning messages / notifications if the growing environment exceeds your selected alarm setpoints within the NFS-3.
The NFS-3 also features Multiple Pump Link functions. Multiple Pump Links provides choices for users to connect / link different pumps with different valves to accomplish various irrigation functions. The NFS-3 offers an amazing amount of flexibility to suit all growers.
Daisy Chain Connections

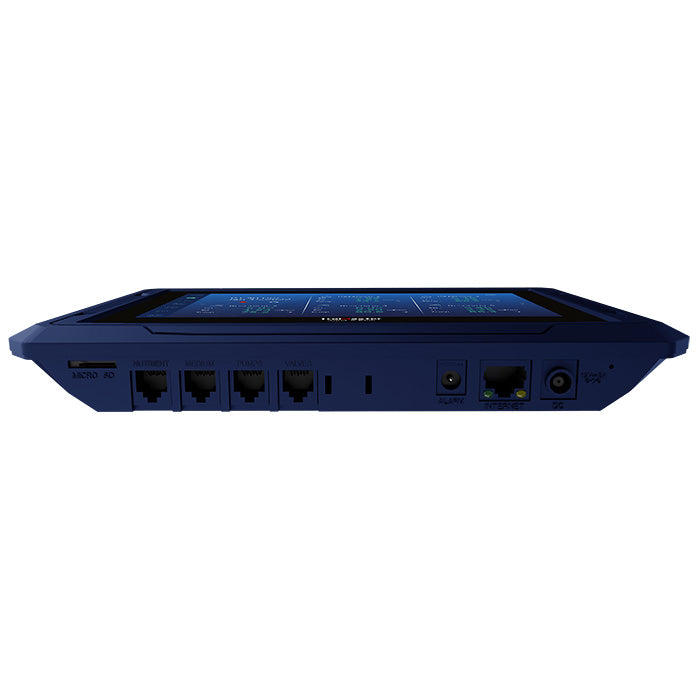

The sensors and control modules are connected to the NFS-3 with a standard RJ12 cable and RJ12 Y-splitters, making installation as simple as plug-and-play. The modules are “daisy-chained” together using the RJ12 cables allowing for flexible installation, and future expansion. To make installation even easier, you can also use the SPH-1 8-port hub instead of using the Y-splitters.
App Based Remote Control
Besides the onboard user interface / touch-screen, the Trolmaster app will provide real-time data and user notifications from the NFS-3. The NFS-3 also offers a free App TM+ Pro that allows remote control and monitoring through the internet with any smartphone or tablet.
What comes in the box?
- 1x NFS-3 Controller
- 1x AMP-3
- 1x 12V Power Adapter
- 1x RJ12 Cable Set
- 1x Mounting Plate
Product Features
- 7" Touchscreen
- New Crop Steering Irrigation Function
- Expanded Sensors & Control Modules Capacity
- Free Smart Phone App control
Product Specifications
- Input Voltage: 100-240VAC, 50/60Hz
- Certifications: ETL/FCC
- Degree of Ingress Protection: IP20
- Max Distance to Device to be Connected: 1000 ft/300 meters
- Max Distance to Sensors to be Connected: 1000 ft/300 meters
- Working Environments: Temperature: 31-104°F
- Humidity: ≤90%
| Brand | TrolMaster |
|---|---|
| SKU | NFS-3 |
| Weight (lb.) | 2.0000 |
| Height (in.) | |
| Prop 65 | false |
| Lead Time | 5-7 |
| Length (in.) | |
| Width (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| ETL Listed | No |
| UL Listed | No |
How does the TrolMaster Aqua-X Plus support multi-zone irrigation and crop steering?
The TrolMaster Aqua-X Plus (NFS-3) provides professional-grade multi-zone irrigation control with advanced pump and solenoid functions. TrolMaster Aqua-X Plus also includes Crop Steering Strategies and Multiple Pump Link functions for connecting different pumps with different valves.
What can the TrolMaster Aqua-X Plus monitor and control in a growing environment?
The TrolMaster Aqua-X Plus can control up to 240 total devices and monitor up to 25 individual sensors. Supported measurements include pH, EC, temperature, WC%, grow medium temperature, and grow medium EC.
How can growers remotely monitor and control the TrolMaster Aqua-X Plus?
The TrolMaster Aqua-X Plus connects to the internet through a standard CAT5 network cable and works with the free TrolMaster app. The TM+ Pro app provides remote control, real-time data, historical data, and warning notifications through a smartphone or tablet.
How are sensors and control modules connected to the TrolMaster Aqua-X Plus?
The TrolMaster Aqua-X Plus connects sensors and control modules through standard RJ12 cables and RJ12 Y-splitters in a daisy-chain configuration. The SPH-1 8-port hub can replace Y-splitters for installation and future expansion.
What comes with the TrolMaster Aqua-X Plus Irrigation Control System?
The TrolMaster Aqua-X Plus package includes one NFS-3 controller, one AMP-3, one 12V power adapter, one RJ12 cable set, and one mounting plate.
