TrolMaster Aqua-X Control Board, 110V Instructions TrolMaster Aqua-X Product ListAqua-X 110V Control Board （OA6-110）

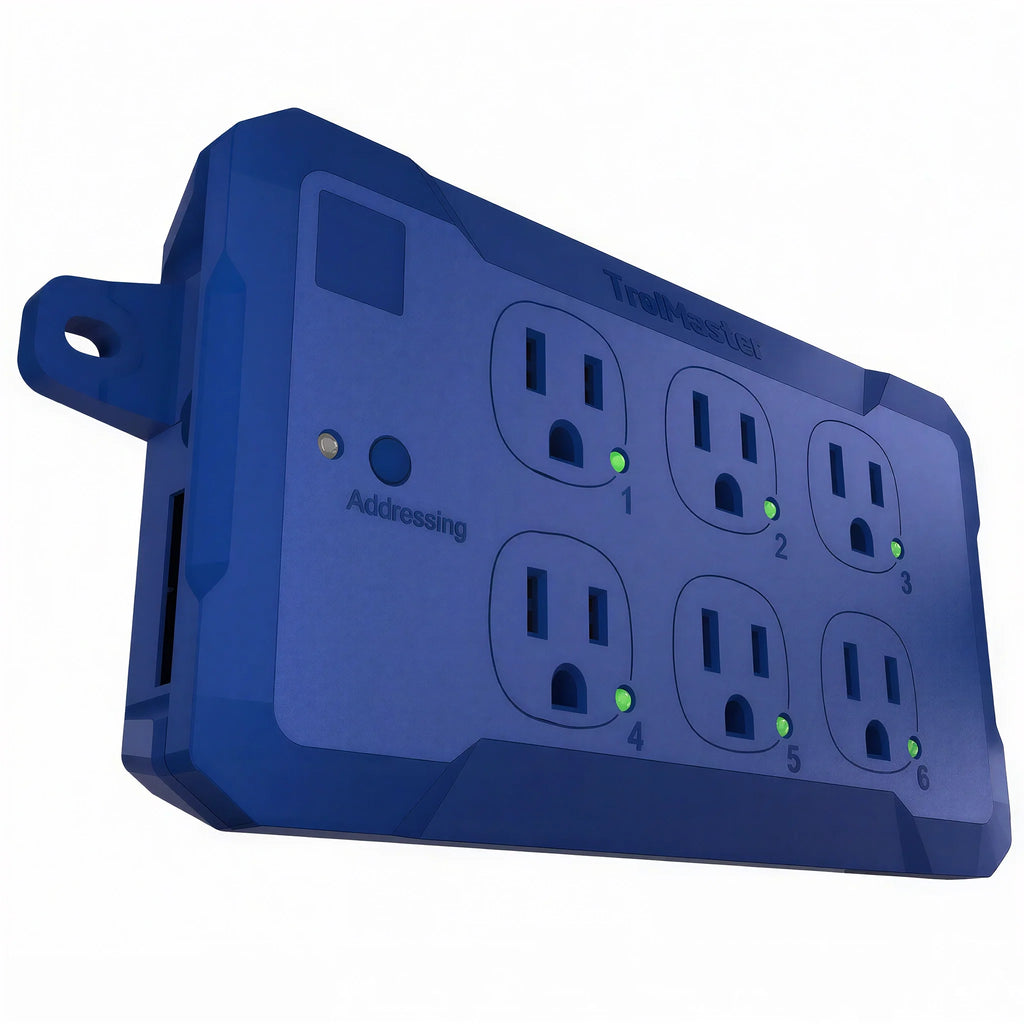

The OA6-110 control board is designed to control small 110V pump or solenoid valves (less than 1.5 amps). The OA6-110 has 6 separately controlled 120 volt outlets. Each has an LED indicator to show whether the outlet is On or Off. Up to (5) of the OA6-110 modules can be connected to a single Aqua-x.

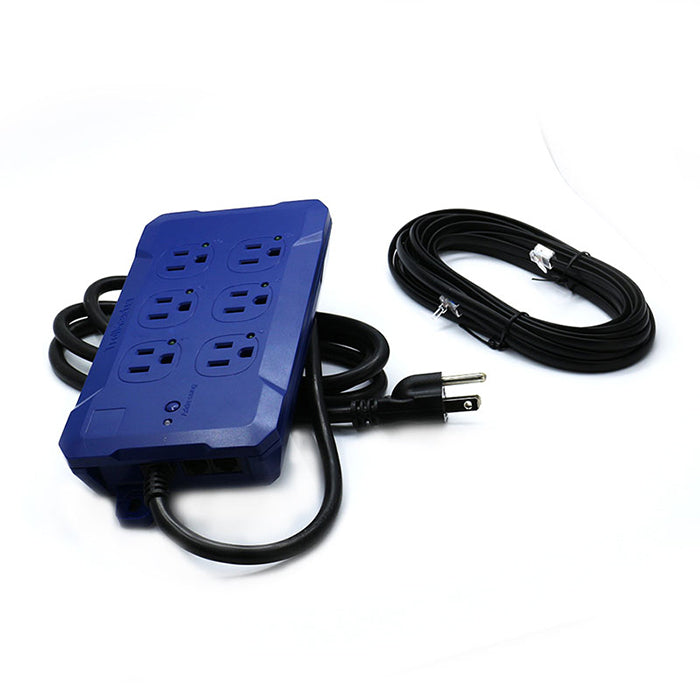

Package Contents:
- 110V Control Board
- 16ft RJ12 Cable
Features:
- LED Power Indicator
- Addressing Button
- 6 Individually-Controlled 110V Outputs
- Individual LED Indicator for Each Output
- Double RJ12 Cable Sockets for Easy Connectivity
Specifications:
- Input Voltage: 120 VAC
- Max Input Current: 9A
- Max Output Voltage/Current: 120VAC/1.5A per Output
- Working Environments: Temperature 32°-122°F, Humidity <90%
- Packaging Dimensions: 275mm(L) x 164mm(W) x 62mm(H)
| Brand | TrolMaster |
|---|---|
| SKU | OA6-110 |
| Weight (lb.) | 2.0000 |
| Height (in.) | |
| Prop 65 | false |
| Lead Time | Ships in 2-3 Business days |
| Length (in.) | |
| Width (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| UPC | 6970207970571 |
| ETL Listed | Yes |
| UL Listed | No |
