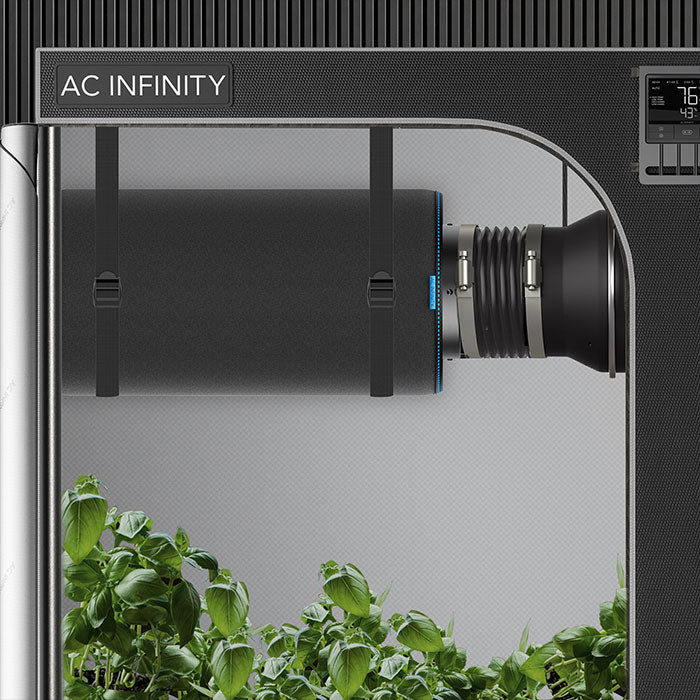

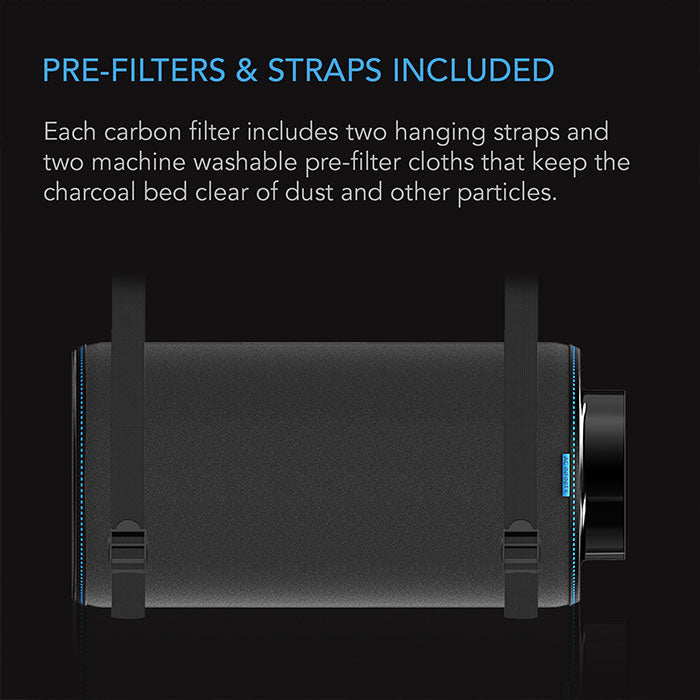

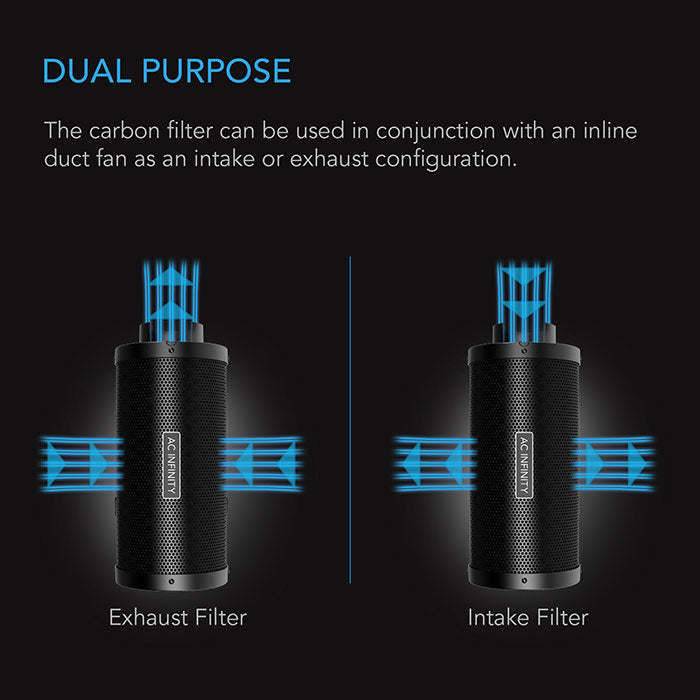

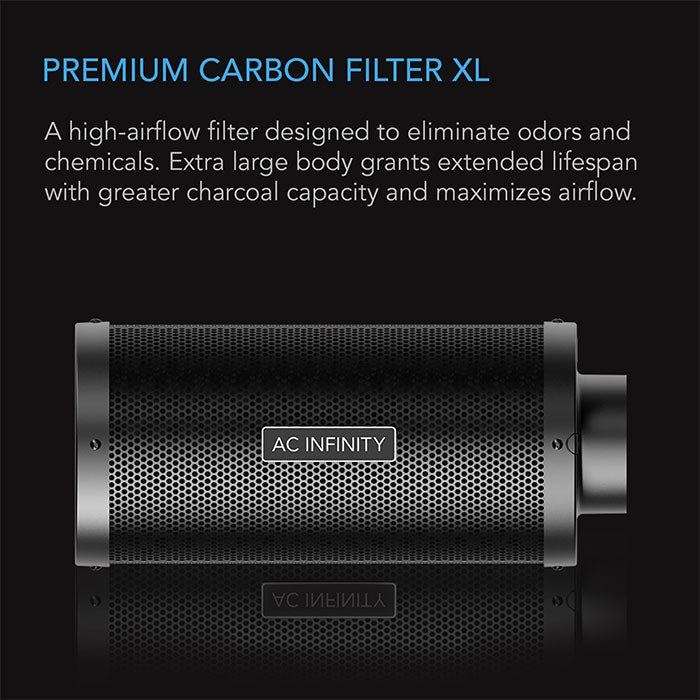

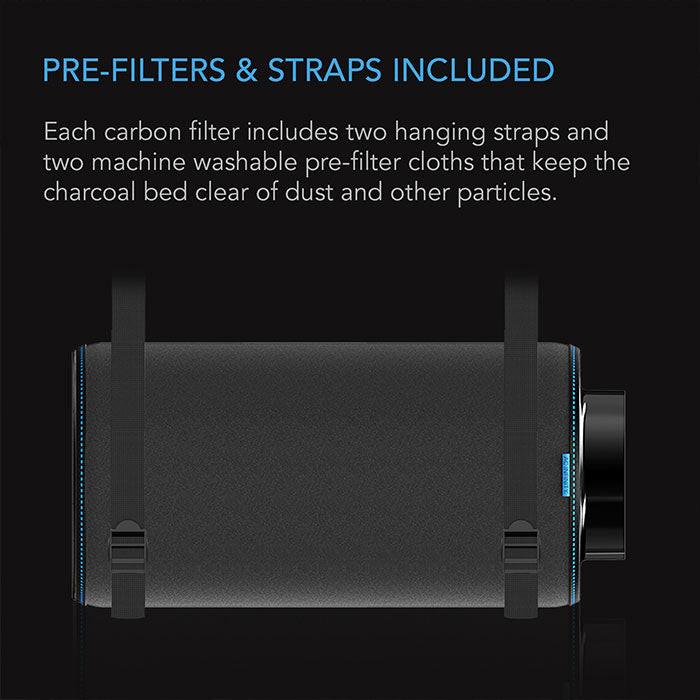

The high-airflow duct filter is designed to use activated carbon to eliminate odors and chemicals, popularly used for hydroponics, grow rooms, kitchens, smoking areas, and other ventilation projects. Features premium-grade Australian Virgin charcoal bed. The filter can be used in conjunction with an inline duct fan to act as both an intake and exhaust configuration. Heavy-duty construction contains aluminum flanges and dual-sided galvanized steel mesh. The flanges can also be reversed to prolong the life of the filter. Includes two machine washable pre-filter cloths to prevent carbon residue and two hanging straps for easy installation.
Each carbon filter features premium-grade Australian Virgin charcoal bed rated at 1200+ IAV. It achieves a 38mm charcoal bed thickness and wider mesh openings thanks to a higher microporosity and surface area rating. This combination not only enables a higher adsorption rate without restricting free airflow, but it also allows the carbon filter to last up to 33% longer.
- Designed to eliminate odors and chemicals for grow tents and hydroponics rooms.
- Features premium-grade Australian charcoal with higher adsorption and longer life rating.

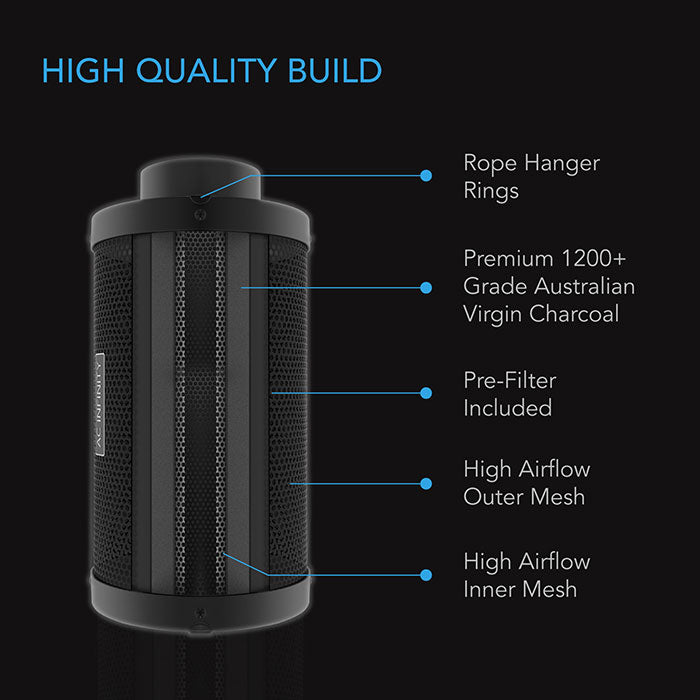

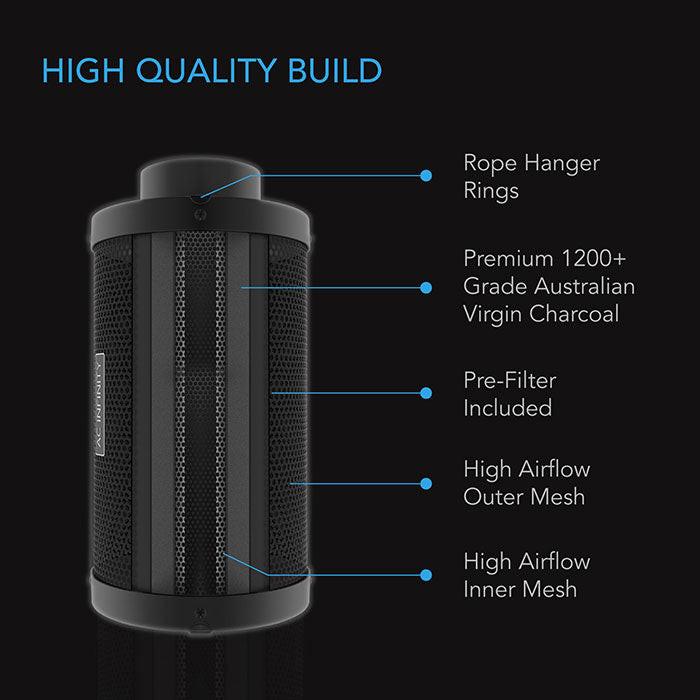

- Contains heavy-duty aluminum flanges, galvanized steel meshing, two hanging straps, and two clothed pre-filters.
- Enables maximum airflow passthrough for both intake and exhaust configurations.
- Carbon: Australian RC412 at 1200+ IAV

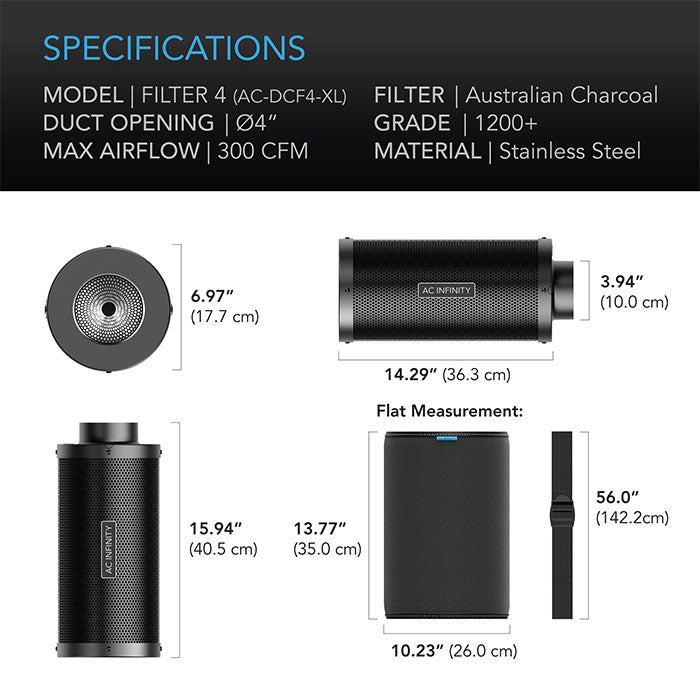

Specifications for AC Infinity Carbon Filters
Size |
4" |
XL 4" |
6" |
XL 6" |
Airflow Rating |
210 CFM |
300 CFM |
410 CFM |
520 CFM |
Dimensions |
4" x 13" |
4" x 16" |
6" x 16" |
6" x 20" |
Weight |
9 lbs. |
10 lbs. |
18 lbs. |
20 lbs. |
Carbon Type |
Australian Virgin RC412 |
Bed Thickness |
38mm |
Recommended Tent Size |
2x2-4x4 |
2x4-4x4 |
5x5-5x9 |
5x5-5x9 |
Size |
8" |
XL 8" |
10" |
12" |
Airflow Rating |
770 CFM |
930 CFM |
1249 CFM |
1668 CFM |
Dimensions |
8" x 20" |
8" x 23" |
10" x 24" |
12" x 28" |
Weight |
23 lbs. |
25 lbs. |
40 lbs. |
50 lbs. |
Carbon Type |
Australian Virgin RC412 |
Bed Thickness |
38mm |
Recommended Tent Size |
8x8 |
8x8 |
10x10 |
10x10 |
