AC Infinity Product Documents

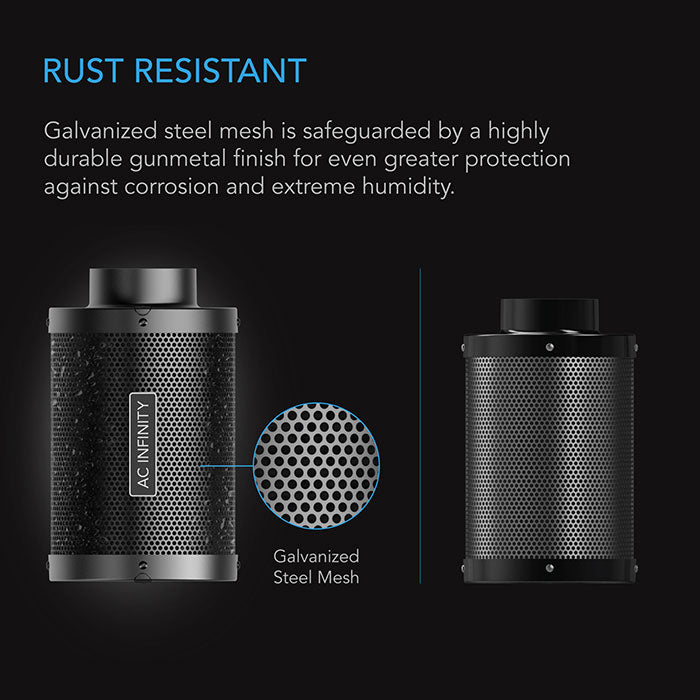

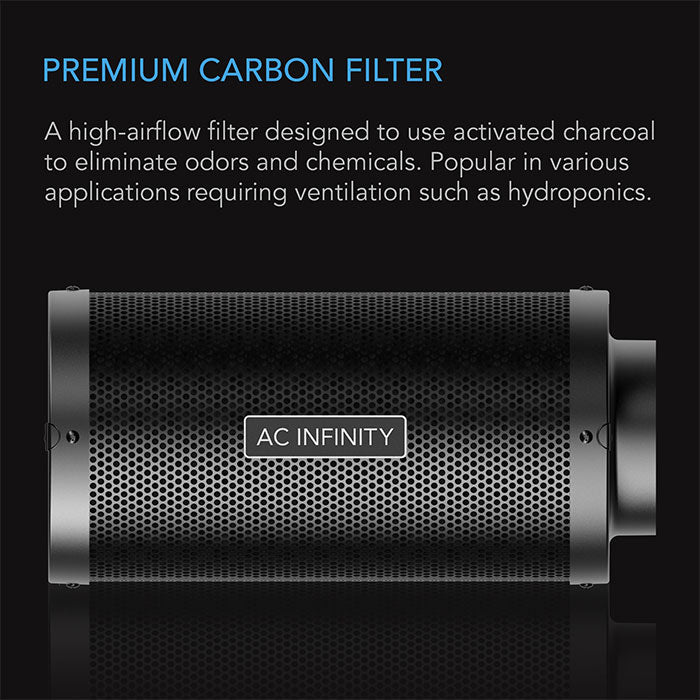

AC Infinity Australian Charcoal Duct Carbon Filter Installation GuideThe high-airflow duct filter is designed to use activated carbon to eliminate odors and chemicals, popularly used for hydroponics, grow rooms, kitchens, smoking areas, and other ventilation projects. Features premium-grade Australian Virgin charcoal bed. The filter can be used in conjunction with an inline duct fan to act as both an intake and exhaust configuration. Heavy-duty construction contains aluminum flanges and dual-sided galvanized steel mesh. The flanges can also be reversed to prolong the life of the filter. Includes two machine washable pre-filter cloths to prevent carbon residue and two hanging straps for easy installation.
Each carbon filter features premium-grade Australian Virgin charcoal bed rated at 1200+ IAV. It achieves a 38mm charcoal bed thickness and wider mesh openings thanks to a higher microporosity and surface area rating. This combination not only enables a higher adsorption rate without restricting free airflow, but it also allows the carbon filter to last up to 33% longer.
- Designed to eliminate odors and chemicals for grow tents and hydroponics rooms.
- Features premium-grade Australian charcoal with higher adsorption and longer life rating.

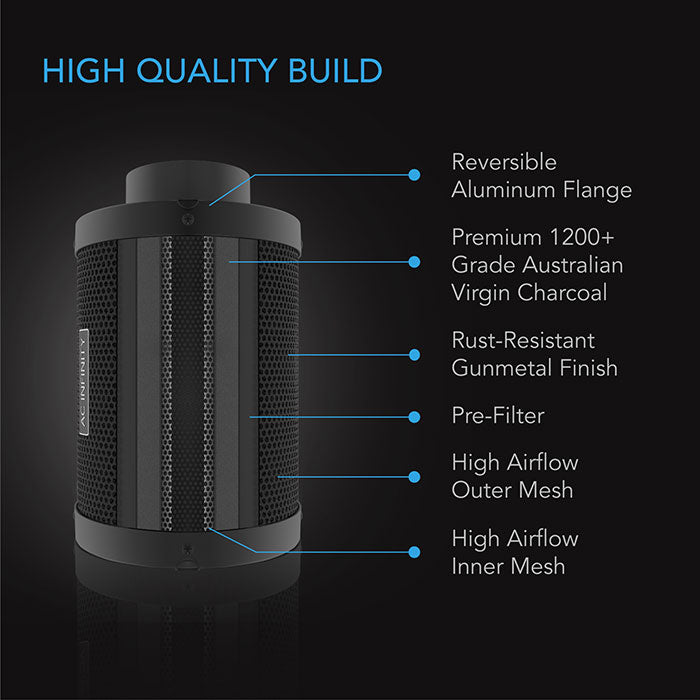

- Contains heavy-duty aluminum flanges, galvanized steel meshing, two hanging straps, and two clothed pre-filters.
- Enables maximum airflow passthrough for both intake and exhaust configurations.
- Carbon: Australian RC412 at 1200+ IAV
Specifications for AC Infinity Carbon Filters
| Size | 4" | XL 4" | 6" | XL 6" |
|---|---|---|---|---|
| Airflow Rating | 210 CFM | 300 CFM | 410 CFM | 520 CFM |
| Dimensions | 4" x 13" | 4" x 16" | 6" x 16" | 6" x 20" |
| Weight | 9 lbs. | 10 lbs. | 18 lbs. | 20 lbs. |
| Carbon Type | Australian Virgin RC412 | |||
| Bed Thickness | 38mm | |||
| Recommended Tent Size | 2x2-4x4 | 2x4-4x4 | 5x5-5x9 | 5x5-5x9 |
| Size | 8" | XL 8" | 10" | 12" |
|---|---|---|---|---|
| Airflow Rating | 770 CFM | 930 CFM | 1249 CFM | 1668 CFM |
| Dimensions | 8" x 20" | 8" x 23" | 10" x 24" | 12" x 28" |
| Weight | 23 lbs. | 25 lbs. | 40 lbs. | 50 lbs. |
| Carbon Type | Australian Virgin RC412 | |||
| Bed Thickness | 38mm | |||
| Recommended Tent Size | 8x8 | 8x8 | 10x10 | 10x10 |
| Brand | AC Infinity |
|---|---|
| SKU | AC-DCF10 |
| Weight (lb.) | 40.0000 |
| Lead Time | 2-3 |
| Width (in.) | |
| Height (in.) | |
| Length (in.) | |
| Hazardous Material | false |
| UPC | 819137020825 |
| Prop 65 | false |
| CFM Rating | 1249 CFM |
| Flange Size | 10" Diameter |
| Flange Included | Yes |
The AC Infinity Duct Carbon Filter
What odors and chemicals does the AC Infinity Australian Charcoal Duct Carbon Filter remove?
The AC Infinity Australian Charcoal Duct Carbon Filter uses activated carbon to eliminate odors and chemicals in hydroponic rooms, grow rooms, kitchens, smoking areas, and other ventilation projects.
Which fan and duct setup fits the AC Infinity Australian Charcoal Duct Carbon Filter?
The AC Infinity Australian Charcoal Duct Carbon Filter has a 10-inch diameter flange and a 1249 CFM airflow rating for use with a compatible 10-inch inline duct fan.

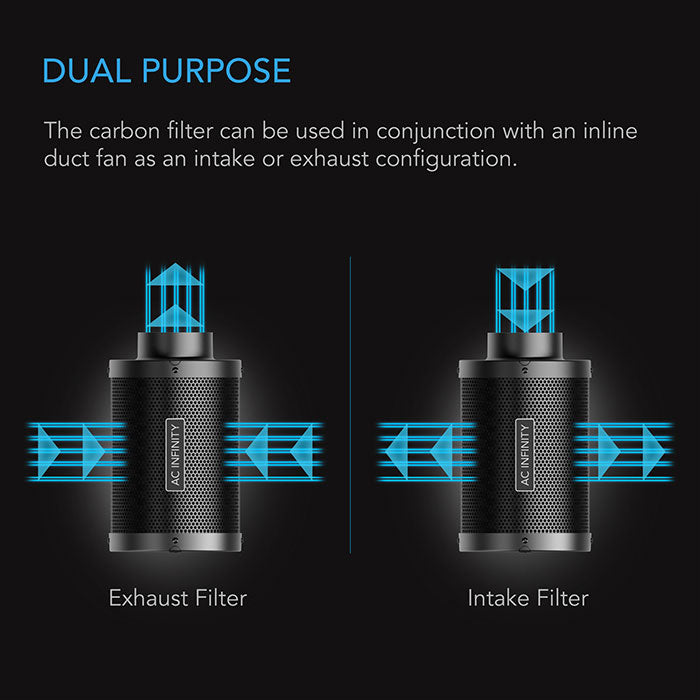

Can the AC Infinity Australian Charcoal Duct Carbon Filter work for both intake and exhaust ventilation?
The AC Infinity Australian Charcoal Duct Carbon Filter supports both intake and exhaust configurations when used with an inline duct fan.
What installation accessories come with the AC Infinity Australian Charcoal Duct Carbon Filter?

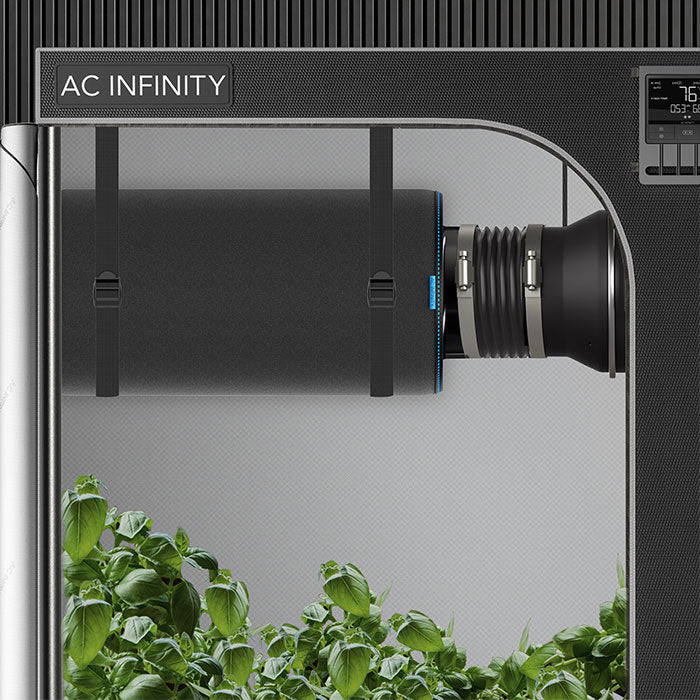

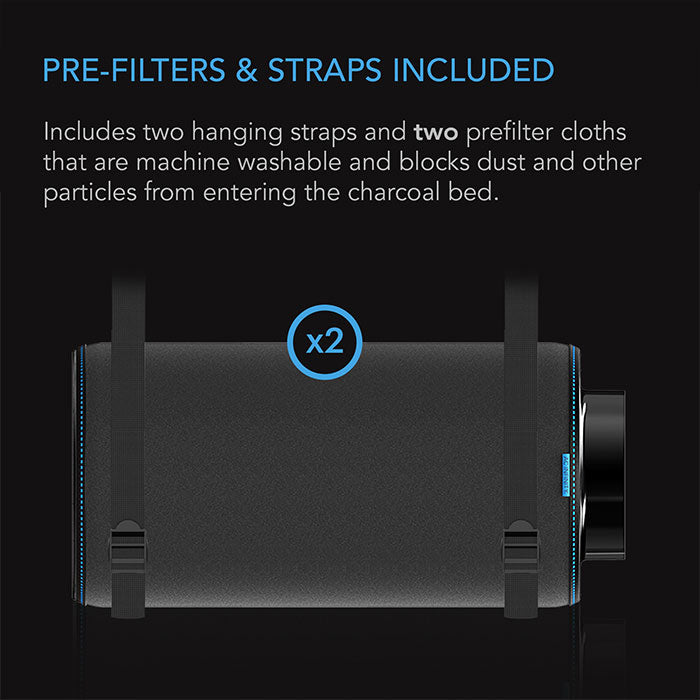

The AC Infinity Australian Charcoal Duct Carbon Filter includes two machine-washable pre-filter cloths and two hanging straps. The pre-filter cloths help prevent carbon residue.
What carbon filtration performance does the AC Infinity Australian Charcoal Duct Carbon Filter provide?
The AC Infinity Australian Charcoal Duct Carbon Filter uses Australian Virgin RC412 charcoal rated at 1200+ IAV with a 38mm charcoal bed. The carbon bed supports high adsorption and allows the filter to last up to 33% longer.
How can the AC Infinity Australian Charcoal Duct Carbon Filter be configured for installation?
The AC Infinity Australian Charcoal Duct Carbon Filter has reversible aluminum flanges, allowing flange reversal to prolong filter life.
