FloraFlex Product Documents

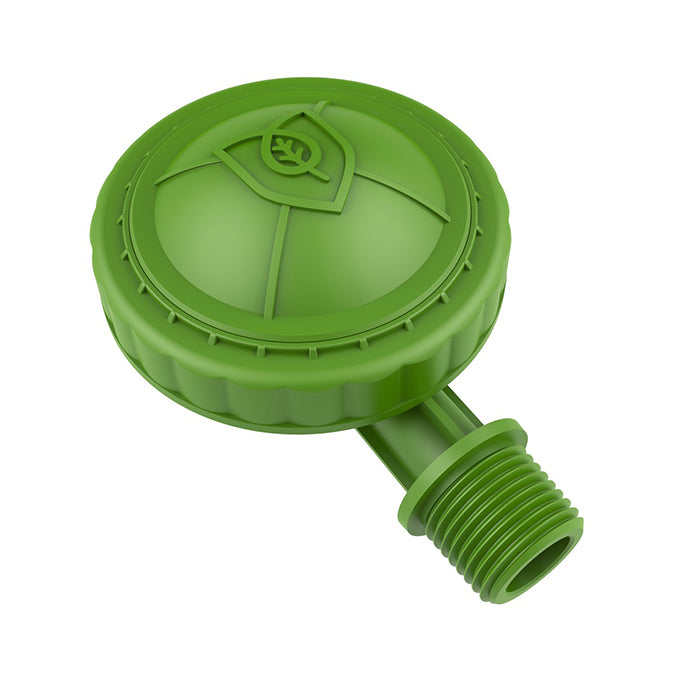

The Lateral Flush Valve allows your system to flush before each irrigation event to help keep your system clear of debris that may clog your emitters. This lateral flush valve also serves as an air relief valve, expelling air while the system fills with water. Recommended installation is at the end of your watering zone
Features
- 1/2" NPT Connection
- Combination air relief and flush valve
- Durable, weather resistant and non-corrosive material
- Removable top for easy maintenance
- Protects irrigation system and components
- Variable flow diaphragm
- Use Low Flow side of diaphragm for 2-5 GPM
- Use High Flow side of diaphragm for 5-12 GPM
- Operating Pressure: 8-25 PSI

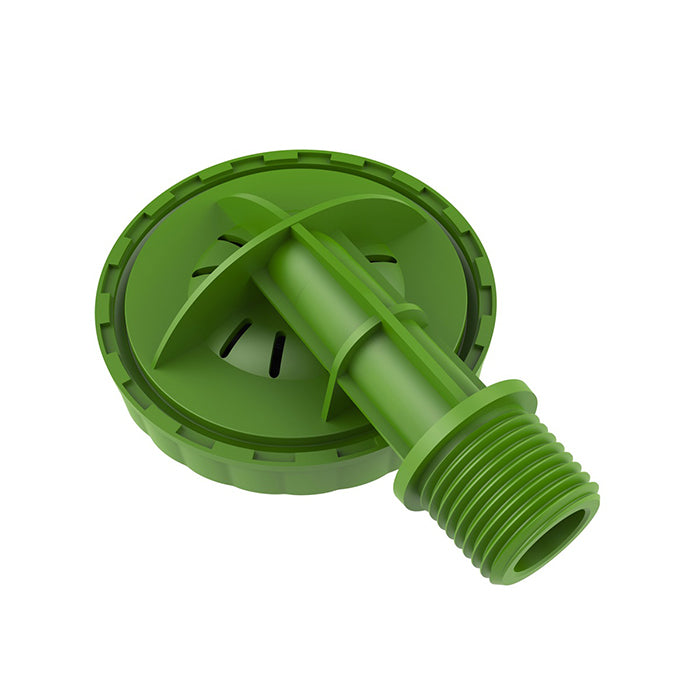

Removing the diaphragm: First, the valves green locking ring rotates counter-clockwise for access to the diaphragm; lift the cover and remove the diaphragm for cleaning or flip it over for alternate flow application
| Brand | FloraFlex |
|---|---|
| SKU | FF-1963 |
| Weight (lb.) | 0.1000 |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Lead Time | This product ships in 2-3 weeks |
| Length (in.) | |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Irrigation Part Type | Valves |
