The Lateral Flush Valve allows your system to flush before each irrigation event to help keep your system clear of debris that may clog your emitters. This lateral flush valve also serves as an air relief valve, expelling air while the system fills with water. Recommended installation is at the end of your watering zone
Features

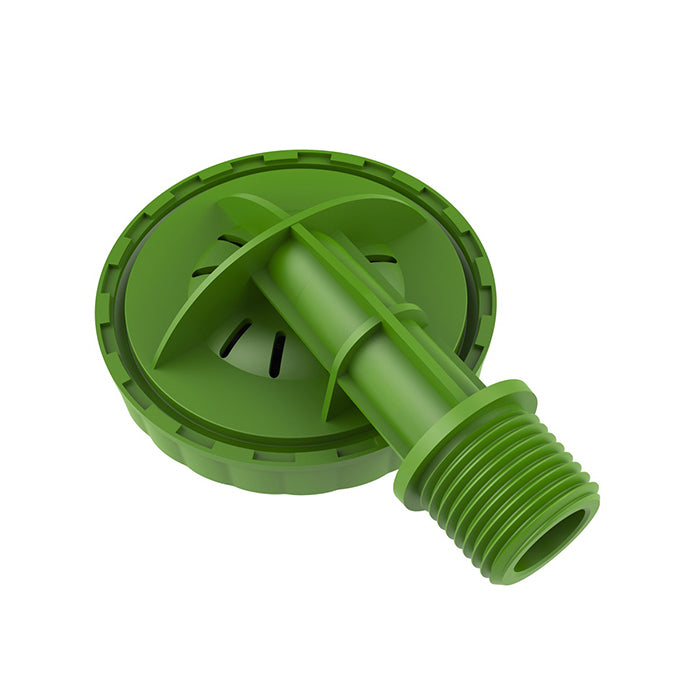

Removing the diaphragm: First, the valves green locking ring rotates counter-clockwise for access to the diaphragm; lift the cover and remove the diaphragm for cleaning or flip it over for alternate flow application
| Brand | FloraFlex |
|---|---|
| SKU | FF-1995 |
| Weight (lb.) | 1.2600 |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Lead Time | This Product Ships in 5-7 Business Days |
| Length (in.) | |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Case/Pack/Pallet Amount | 12 |
| Irrigation Part Type | Valves |
What does FloraFlex Micro Drip 16-17mm Lateral Flush Valve do in an irrigation system?
FloraFlex Micro Drip 16-17mm Lateral Flush Valve flushes the system before each irrigation event to help keep emitters clear of debris. FloraFlex Micro Drip 16-17mm Lateral Flush Valve also works as an air relief valve while the system fills with water.
Where should FloraFlex Micro Drip 16-17mm Lateral Flush Valve be installed?
FloraFlex Micro Drip 16-17mm Lateral Flush Valve is recommended for installation at the end of a watering zone. That placement supports flushing and air release for the irrigation line.
What connection does FloraFlex Micro Drip 16-17mm Lateral Flush Valve use?
FloraFlex Micro Drip 16-17mm Lateral Flush Valve uses a 1/2 inch NPT connection. The valve is listed as a lateral flush valve for micro drip irrigation setups.
Can FloraFlex Micro Drip 16-17mm Lateral Flush Valve handle different flow ranges?
FloraFlex Micro Drip 16-17mm Lateral Flush Valve uses a variable flow diaphragm. Use the low flow side for 2 to 5 GPM, and use the high flow side for 5 to 12 GPM.
Is FloraFlex Micro Drip 16-17mm Lateral Flush Valve easy to maintain?
FloraFlex Micro Drip 16-17mm Lateral Flush Valve has a removable top for easy maintenance. The green locking ring rotates counter-clockwise for access to the diaphragm, and the diaphragm can be removed for cleaning or flipped over for alternate flow application.
