ThinkGrow Product Documents

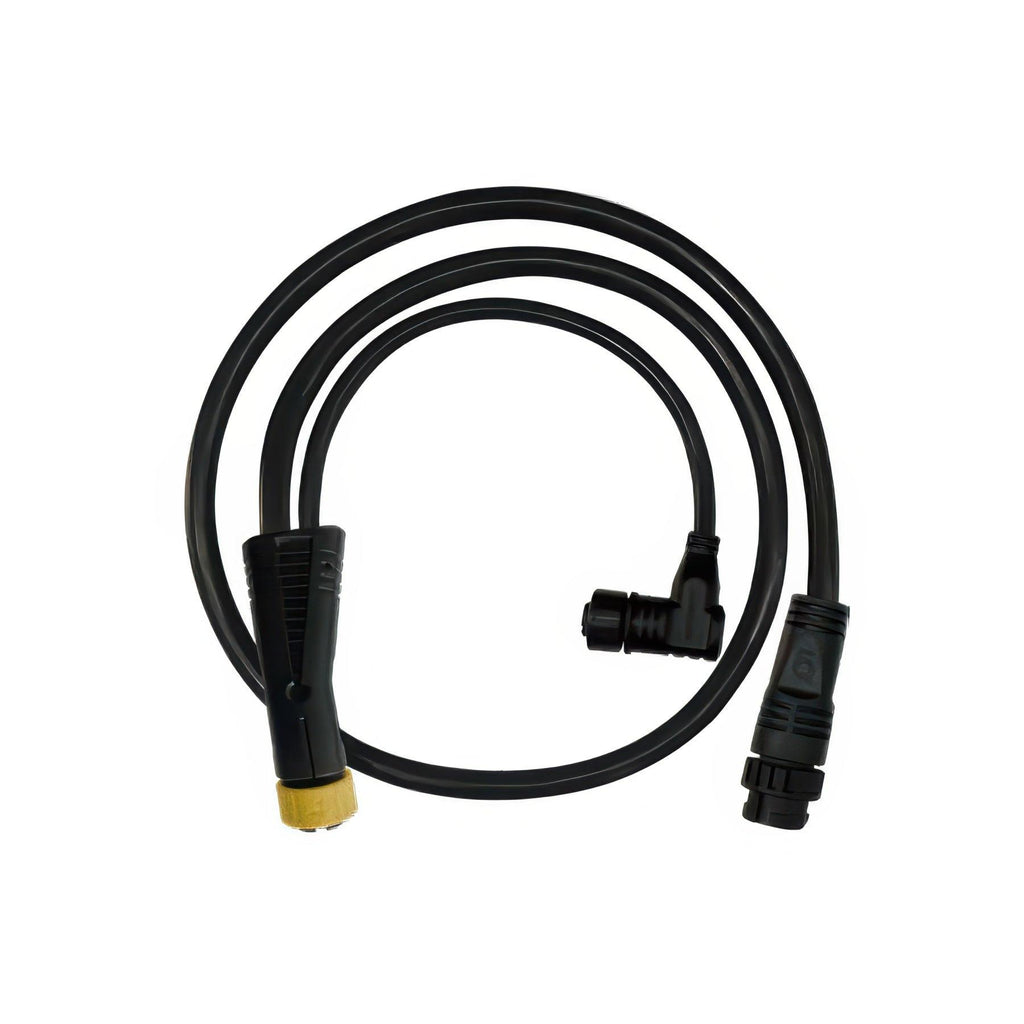

ThinkGrow Daisy Chain Power Cord Tech Sheet ThinkGrow Daisy Chain Power Cord System ManualThinkGrow Daisy Chain Power Cord System is designed to interconnect between the LED drivers, the system can eliminate a massive amount of power outlets, and reduce the number of power cables required. Depending on the power source of your facility, using the daisy chain power cord can provide power to up to 18 lighting fixtures... all connected into a single 30-amp power cable.
The ThinkGrow Daisy Chain Power Cord / Extension Power Cord provides 3 different gauges of cable, AWG #10/12/14. The user can use any or all of the cable sizes within their installation.
Specifications for DCA-10/DCA-12/DCA-14
| Model: | DCA-10 |
|---|---|
| Input Voltage: | 100-277V ≥ 30A |
| Gauge | 10 |
| Copper Area: | 5.26 mm2 |
| Resistivity | < 12mΩ |
| Length | 5 ft. (1.5m) |
| Weight | 1.7lbs (770 g) |
| Model: | DCA-12 |
|---|---|
| Input Voltage: | 100-277V ≥ 20A |
| Gauge | 12 |
| Copper Area: | 3.31 mm2 |
| Resistivity | < 16mΩ |
| Length | 5 ft. (1.5m) |
| Weight | 1.7lbs (770 g) |
| Model: | DCA-14 |
|---|---|
| Input Voltage: | 100-277V ≥ 15A |
| Gauge | 14 |
| Copper Area: | 2.08 mm2 |
| Resistivity | < 21mΩ |
| Length | 5 ft. (1.5m) |
| Weight | 1.7lbs (770 g) |
#10 AWG Maximum number of ThinkGrow LEDs that can be connected
| LED Model | Input Power | Input Voltage | |||
| 120 Volts | 240 Volts | 277 Volts | 480 Volts | ||
| Model-I Plus | 720 Watt | 4 | 8 | 9 | 16 |
| Model-I | 720 Watt | 4 | 8 | 9 | 16 |
| Model-H Plus | 720 Watt | 4 | 8 | 9 | 16 |
#12 AWG Maximum number of ThinkGrow LEDs that can be connected
| LED Model | Input Power | Input Voltage | |||
| 120 Volts | 240 Volts | 277 Volts | 480 Volts | ||
| Model-I Plus | 720 Watt | 2 | 5 | 6 | 10 |
| Model-I | 720 Watt | 2 | 5 | 6 | 10 |
| Model-H Plus | 720 Watt | 2 | 5 | 6 | 10 |
#14 AWG Maximum number of ThinkGrow LEDs that can be connected
| LED Model | Input Power | Input Voltage | |||
| 120 Volts | 240 Volts | 277 Volts | 480 Volts | ||
| Model-I Plus | 720 Watt | 2 | 4 | 4 | 8 |
| Model-I | 720 Watt | 2 | 4 | 4 | 8 |
| Model-H Plus | 720 Watt | 2 | 4 | 4 | 8 |
| Brand | ThinkGrow |
|---|---|
| SKU | DCA-12 |
| Weight (lb.) | 2.0000 |
| Lead Time | This Product Ships in 10-14 Business Days |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Hazardous Material | false |
| UL Listed | No |
| Prop 65 | false |
| ETL Listed | No |
| Amps | 20 Amps |
| Power Cord Length | 5 ft. |
ThinkGrow Daisy Chain Power Cord, AWG#12, 20 Amp, 5 Feet Videos
What problem does the ThinkGrow DCA-12 Daisy Chain Power Cord solve?
The ThinkGrow DCA-12 Daisy Chain Power Cord interconnects LED drivers, reducing required power outlets and power cables. The ThinkGrow Daisy Chain Power Cord System can provide power for up to 18 lighting fixtures through a single 30-amp power cable, depending on facility power source.
Which ThinkGrow LED fixtures can connect through the ThinkGrow DCA-12 Daisy Chain Power Cord?
The ThinkGrow DCA-12 Daisy Chain Power Cord supports ThinkGrow Model-I Plus, Model-I, and Model-H Plus LED fixtures rated at 720 watts.
How many 720-watt ThinkGrow LED fixtures can the ThinkGrow DCA-12 Daisy Chain Power Cord connect at each input voltage?
The ThinkGrow DCA-12 Daisy Chain Power Cord connects up to 2 fixtures at 120 volts, 5 fixtures at 240 volts, 6 fixtures at 277 volts, or 10 fixtures at 480 volts. Capacity applies to ThinkGrow Model-I Plus, Model-I, and Model-H Plus LED fixtures.
What installation reach and electrical range does the ThinkGrow DCA-12 Daisy Chain Power Cord provide?
The ThinkGrow DCA-12 Daisy Chain Power Cord provides a 5-foot cable length and supports 100 to 277 volts at 20 amps. The ThinkGrow DCA-12 uses AWG 12 cable.
What warranty does the ThinkGrow DCA-12 Daisy Chain Power Cord include?
The ThinkGrow DCA-12 Daisy Chain Power Cord includes a 5-year warranty.
