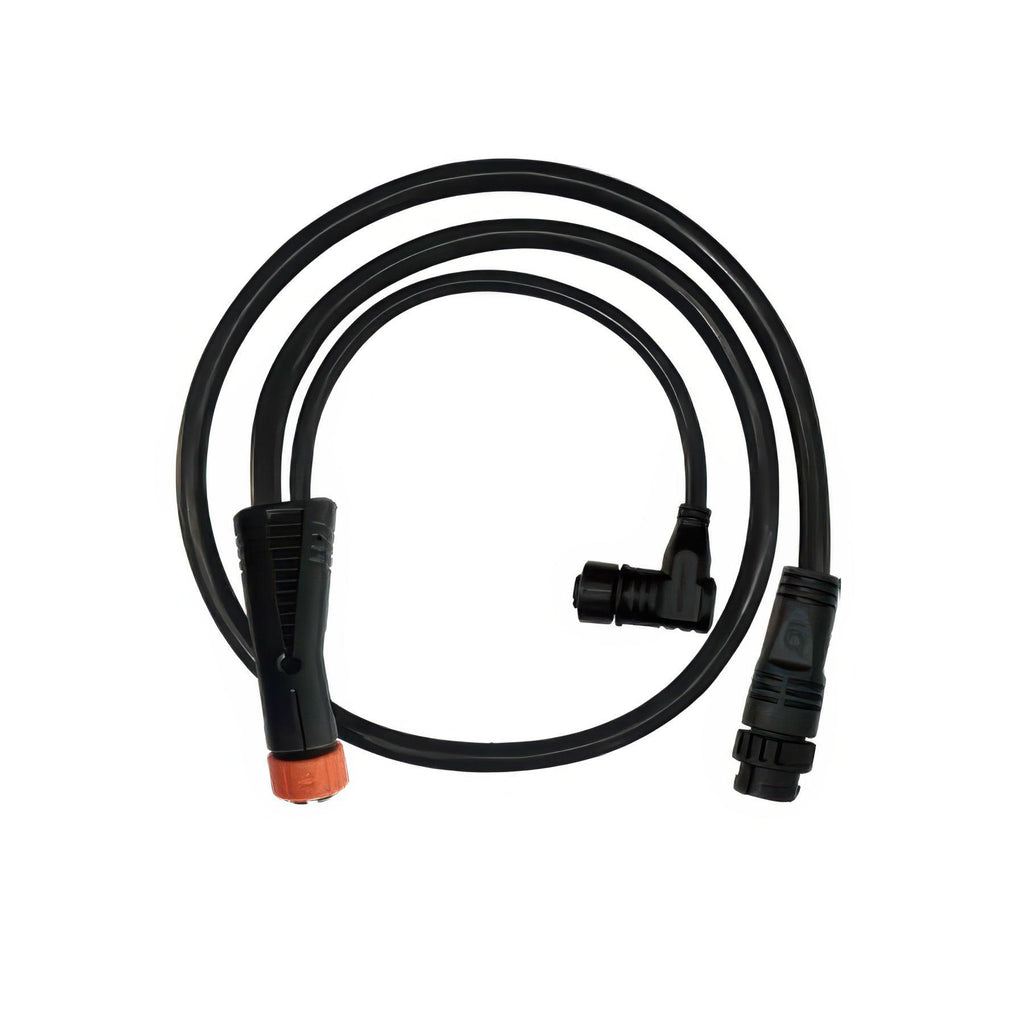

ThinkGrow Daisy Chain Power Cord System is designed to interconnect between the LED drivers, the system can eliminate a massive amount of power outlets, and reduce the number of power cables required. Depending on the power source of your facility, using the daisy chain power cord can provide power to up to 18 lighting fixtures... all connected into a single 30-amp power cable.
The ThinkGrow Daisy Chain Power Cord / Extension Power Cord provides 3 different gauges of cable, AWG #10/12/14. The user can use any or all of the cable sizes within their installation.
Specifications for DCA-10/DCA-12/DCA-14
Model:
DCA-10
Input Voltage:
100-277V ≥ 30A
Gauge
10
Copper Area:
5.26 mm2
Resistivity
< 12mΩ
Length
5 ft. (1.5m)
Weight
1.7lbs (770 g)
Model:
DCA-12
Input Voltage:
100-277V ≥ 20A
Gauge
12
Copper Area:
3.31 mm2
Resistivity
< 16mΩ
Length
5 ft. (1.5m)
Weight
1.7lbs (770 g)
Model:
DCA-14
Input Voltage:
100-277V ≥ 15A
Gauge
14
Copper Area:
2.08 mm2
Resistivity
< 21mΩ
Length
5 ft. (1.5m)
Weight
1.7lbs (770 g)
#10 AWG Maximum number of ThinkGrow LEDs that can be connected
LED Model
Input Power
Input Voltage
120 Volts
240 Volts
277 Volts
480 Volts
Model-I Plus
720 Watt
4
8
9
16
Model-I
720 Watt
4
8
9
16
Model-H Plus
720 Watt
4
8
9
16
#12 AWG Maximum number of ThinkGrow LEDs that can be connected
LED Model
Input Power
Input Voltage
120 Volts
240 Volts
277 Volts
480 Volts
Model-I Plus
720 Watt
2
5
6
10
Model-I
720 Watt
2
5
6
10
Model-H Plus
720 Watt
2
5
6
10
#14 AWG Maximum number of ThinkGrow LEDs that can be connected
