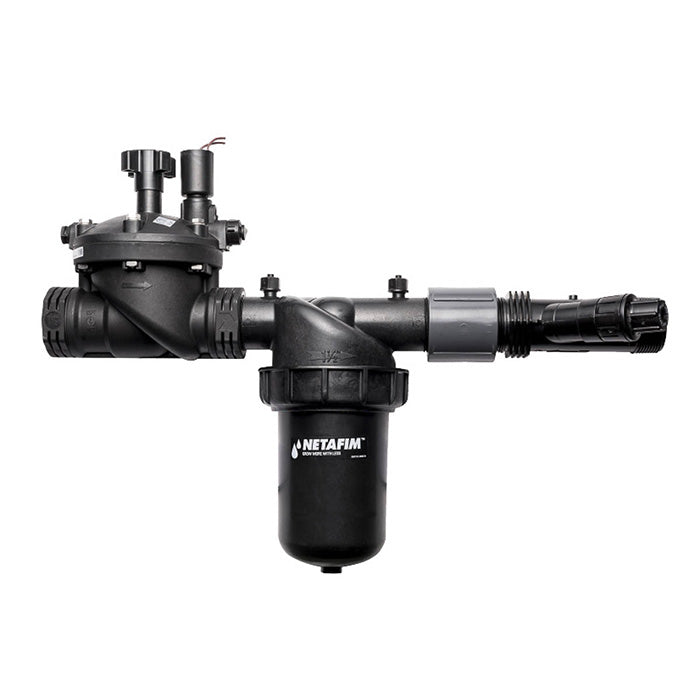

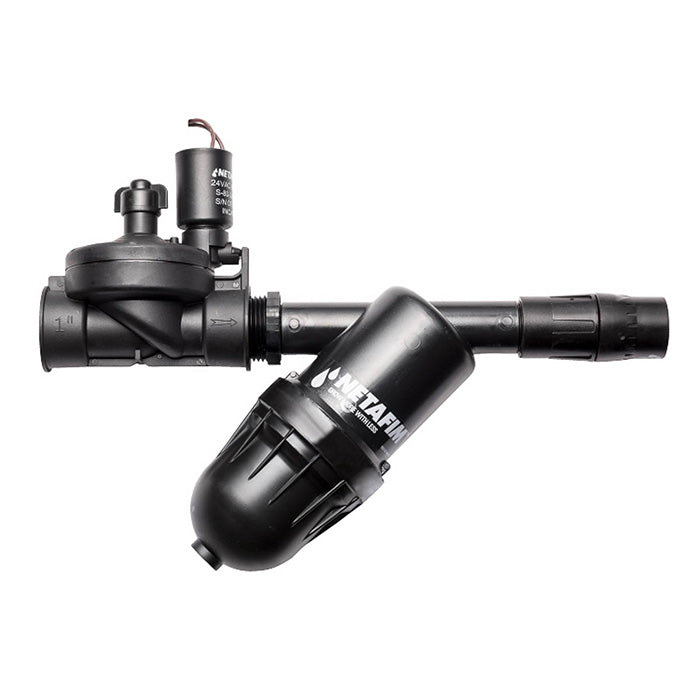

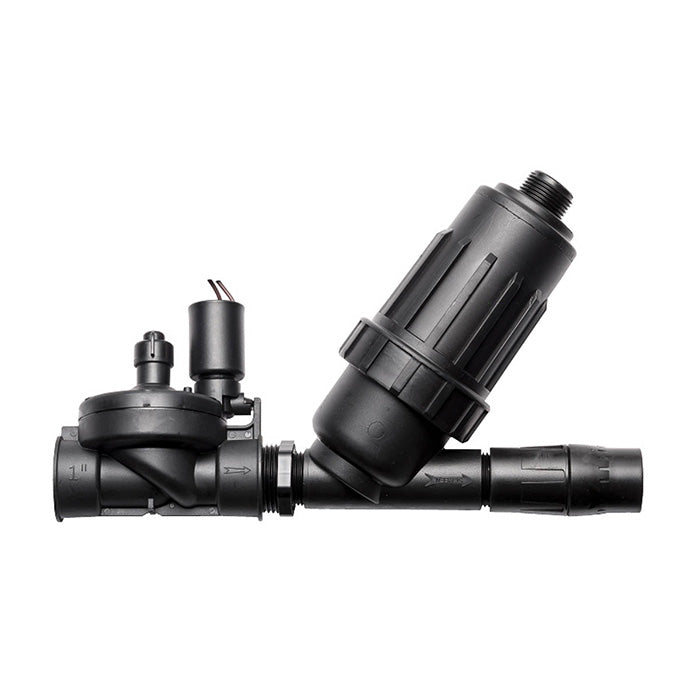

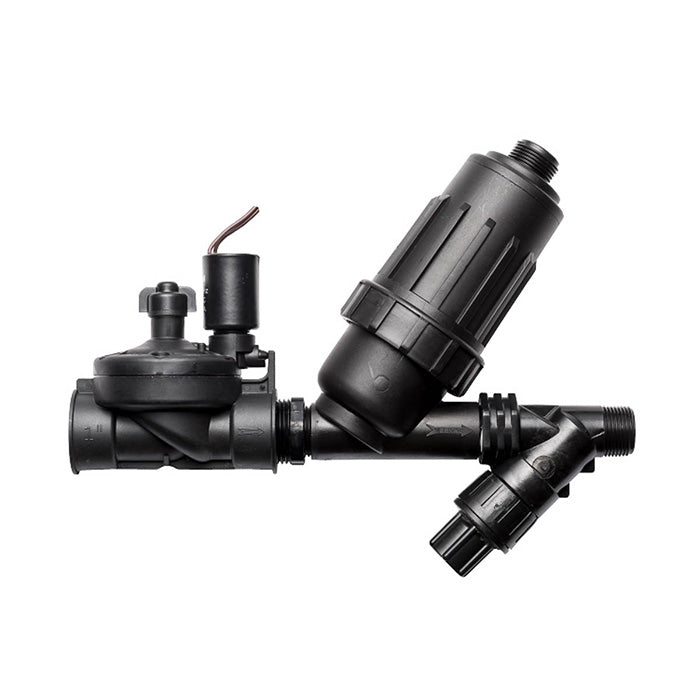

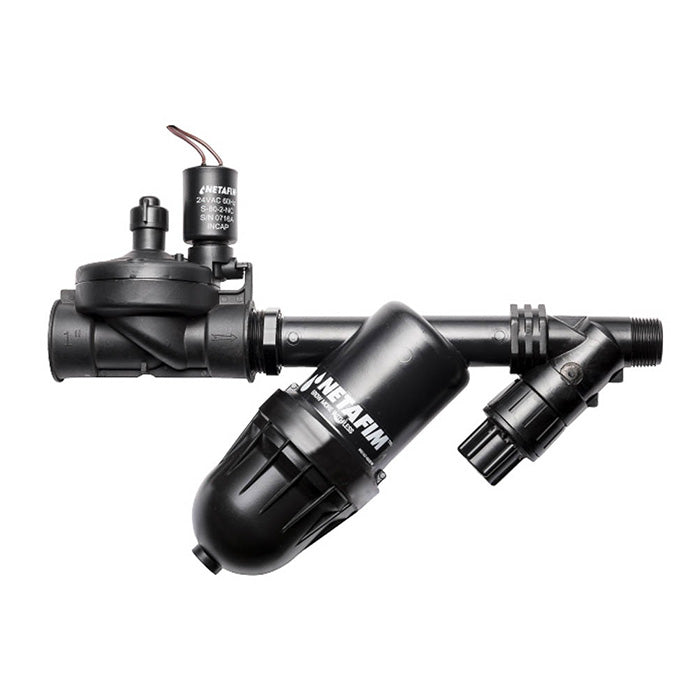

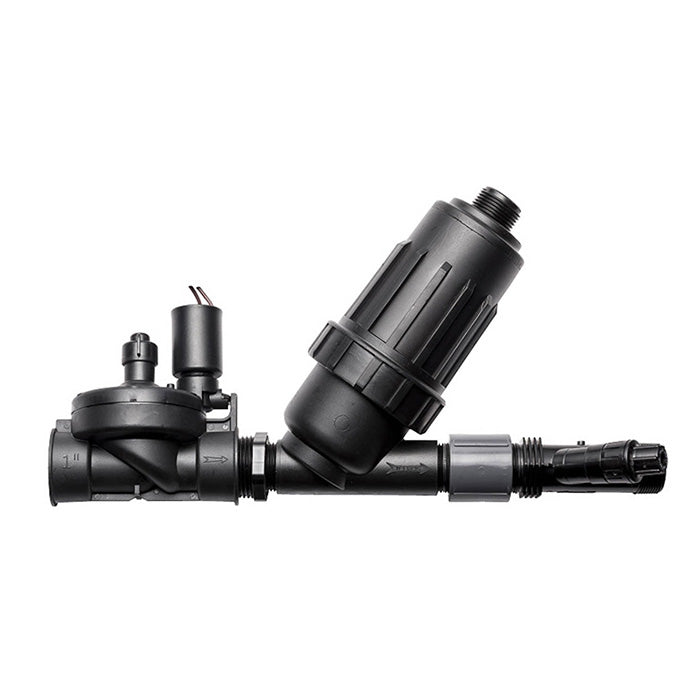

Netafim's Low Volume Control Zone Kits include a Valve, Filter, and Pressure Regulator completely assembled for easy, cost-effective installation.
Applications
Designed for all dripline, drip and micro-spray zones
Residential or commercial landscape irrigation applications
For zones between 0.25 and 35 GPM
Control Valves are 24VAC
Flow Rates
3/4" & 1" Low Flow Kits
Flow Range: 0.25 - 4.4 GPM
Regulated Pressure: 42 PSI
3/4" & 1" High Flow Kits
Flow Range: 4.5 - 17.6 GPM
Regulated Pressure: 57 PSI
1½" High Flow Kits
Flow Range: 11 - 35 GPM
Regulated Pressure: 57 PSI
Features & Benefits of Low Volume Control Zone Kits
Lowest Pressure Loss In The Industry
Get more zone control for your money with smaller units and less units required for higher flows.
100% Compatible With All 2-Wire Controllers
Save installation costs and get peace of mind with this completely 2-Wire compatible model. Inrush and holding currents are 50-60% lower than the industry average allowing the industry’s longest wire runs from valve to controller.
Ideal Drip Zone Pressure Regulation
Achieve maximum hydraulic performance with higher pressure outputs designed to deliver the longest run lengths.
Disc Filter Models Available
Get the best possible protection for your drip system with the proven performance of disc filtration.
Specifications
Residential & Commercial Low Flow
Residential & Commercial High Flow
Commercial
1" FPT INLET x 3/4" FPT OUTLET
1" FPT INLET x 3/4" MPT OUTLET
1½" FPT INLET x 1½" MPT OUTLET
Valve Specifications
Size
1"
1"
1½"
Pressure Regulator Specifications
Size
3/4"
3/4"
1½"
Regulated Pressure
42 PSI
57 PSI
57 PSI
Manual Filter Specifications
Size
3/4"
3/4"
1½"
Disc Filter Mesh
140 Mesh
140 Mesh
140 Mesh
Screen Filter Mesh
155 Mesh
155 Mesh
155 Mesh
Showing details for 0.25 - 4.4 GPM | Low Flow / Disc Filter (140 Mesh). Choose another option above to see its specs.
We don't have a video for this product yet. Questions? Our grow experts are here to help: 888-815-9763.
What comes in the Netafim Low Volume Control Zone Kit?
Netafim Low Volume Control Zone Kit includes a valve, filter, and pressure regulator completely assembled for easy, cost-effective installation.
Which irrigation zones work with the Netafim Low Volume Control Zone Kit?
Netafim Low Volume Control Zone Kit is designed for all dripline, drip, and micro-spray zones. Netafim Low Volume Control Zone Kit also works for residential or commercial landscape irrigation applications.
What flow range fits the Netafim Low Volume Control Zone Kit?
Netafim Low Volume Control Zone Kit in the low flow version is made for 0.25 to 4.4 GPM and regulated pressure of 42 PSI.
Can the Netafim Low Volume Control Zone Kit be used with 2-wire controllers?
Netafim Low Volume Control Zone Kit is 100% compatible with all 2-wire controllers. The control valves are 24VAC.
What connection sizes does the Netafim Low Volume Control Zone Kit use?
Netafim Low Volume Control Zone Kit uses a 1-inch FPT inlet and a 3/4-inch FPT outlet in the low flow version. The valve size is 1 inch, and the pressure regulator and disc filter size is 3/4 inch.
What type of filter protects the Netafim Low Volume Control Zone Kit drip zone?
Netafim Low Volume Control Zone Kit includes a disc filter for drip system protection. The filter is 140 mesh.
This sett up is great relatively easy compared to all the other methods I've use over the last 40 years at my age simple and easy with great results is where it's at
