Netafim Product Documents

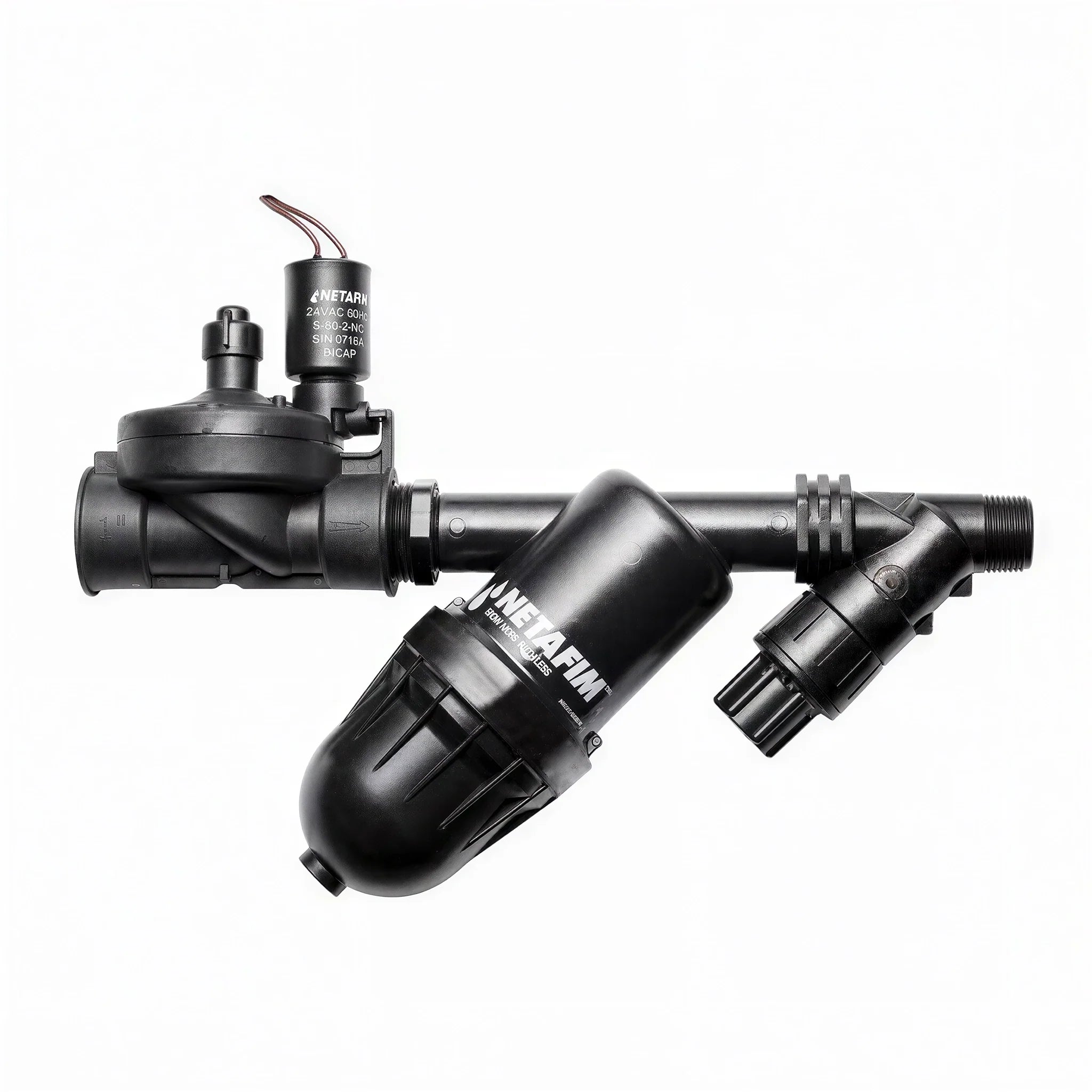

Netafim Low Volume Control Zone Kit Spec SheetNetafim's Low Volume Control Zone Kits include a Valve, Filter, and Pressure Regulator completely assembled for easy, cost-effective installation.
Applications
- Designed for all dripline, drip and micro-spray zones
- Residential or commercial landscape irrigation applications
- For zones between 0.25 and 35 GPM
- Control Valves are 24VAC
Flow Rates
-
3/4" & 1" Low FLow Kits
- Flow Range: 0.25 - 4.4 GPM
- Reglated Pressure: 42 PSI
-
3/4" & 1" High FLow Kits
- Flow Range: 4.5 - 17.6 GPM
- Reglated Pressure: 57 PSI
-
1½" High FLow Kits
- Flow Range: 11 - 35 GPM
- Reglated Pressure: 57 PSI
Features & Benefits of Low Volume Control Zone Kits
Lowest Pressure Loss In The Industry
Get more zone control for your money with smaller units and less units required for higher flows.
100% Compatible With All 2-Wire Controllers
Save installation costs and get peace of mind with this completely 2-Wire compatible model. Inrush and holding currents are 50-60% lower than the industry average allowing the industry’s longest wire runs from valve to controller.
Ideal Drip Zone Pressure Regulation
Achieve maximum hydraulic performance with higher pressure outputs designed to deliver the longest run lengths.
Disc Filter Models Available
Get the best possible protection for your drip system with the proven performance of disc filtration.
Specifications
| Residential & Commercial Low Flow |
Residential & Commercial High Flow |
Commercial | |
|---|---|---|---|
| 1" FPT INLET x 3/4" FPT OUTLET | 1" FPT INLET x 3/4" MPT OUTLET | 1½" FPT INLET x 1½" MPT OUTLET | |
| Valve Specifications | |||
| Size | 1" | 1" | 1½" |
| Pressure Regulator Specifications | |||
| Size | 3/4" | 3/4" | 1½" |
| Regulated Pressure | 42 PSI | 57 PSI | 57 PSI |
| Manual Filter Specifications | |||
| Size | 3/4" | 3/4" | 1½" |
| Disc Filter Mesh | 140 Mesh | 140 Mesh | 140 Mesh |
| Screen Filter Mesh | 155 Mesh | 155 Mesh | 155 Mesh |
| Brand | Netafim |
|---|---|
| SKU | 76601-005413 |
| Weight (lb.) | 1.9000 |
| Prop 65 | false |
| Lead Time | 10-14 |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Irrigation Part Type | Pressure Regulators, Valves, Disc Filter |
| Filter Type | Disc Filter (140 Mesh) |
What comes with Netafim Low Volume Control Zone Kit?
Netafim Low Volume Control Zone Kit includes a valve, a filter, and a pressure regulator assembled for easy, cost-effective installation.
Where can Netafim Low Volume Control Zone Kit be used?
Netafim Low Volume Control Zone Kit is designed for all dripline, drip, and micro-spray zones in residential or commercial landscape irrigation applications.
Is Netafim Low Volume Control Zone Kit sized for higher-flow zones?
Netafim Low Volume Control Zone Kit in the high-flow 1-inch version supports 4.5 to 17.6 GPM and regulates pressure at 57 PSI.
What connection sizes does Netafim Low Volume Control Zone Kit use?
Netafim Low Volume Control Zone Kit uses a 1-inch FPT inlet and a 3/4-inch MPT outlet on the high-flow residential and commercial model.
Can Netafim Low Volume Control Zone Kit work with 2-wire controllers?
Netafim Low Volume Control Zone Kit is 100% compatible with all 2-wire controllers, and the control valves are 24VAC.
How does Netafim Low Volume Control Zone Kit protect a drip system?
Netafim Low Volume Control Zone Kit uses disc filtration for drip system protection, and the disc filter is 140 mesh.
