Netafim Product Documents

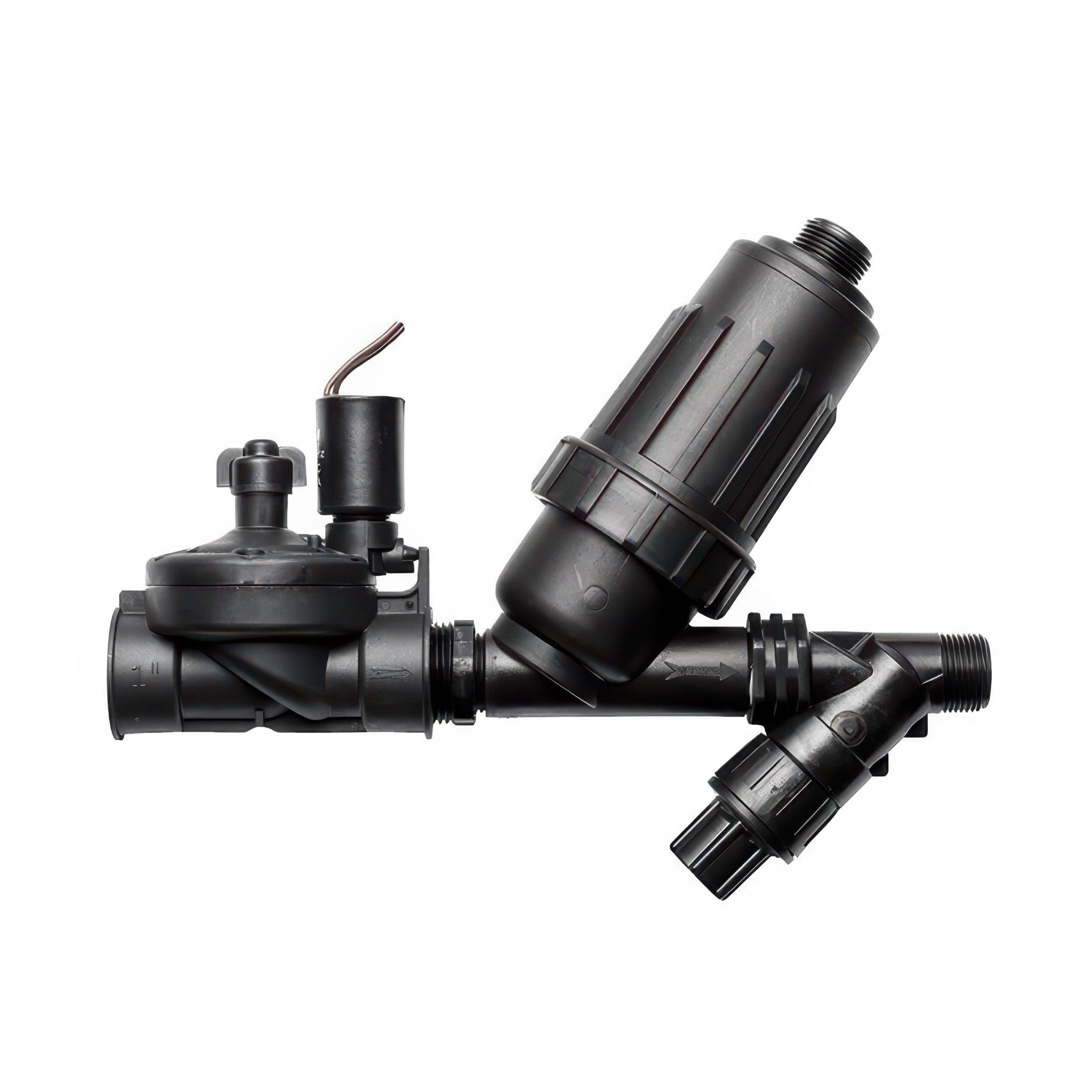

Netafim Low Volume Control Zone Kit Spec SheetNetafim's Low Volume Control Zone Kits include a Valve, Filter, and Pressure Regulator completely assembled for easy, cost-effective installation.
Applications
- Designed for all dripline, drip and micro-spray zones
- Residential or commercial landscape irrigation applications
- For zones between 0.25 and 35 GPM
- Control Valves are 24VAC
Flow Rates
-
3/4" & 1" Low FLow Kits
- Flow Range: 0.25 - 4.4 GPM
- Reglated Pressure: 42 PSI
-
3/4" & 1" High FLow Kits
- Flow Range: 4.5 - 17.6 GPM
- Reglated Pressure: 57 PSI
-
1½" High FLow Kits
- Flow Range: 11 - 35 GPM
- Reglated Pressure: 57 PSI
Features & Benefits of Low Volume Control Zone Kits
Lowest Pressure Loss In The Industry
Get more zone control for your money with smaller units and less units required for higher flows.
100% Compatible With All 2-Wire Controllers
Save installation costs and get peace of mind with this completely 2-Wire compatible model. Inrush and holding currents are 50-60% lower than the industry average allowing the industry’s longest wire runs from valve to controller.
Ideal Drip Zone Pressure Regulation
Achieve maximum hydraulic performance with higher pressure outputs designed to deliver the longest run lengths.
Disc Filter Models Available
Get the best possible protection for your drip system with the proven performance of disc filtration.
Specifications
| Residential & Commercial Low Flow |
Residential & Commercial High Flow |
Commercial | |
|---|---|---|---|
| 1" FPT INLET x 3/4" FPT OUTLET | 1" FPT INLET x 3/4" MPT OUTLET | 1½" FPT INLET x 1½" MPT OUTLET | |
| Valve Specifications | |||
| Size | 1" | 1" | 1½" |
| Pressure Regulator Specifications | |||
| Size | 3/4" | 3/4" | 1½" |
| Regulated Pressure | 42 PSI | 57 PSI | 57 PSI |
| Manual Filter Specifications | |||
| Size | 3/4" | 3/4" | 1½" |
| Disc Filter Mesh | 140 Mesh | 140 Mesh | 140 Mesh |
| Screen Filter Mesh | 155 Mesh | 155 Mesh | 155 Mesh |
| Brand | Netafim |
|---|---|
| SKU | 76601-005428 |
| Weight (lb.) | 1.5000 |
| Prop 65 | false |
| Lead Time | 7-10 |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Irrigation Part Type | Pressure Regulators, Valves, Screen Filter |
| Filter Type | Screen Filter (155 Mesh) |
What comes in the Netafim Low Volume Control Zone Kit?
Netafim Low Volume Control Zone Kit includes a valve, filter, and pressure regulator completely assembled for easy, cost-effective installation.
What irrigation zones can the Netafim Low Volume Control Zone Kit be used for?
Netafim Low Volume Control Zone Kit is designed for all dripline, drip, and micro-spray zones. The kit is made for residential or commercial landscape irrigation applications.
Is the Netafim Low Volume Control Zone Kit compatible with 2-wire controllers?
Netafim Low Volume Control Zone Kit is 100% compatible with all 2-wire controllers. The control valve is 24VAC.
What flow range fits the Netafim Low Volume Control Zone Kit?
Netafim Low Volume Control Zone Kit in the 3/4-inch and 1-inch high-flow version is made for zones with a 4.5 to 17.6 GPM flow range. The regulated pressure for this high-flow kit is 57 PSI.
What filter and pressure regulator are included with the Netafim Low Volume Control Zone Kit?
Netafim Low Volume Control Zone Kit includes a 3/4-inch screen filter and a 3/4-inch high-flow pressure regulator. The screen filter mesh is 155 mesh.
