Netafim Product Documents

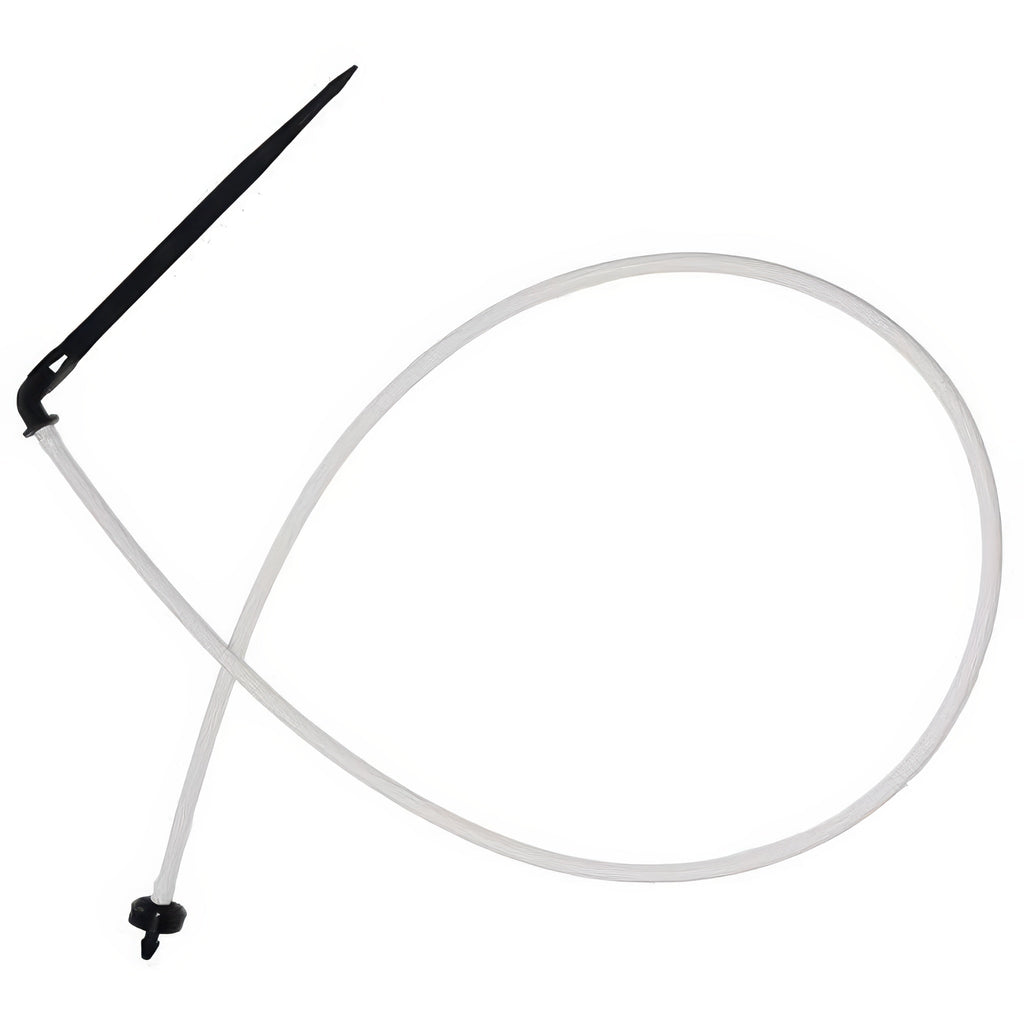

Pressure Dripper Specifcation SheetNetafim WPCJ Drip Stake Assembly with a 0.3 GPH pressure-compensating Woodpecker Junior (PCJ) dripper and 36 inches of Super Flex UV White PE tubing. Includes one PCJ dripper, pre-cut tubing, and an angle barbed stake. Operating pressure range: 10 - 45 PSI. CNL check valve closes at 7 PSI. Also available in 18, 24, 30 and 48 inch tubing lengths.
For complete system specs and compatible fittings, see the Netafim WPCJ Drip Stake Assembly main page. Fast shipping on most orders.
| Brand | Netafim |
|---|---|
| SKU | 40201-021370 |
| Weight (lb.) | 2.0000 |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Lead Time | 2-3 |
| Length (in.) | |
| Hazardous Material | false |
| UPC | 3661734870603 |
| UL Listed | No |
| ETL Listed | No |
| Case/Pack/Pallet Amount | 25 |
| Irrigation Part Type | Drip Assembly |
| Tubing Length | 36 Inch |
What are the main benefits of using the Netafim Drip Stake Assembly?
The Netafim Drip Stake Assembly provides superior uniformity with slow, low-flow drippers, ensuring even soil wetting without run-off. It maintains a uniform flow rate with a wide compensation range, making it ideal for areas with difficult topographical conditions.
How does the Netafim Drip Stake Assembly ensure uniform water distribution?
Each dripper adjusts automatically to system pressure, providing a watering uniformity of 94% even on slopes. The built-in check valve ensures all drippers turn on and off simultaneously, delivering water directly to the plant without overspray.
What types of applications is the Netafim Drip Stake Assembly suitable for?
This assembly is perfect for vineyards, orchards, greenhouses, nurseries, and hydroponic applications, particularly in soilless substrates where precise water and nutrient delivery is crucial.
