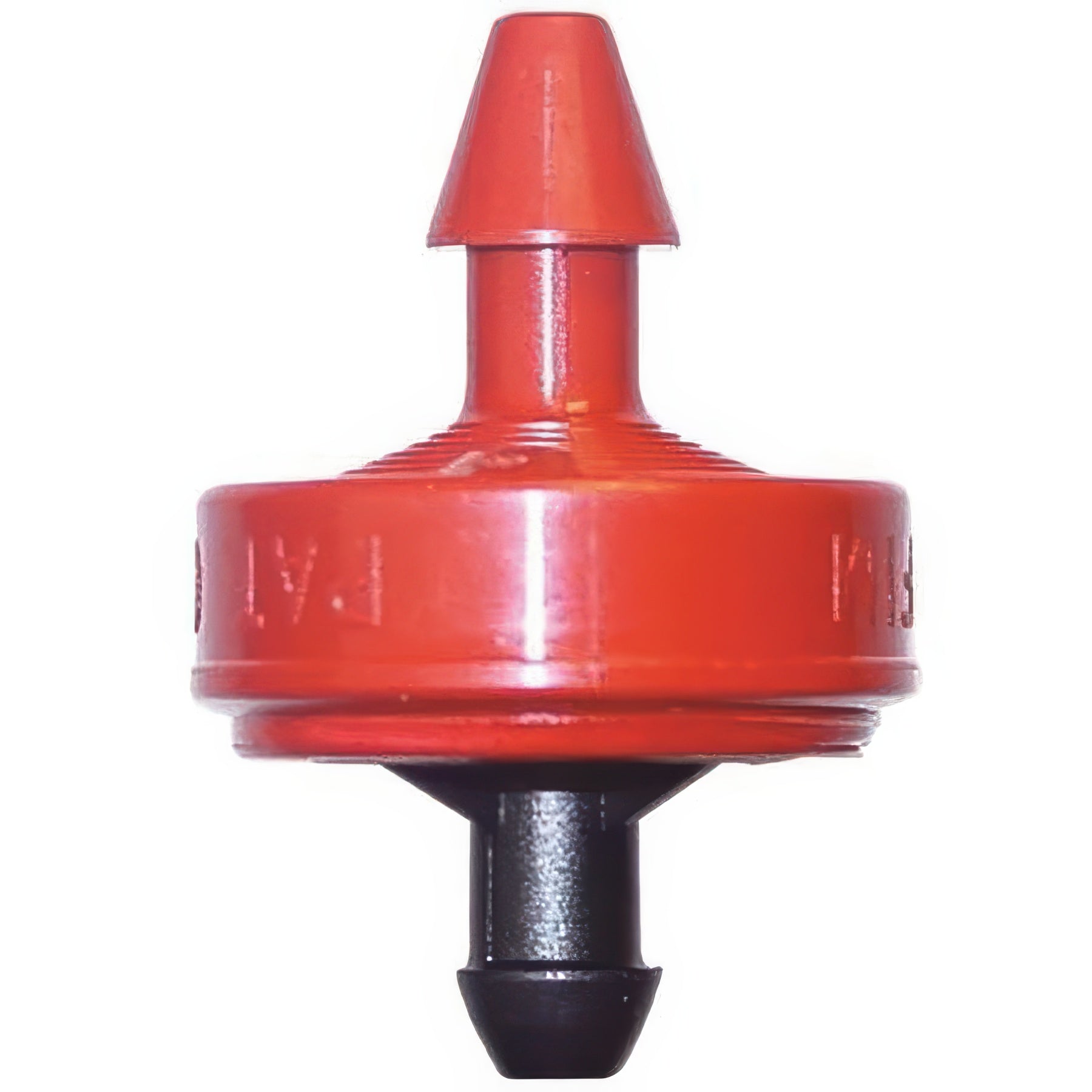

Netafim Woodpecker Pressure Compensating Junior Dripper Barbed Outlet

The Netafim Woodpecker Junior (PCJ) with barbed outlet is the most widely used pressure-compensating container dripper in commercial greenhouse and CEA production. The 1/8" barbed outlet connects directly to 1/8" Super Flex UV White PE micro-tubing or integrates into a Drip Stake Assembly with an angle barbed stake. The CNL (Closed Non-Leak) check valve closes at 7 PSI, ensuring every dripper in the system starts and stops simultaneously and preventing low-point drainage between irrigation cycles. Available in 7 flow rates - color-coded for fast visual identification at a distance.

Outlet note: The barbed outlet fits 1/8" tubing directly. If you need to insert into a larger supply line without micro-tubing, use the nipple-outlet (N) version instead, which pairs with Netafim's MOD multi-outlet dripper manifold.

Specifications

• Dripper type: PCJ Junior - compact pressure-compensating with CNL check valve
• Operating pressure range: 10 - 60 PSI (uniform flow maintained)
• Check valve closing pressure: 7 PSI
• Available flow rates and color codes:

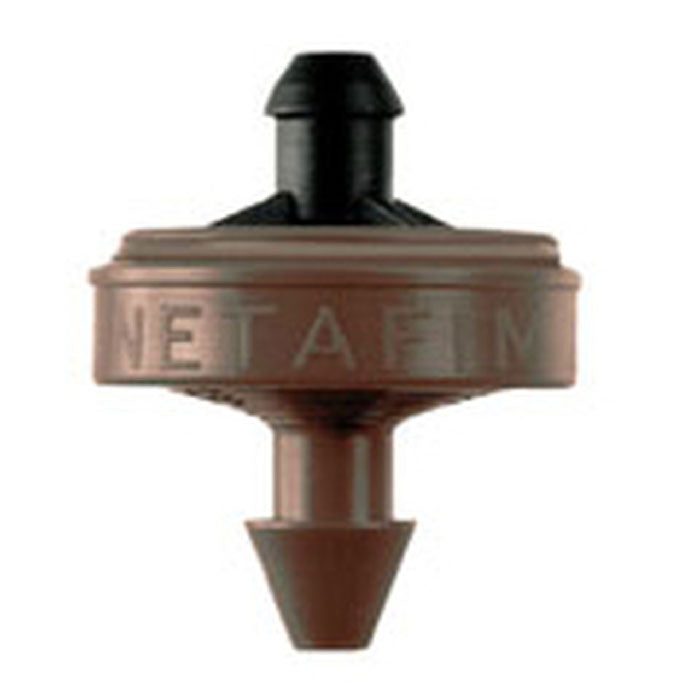

• -- 0.32 GPH (1.2 LPH) - Brown

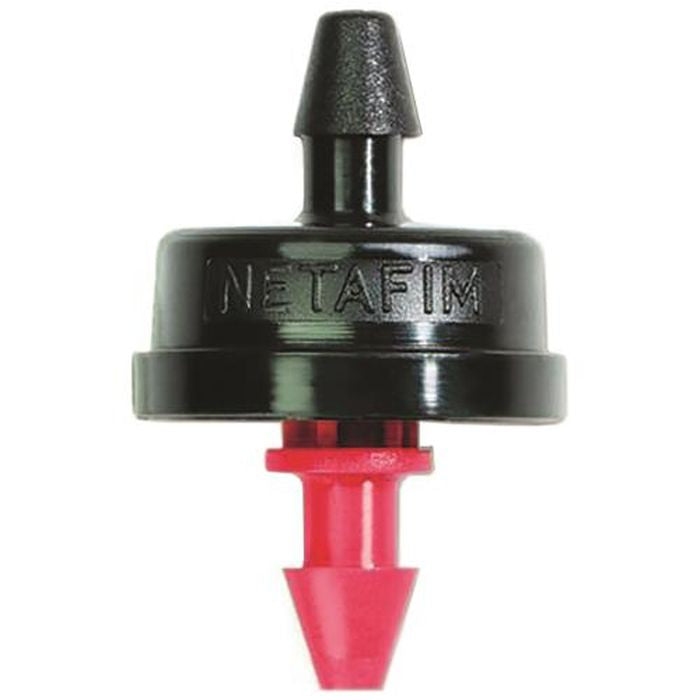

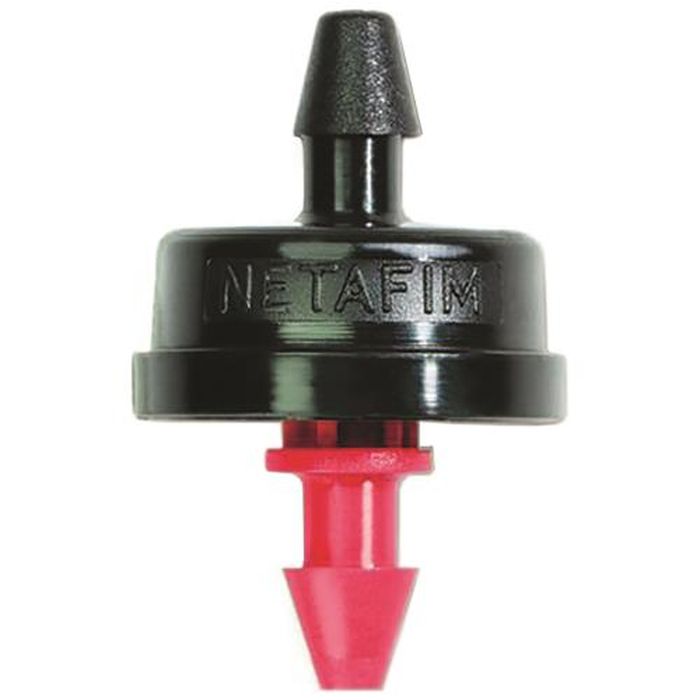

• -- 0.53 GPH (2 LPH) - Red

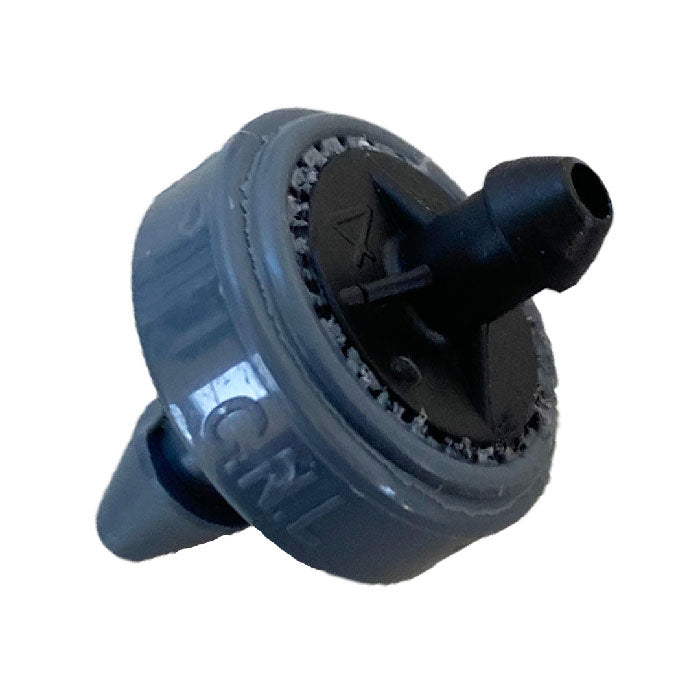

• -- 0.74 GPH (3 LPH) - Blue

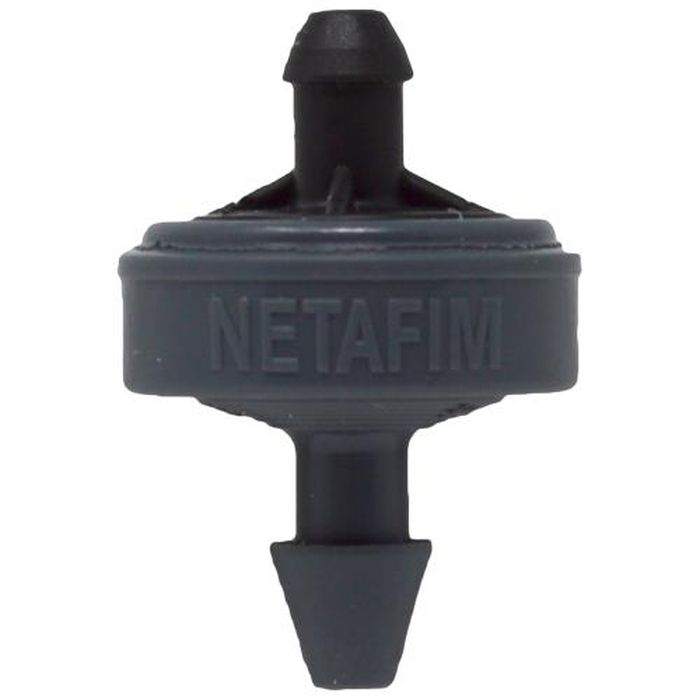

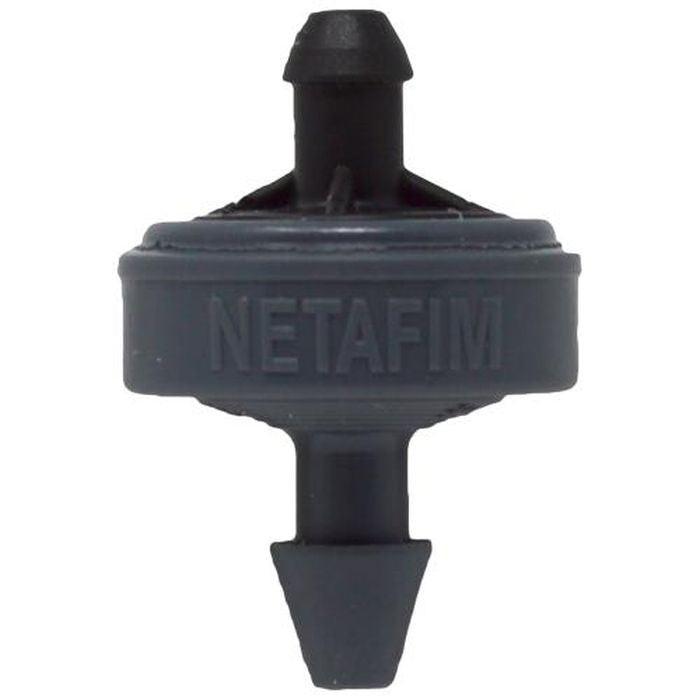

• -- 1.06 GPH (4 LPH) - Grey

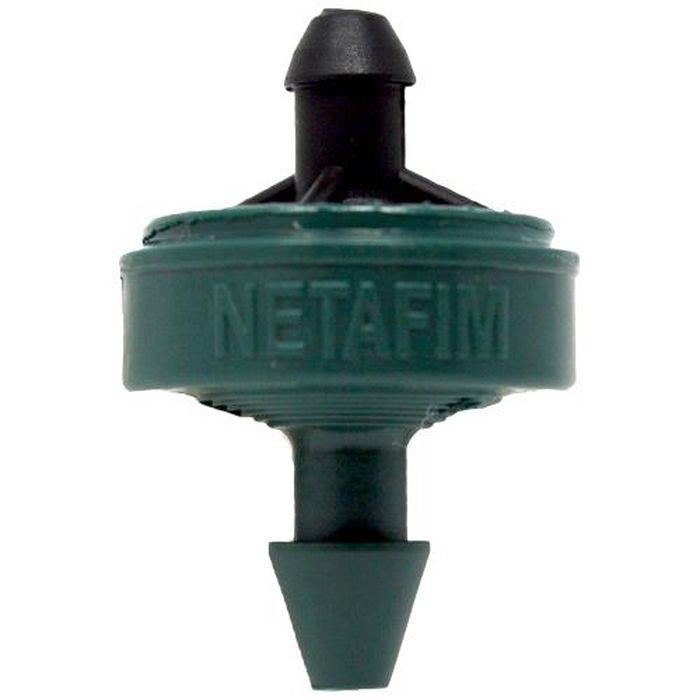

• -- 2.11 GPH (8 LPH) - Green
• -- 3.2 GPH (12 LPH) - Plum/Black

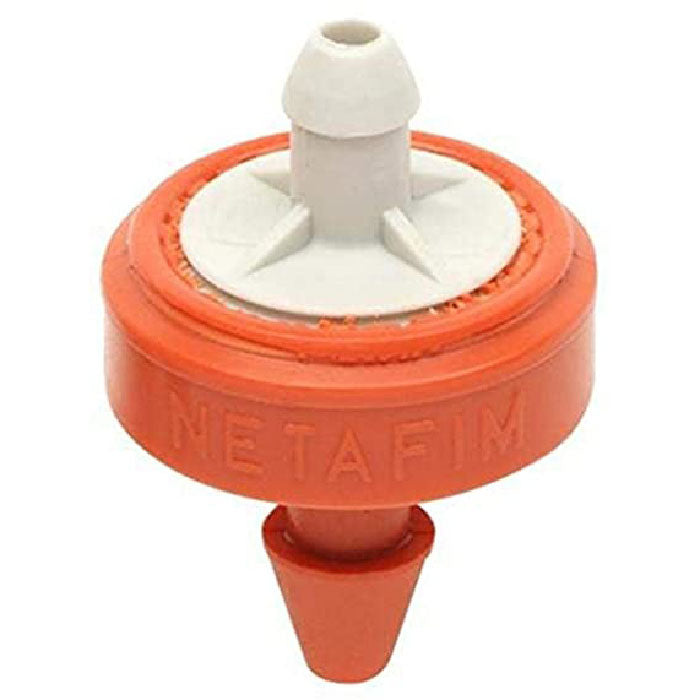

• -- 6.6 GPH (25 LPH) - Orange/Grey

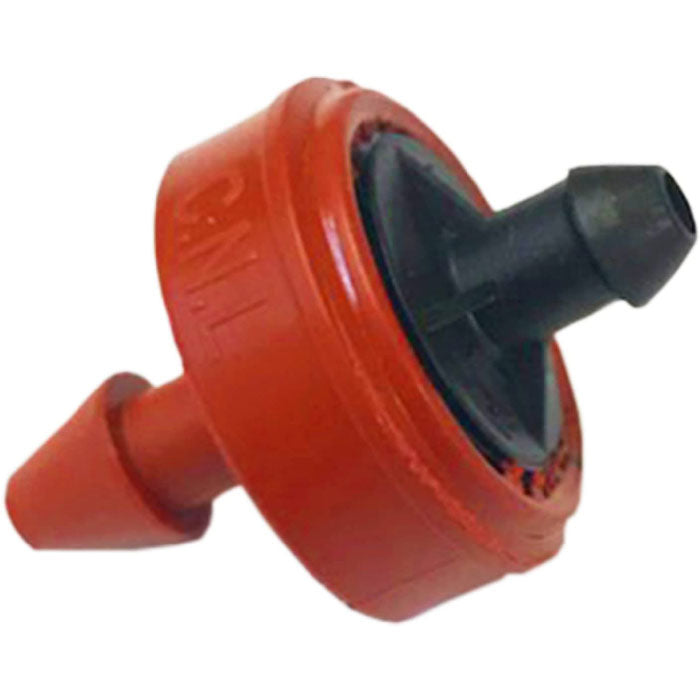

• -- 7.9 GPH (30 LPH) - Orange/Brown

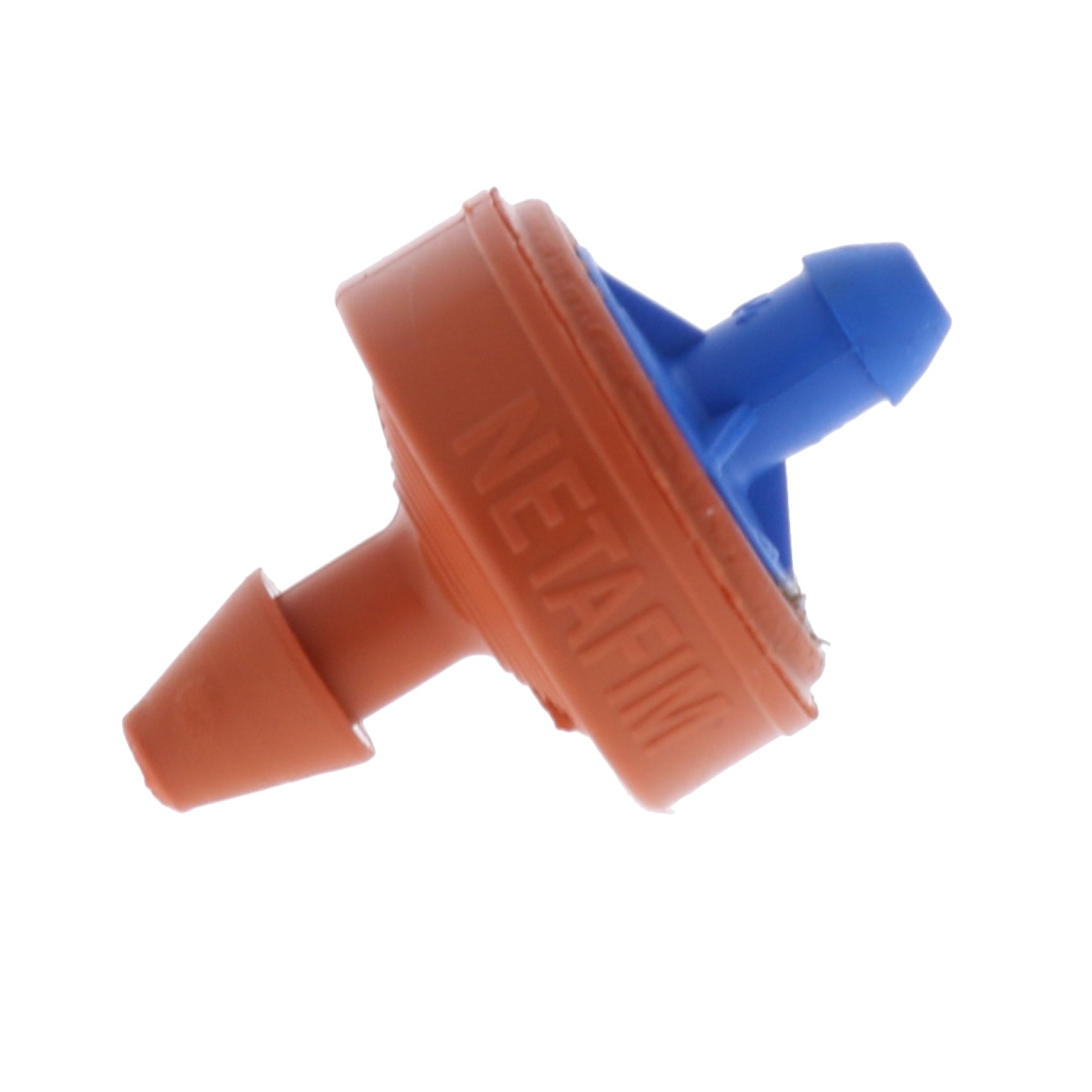

• -- 10.6 GPH (40 LPH) - Orange/Blue
• Outlet: 1/8" barbed (fits 1/8" micro-tubing; does not fit manifolds directly)
• Recommended filtration: 120 mesh (130 micron)
• Pack sizes: 250 per bag or 13,000 per case

Compatible With

• Netafim WPCJ Drip Stake Assembly
• Netafim Arrow Drippers
• Netafim 17mm Bright White PE Supply Tubing
• Netafim 17mm TechLock Shut-Off Valve
