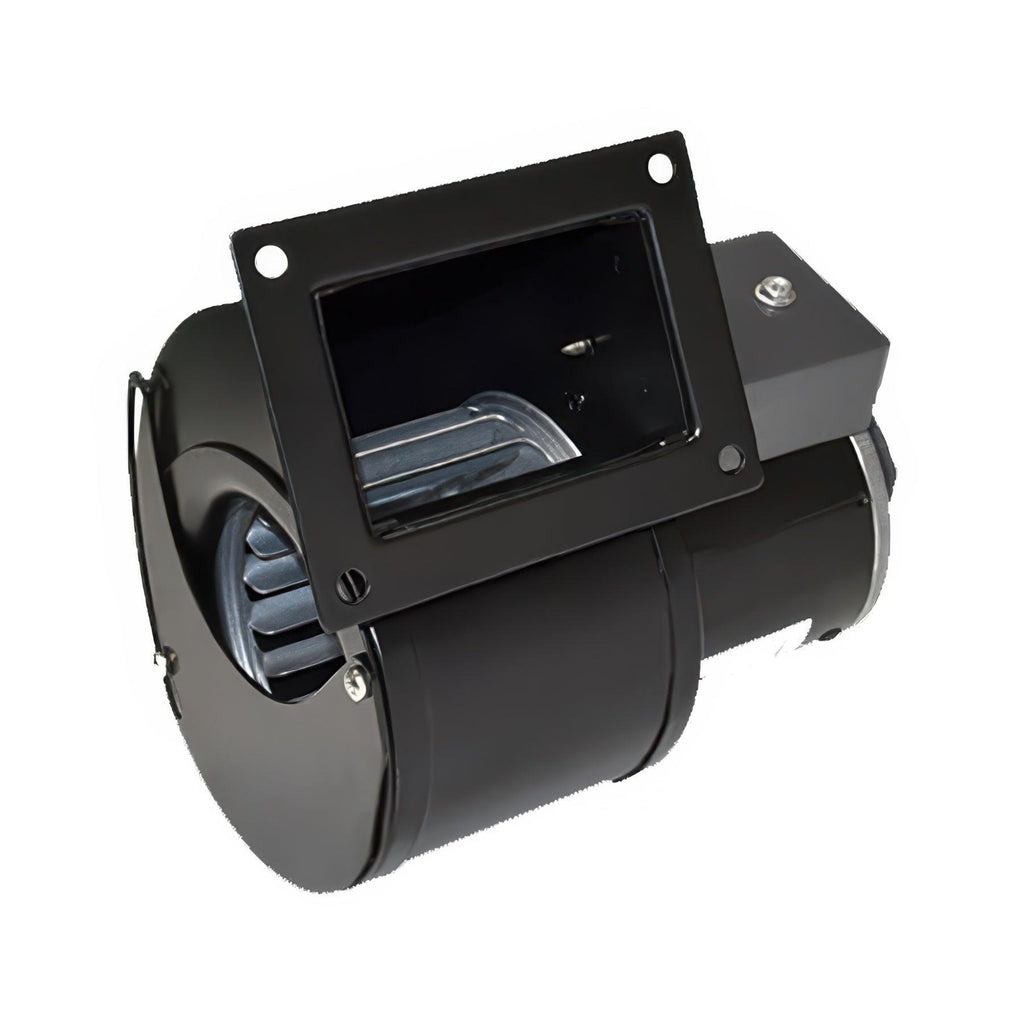

J&D Manufacturing PSC Square Mounting Inflation Blower Motor with Louver, 148 CFM - Single Phase - No Cord
J&D Manufacturing PSC Square Mounting Inflation Blower Motor with Louver, 148 CFM - Single Phase - No Cord
Roll over image to zoom in Click on image to zoom
J&D Manufacturing PSC Square Mounting Inflation Blower Motor with Louver, 148 CFM - Single Phase - No CordJ&D Manufacturing PSC Square Mounting Inflation Blower Motor with Louver, 148 CFM - Single Phase - No Cord

J&D Manufacturing PSC Square Mounting Inflation Blower Motor with Louver, 148 CFM - Single Phase - No Cord

SKU: VBM148A-P
No reviews
J&D Manufacturing Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This Product Ships in 7-10 Days

CFM Rating: 148 CFM - Square - No Cord
60 CFM - Round - No Cord
60 CFM - Round - With Cord
148 CFM - Square - No Cord
148 CFM - Square - With Cord
Price:
$115.71

J&D Manufacturing Product Documents

J&D Manufacturing PSC Inflation Blower Motor Instructions J&D Manufacturing PSC Inflation Blower Motor Spec Sheet

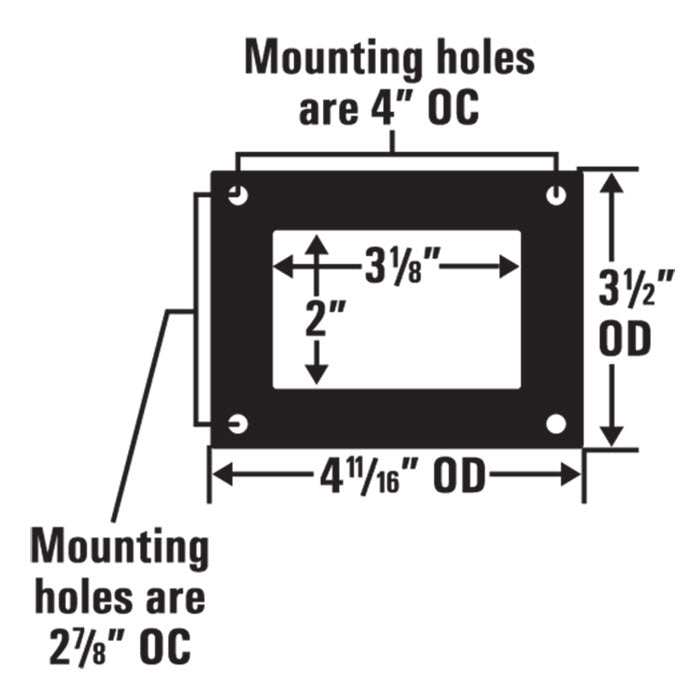

Energy efficient PSC Inflation Blowers from J&D Manufacturing are designed to inflate double poly greenhouses for greater insulation capabilities. All models have adjustable damper doors to regulate air flow as the poly expands. J&D Inflation Blowers have a heavy gauge steel housing and forward curve metal wheel that is balanced for smooth operation. Oversized mounting holes on the discharge flange fit most industry standard brackets.

PSC Inflation Blower Feautures:

  • Permanent split capacitor, energy efficient, Class B motor with sealed ball bearings and automatic thermal overload protection
  • PSC motor draws 50% less power and 70% less amps than similar shaded-pole blowers
  • Heavy gauge steel housing with powder coated black finish
  • Adjustable air flow damper
  • Forward curve metal blower wheel – NO PLASTIC!
  • Dynamically balanced to reduce noise and vibration
  • Fully enclosed wires and connections
  • Junction box with cord knock out for easy wiring
  • Brass set screw for ground wire
  • Fits most industry standard mounts
  • Available with 6’ cord and 3-prong plug pre-wired for 120 Volts
  • Ships fully assembled and individually packaged
  • One Year Warranty
  • Optional mounting bracket with deflector for easy mounting to tube framed structures

PSC Inflation Blower Specs

Sku CFM HP Volts Amps
VBM60A-P 60 1/125 115 Volt 0.23A
VBM60A-PC 60 1/125 115 Volt 0.23A
VBM148A-P 148 1/25 115 Volt 0.75A
VBM148A-PC 148 1/25 115 Volt 0.75A
Sku Phase Hz RPM Cord Included
VBM60A-P Single 60 3080 No
VBM60A-PC Single 60 3080 Yes
VBM148A-P Single 60 3120 No
VBM148A-PC Single 60 3120 Yes
Brand J&D Manufacturing
SKU VBM148A-P
Weight (lb.) 12.0000
Lead Time This Product Ships in 7-10 Days
Height (in.)
Width (in.)
Length (in.)
Warranty 1 Year
Prop 65 false
Hazardous Material false
UPC 737623914321
Fan Type Blower
Is Speed Controllable No
Oscillation No
CFM Rating 148 CFM
Amps 0.75 A
Frequency 60 Hz
Voltage 115 Volts
Max. RPM 3120
ETL Listed No
UL Listed No

How do I wire my ventilation motor?A: J&D recommends having all electrical work performed by a certified electrician. The electrician can find the wiring diagram on the motor label.

J&D offers a 2 year replacement warranty on all electric fan motors, unlike many of our competitors who offer only a one year warranty. Warranty is based on invoice date to the dealer, J&D does not cover freight or labor. POW14, POW18, POW18B, POW24OSC, POW30OSC, VBM60PSC-P, VBM148PSC-P, PDF24, and VRSM10-Power inlet motor carry a 1 year warranty. VR3E and VR33 motors (Mega Storm Fan) carry a 3 year warranty.
