J&D Manufacturing Product Documents

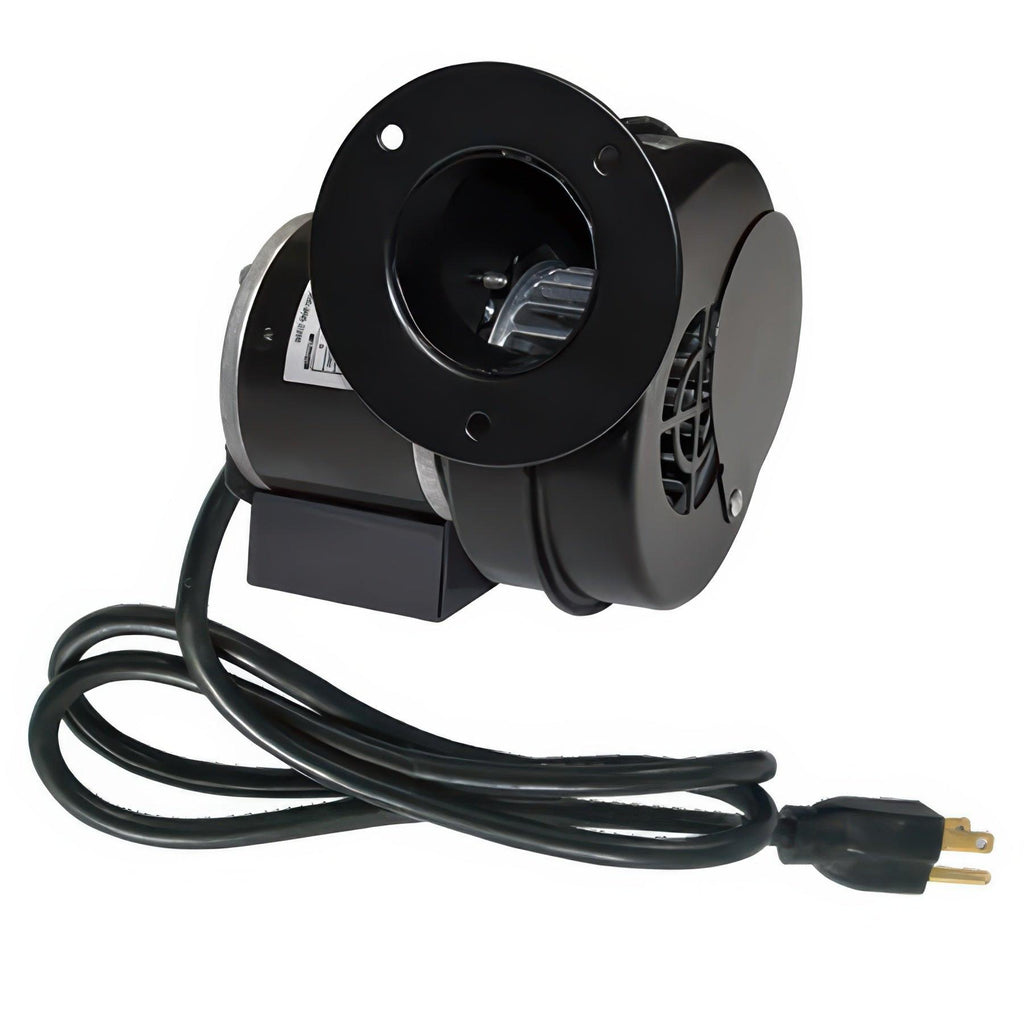

J&D Manufacturing PSC Inflation Blower Motor Instructions J&D Manufacturing PSC Inflation Blower Motor Spec SheetEnergy efficient PSC Inflation Blowers from J&D Manufacturing are designed to inflate double poly greenhouses for greater insulation capabilities. All models have adjustable damper doors to regulate air flow as the poly expands. J&D Inflation Blowers have a heavy gauge steel housing and forward curve metal wheel that is balanced for smooth operation. Oversized mounting holes on the discharge flange fit most industry standard brackets.
PSC Inflation Blower Feautures:
- Permanent split capacitor, energy efficient, Class B motor with sealed ball bearings and automatic thermal overload protection
- PSC motor draws 50% less power and 70% less amps than similar shaded-pole blowers
- Heavy gauge steel housing with powder coated black finish
- Adjustable air flow damper
- Forward curve metal blower wheel – NO PLASTIC!
- Dynamically balanced to reduce noise and vibration
- Fully enclosed wires and connections
- Junction box with cord knock out for easy wiring
- Brass set screw for ground wire
- Fits most industry standard mounts
- Available with 6’ cord and 3-prong plug pre-wired for 120 Volts
- Ships fully assembled and individually packaged
- One Year Warranty
- Optional mounting bracket with deflector for easy mounting to tube framed structures
PSC Inflation Blower Specs
| Sku | CFM | HP | Volts | Amps |
|---|---|---|---|---|
| VBM60A-P | 60 | 1/125 | 115 Volt | 0.23A |
| VBM60A-PC | 60 | 1/125 | 115 Volt | 0.23A |
| VBM148A-P | 148 | 1/25 | 115 Volt | 0.75A |
| VBM148A-PC | 148 | 1/25 | 115 Volt | 0.75A |
| Sku | Phase | Hz | RPM | Cord Included |
|---|---|---|---|---|
| VBM60A-P | Single | 60 | 3080 | No |
| VBM60A-PC | Single | 60 | 3080 | Yes |
| VBM148A-P | Single | 60 | 3120 | No |
| VBM148A-PC | Single | 60 | 3120 | Yes |
| Brand | J&D Manufacturing |
|---|---|
| SKU | VBM60A-PC |
| Weight (lb.) | 12.0000 |
| Lead Time | 2-3 |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 Year |
| Prop 65 | false |
| Hazardous Material | false |
| UPC | 737623920360 |
| Fan Type | Blower |
| Is Speed Controllable | No |
| Oscillation | No |
| CFM Rating | 60 CFM |
| Amps | 0.23 A |
| Frequency | 60 Hz |
| Voltage | 115 Volts |
| Max. RPM | 3080 |
| ETL Listed | No |
| UL Listed | No |
How do I wire my ventilation motor?A: J&D recommends having all electrical work performed by a certified electrician. The electrician can find the wiring diagram on the motor label?
J&D offers a 2 year replacement warranty on all electric fan motors, unlike many of our competitors who offer only a one year warranty. Warranty is based on invoice date to the dealer, J&D does not cover freight or labor. POW14, POW18, POW18B, POW24OSC, POW30OSC, VBM60PSC-P, VBM148PSC-P, PDF24, and VRSM10-Power inlet motor carry a 1 year warranty. VR3E and VR33 motors (Mega Storm Fan) carry a 3 year warranty.
