EcoPlus Product Documents

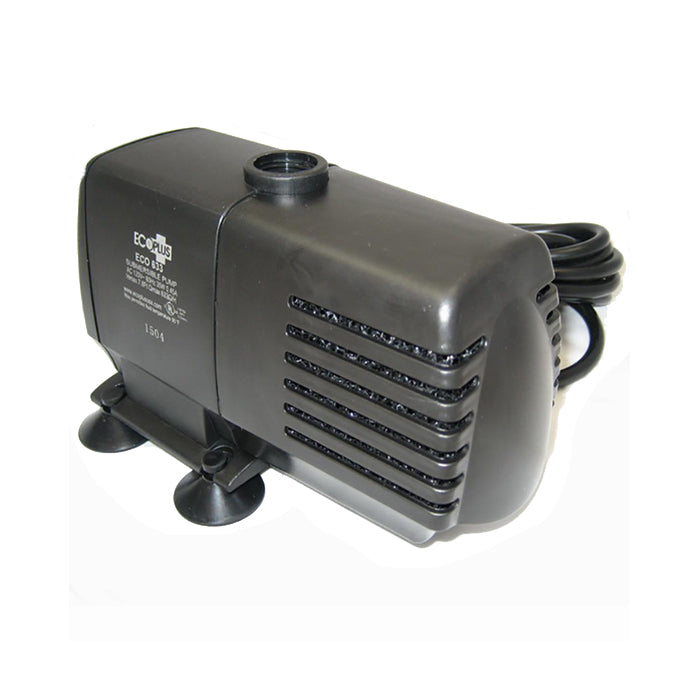

Eco Plus Submersible Pump Instructions (Eco 100 - Eco 2245)Fixed Flow Water Pumps from EcoPlus
EcoPlus Fixed Flow Rate Submersible or Inline Pumps are quality products that are designed using the very latest pump technology. These pumps are suitable for use in hydroponics systems, ponds, aquariums, fountains, and filter systems.
These pumps are designed with "synchronous technology" where electrical parts are fully encapsulated in epoxy resin. This unit is constructed with high quality, fully tested and rated components to ensure the best performance possible.
Pumps include a variety of attachment fitting to choose form as well as a striner and foam filter. UL listed.
Note: Information regarding Attachment Fittings & Parts can be found in the Pump Instruction PDFs at the top. There are a variety of sizes of different fittings for each pump.
Features Include:
- Driven by a high power rare earth rotor magnet.
- Only 1 moving part for trouble-free operation
- Built-in “sponge” filter protects ceramic shaft and impeller.
- Suitable for indoor or outdoor use with fresh or saltwater.
- Can be used in fully submersible or inline applications.
- Diverse selection of fittings are included with every pump.
- One year manufacturer warranty
- Quiet oil-free motor
- Never let the pump run dry. Doing so will damage pump and could void the warranty
- Place pump in minimum of 6 inches and a maximum of 3 feet below water surface.
- Always place on stable surfaces that are free from sludge, sand and other debris.
| Item No. | Description | GPH | Watts | Max Height |
|---|---|---|---|---|
| 728492 | Eco 100 Submersible Pump | 100 | 10 | 3 |
| 728300 | Eco 185 Submersible Pump | 158 | 26.5 | 4 |
| 728305 | Eco 264 Submersible Pump | 290 | 28 | 6.5 |
| 728310 | Eco 396 Submersible Pump | 396 | 36 | 6.5 |
| 728315 | Eco 633 Submersible Pump | 594 | 54 | 7.5 |
| 728320 | Eco 1056 Submersible Pump | 1083 | 89 | 9 |
| 728325 | Eco 1267 Submersible Pump | 1347 | 192 | 13.5 |
| 728330 | Eco 1584 Submersible Pump | 1638 | 245 | 12.5 |
| 728333 | Eco 2245 Submersible Pump | 2166 | 246 | 16.5 |
| 727335 | Eco 3170 Submersible Pump | 3170 | 192 | 13.1 |
| 728485 | Eco 4950 Submersible Pump | 4750 | 250 | 20 |
| 728340 | Eco 7400 Submersible Pump | 7400 | 550 | 23 |
| Brand | EcoPlus |
|---|---|
| SKU | HGC728315 |
| Weight (lb.) | 4.3000 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 1 Year |
| Hazardous Material | false |
| UPC | 870883005344 |
| Lead Time | 5-7 |
| Shipping Restrictions | AK, HI |
| Prop 65 | false |
| ETL Listed | No |
| UL Listed | No |
| Voltage | 120 Volts |
| Exact Watts | 54 |
| Water Pump Type | Inline Pump, Submersible Pump |
| Gallons Per Hour | 594 |
What applications are suitable for the EcoPlus Eco 633 pump?
The EcoPlus Eco 633 pump is suitable for hydroponics systems, ponds, aquariums, fountains, and filter systems.
Can the EcoPlus Eco 633 pump operate as a submersible or inline pump?
The EcoPlus Eco 633 pump supports fully submersible and inline applications.
What flow rate and maximum lift does the EcoPlus Eco 633 pump provide?
The EcoPlus Eco 633 pump provides a 594 GPH flow rate and a 7.5-foot maximum height.
Can the EcoPlus Eco 633 pump be used indoors, outdoors, and with saltwater?
The EcoPlus Eco 633 pump is suitable for indoor or outdoor use with fresh or saltwater.
What accessories are included with the EcoPlus Eco 633 pump?
The EcoPlus Eco 633 pump includes assorted attachment fittings, a strainer, and a foam filter.
How should the EcoPlus Eco 633 pump be installed and operated?
Place the EcoPlus Eco 633 pump on a stable surface free from sludge, sand, and debris, between 6 inches and 3 feet below the water surface. Never allow the EcoPlus Eco 633 pump to run dry, because dry operation can damage the pump and may void the warranty.
