EcoPlus Product Documents
Eco Plus Submersible Pump Instructions (Eco 100 - Eco 2245)Fixed Flow Water Pumps from EcoPlus
EcoPlus Fixed Flow Rate Submersible or Inline Pumps are quality products that are designed using the very latest pump technology. These pumps are suitable for use in hydroponics systems, ponds, aquariums, fountains, and filter systems.
These pumps are designed with "synchronous technology" where electrical parts are fully encapsulated in epoxy resin. This unit is constructed with high quality, fully tested and rated components to ensure the best performance possible.
Pumps include a variety of attachment fitting to choose form as well as a striner and foam filter. UL listed.
Note: Information regarding Attachment Fittings & Parts can be found in the Pump Instruction PDFs at the top. There are a variety of sizes of different fittings for each pump.
Features Include:
- Driven by a high power rare earth rotor magnet.
- Only 1 moving part for trouble-free operation
- Built-in “sponge” filter protects ceramic shaft and impeller.
- Suitable for indoor or outdoor use with fresh or saltwater.
- Can be used in fully submersible or inline applications.
- Diverse selection of fittings are included with every pump.
- One year manufacturer warranty
- Quiet oil-free motor
- Never let the pump run dry. Doing so will damage pump and could void the warranty
- Place pump in minimum of 6 inches and a maximum of 3 feet below water surface.
- Always place on stable surfaces that are free from sludge, sand and other debris.
| Item No. | Description | GPH | Watts | Max Height |
|---|---|---|---|---|
| 728492 | Eco 100 Submersible Pump | 100 | 10 | 3 |
| 728300 | Eco 185 Submersible Pump | 158 | 26.5 | 4 |
| 728305 | Eco 264 Submersible Pump | 290 | 28 | 6.5 |
| 728310 | Eco 396 Submersible Pump | 396 | 36 | 6.5 |
| 728315 | Eco 633 Submersible Pump | 594 | 54 | 7.5 |
| 728320 | Eco 1056 Submersible Pump | 1083 | 89 | 9 |
| 728325 | Eco 1267 Submersible Pump | 1347 | 192 | 13.5 |
| 728330 | Eco 1584 Submersible Pump | 1638 | 245 | 12.5 |
| 728333 | Eco 2245 Submersible Pump | 2166 | 246 | 16.5 |
| 727335 | Eco 3170 Submersible Pump | 3170 | 192 | 13.1 |
| 728485 | Eco 4950 Submersible Pump | 4750 | 250 | 20 |
| 728340 | Eco 7400 Submersible Pump | 7400 | 550 | 23 |
| Brand | EcoPlus |
|---|---|
| SKU | HGC728325 |
| Weight (lb.) | 6.7000 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 1 Year |
| Hazardous Material | false |
| UPC | 870883005368 |
| Lead Time | 2-3 |
| Shipping Restrictions | AK, HI |
| Prop 65 | false |
| ETL Listed | No |
| UL Listed | No |
| Voltage | 120 Volts |
| Exact Watts | 192 |
| Water Pump Type | Inline Pump, Submersible Pump |
| Gallons Per Hour | 1347 |

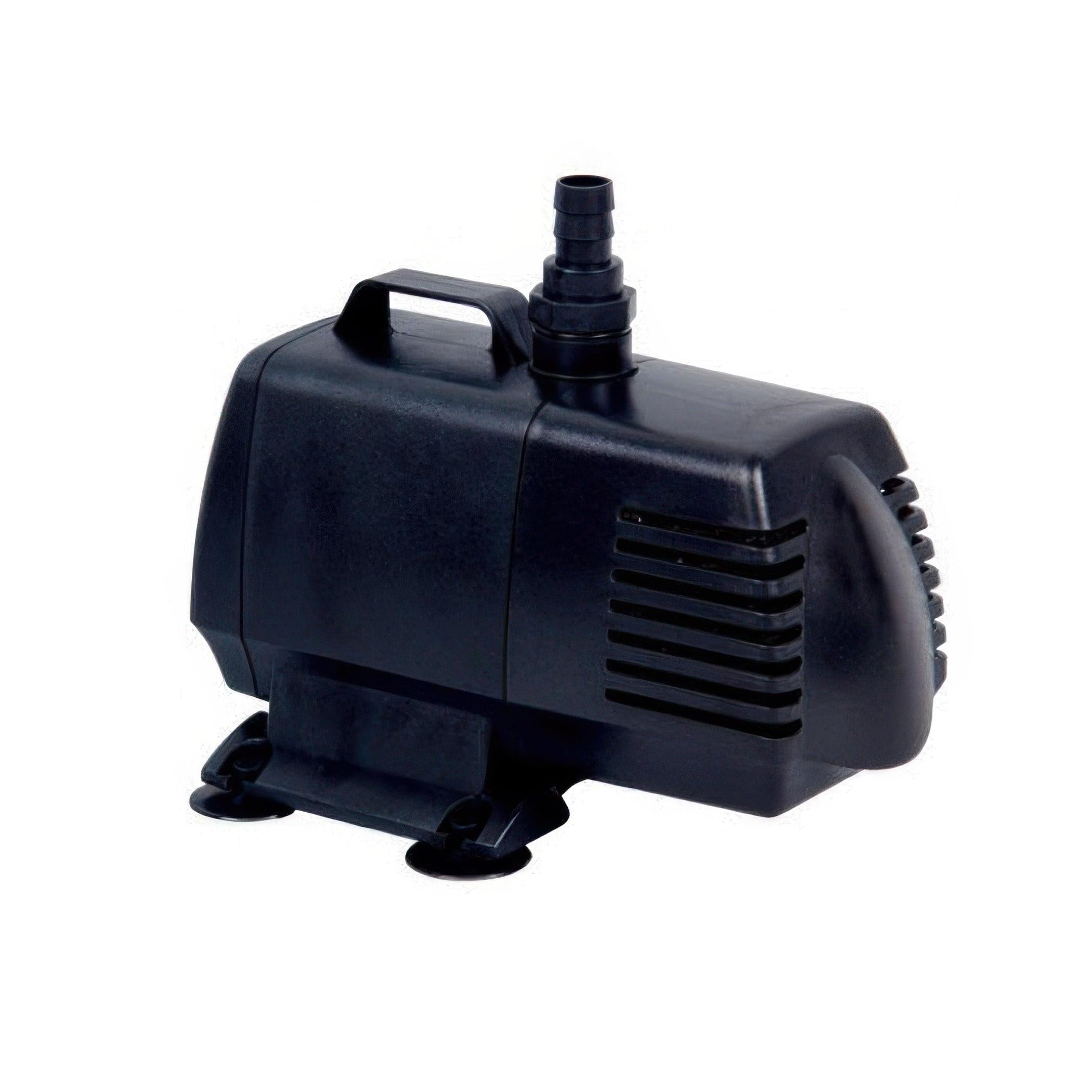

What applications suit the EcoPlus Eco 1267 water pump?
The EcoPlus Eco 1267 water pump suits hydroponics systems, ponds, aquariums, fountains, and filter systems. The pump supports freshwater and saltwater use indoors or outdoors.
Can the EcoPlus Eco 1267 operate as a submersible pump or inline pump?
The EcoPlus Eco 1267 operates as a fully submersible pump or an inline pump. The pump uses a quiet, oil-free motor.
What flow and lift can the EcoPlus Eco 1267 provide for a hydroponic system?
The EcoPlus Eco 1267 provides 1,347 gallons per hour and reaches a maximum height of 13.5 feet. The pump operates at 192 watts and 120 volts.
What accessories are included with the EcoPlus Eco 1267 for connecting a water system?
The EcoPlus Eco 1267 includes assorted attachment fittings, a strainer, and a foam filter. The included fittings offer multiple connection options for the pump.
How should the EcoPlus Eco 1267 be installed and protected during operation?
The EcoPlus Eco 1267 should sit on a stable surface free from sludge, sand, and debris, between 6 inches and 3 feet below the water surface. The pump must not run dry because dry operation can damage the pump and void the one-year manufacturer warranty.
