Alita Product Documents

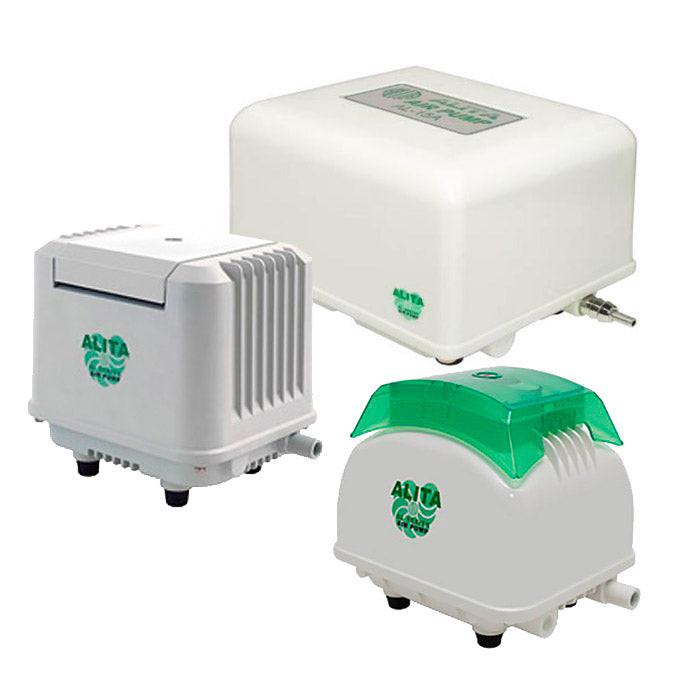

Designed to deliver high volume of steady air flow at low-pressure ranges, ALITA Linear Air Pumps are of high efficiency, low energy consumption and perform with extremely low operating noise level.
With no sliding parts and oil-less components, the air pump requires no lubrication and provides the cleanest air available. These pumps have Solid Construction for Indoor / Outdoor Operations.
Product Features:
- Steady airflow
- Oil free, no contamination or pollution
- Reliable intermittent or continuous duty operation
- Long service life
- Quiet and low vibration
- Low energy consumption
- Compact design and solid construction
- Indoor or outdoor operation
- Thermal protection
- Simple maintenance
- 3 years Manufacturer's Warranty.
Product Specs
Alita Linear Air Pump, 20 Liters Per Minute (AL-15A)
- Voltage: (V) AC 115 (AC 110/115/120 or AC 220/230/240)
- Frequency: (Hz) 50 / 60
- Rated Pressure: 10 kPa (1.4 psi)
- Rated Performance: 20 lpm (0.7 cfm)
- Rated Input Power: 26W
- Sound Level: 29 dB
- Weight: 2.4 kg (5.4 lb)
Alita Linear Air Pump, 48 Liters Per Minute (AL-40)
- Voltage: (V) AC 115 (AC 110/115/120 or AC 220/230/240)
- Frequency: (Hz) 50 / 60
- Rated Pressure: 0.15 bar / 2.18 psi
- Rated Performance: 48 lpm / 1.7 cfm
- Rated Input Power: 46W
- Sound Level: 36 dB
- Discharge O.D. (mm, in) 18, 11/16
- Weight: 5.6 kg. / 12.5 lbs.
Alita Linear Air Pump, 68 Liters Per Minute (AL-60)
- Voltage: (V) AC 115 (AC 110/115/120 or AC 220/230/240)
- Frequency: (Hz) 50 / 60
- Rated Pressure: 0.15 bar / 2.18 psi
- Rated Performance: 68 lpm / 2.4 cfm
- Rated Input Power: 60W
- Sound Level: 38 dB
- Discharge O.D. (mm, in) 18, 11/16
- Weight: 6.5 kg. / 14.4 lbs.
Alita Linear Air Pump, 85 Liters Per Minute (AL-80)
- Voltage: (V) AC 115 (AC 110/115/120 or AC 220/230/240)
- Frequency: (Hz) 50 / 60
- Rated Pressure: 0.15 bar / 2.18 psi
- Rated Performance: 85 lpm / 3.0 cfm
- Rated Input Power: 85W
- Sound Level: 39 dB
- Discharge O.D. (mm, in) 18, 11/16
- Weight: 6.5 kg. / 14.4 lbs.
Alita Linear Air Pump, 113 Liters Per Minute (AL-100)
- Voltage: (V) AC 115 (AC 110/115/120 or AC 220/230/240)
- Frequency: (Hz) 50 / 60
- Rated Pressure: 0.18 bar / 2.6 psi
- Rated Performance: 113 lpm / 4.0 cfm
- Rated Input Power: 120W
- Sound Level: 41 dBv
- Discharge O.D. (mm, in) 18, 11/16
- Weight: 8.3 kg. / 18.2 lbs.
Alita Linear Air Pump, 130 Liters Per Minute (AL-120)
- Voltage: (V) AC 115 (AC 100/110/115/120 or AC 200/220/230/240)
- Frequency: (Hz) 50 / 60
- Rated Pressure: 0.2 bar / 2.9 psi
- Rated Performance: 130 lpm / 4.6 cfm
- Rated Input Power: 124W
- Sound Level: 42 dB
- Discharge O.D. (mm, in) 18, 11/16
- Weight: 8.3 kg. / 18.2 lbs.
Alita Linear Air Pump, 160 Liters Per Minute (AL-150)
- Voltage: (V) AC 115 (AC 100/110/115/120 or AC 200/220/230/240)
- Frequency: (Hz) 50 / 60
- Rated Pressure: 0.2 bar / 2.9 psi
- Rated Performance: 160 lpm / 5.6 cfm
- Rated Input Power: 160W
- Sound Level: 44 dB
- Discharge O.D. (mm, in) 26, 1 or 18, 11/16
- Weight: 10.1 kg. / 22.3 lbs.
Alita Linear Air Pump, 200 Liters Per Minute (AL-200)
- Voltage: (V) AC 115 (AC 100/110/115/120 or AC 200/220/230/240)
- Frequency: (Hz) 50 / 60
- Rated Pressure: 0.2 bar / 2.9 psi
- Rated Performance: 200 lpm / 7.0 cpm
- Rated Input Power: 261W
- Sound Level: 45 dB
- Discharge O.D. (mm, in) 18, 11/16
- Weight: 10.1 kg. / 22.3 lbs.
