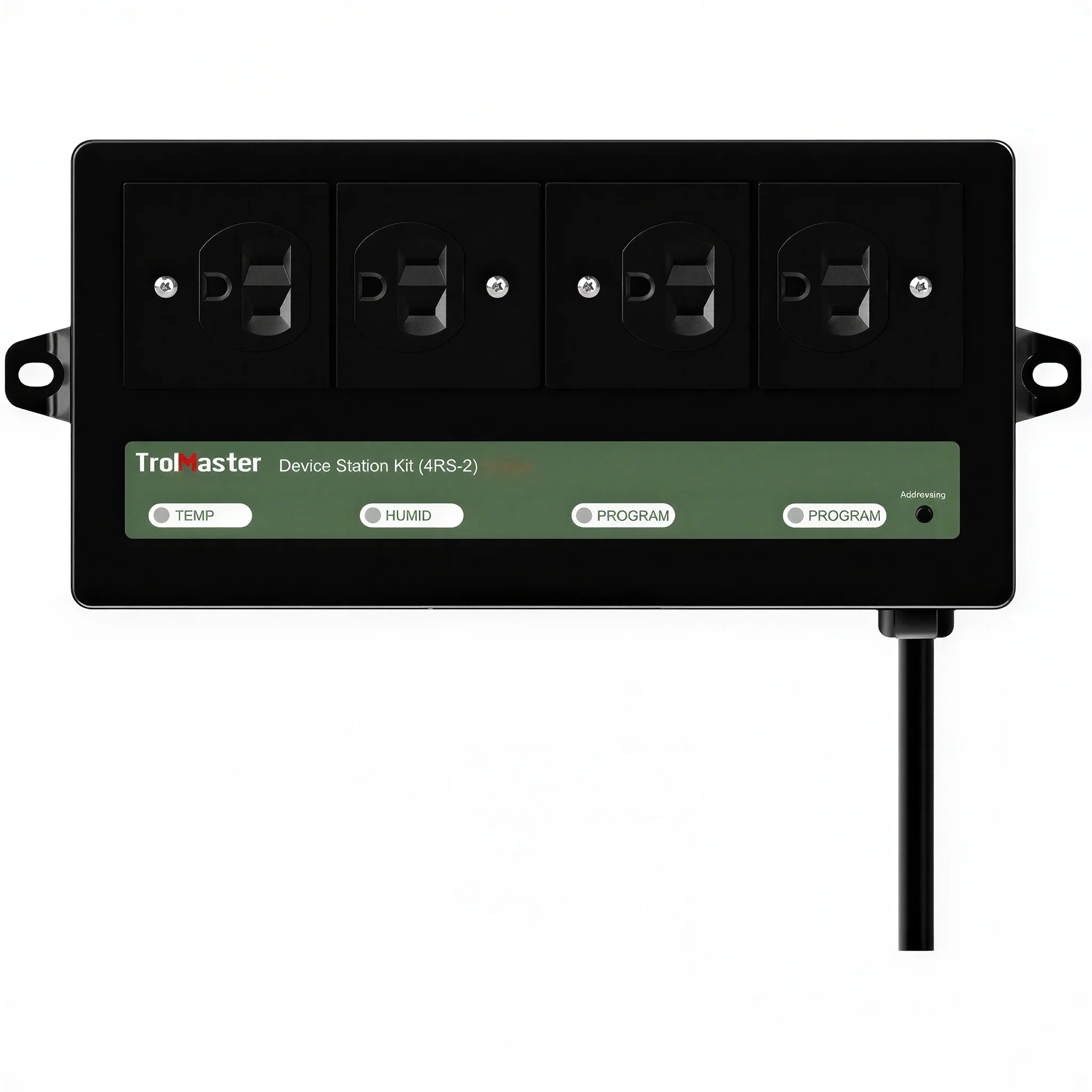

4RS-2 SpecsheetTent-X Device Station Kit（4RS-2)
The 4RS-2 is a universal 4-outlet device module kit that can be directly connected to the Tent-X controller through RJ 12 cables. It takes up 4 device modules from the controller and comes with 4 outputs that are defaulted from left to right, including DSTx1, DSHx1, and DSPx2.
The power cable is directly connected to the socket, making installation quick and easy. With a total amperage of 15A, users can power multiple devices at once, each output capable of providing up to 15A.
Benefits & Features
- Take up 4 Device Modules from Controller
- Max 15A for each Output
- Power Multiple Modules at Once
- Quick and Easy Installation
Built In Station Reference:
- 1x DST-1 for Temperature-Controlled Outlets (120 Volt)
- 1x DSH-1 for Humidity control/device modules (120 Volt)
- 2x DSP-2 for program device modules work like a multi-function timer (120 Volt)
| Brand | TrolMaster |
|---|---|
| SKU | 4RS-2 |
| Weight (lb.) | 3.8600 |
| Lead Time | This product ships in 2-3 Business days |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| Prop 65 | false |
| ETL Listed | No |
| UL Listed | No |
| Controller Functions | Multi-Function Control |
| Amps | 15A |
| Voltage | 120 Volts |
| Frequency | 50/60Hz |
