TrolMaster Standard Controller Cabinet for Hydro-X Pro / Aqua-X Pro Tech SheetA Modular Electrical & Wire Management Enclosure System
The SCC-1/2/3 Controller Cabinets are modular electrical and wire management enclosure systems for the TrolMaster Control System.
Available Options:

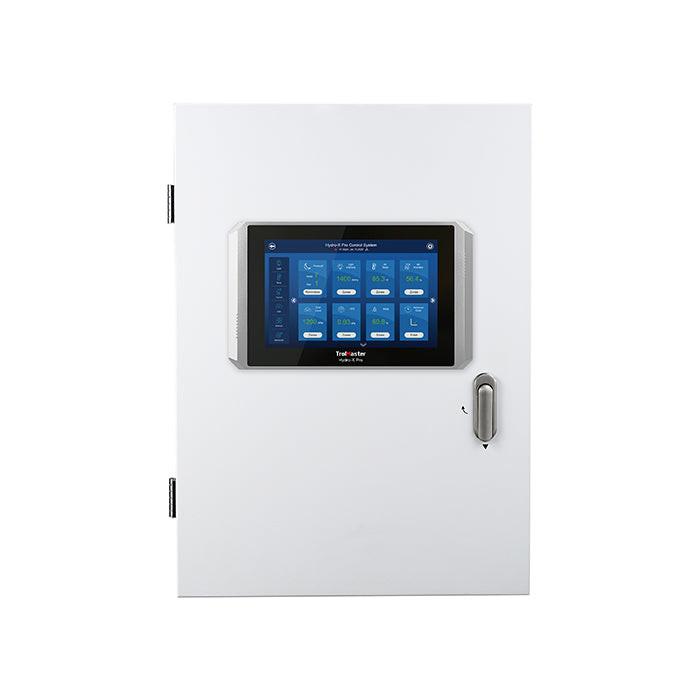

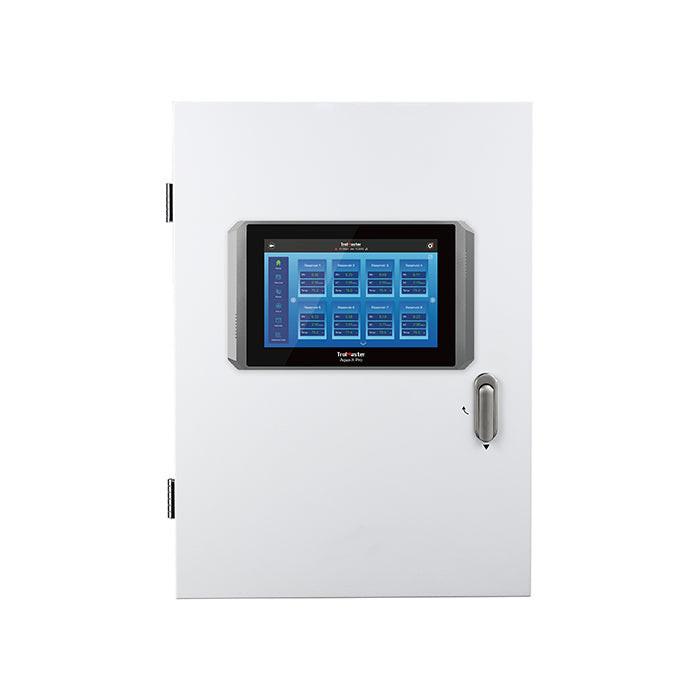

- SCC-1: Hydro-X Pro / Aqua-X Pro - 25 Inch Height
- SCC-2: Hydro-X Pro / Aqua-X Pro - 35 Inch Height
- SCC-3: Hydro-X Plus - 25 Inch Height
Features
- Guaranteed Industrial Rated & Waterproof
- ALL-IN-ONE Controller & Device Module Housing
- Design Your Own Cabinet by Using Bi-directional RJ12 Cables
- Detachable Design
- Superior Safety System

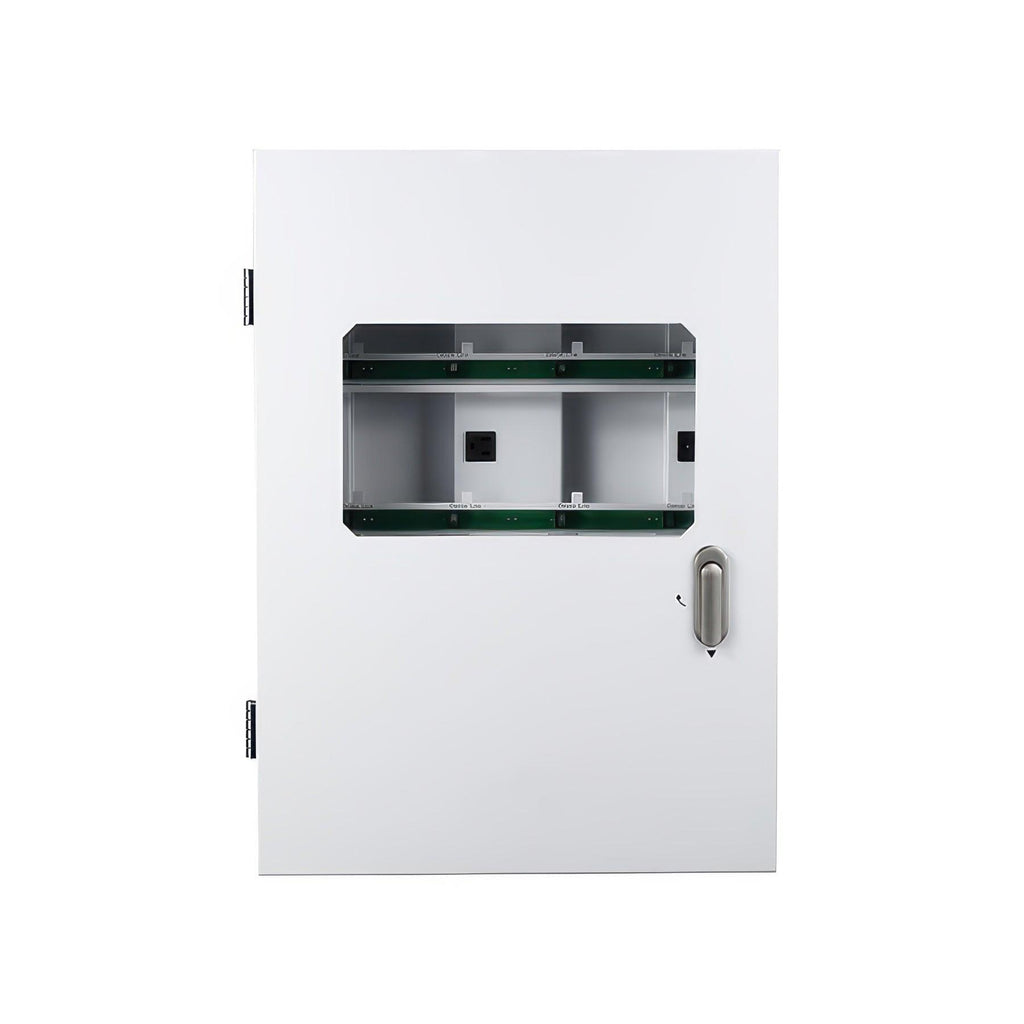

These cabinets are designed to hold the Hydro-X Plus as well as the Hydro-X Pro & Aqua-X Pro and should be installed in a clean and professional manner. A pre-cut opening allows the TrolMaster's main controller to be easily installed and provides a professional and clean installation for your control system. All device stations can be mounted inside the IP56 rated electrical cabinet to keep the device stations clean and dry. Users can safely mount and nearly organize the power supplies, modules, and RJ12 cables with ease.
Note: In order to achieve the IP56 standard, you must use the provided "controller rubber gasket" and perfectly fit the gasket between the controller and cabinet door.
What Is Included?
SCC-1/3

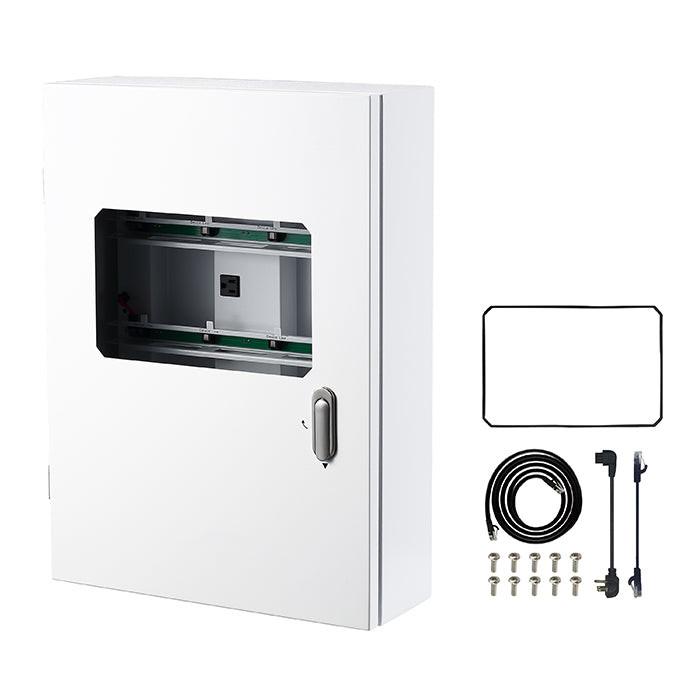

- (x1) Controller Cabinet
- (x1) Rubber Gasket
- (x16) Short RJ12 Cables
- (x4) Power Cables for OA6 modules
- (x10) OA6-24 Screw Set
- Instruction Manual
SCC-2
- (x1) Controller Cabinet
- (x1) Rubber Gasket
- (x4) Controller Mounting Screw Set
- (4) Long RJ12 Cables
- (x26) Short RJ12 Cables
- (x8) Power Cables for OA6 modules
- (x18) OA6-24 Screw Set
- Instruction Manual
Specifications for the SCC TrolMaster Controller Cabinets
Power Input
- Voltage: 120 Volt
- Max Amps: 15 Amps
Working Environment
- Ingress Protection: IP56
- Temperature: 32°F - 104°F /0°C - 40°C
Cabinet Capacity
SCC-1/3

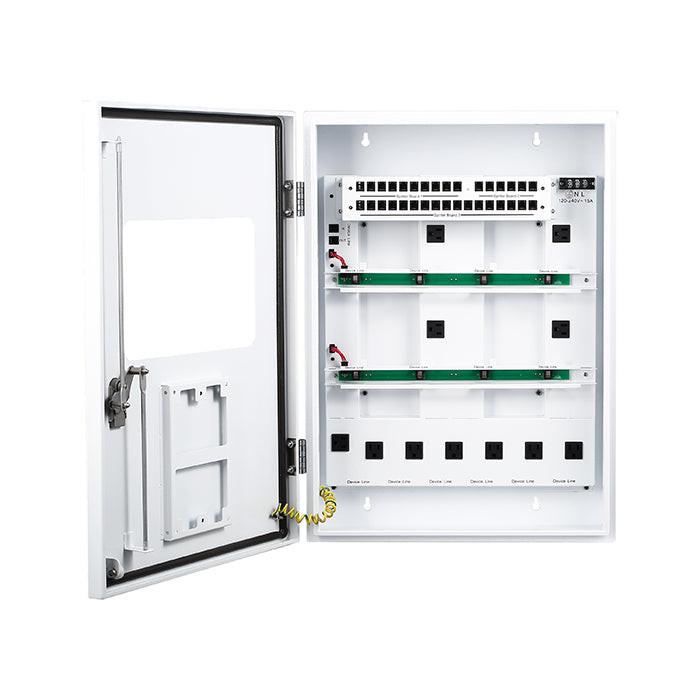

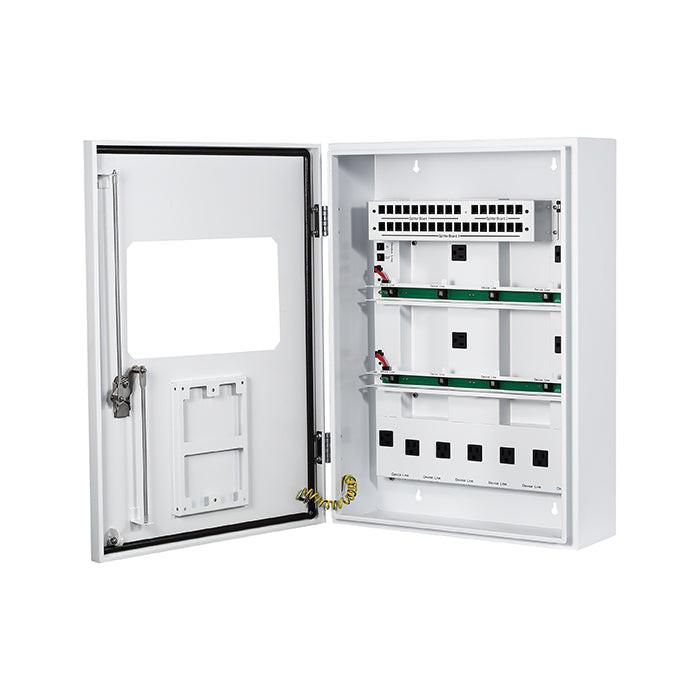

- Splitter Board Group #1: 10 ports (top)
- Splitter Board Group #2: 6 ports (top)
- Splitter Board Group #3: 17 ports (top)
- Splitter Board Group #4: 2 x 4 ports (Detachable Splitter Bars) 6 ports (Bottom) 2 ports (Device)
- Power Outlet: 4+1+6
SCC-2
- Splitter Board Group #1: 10 ports (top)
- Splitter Board Group #2: 6 ports (top)
- Splitter Board Group #3: 17 ports (top)
- Splitter Board Group #4: 4 x 4 ports (Detachable Splitter Bars) 6 ports (Bottom) 2 ports (Device)
- Power Outlet: 8+1+6
