TrolMaster Product Documents

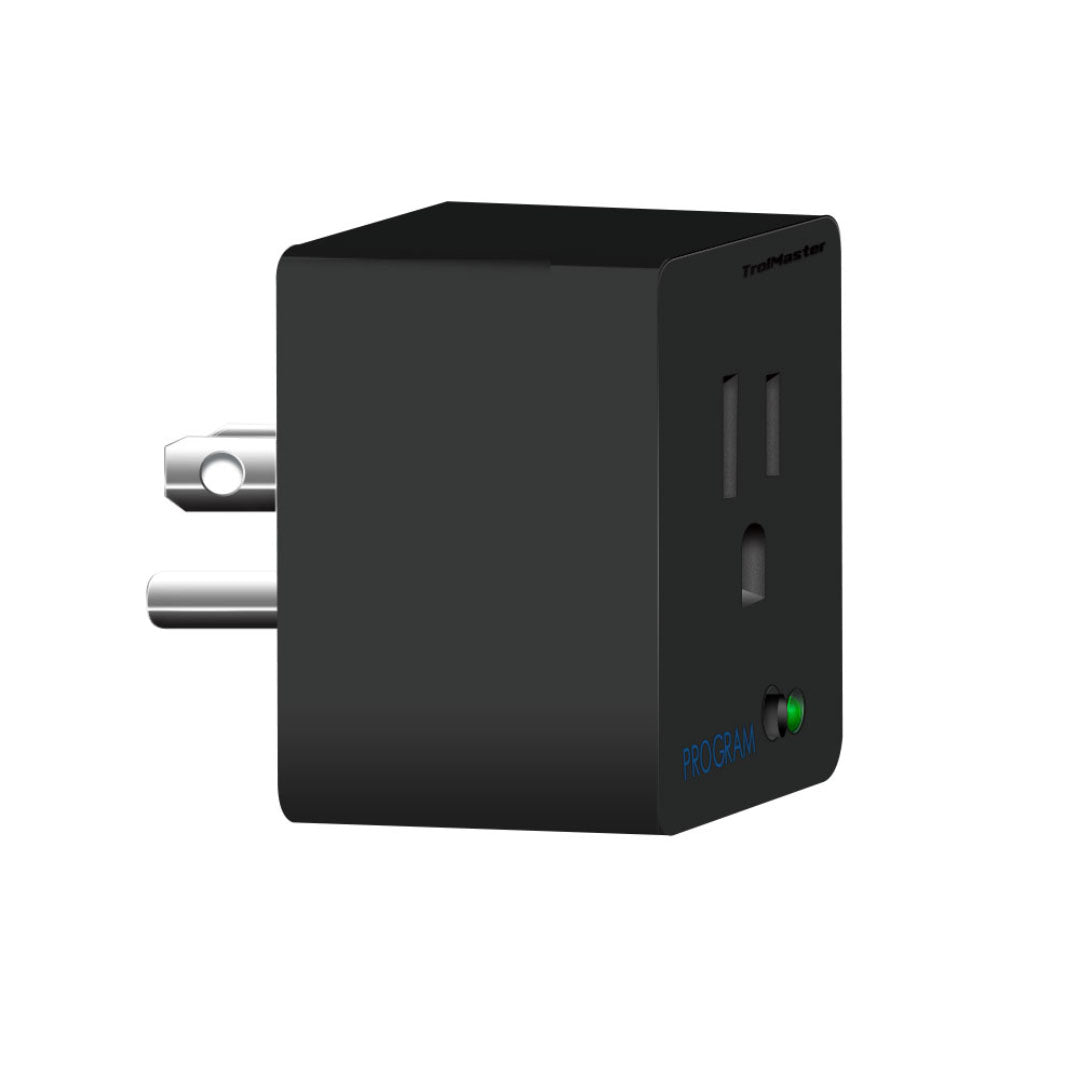

The TrolMaster DSP-1 program device module (timer module) works like a multi-function timer. The DSP-1 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x. Any device that is 10-amps at 120 volts or less can be controlled by the DSP-1.
Features
- LED Power Indicator
- 3-Prong Attaching Plug
- RJ12 Cable Socket
- Addressing
- Plug & Play
Package Contains
- (x1) Device Station
- (x1) 16 ft.RJ12 Cable
- (x1) 4 ft. RJ12 Cable
- (x1) RJ12 T-Splitter
Specifications
- Input Voltage: 100~240 VAC, 50/60Hz
- Output Current: 10 Amps
- Output Voltage: 100~240 VAC, 50/60Hz
- Working Environments: Temperature 32-122F, Humidity=90%
- Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
- G.W. per pack: 0.34kgs
| Brand | TrolMaster |
|---|---|
| SKU | DSP-1 |
| Weight (lb.) | 2.0000 |
| Lead Time | 2-3 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| Prop 65 | false |
| ETL Listed | Yes |
| UL Listed | No |
| Controller Functions | Ventilation Control, Lighting Control |
What does the TrolMaster DSP-1 do with the Hydro-X system?
The TrolMaster DSP-1 provides multi-function timer control for devices connected to the Hydro-X system. The TrolMaster DSP-1 controls devices that need time-based operation.
Which devices can the TrolMaster DSP-1 control?
The TrolMaster DSP-1 controls devices rated at 10 amps at 120 volts or less. The TrolMaster DSP-1 provides timed control through a 3-prong attaching plug.
How does the TrolMaster DSP-1 connect to the Hydro-X system?
The TrolMaster DSP-1 connects through an RJ12 cable socket and supports plug-and-play setup with addressing. The TrolMaster DSP-1 package includes an RJ12 T-splitter and two RJ12 cables.
What comes with the TrolMaster DSP-1 timer program device station?
The TrolMaster DSP-1 package includes one device station, one 16-foot RJ12 cable, one 4-foot RJ12 cable, and one RJ12 T-splitter.
