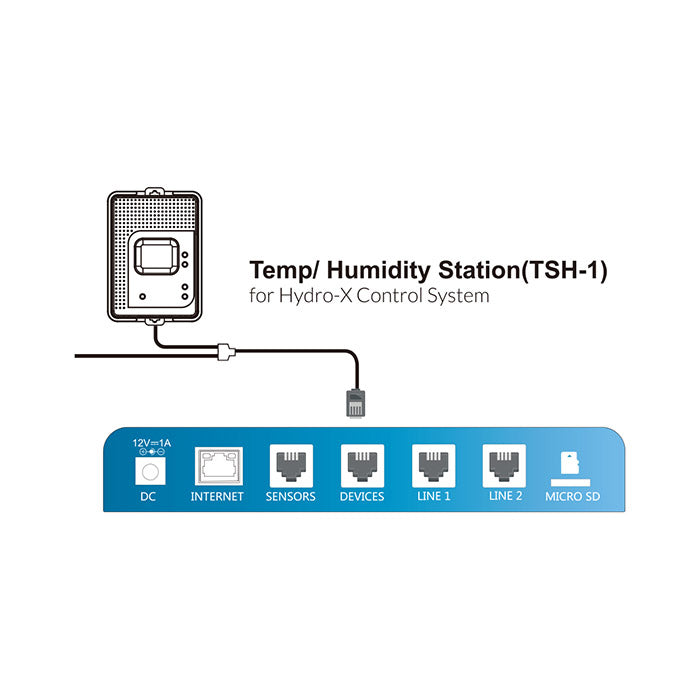

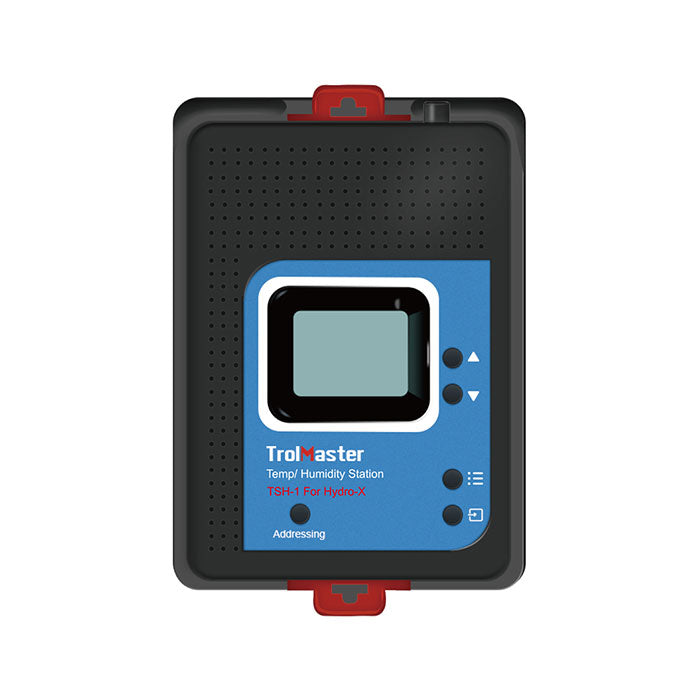

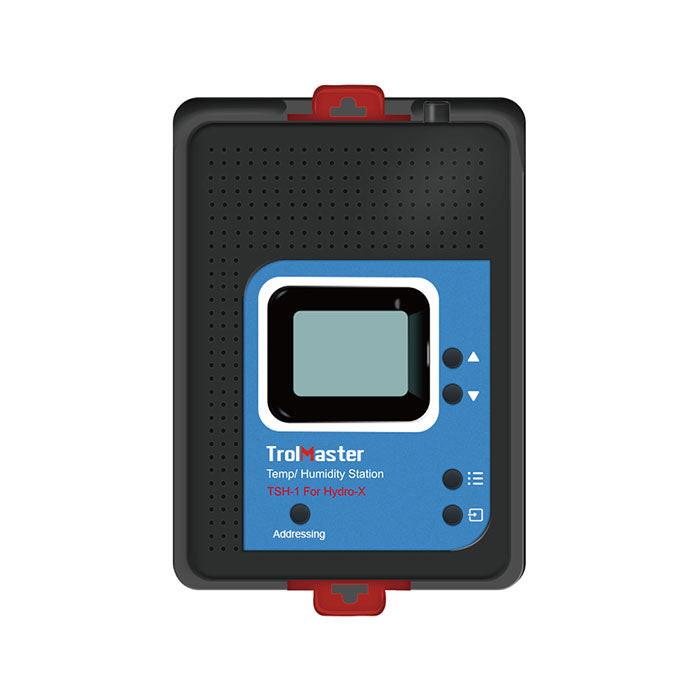

TrolMaster TSH-1 InstructionsThe Trolmaster TSH-1 Temperature / Humidity Station is a 0-10 volt analog output control station that works with the HCS-1 and HCS-2 controllers. The TSH-1 can be configured to control either a temperature or a humidity device that requires a variable 0-10 volt input signal.
The TSH-1 is capable of controlling variable speed fans, vents or any other device that accepts a 0-10 volt input. It features separate day and night “idle” speed settings built-into the TSH-1 as well as separate Day / Night setpoints accessed through the HCS controller.
Features:

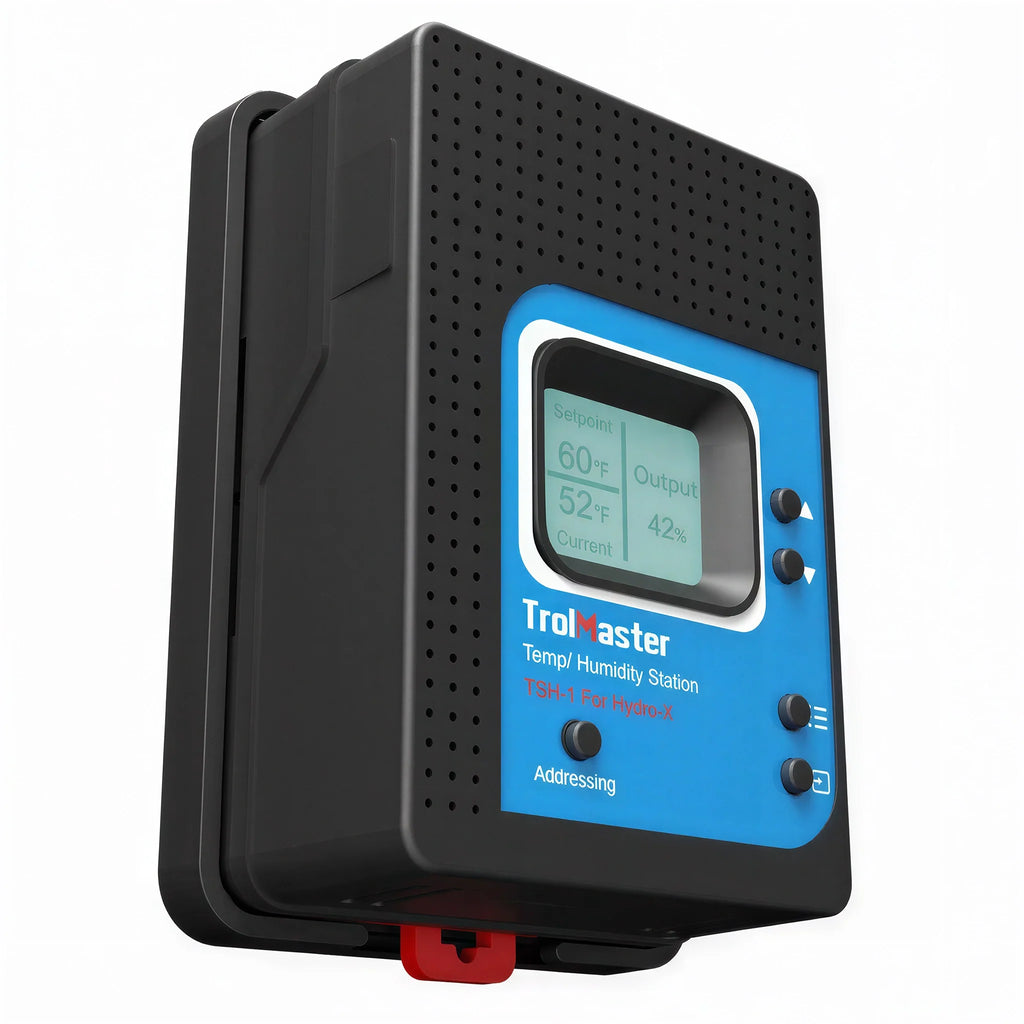

- LCD Display, Easy Operation
- Seamless Connection with Hydro-X and Hydro-X Pro
- Micro-SD Slot for Firmware Upgrade
- Assignable control of Humidity or Temperature
- Plug & Play
Specifications:

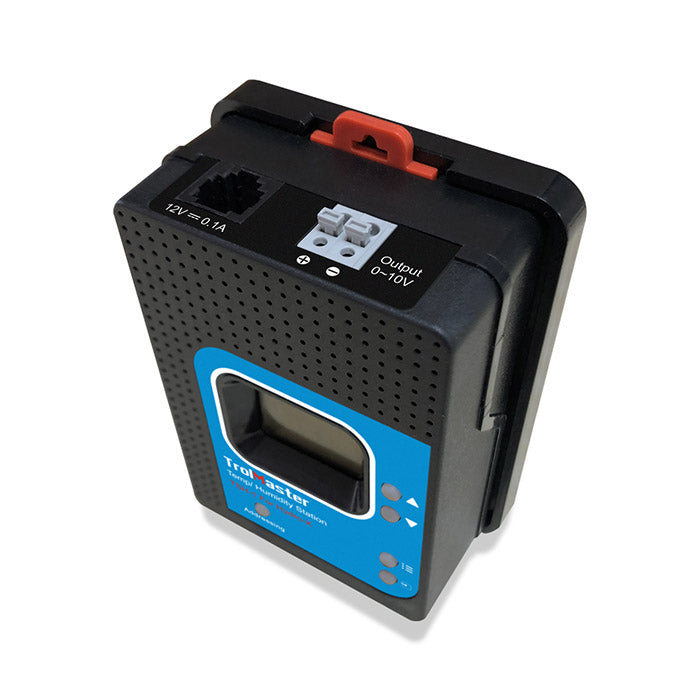

- Output Voltage: 0-10V
- Maximum Current: 1A
- Working Environment: Temperature 32-122°F, Humidity≤90%
- Packaging Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
| Brand | TrolMaster |
|---|---|
| SKU | TSH-1 |
| Weight (lb.) | 2.0000 |
| Lead Time | Ships in 2-3 Business days |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| UPC | 6970207971387 |
| Prop 65 | false |
| ETL Listed | No |
| UL Listed | No |
| Controller Functions | Temperature Control, Humidity Control |
| Amps | 1 Amp |
