TrolMaster Product Documents

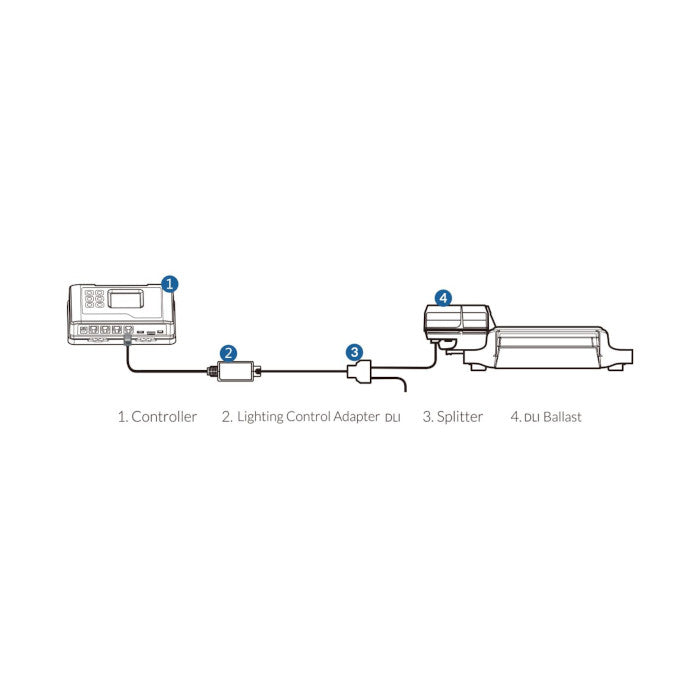

TrolMasters Hydro-X system can control most of the horticultural lighting fixtures sold on the market today. Most light manufacturers provide the ability to control their lighting systems using what is known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.

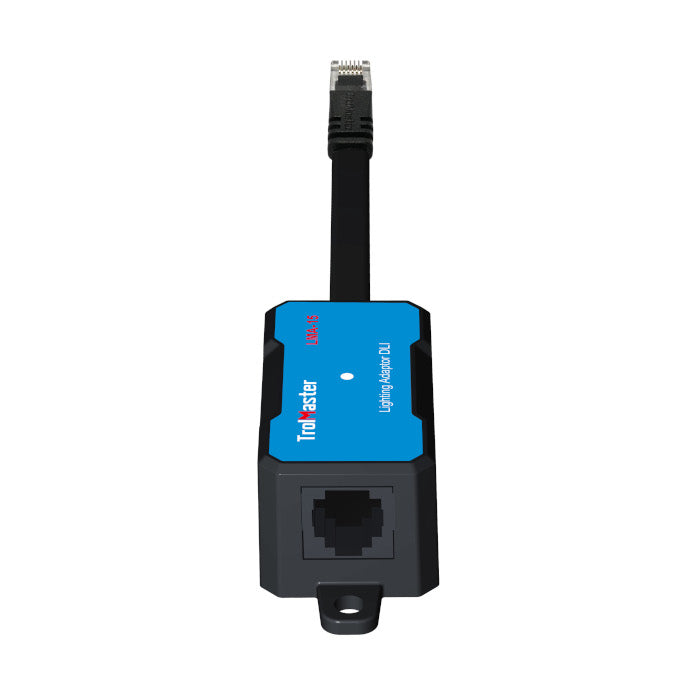

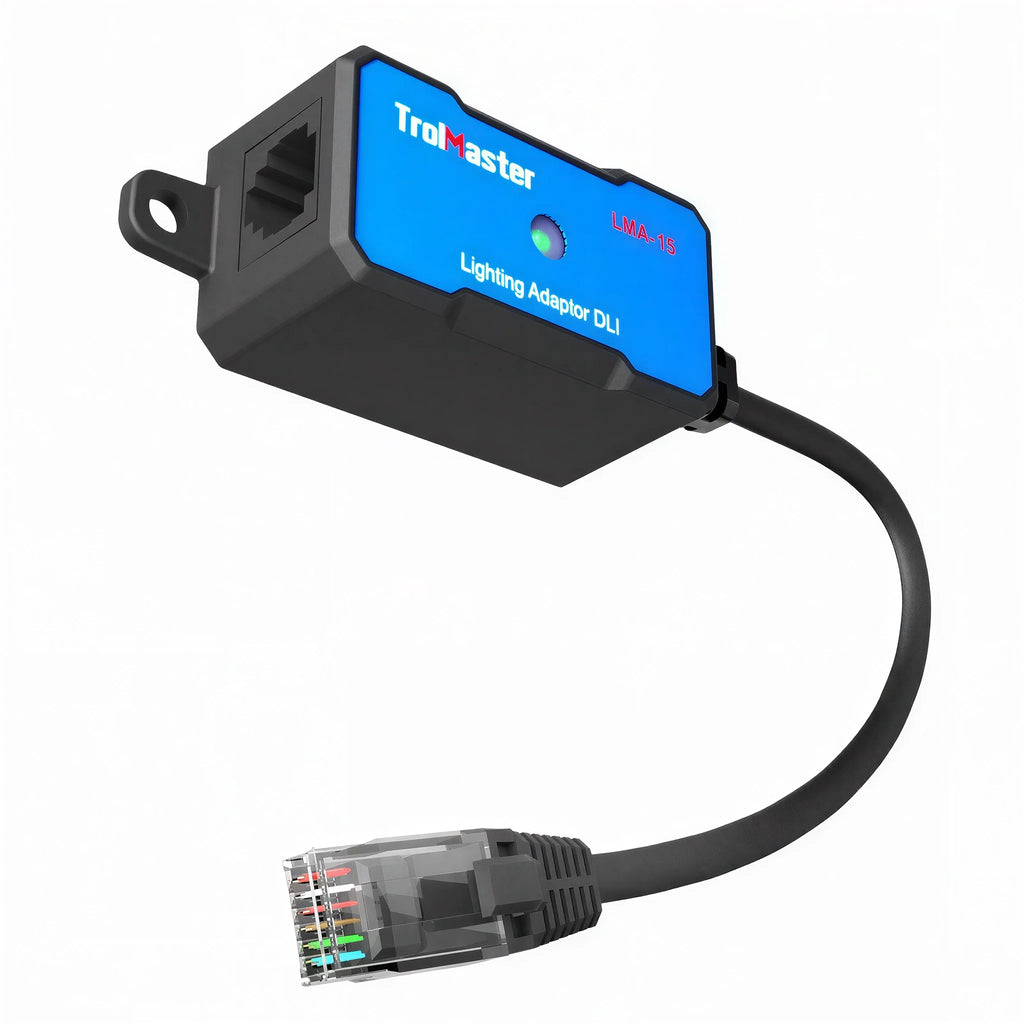

This LMA-15 lighting adapter is specially designed to control the DLI fixtures
NOTE: 2 knob fixtures allowing individual control of 2 different bulbs can NOT be controlled by the Hydro X
Features:
- LED Power Indicator
- Convert Digitial Signal to Analog Signal
- Seamless Connection with Hydro-X with RJ12 Cable
- Plug & Play
Specifications
- Output Voltage: 0~11.5V
- Maximum Current: 0.2A
- Working Environments: Temperature 32-122 F, Humidity = 90%
- Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
- G.W. per weight: 0.05kgs
| Brand | TrolMaster |
|---|---|
| SKU | LMA-15 |
| Weight (lb.) | 0.5000 |
| Length (in.) | |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Lead Time | This Product Ships in 2-3 Business Days |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | Yes |
What does the TrolMaster Hydro-X Lighting Control Adaptor DLI do for DLI fixtures?
The TrolMaster LMA-15 lighting adapter lets a TrolMaster Hydro-X system control DLI lighting fixtures through low-voltage control.
Which lighting fixtures can the TrolMaster LMA-15 control?
The TrolMaster LMA-15 is specially designed to control DLI fixtures. Two-knob fixtures with individual control for two bulbs cannot be controlled by a Hydro-X system.
How does the TrolMaster LMA-15 connect to a Hydro-X system?
The TrolMaster LMA-15 connects to a Hydro-X system with an RJ12 cable and provides plug-and-play operation.
How does the TrolMaster LMA-15 convert lighting control signals?
The TrolMaster LMA-15 converts a digital signal to an analog signal for DLI lighting control.
What operating conditions support TrolMaster LMA-15 use?
The TrolMaster LMA-15 supports temperatures from 32 to 122 F and humidity up to 90 percent.
