TrolMaster Hydro-X Lighting Control Adapter F
TrolMaster Hydro-X Lighting Control Adapter F
TrolMaster Hydro-X Lighting Control Adapter F
TrolMaster Hydro-X Lighting Control Adapter F
TrolMaster Hydro-X Lighting Control Adapter F
TrolMaster Hydro-X Lighting Control Adapter F
Roll over image to zoom in Click on image to zoom
TrolMaster Hydro-X Lighting Control Adapter FTrolMaster Hydro-X Lighting Control Adapter FTrolMaster Hydro-X Lighting Control Adapter FTrolMaster Hydro-X Lighting Control Adapter FTrolMaster Hydro-X Lighting Control Adapter FTrolMaster Hydro-X Lighting Control Adapter F

TrolMaster Hydro-X Lighting Control Adapter F

SKU: LMA-14
No reviews
TrolMaster Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: Ships in 2-3 Business days

Price:
$58.10

TrolMaster Product Documents

TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.

This LMA-14 lighting adapter is specially designed to control the HIDs like Gavita/Nanolux/Luxx/Growers Choice/Illuminar/PL and LEDs like Fluence/Growers Choice ROI/Next light/Spectrum King/HLG

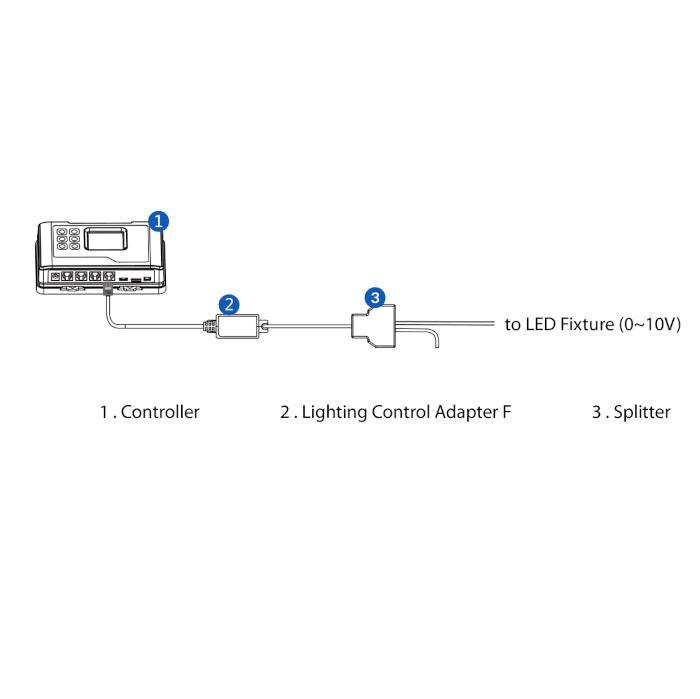

Using the LMA-14 Adapter (Adapter F) for multiple lights

The LMA-14 Adapter can be used for 24 Drivers (LEDs) or 40 Ballasts with either the HCS-1 or HCS-2 Hydro-X controllers. Both the Hydro-X Controllers have 2 line lights giving the ability to control double the amount of each type of light (48 LEDs and 80 Ballasts).

If you require running more than that amount of lights, you can achieve this using the SPH-1 Splitter Hub . The SPH-1 Splitter Hub has 8 open RJ ports allowing you to plug a separate LMA-14 into each giving you the option of controlling 8x the normal amount, 8x(24 LEDs or 40 ballasts). You can use as many SPH-1 Splitter hubs to achieve the maximum amount of lights your facility requires.

NOTE: 2 knob fixtures allowing individual control of 2 different bulbs can NOT be controlled by the Hydro X

Features

  • LED Indicator
  • Convert Digital Signal to Analog Signal
  • 0.6 ft RJ12 Cable
  • RJ12 Cable Socket
  • Plug and Play
  • For controlling Nanlux brand products

Specifications

  • Output Voltage: 0~11.5V
  • Maximum Current: 0.2A
  • Working Environments: Temperature 32-122 F, Humidity = 90%
  • Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
  • G.W. per weight: 0.05kgs
Brand TrolMaster
SKU LMA-14
Weight (lb.) 0.1100
Length (in.)
Prop 65 false
Width (in.)
Height (in.)
Warranty 3 Year
Lead Time Ships in 2-3 Business days
Hazardous Material false
UL Listed No
ETL Listed Yes
Voltage
Amps 0.2A

TrolMaster Hydro-X Lighting Control Adapter F Videos

Built for Growers. Backed by Experts.

How many lights can the TrolMaster Hydro-X Lighting Control Adapter F manage at once?

The LMA-14 Adapter can control up to 24 LED drivers or 40 HID ballasts with either the HCS-1 or HCS-2 Hydro-X controllers. If you use both line lights on the controllers, you can manage up to 48 LEDs and 80 ballasts.

Can the adapter control both LED and HID lights?

Yes, the LMA-14 Adapter is designed to control both LED and HID lights, including brands like Gavita, Nanolux, Luxx, and Fluence, among others.

What should I do if I need to control more lights than the adapter's standard capacity?

If you need to manage more lights, you can use the SPH-1 Splitter Hub, which allows you to connect multiple LMA-14 adapters, expanding your control capacity to 8 times the normal amount.

Unlock the Full Potential of Your Grow Space with the TrolMaster Hydro-X Lighting Control Adapter F

For those who are passionate about growing, whether it's a cherished hobby or a thriving commercial enterprise, the right lighting is crucial. Enter the TrolMaster Hydro-X Lighting Control Adapter F, the ultimate solution for sophisticated light management. This adapter is not just a piece of hardware; it's your gateway to a more efficient, controlled, and successful growing environment.

Imagine having the power to seamlessly control a diverse range of lighting fixtures, from HIDs like Gavita and Luxx to cutting-edge LEDs like Fluence and Spectrum King. With the LMA-14 Adapter, you’re not just managing lights; you’re orchestrating the perfect conditions for your plants to thrive.

Serious growers understand the importance of precision and control. The TrolMaster Hydro-X system offers a level of integration and management that can transform your grow space. Picture yourself confidently managing up to 48 LEDs or 80 ballasts with the Hydro-X controllers. That's not just convenience; that's empowerment. And for those who need even more, the optional SPH-1 Splitter Hub can expand your control capabilities exponentially, making even the most ambitious setups achievable.

Beyond its impressive capacity, the LMA-14 Adapter is about enhancing your growing experience. It’s about the confidence that comes with knowing your lighting system is optimized for success. The ease of its plug-and-play design, combined with features like an LED indicator and RJ12 cable socket, ensures that even the most complex setups become effortlessly manageable.

With the TrolMaster Hydro-X Lighting Control Adapter F, you save more than just time; you save energy and maximize resources, allowing you to focus on what truly matters: nurturing your plants to their fullest potential. Whether you're a dedicated hobbyist or managing a large-scale commercial operation, this adapter is your partner in excellence.

Embrace the future of growing with the TrolMaster Hydro-X Lighting Control Adapter F. Elevate your cultivation to new heights, knowing that your lighting is as advanced and dynamic as your ambitions.
