TrolMaster Product Documents

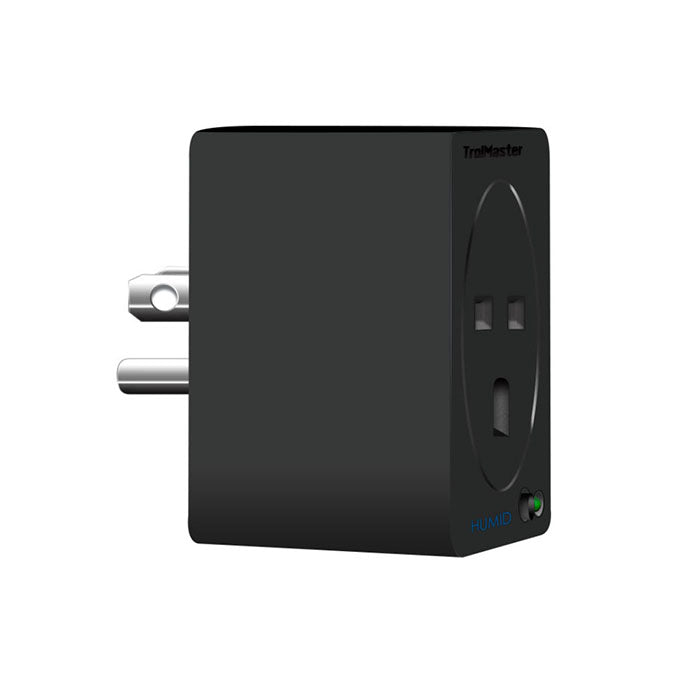

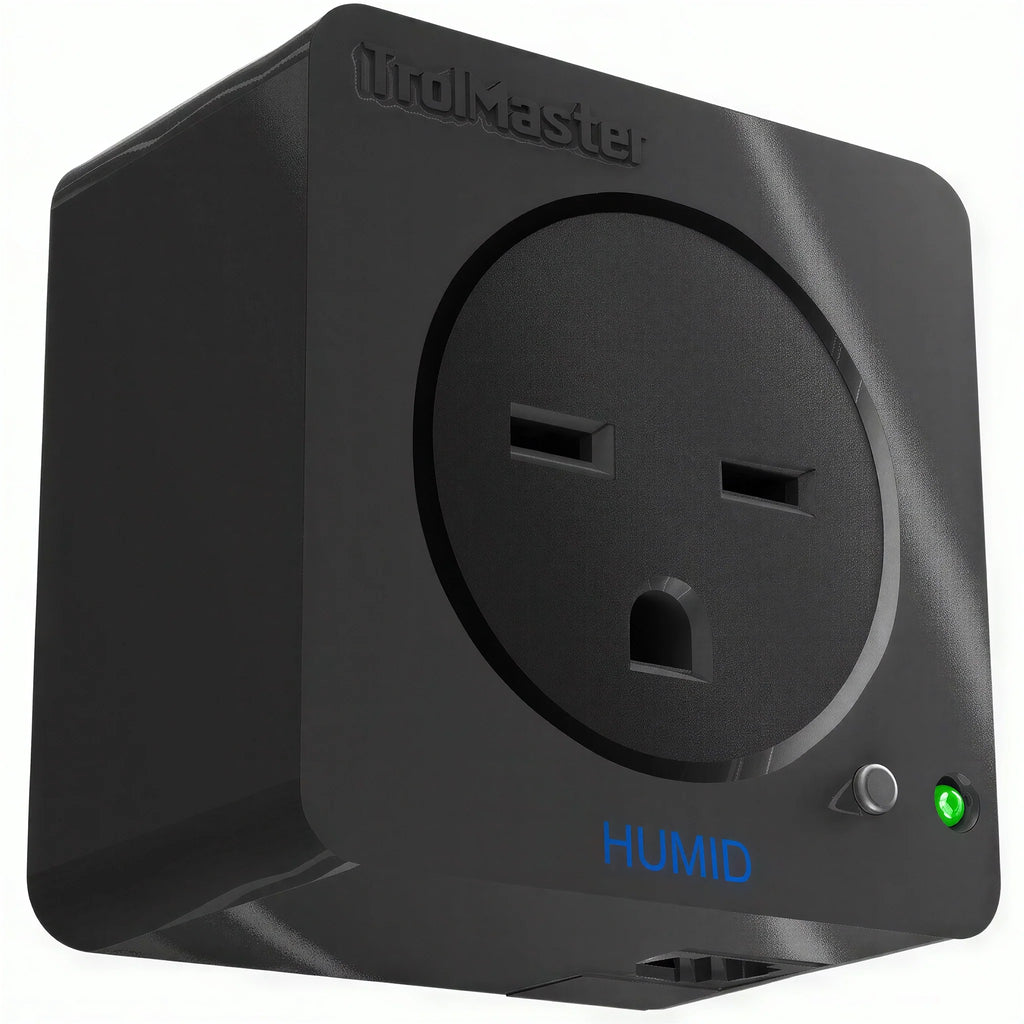

The TrolMaster DSH-2 Humidity control / device modules (240V) allow the user to easily connect and control standard humidifying or dehumidifying devices to the Hydro-x. The DSH modules are rated @ 10-amps. *Use with dehumidifiers less than 7 amps to avoid current overload.

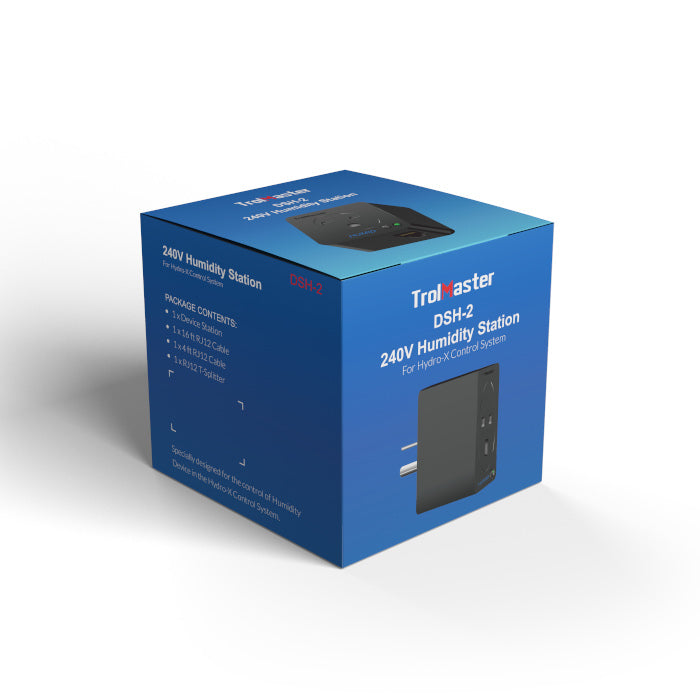

In the Box:
- 1 x Device Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Features:
- LED Power Indicator
- 3-Prong Attaching Plug
- Addressing
- Plug & Play
Specifications
- Input Voltage: 100~240 VAC, 50/60Hz
- Output Current: 10 Amps
- Output Voltage: 100~240 VAC, 50/60Hz
- Working Environments: Temperature 32-122 F, Humidity = 90%
- Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
- G.W. per pack: 0.34kgs
| Brand | TrolMaster |
|---|---|
| SKU | DSH-2 |
| Weight (lb.) | 2.0000 |
| Lead Time | 2-3 |
| Warranty | 3 Year |
| Hazardous Material | false |
| UPC | 6970207970489 |
| Prop 65 | false |
| ETL Listed | Yes |
| UL Listed | No |
| Controller Functions | Humidity Control |
| Amps | 10A |
| Voltage | 240 Volts |
| Frequency | 50/60Hz |
TrolMaster Hydro-X Humidity Device Station, 240V
What devices can the TrolMaster DSH-2 Humidity Device Station control?
The TrolMaster DSH-2 Humidity Device Station connects standard humidifying and dehumidifying devices to the TrolMaster Hydro-X system.
Which equipment can the TrolMaster DSH-2 control without current overload?
The TrolMaster DSH-2 provides a 10-amp output, and the TrolMaster DSH-2 should control dehumidifiers rated below 7 amps to avoid current overload.
What comes with the TrolMaster DSH-2 Humidity Device Station?
The TrolMaster DSH-2 package includes one Device Station, one 16-foot RJ12 cable, one 4-foot RJ12 cable, and one RJ12 T-splitter.

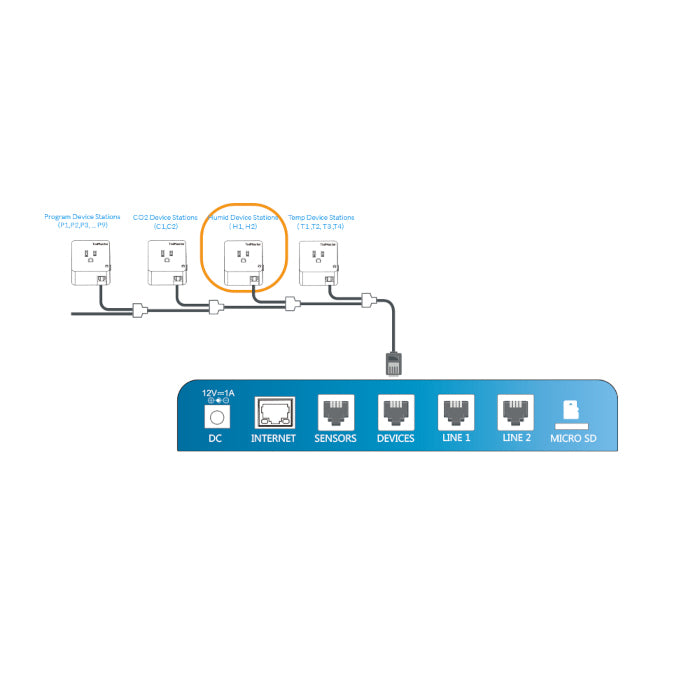

How does the TrolMaster DSH-2 connect to the Hydro-X system?
The TrolMaster DSH-2 connects through RJ12 cables and an RJ12 T-splitter for plug-and-play Hydro-X integration. The TrolMaster DSH-2 also includes addressing, an LED power indicator, and a 3-prong attaching plug.
