TrolMaster Product Documents

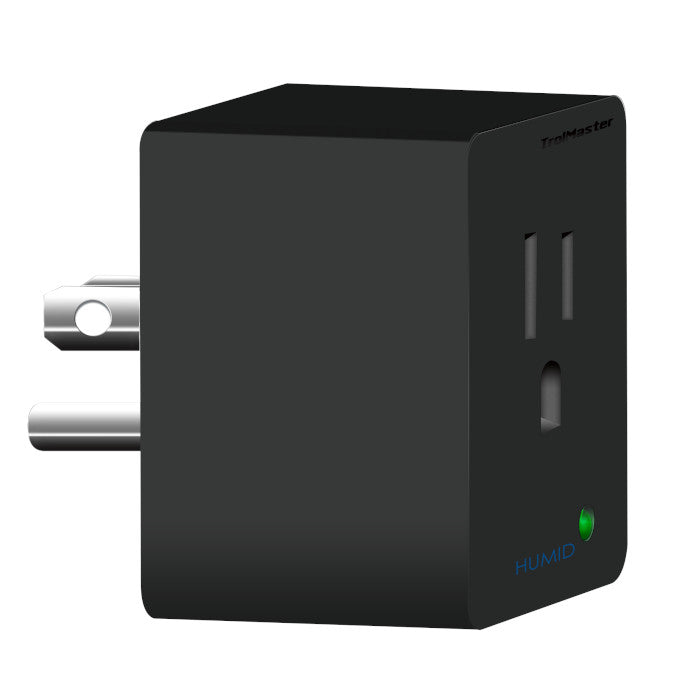

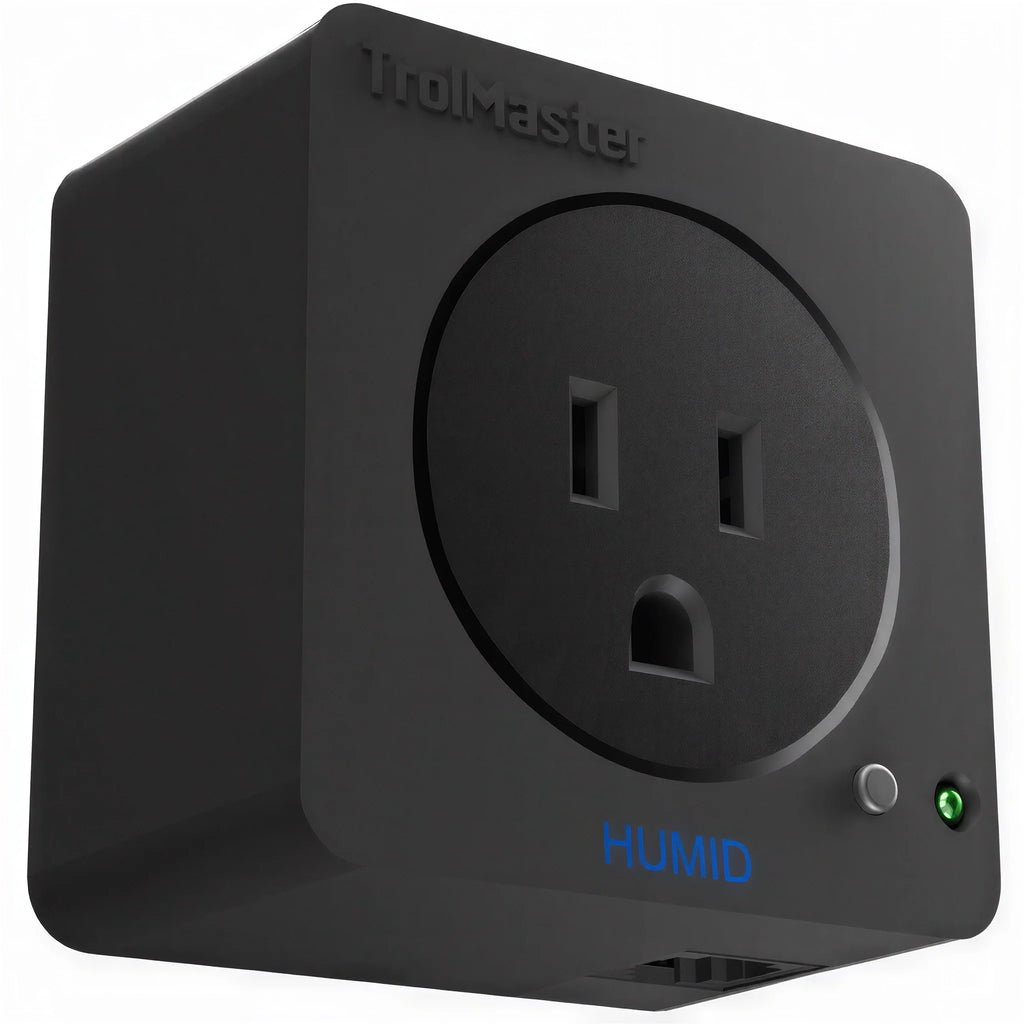

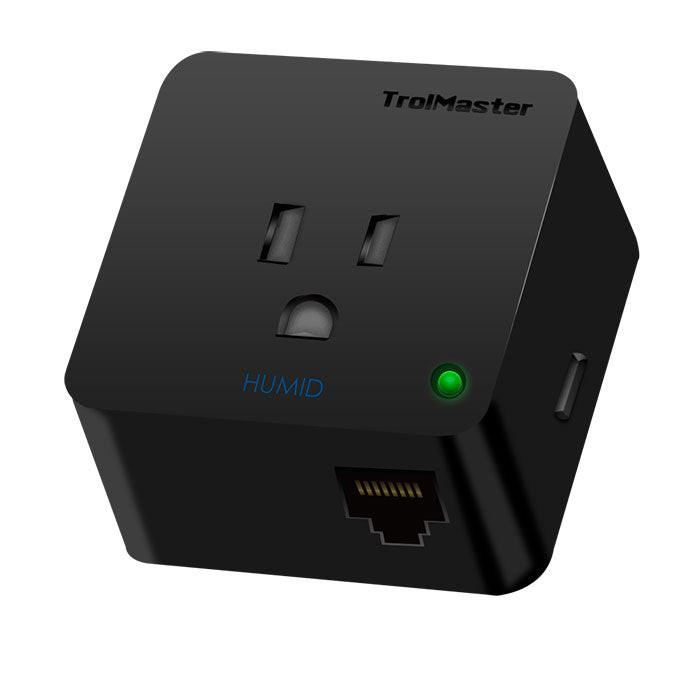

The TrolMaster DSH-1 Humidity control / device modules allow user to easily connect and control standard humidifying or dehumidifying devices to the Hydro-x. The DSH modules are rated at 10-amps. *Use with dehumidifiers less than 7 amps to avoid current overload.
Features
- LED Power Indicator
- RJ12 Cable Socket
- Addressing
- Plug & Play

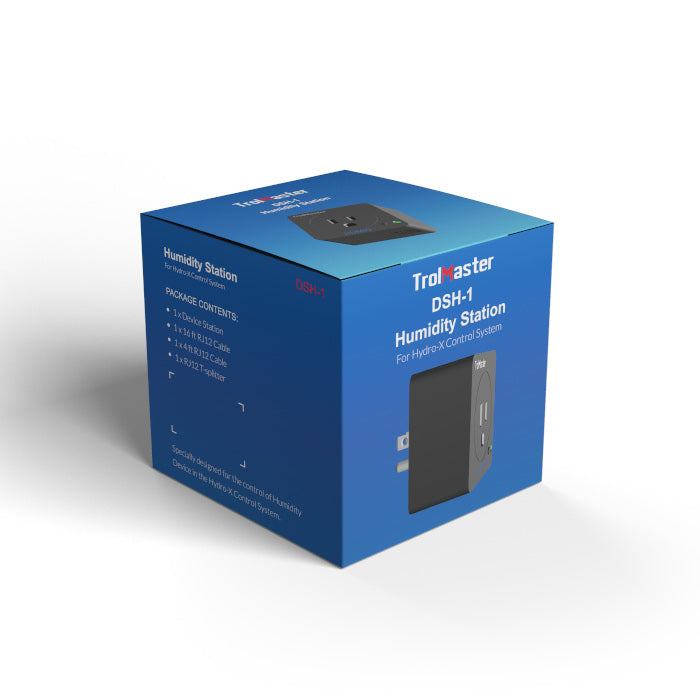

Package Contains
- (x1) Device Station
- (x1) 16 ft.RJ12 Cable
- (x1) 4 ft. RJ12 Cable
- (x1) RJ12 T-Splitter
Specifications
- Input Voltage: 100~240 VAC, 50/60Hz
- Output Current: 10 Amps
- Output Voltage: 100~240 VAC, 50/60Hz
- Working Environments: Temperature 32-122 F, Humidity = 90%
- Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
- G.W. per pack: 0.34kgs
| Brand | TrolMaster |
|---|---|
| SKU | DSH-1 |
| Weight (lb.) | 2.0000 |
| Lead Time | 2-3 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| UPC | 6970207970328 |
| Prop 65 | false |
| ETL Listed | Yes |
| UL Listed | No |
| Controller Functions | Humidity Control, Ventilation Control |
What does the TrolMaster DSH-1 Humidity Device Station control with Hydro-X?
The TrolMaster DSH-1 Humidity Device Station connects standard humidifying or dehumidifying devices to Hydro-X for humidity control.
Which humidifying and dehumidifying devices can the TrolMaster DSH-1 Humidity Device Station support?
The TrolMaster DSH-1 Humidity Device Station has a 10-amp output rating. Use the TrolMaster DSH-1 Humidity Device Station with dehumidifiers rated below 7 amps to avoid current overload.
What connects the TrolMaster DSH-1 Humidity Device Station to a Hydro-X system?
The TrolMaster DSH-1 Humidity Device Station includes an RJ12 cable socket, one 16-foot RJ12 cable, one 4-foot RJ12 cable, and one RJ12 T-splitter. The TrolMaster DSH-1 Humidity Device Station also provides addressing and plug-and-play setup.
What is included with the TrolMaster DSH-1 Humidity Device Station?
The TrolMaster DSH-1 Humidity Device Station package includes one device station, one 16-foot RJ12 cable, one 4-foot RJ12 cable, and one RJ12 T-splitter.
