TrolMaster Aqua-X Sensor Board Instruction Manual TrolMaster Aqua-X Product ListAqua-X Sensor Board （AMP-2）
The AMP-2 module connects the Aqua-x to a set of precision pH / EC & temperature probes to constantly measure the pH / EC & temperature of the water being sampled. The AMP-2 works with the TrolMaster PCT-1&2 and the PPH-1&2 probes. Once connected to the Aqua-x, the AMP-2 will display the sensor data on the Aqua-x and on the APP. The minimum and maximum “limits” can be set on the Aqua-x providing 24/7 notification of pH / EC or temperatures that are out of limits.

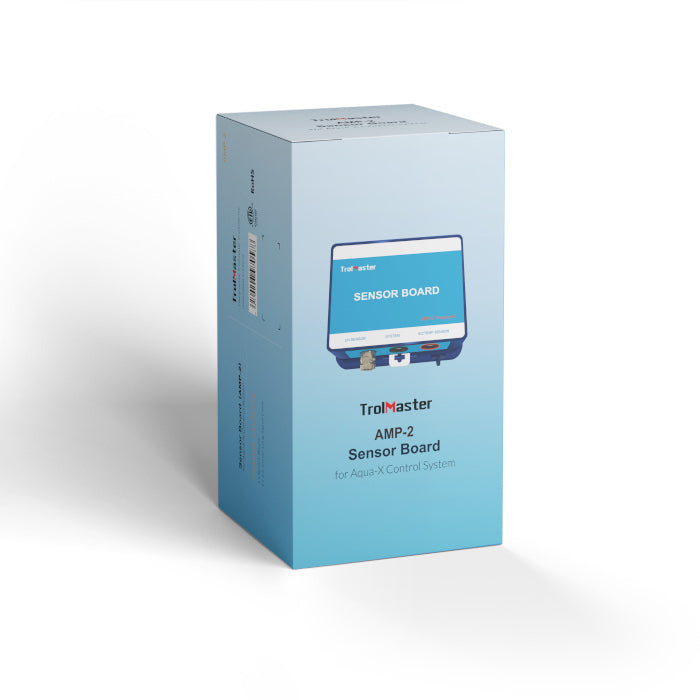

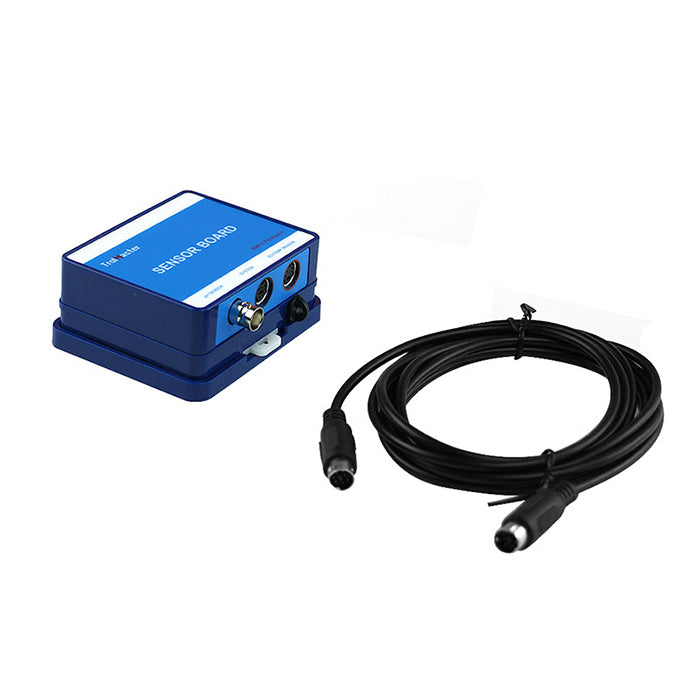

Package Contents:
- Sensor Board
- 2.5-Meter Long Signal Cable
Features:

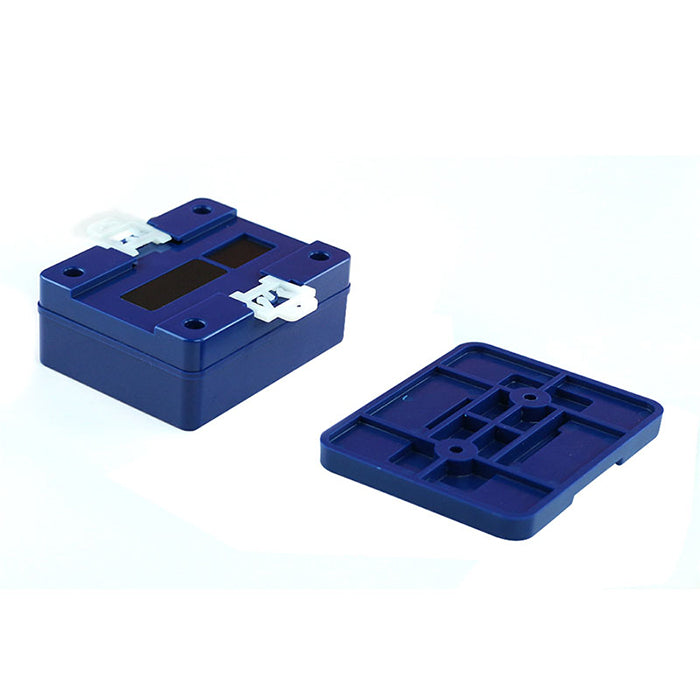

- Simpe-to-Use DIN Type Bracket for Easy Installation

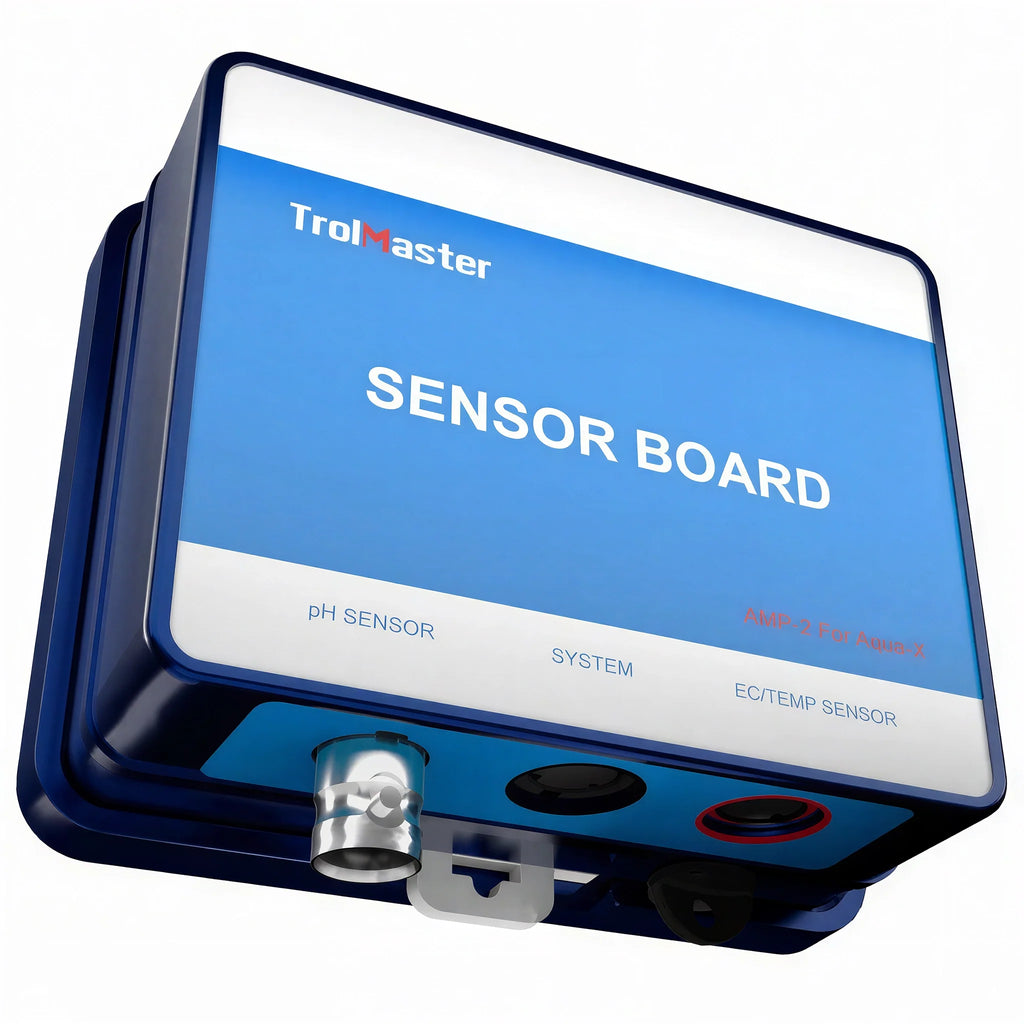

- BNC Terminal (left) allows Direct Connection to pH Sensor
- Mini DIN Terminal (right) allows Direct Connection to EC/Temp Sensor
- Mini DIN Terminal (middle) allows Direct Connection to Aqua-X Controller
Specifications:
- Temperature 32-122 F, Humidity =90%
- Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
| Brand | TrolMaster |
|---|---|
| SKU | AMP-2 |
| Weight (lb.) | 2.0000 |
| Height (in.) | |
| Prop 65 | false |
| Lead Time | 2-3 |
| Length (in.) | |
| Width (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| UPC | 6970207970588 |
| ETL Listed | Yes |
| UL Listed | No |
What does the TrolMaster Aqua-X Sensor Board (AMP-2) measure?
The TrolMaster Aqua-X Sensor Board (AMP-2) connects the Aqua-X controller to precision pH, EC, and temperature probes for continuous measurement of sampled water.
Which probes are compatible with the TrolMaster Aqua-X Sensor Board (AMP-2)?
The TrolMaster Aqua-X Sensor Board (AMP-2) works with TrolMaster PCT-1, PCT-2, PPH-1, and PPH-2 probes.
How does the TrolMaster Aqua-X Sensor Board (AMP-2) help monitor water conditions?
The TrolMaster Aqua-X Sensor Board (AMP-2) displays pH, EC, and temperature data on the Aqua-X controller and the app. Aqua-X limits provide 24/7 notifications when readings fall outside set limits.
What comes with the TrolMaster Aqua-X Sensor Board (AMP-2)?
The TrolMaster Aqua-X Sensor Board (AMP-2) package includes the sensor board and a 2.5-meter signal cable.
How does the TrolMaster Aqua-X Sensor Board (AMP-2) connect to probes and the Aqua-X controller?
The TrolMaster Aqua-X Sensor Board (AMP-2) uses a BNC terminal for a pH sensor, a mini DIN terminal for an EC and temperature sensor, and a mini DIN terminal for the Aqua-X controller. A DIN-type bracket supports installation.
