ThinkGrow LED Model-I Spec SheetInnovative LED for Greenhouse and Single Level Indoor Cultivation
This fixture is a high performance LED grow light for horticulture cultivation. The compact design with a built-in driver balances the energy efficiency and human work environment.
The Model-I is ideal for greenhouse and single level indoor cultivation. The compact design with a built-in driver balances the energy efficiency and human work environment. Full spectrum design with UV provides better spectrum similar to the natural sunlight covering each critical phase of growth from vegetative to flowering. Extra Far Red spectrum channel allows a 10-15 mins exposure under Far Red.
The Model-I and Model-I Plus have different Spectrum Controllability. The Model-I offers Full spectrum as well as an Independent Far Red Channel (HCS-1 required) and the Model-I Plus offers complete spectrum customiztion with 4 separate light channels of UV, White, Deep Red, and Far Red. (HCS-2 required)
Features & Benefits of the Model-I LED Grow Light
- Built-In Driver
- External Controlability - 256 Fixtures per Channel
- Full Spectrum plus Individual Far Red
- V-Shape LED Panel Design
- IP66 Waterproof
- Outstanding Efficiency of 2.54 µmol/J

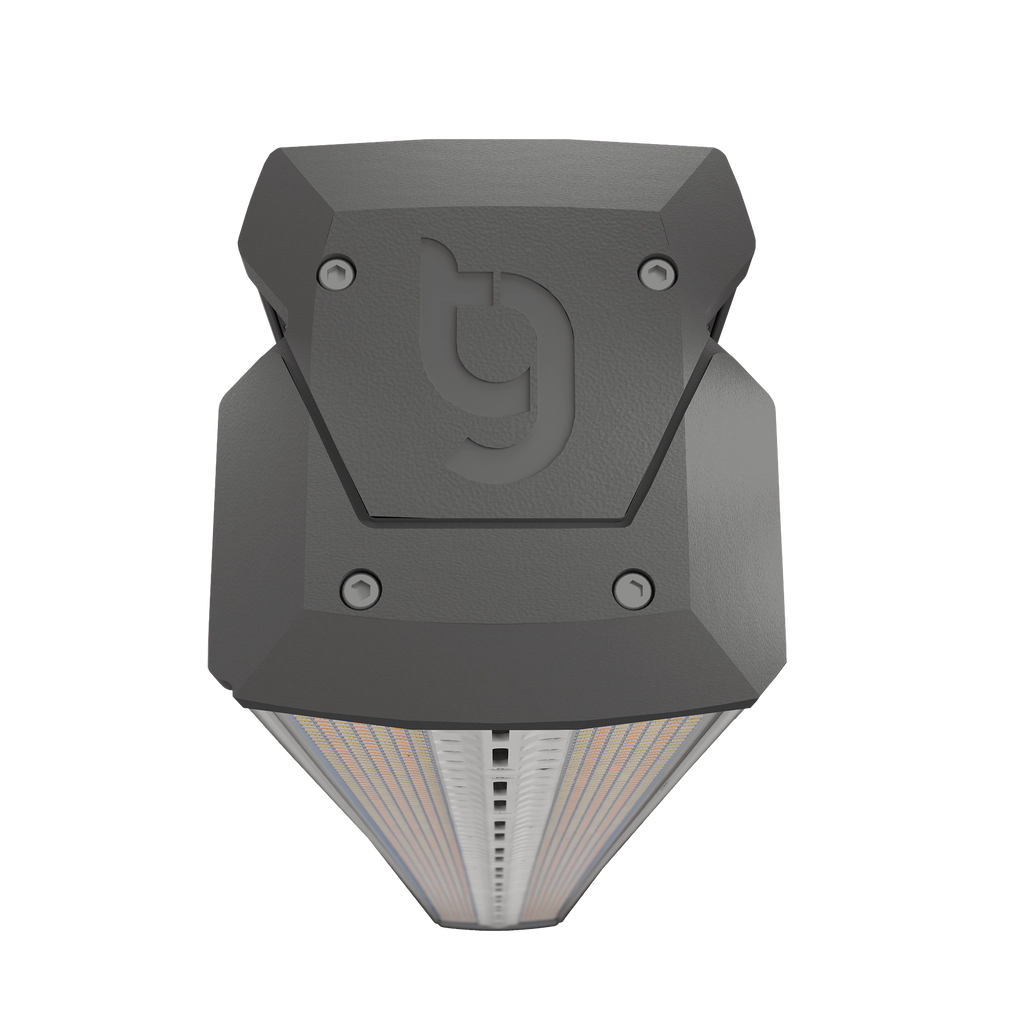

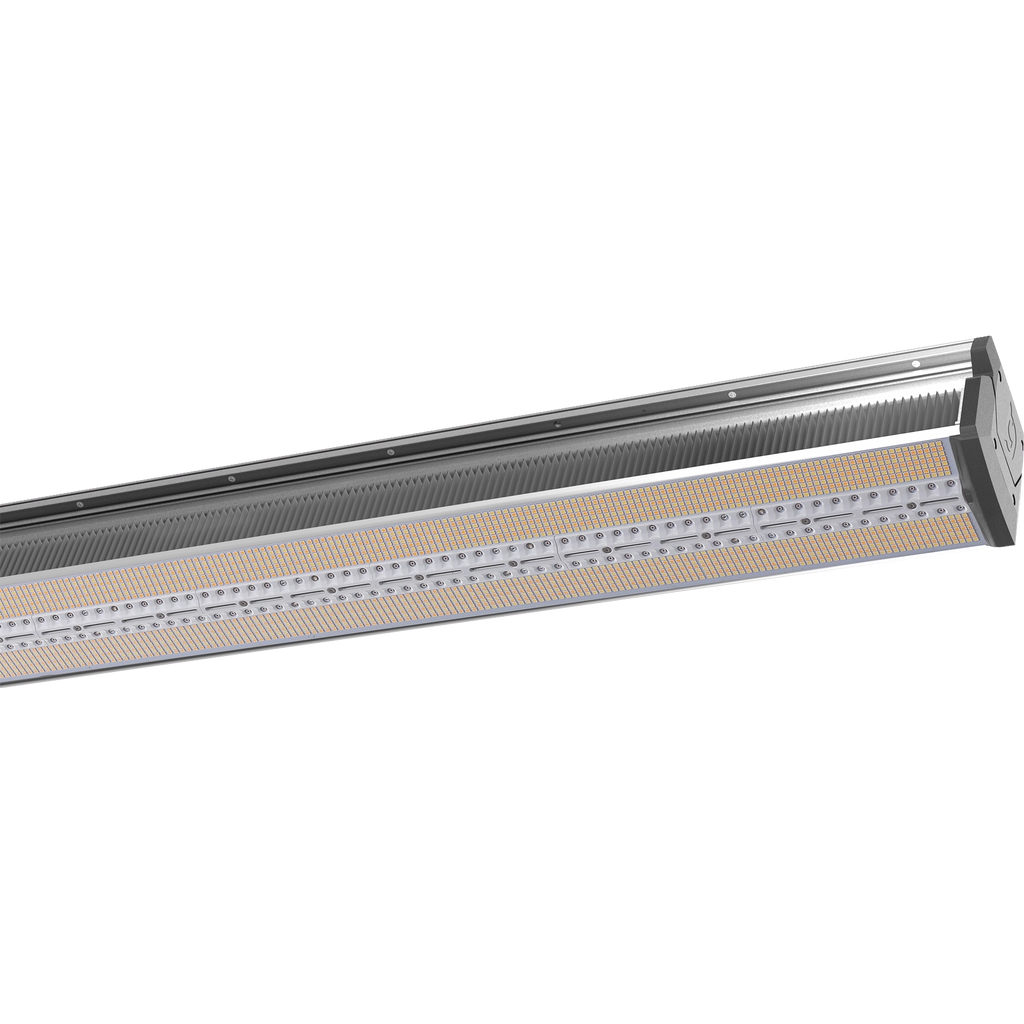

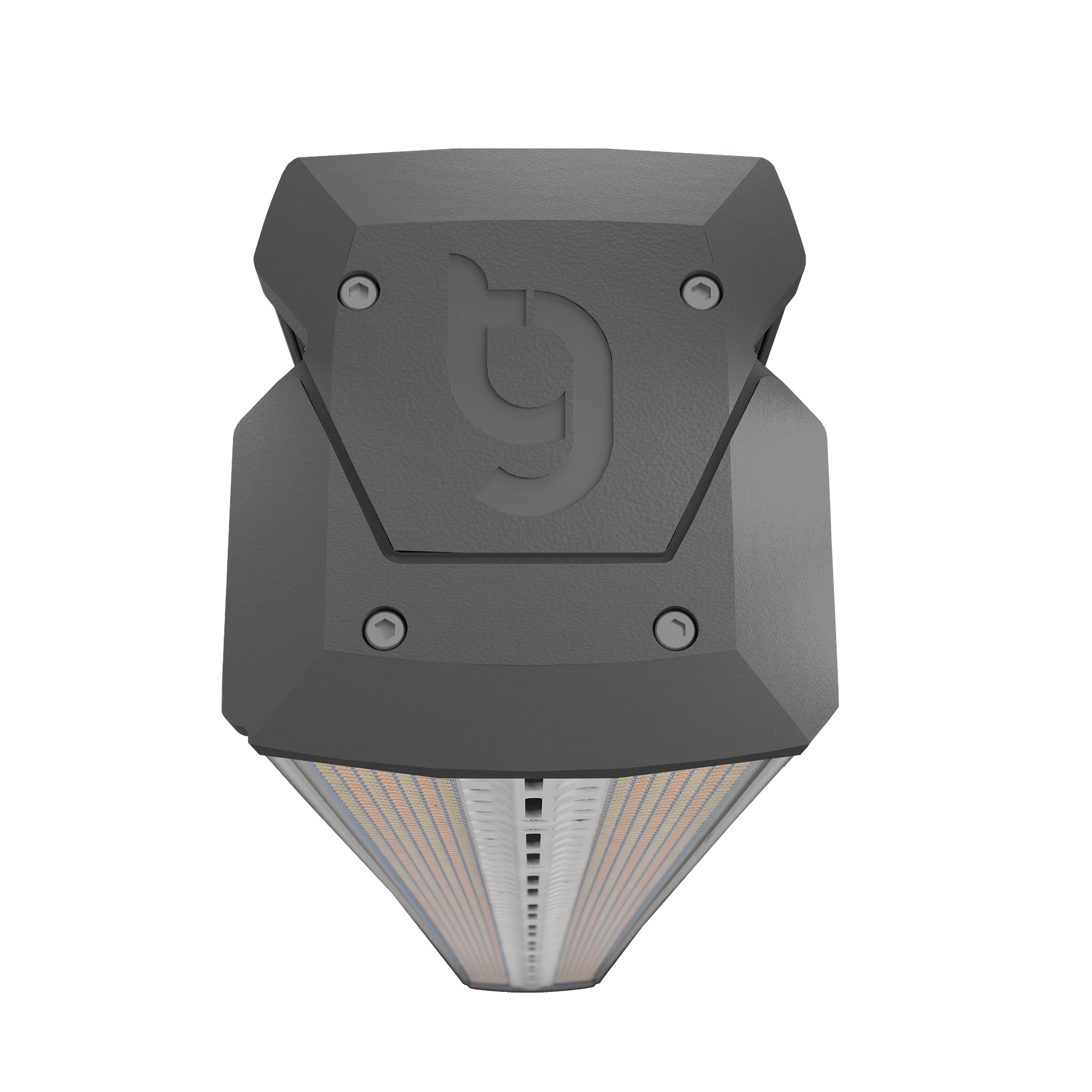

V-Shape LED Panel Design
The innovative V-shape design on the LED panel allows better light spread, and the lights can be placed at a lower height from the canopy to reduce light energy loss but still able to cover a recommended canopy area by evenly distributing light energy through thousands of diodes.
Independent Far Red Channel
Full spectrum design with UV provides better spectrum similar to the natural sunlight covering each critical phase of growth from vegetative to flowering. Extra Far Red spectrum channel allows a 10-15 mins exposure under Far Red, it can be applied to crops to help finish the flowering cycle faster (External Controller required). It provides great external controlability and allows up to 256 fixtures per channel with outstanding efficiency at 2.54 umol/J.
Full Spectrum & Individual Far Red Channel
Full spectrum with UV covers each critical phase of growth from vegetative to flowering. Delivering far-red light to the crop at certain times allows growers to manipulate plant responses, flower faster, and boost yield.

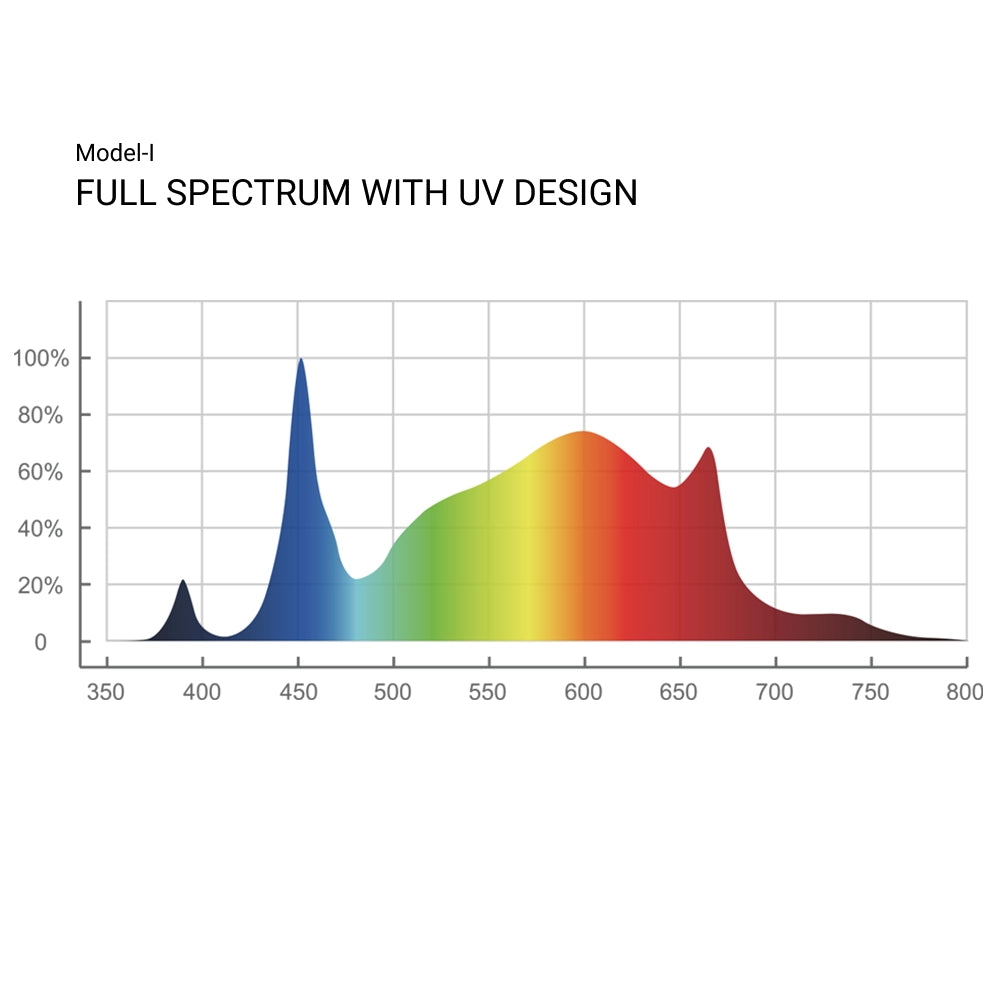

Full Spectrum

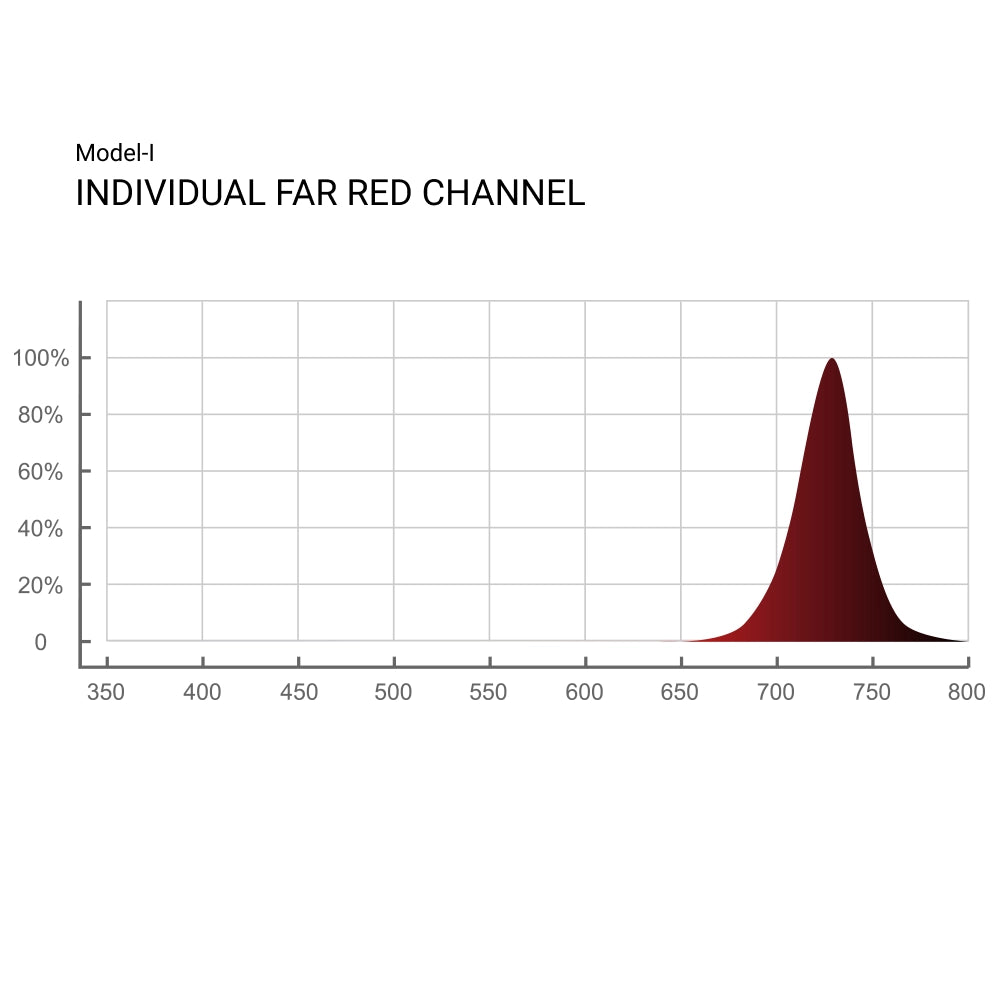

Independent Far Red Channel
Compare the Model-I & Model-I PLUS
These 2 LED Grow Lights have the same Input Power/Voltage as well as Amperage. The PPF and PAR on the PLUS are a little higher, but the main difference in the 2 models is Spectrum Controllability. The independent far red channel provides a great boost to flowering.
Model-I
The Model-I uses the Full Spectrum as well as the
Independent Far Red Channel
The Model-I needs to use the
Hydro-X Controller (HCS-1) to control the Independent Far Red Channel
Model-I PLUS
The Model-I PLUS has ultimate controllability of 4 different channels such as
UV, White, Deep Red, & Far Red
The Model-I PLUS needs to use the
Hydro-X PRO Controller (HCS-2) to have control of the 4 channels
External Controllability with TrolMaster Hydro-X
The Model-I is only compatible with TrolMaster Hydro-X control systems. With the TrolMaster lighting adaptor LMA-T, the Full Spectrum and Far Red channels can be controlled independently from the Hydro-X controllers.
Both Hydro-X & Hydro-X Pro provide the following functions:
- Separate Day - Night Settings
- Controls commercial dehumidifiers
- Controls 2 separate lighting channels
- Remote monitoring using free app
- Can control lights using PPFD / PAR meter
- Control HVAC and mini-split
- Controls commercial humidifiers
- Controls supplemental CO2
- Controls timed devices
- Sava data on microSD card
The Hydro-X Environmental controller from TrolMaster is one of the most sophisticated light controllers on the market. By combing this controller with your ThinkGrow LED, you bring in an entire suite of professional tools to to maximise your light and yields.
A single LMA-T Adapter is all that is need with the controller and you are ready to start controlling your ThinkGrow LEDs with TrolMaster
Specifications for the Model-I
| Model | Model-I |
|---|---|
| PPF | PAR | 1829 µmol/s | 2.54 µmol/J |
| Input Power | 720 Watts |
| Power Factor | >=90% |
| Fixture Dimensions | Weight | 45.24" x 4.36" x 6.46" | 22.33 lbs. |
| Mounting Height | > 2.5 ft. above canopy |
| Lifetime | L90: > 54,000 hours |
| Warranty | 5-Year Standard |
| Voltage | Autosensing 100-277 Volt |
| Amp Draw | 120V/6.23A - 240V/3.09A - 277V/2.71A |
| IP Rating | IP66 |
PPFD Map at 2.5 ft.
| Brand | ThinkGrow |
|---|---|
| SKU | MODEL-I |
| Weight (lb.) | 23.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This product ships in 1-2 weeks |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Panel |
| LED Features | Dimmable *with Controller |
| Est. Electricity Cost /mo | $31.10 |
| Exact Watts | 720 Watts |
| Suggested Hanging Height | > 2.5 ft. Above Canopy |
| PAR Efficiency | 2.54 μmol/J |
| Total PPF Output | 1829 μmol/s |
| Power Factor | >= 90% |
| Voltage | 120 Volts, 240 Volts, 277 Volts |
| Amps | 6.23 Amps @ 120 Volts, 3.09 Amps @ 240 Volt, 2.71 Amps @ 277 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 240 Volt |
| Power Cord Length | 12 ft. |
| Coverage Area | Veg: 5' x 5'; Flower: 4' x 4' |
| Grow Light Certifications | IP66 Rated |
| ETL Listed | No |
| UL Listed | No |
