A powerful and foldable LED fixture from Sun System

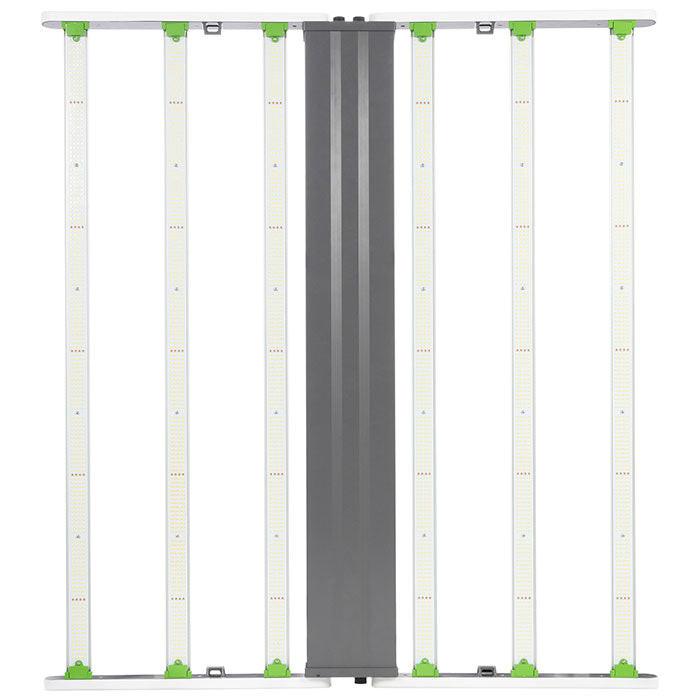

The Sun System Rail System (RS) 1850 LED is a 6 rail, foldable LED producing 1850 μmol/s with an efficiency of 2.5 μmol/J.
This fixture is DLC listed, IP65 wet-rated and comes complete with a manual digital dimming button and an internal embedded smart controller that is compatible with the Gavita e-Series Controller. Together, these features give you the ability to control up to 500 fixtures (e-Series Controller required, sold separately). The Sun System RS 1850 utilizes top-bin Sun System-brand diodes to produce a full-spectrum light source. The RS 1850 operates at 120-277 volt.
**INCLUDED power cord of your desired voltage. Select voltage from the dropdown at the top.
Features & Benefits of the RS 1850

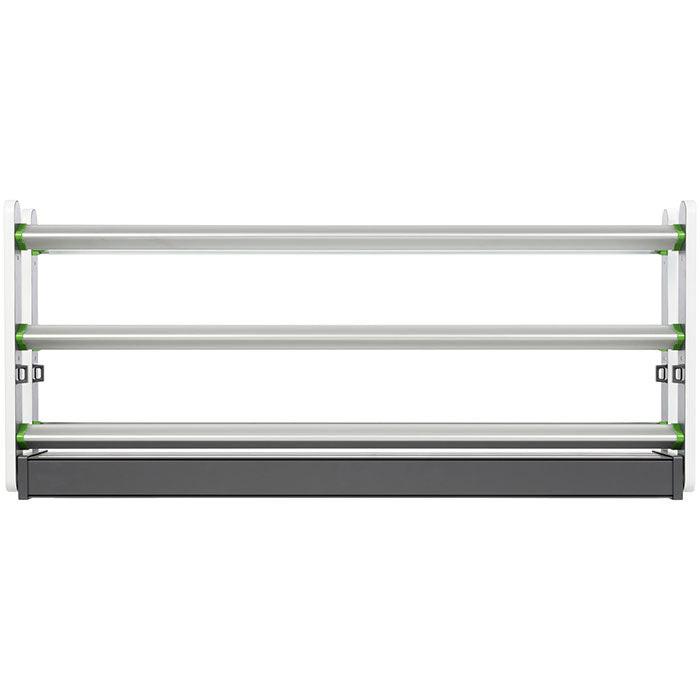

- Folds for maximum portability
- Produces 1850 μmol/s operating at 720 Watts

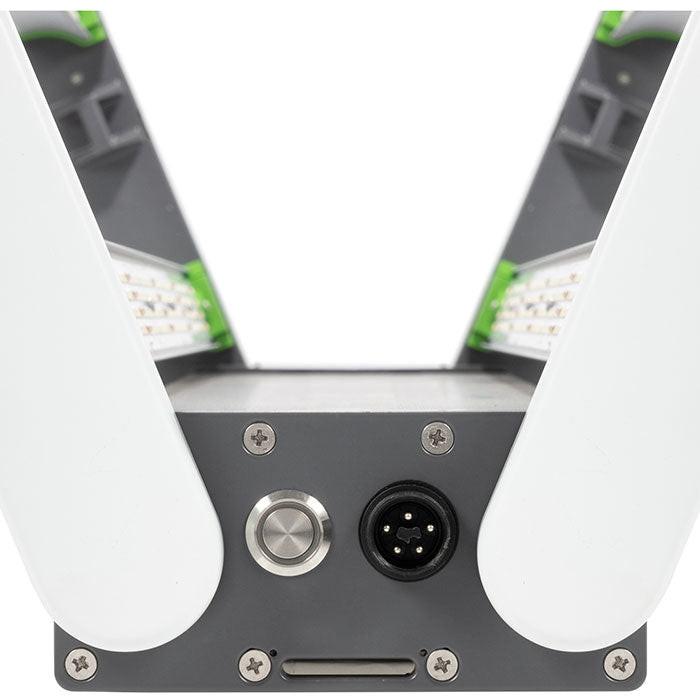

- Manual digital dimming button

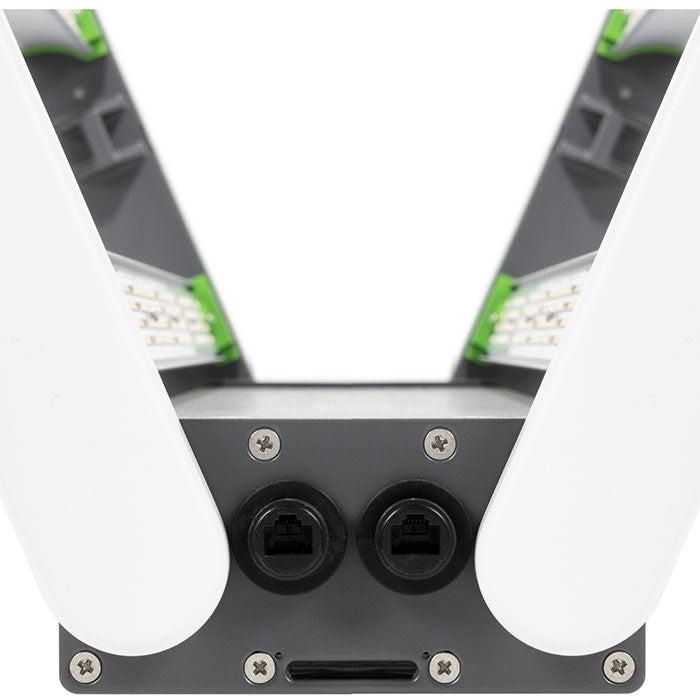

- Imbedded adaptor for maximum controllability with the Gavita e-Series Controller
- cETLus Certified
- DLC Hort Listed
- IP65 Wet Rated

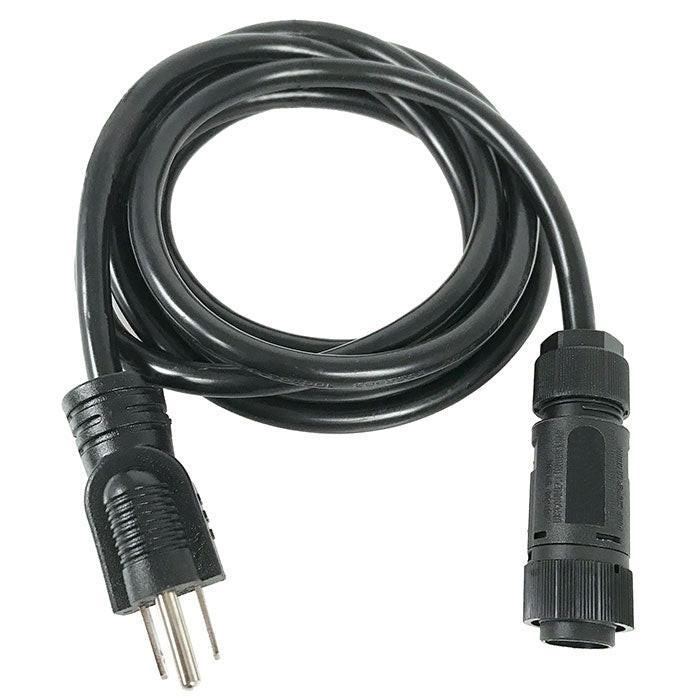

- **Power cord IS INCLUDED
External control with the Gavita Master Lighting Controller
Adding a Gavita EL Master Controller (sold separately) transforms your fixtures into dynamic powerhouses with the versatility to grow light-loving crops or conserve output, both with the same device.
The 10% to 100% dimming range allows you to recreate sunrise, sunset and changing day lengths to create the ideal lighting levels for whatever you’re growing at every stage of growth. A patent-pending controller embedded in each fixture enables control of up to 500 fixtures per EL control channel and helps maintain unwavering output from light to light.
- Non-volatile memory
- Event logging
- Independent sunrise and sunset settings
- Independent light cycles on the EL2
- Gavita E-Series LED Adapter needed for use with the Gavita EL series, learn more here!
Uniformity (PPFD Map)
The luminaire was testsed with the long axis of the luminaire oriented along the y-axis of the plot
Mounting Height: 0.5 Feet
- Maximum PPFD: 1368.7 µmol/sec/m2
- Minimum PPFD: 7.4 µmol/sec/m2
- Average PPFD: 506.2 µmol/sec/m2
Mounting Height: 1 Feet
- Maximum PPFD: 1184.0 µmol/sec/m2
- Minimum PPFD: 36.0 µmol/sec/m2
- Average PPFD: 483.6 µmol/sec/m2
Mounting Height: 2 Feet
- Maximum PPFD: 705.5 µmol/sec/m2
- Minimum PPFD: 98.8 µmol/sec/m2
- Average PPFD: 363.5 µmol/sec/m2
Mounting Height: 3 Feet
- Maximum PPFD: 432.8 µmol/sec/m2
- Minimum PPFD: 116.5 µmol/sec/m2
- Average PPFD: 267.9 µmol/sec/m2
Specifications for the RS 1850
| Input Voltage | 120/277 Volts |
|---|---|
| Input Wattage | 720 Watts |
| Input Current | 2.62 A @ 277 V；6.2 A @ 120 V |
| PPF | 1850 µmol/s |
| PAR | 2.5 µmol/J |
| IP Rating | IP65 |
|---|---|
| Power Factor | > 0.95 |
| Dimensiosn | Weight | 47" x 24" x 9" | 33.07 lbs |
| Certifications | cETLus Certified, DLC Hort Listed |
| Warranty | 5 Year |
| Brand | Sun System |
|---|---|
| SKU | SS-RS1850-120V |
| Weight (lb.) | 33.8780 |
| Prop 65 | false |
| Warranty | 5 Year |
| Lead Time | This product ships in 7-10 Business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | 31.10 |
| Exact Watts | 720 Watts |
| Suggested Hanging Height | 6-12" Above Canopy |
| LED Diode Type | Top-bin Sun System Brand Diodes |
| PAR Efficiency | 2.5 μmol/J |
| Total PPF Output | 1850 μmol/s |
| Power Factor | > 0.95 |
| Daisy Chain | Yes |
| Voltage | 120 Volts, 208 Volts, 240 Volts, 277 Volts |
| Amps | 6.30 Amps @ 120 Volts, 3.6 Amps @ 208 Volts, 2.65 Amps @ 277 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Power Cord Length | 8 ft. |
| Coverage Area | Veg: 6' x 6'; Flower: 5' x 5' |
| Grow Light Certifications | IP65 Rated, DLC Listed, ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
