Quest Hi-E Dry 195 Manual Quest Hi-E Dry 195 Quick Start Guide Quest Hi-E Dry 195 Spec SheetQuest HI-E Dry dehumidifiers can be used standalone or in ducted installations.
Get the flexibility you need in an economical package with the Hi-E DRY 120 or 195 Dehumidifiers.
Note: The Quest Hi-E Dry does NOT INCLUDE communication wires and CAN'T be wired to a humidistat
Hi-E DRY dehumidifiers are designed and built with emphasis on efficiency and durability. Today’s Hi-E DRY dehumidifiers remove up to seven pints of water per kilowatt hour, while the industry average remains at only two to three pints.
The high-efficiency design of Hi-E DRY dehumidifiers offer more than just dramatically reduced utility costs. The larger water removal capacity from a smaller, more efficient refrigeration system eliminates the need for 220 volt circuits in many applications. The smaller refrigeration system allows Hi-E DRY 120 & 195 dehumidifiers to cost less than other commercial dehumidifiers of equal capacity.
The Hi-E DRY high efficiency dehumidifier utilizes refrigeration to cool the incoming air stream below its dew point as it passes through the dehumidification (evaporator) coil. This cooling results in the removal of moisture (latent heat) and reduction in temperature (sensible heat). The cooled and dried air is used to precool the incoming air stream resulting in up to a 200 percent increase in overall efficiency. After the precooling stage the processed air is reheated by passing through the condenser coil. The latent heat removed by the evaporator coil is returned to the air stream at this stage as sensible heat, resulting in an overall temperature increase from the incoming air.
Features & Benefits of the Hi-E Dry

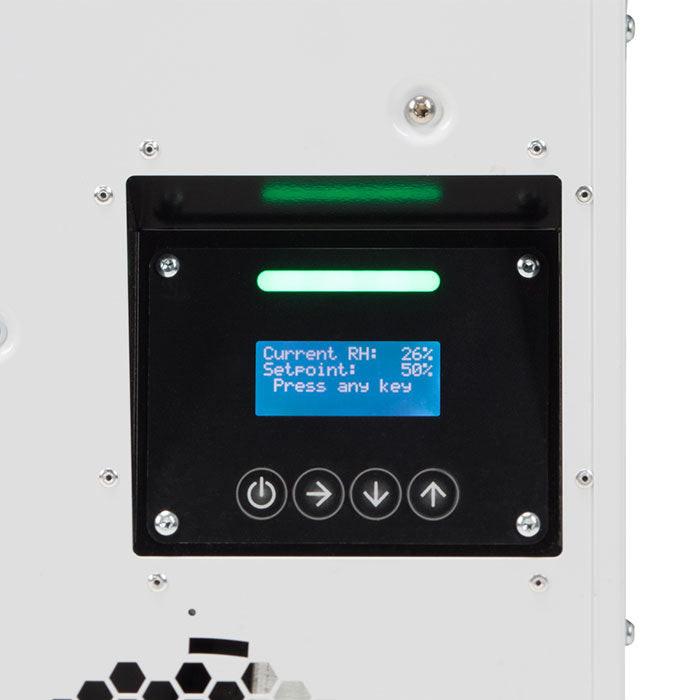

- Controlled by a dehumidistat with settings from 20 to 80 percent relative humidity and a positive “on” and “off” setting.

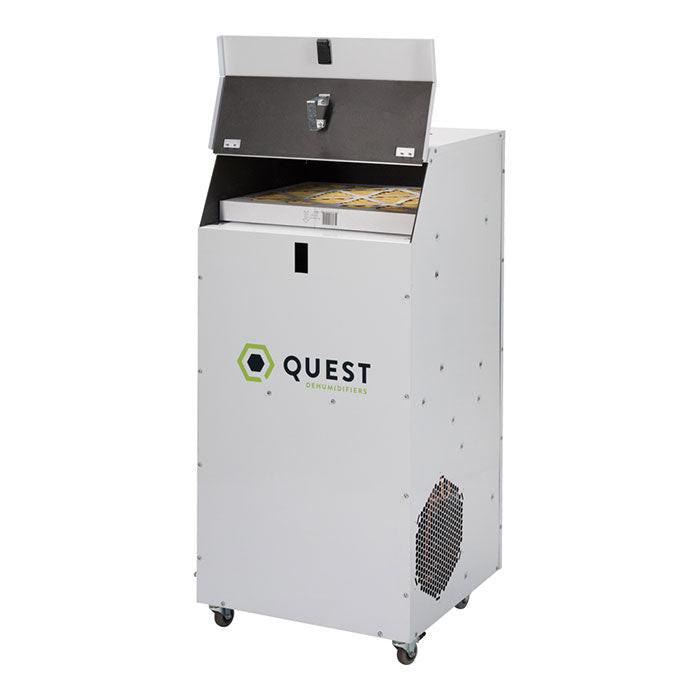

- Portable and provided with four casters.
- Contains an internal condensate pump capable of lifting condensate 17 feet and 20 ft(195)/30 ft(120) of condensate hose.
- Wiring is through a factory installed six foot power cord; 115 volt with ground.
Specifications
| Model: | Hi-E Dry 120 |
|---|---|
| Supply Voltage: | 115 VAC 5.9 amps - NEMA 5-15P |
| Power: | 680 Watts @ 80°, 60% |
| Water Removal: | 120 pints (80°, 60%) |
| Blower: | 445 CFM |
| Operating Range: | 40°F–110°F |
| Dimensions: | 20" x 42" x 19" | 121 lbs. |
| Shipping Dimensions: | 26" x 47" x 24" | 145 lbs |
| Warranty: | 5 Years |
| Model: | Hi-E Dry 195 |
|---|---|
| Supply Voltage: | 115 VAC 13.1 amps - NEMA 5-20P |
| Power: | 1500 Watts @ 80°, 60% |
| Water Removal: | 195 pints (80°, 60%) |
| Blower: | 610 CFM |
| Operating Range: | 40°F–110°F |
| Dimensions: | 20" x 42" x 19" | 130 lbs. |
| Shipping Dimensions: | 26" x 47" x 24" | 145 lbs |
| Warranty: | 5 Years |
| Brand | Quest |
|---|---|
| SKU | QUE4036710 |
| Weight (lb.) | 161.0000 |
| Length (in.) | |
| Lead Time | This Product Ships in 2-3 Business Days |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Years |
| Hazardous Material | false |
| UPC | 859029004779 |
| Shipping Restrictions | AK, HI |
| Prop 65 | false |
| Exact Moisture Removal Capacity (Pints/Day) | 192 Pints/Day |
| Efficiency Rating | 5.9 Pints/kWh |
| Dehumidifier Features | Adjustable Humidistat, Includes Drain Hose, Built-In Pump |
| Dehumidifier Type | Free Standing |
| Drain Hose Length | 20 ft. |
| ENERGY STAR Certified | No |
| Air Filter | MERV-11 Size: 20” x 16” x 2” |
| Power Cord(s) Included | Yes - 115 Volt, NEMA 5-20P |
| Power Cord Length | 10 ft. |
| Amps | 13.1 Amps |
| Exact Watts | 1500 Watts |
| Voltage | 120 Volts |
| UL Listed | No |
| ETL Listed | Yes |
How efficient is the Quest Hi-E Dry 195 Pint Dehumidifier?
The Quest Hi-E Dry 195 is highly efficient, removing up to seven pints of water per kilowatt hour, which is significantly higher than the industry average of two to three pints.
Can the Quest Hi-E Dry 195 be used with a humidistat?
No, the Quest Hi-E Dry 195 does not include communication wires and cannot be wired to a humidistat.
What are the power requirements for the Quest Hi-E Dry 195?
The dehumidifier operates on 115 VAC and requires 13.1 amps, using a NEMA 5-20P plug.
Can the Quest Hi-E Dry 195 be daisy-chained with other units?
Quest units pass power through their dry contacts to the next unit in the chain. If mixing with Anden units in the same daisy chain, put the Anden unit(s) first — Anden uses a true dry contact rather than passing power through.
