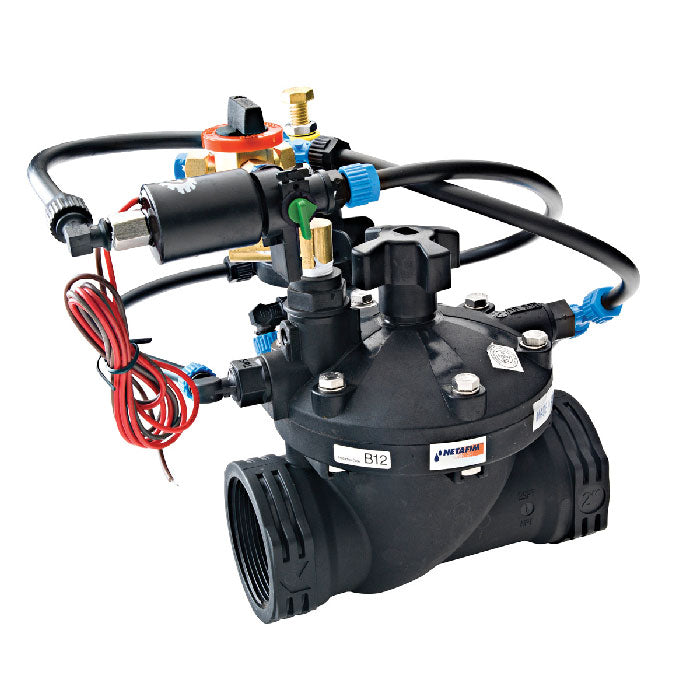

Netafim Series 80 Valve Spec. Sheet3 Way Series 80 Nylon Control Valves
With lower friction loss providing improved performance, Netafim Series 80 Nylon Control Valves are specifically designed for greenhouse applications. Offered with a nylon body (which is durable and corrosion-resistant), 2-Way or 3-Way electric solenoid and globe or angle configurations. These valves have a quick reaction to opening and closing which is ideal for mist systems. The low inrush and holding currents allows longer wire runs from valve to controller. A new drip-tight diaphragm provides a tight seal. Flow control stem allows manual control and the simple inline installation requires minimal maintenance with maximum dependability.
Features
- All control systems (pilot and solenoid) are assembled on the bonnet. No tubes are connected to the valve body.
- Tight sealing valve with fully supported diaphragm.
- Straight or angle with globe configuration activated by a fully supported diaphragm
- ntegrated check valve ensures valve remains closed until the controller designates opening.
- Vertical or horizontal installations
Applications
- Pressure regulation of irrigation systems - small blocks
- For remote control, master valve, automated or manual operations - accurate irrigation control
- Greenhouse and Nursery irrigation including hydroponic and mist systems
Specifications
- Recommended flow range:
- 1 ½” valve - .25 to 110 GPM
- 2” valve - .25 to 176 GPM
- Valve Configurations:
1 ½” and 2” valves - Globe or Angle - Minimum Operating Pressure: 7 psi
- Maximum Operating Pressure: 150 psi
- Maximum Water Temperature: 140° F
- Standard Solenoid Voltage: 24VAC
Materials
- Body, Bonnet, Diaphragm Seat: Glass Reinforced Polyamide (GRP)
- Nuts, Bolts, Washers: Stainless Steel 304
- Spring: Stainless Steel AISI 302
| Brand | Netafim |
|---|---|
| SKU | NF-S-80-GCV-3 |
| Hazardous Material | false |
