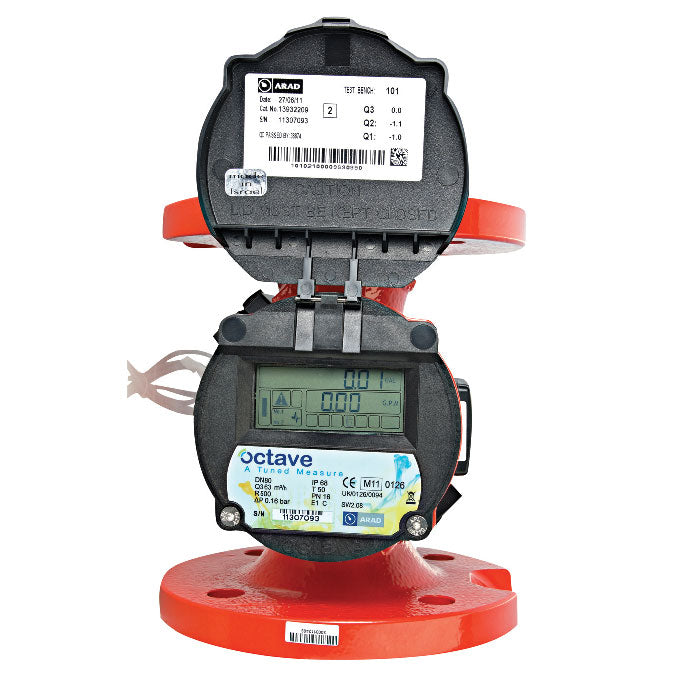

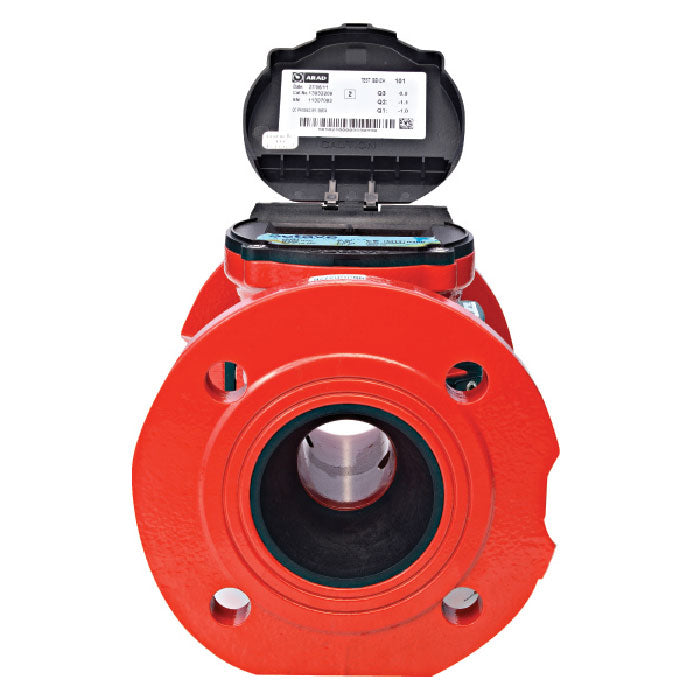

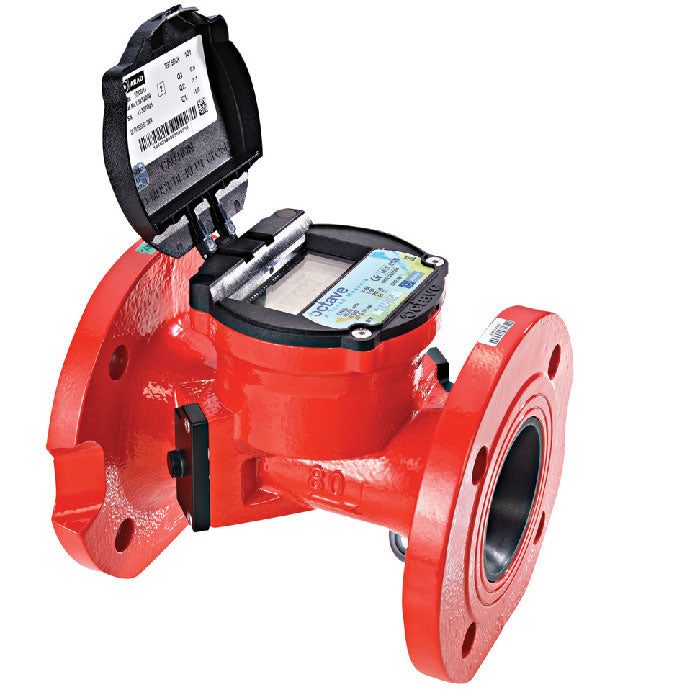

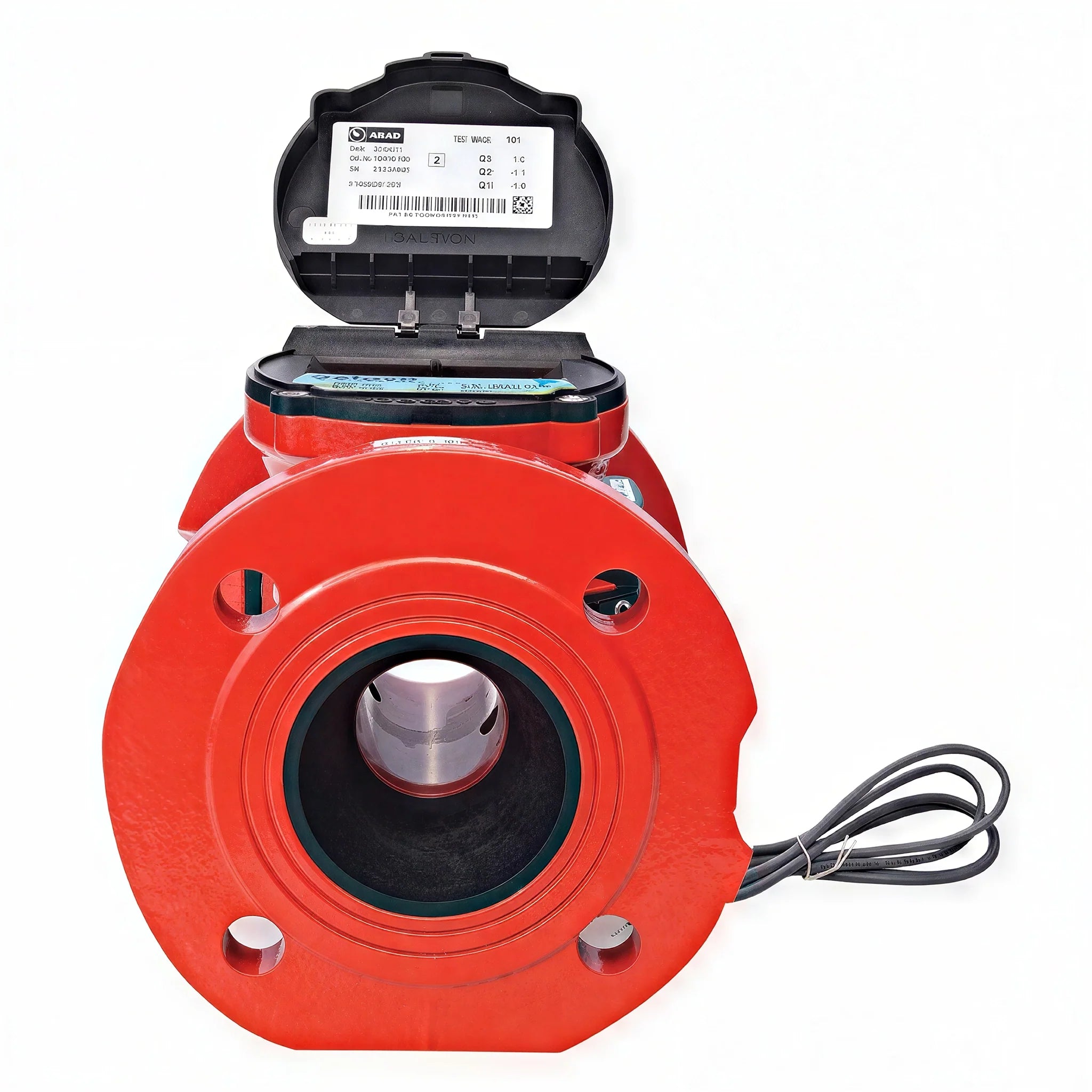

Octave® Ultrasonic Water Meters
Octave® Ultrasonic Water Meters have a ± 1.5% accuracy for nominal flow rates. The vacuum sealed and tamper proof register provides durability and long-term performance. A multi-line digital readout display provides immediate reporting and visual indicators for critical conditions. Lithium batteries provide a 10 year life expectancy. Octave also offers a 5 year pro-rated warranty – the industry’s longest.
Why Octave Water Meters?
- Double-beam ultrasonic sensors provide highly accurate flow data and reliable operation.
- No impeller or moving parts in the flow path provides for unrestricted, low pressure loss flows.
- Reduced maintenance of wear-prone parts commonly found in other meters.
- Flow ranges from <1 GPM to 5,500 GPM.
- Multi-line readout screen provides complete flow and volume information along with :
- Leak detection
- Flow direction
- Output mode
- Battery level
- Alarms and errors
- Active communication mode
- Vacuum sealed and tamper proof IP68 register provides durability and long-term performance.
- Lithium batteries provide a 10 year life expectancy.
Product Advantages
- Each meter has a unique, unalterable bar-coded serial number for identification.
- Standard registers are programmed to log and display both forward and reverse flow. Physically reversing the meter will not decrease the forward flow totalizer.
- Each meter ships with a certificate verifying flow accuracy with a ± 1.5% accuracy for nominal flow rates.
Specifications
- Sizes: 2″, 3″, 4″, 6″, 8″, 10″, and 12″
- Body: Epoxy-coated cast iron with flange inlet and outlet
- Maximum working pressure: 230 psi
- Fluid Temperature Range: 32° to 122° F (0.1° to 50° C)
- Connection: Flanges ANSI ISO for AWWA Connection Standard
- Power Source: 2 ‘D’ Size non-replaceable Lithium batteries
- Environmental Protection: IP-68, Ambient operation temperature for display: -13 to 131° F (-25° to 55° C)
- Output (optional): Programmable single/dual open collector pulse output or externally powered 4-20 mA loop
| Brand | Netafim |
|---|---|
| SKU | 00135-001461 |
| Weight (lb.) | 70.5000 |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Lead Time | This product ship in 10-14 Business Days |
| Length (in.) | |
| Hazardous Material | false |
| UPC | 3661734148689 |
| UL Listed | No |
| ETL Listed | No |
| Irrigation Part Type | Water / Soil Meters |
| Hardware Diameter | 6 inch |
