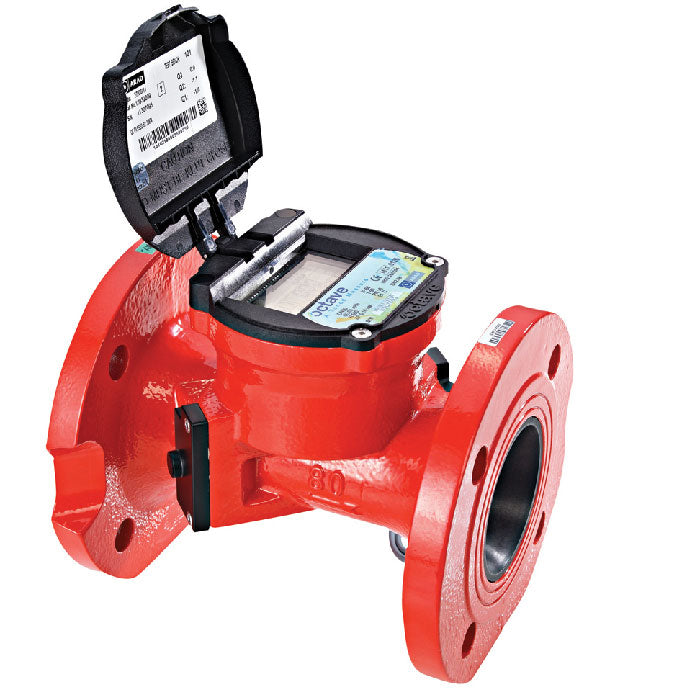

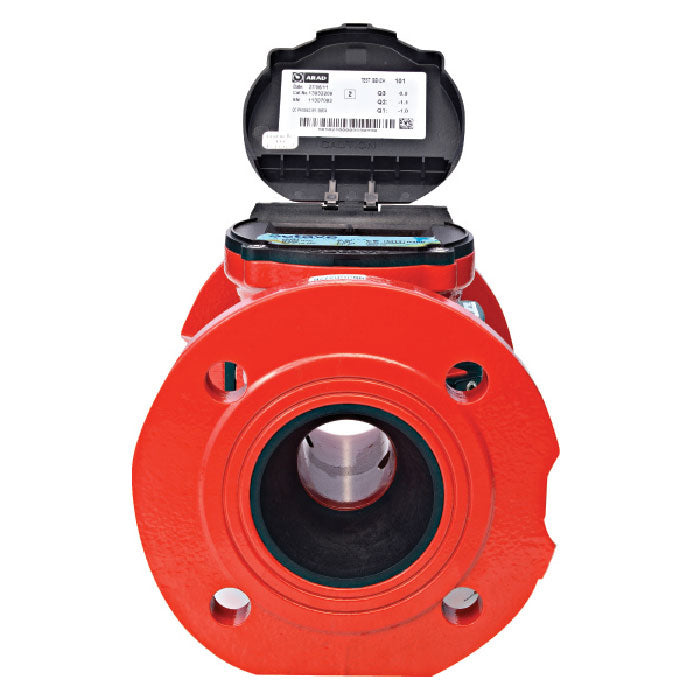

Octave® Ultrasonic Water Meters
Octave® Ultrasonic Water Meters have a ± 1.5% accuracy for nominal flow rates. The vacuum sealed and tamper proof register provides durability and long-term performance. A multi-line digital readout display provides immediate reporting and visual indicators for critical conditions. Lithium batteries provide a 10 year life expectancy. Octave also offers a 5 year pro-rated warranty – the industry’s longest.
Why Octave Water Meters?
- Double-beam ultrasonic sensors provide highly accurate flow data and reliable operation.
- No impeller or moving parts in the flow path provides for unrestricted, low pressure loss flows.
- Reduced maintenance of wear-prone parts commonly found in other meters.
- Flow ranges from <1 GPM to 5,500 GPM.

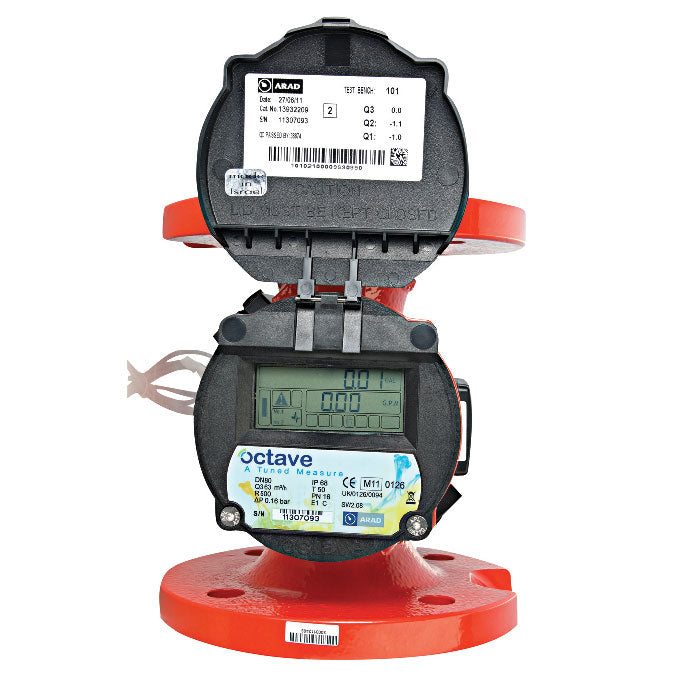

- Multi-line readout screen provides complete flow and volume information along with :
- Leak detection
- Flow direction
- Output mode
- Battery level
- Alarms and errors
- Active communication mode
- Vacuum sealed and tamper proof IP68 register provides durability and long-term performance.
- Lithium batteries provide a 10 year life expectancy.
Product Advantages
- Each meter has a unique, unalterable bar-coded serial number for identification.
- Standard registers are programmed to log and display both forward and reverse flow. Physically reversing the meter will not decrease the forward flow totalizer.
- Each meter ships with a certificate verifying flow accuracy with a ± 1.5% accuracy for nominal flow rates.
Specifications
- Sizes: 2″, 3″, 4″, 6″, 8″, 10″, and 12″
- Body: Epoxy-coated cast iron with flange inlet and outlet
- Maximum working pressure: 230 psi
- Fluid Temperature Range: 32° to 122° F (0.1° to 50° C)
- Connection: Flanges ANSI ISO for AWWA Connection Standard
- Power Source: 2 ‘D’ Size non-replaceable Lithium batteries
- Environmental Protection: IP-68, Ambient operation temperature for display: -13 to 131° F (-25° to 55° C)
- Output (optional): Programmable single/dual open collector pulse output or externally powered 4-20 mA loop
| Brand | Netafim |
|---|---|
| SKU | 00135-001421 |
| Weight (lb.) | 19.8000 |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Lead Time | 7-10 |
| Length (in.) | |
| Hazardous Material | false |
| UPC | 3661734148627 |
| UL Listed | No |
| ETL Listed | No |
| Irrigation Part Type | Water / Soil Meters |
| Hardware Diameter | 2 Inch |
What does Netafim Octave Water Meter measure in an irrigation line?
Netafim Octave Water Meter measures water flow and volume, with a multi-line digital readout that provides immediate reporting and visual indicators for critical conditions.
Will Netafim Octave Water Meter work in low-pressure irrigation setups?
Netafim Octave Water Meter has no impeller or moving parts in the flow path, which supports unrestricted, low pressure loss flows.
What size and connection style does Netafim Octave Water Meter use?
Netafim Octave Water Meter is the 2-inch model and uses flange inlet and outlet connections. The connection standard is ANSI ISO for AWWA Connection Standard.
How accurate is Netafim Octave Water Meter?
Netafim Octave Water Meter has ± 1.5% accuracy for nominal flow rates, and each meter ships with a certificate verifying flow accuracy.
What durability and power features come with Netafim Octave Water Meter?
Netafim Octave Water Meter has a vacuum sealed, tamper proof IP68 register for durability and long-term performance. Lithium batteries provide a 10 year life expectancy.

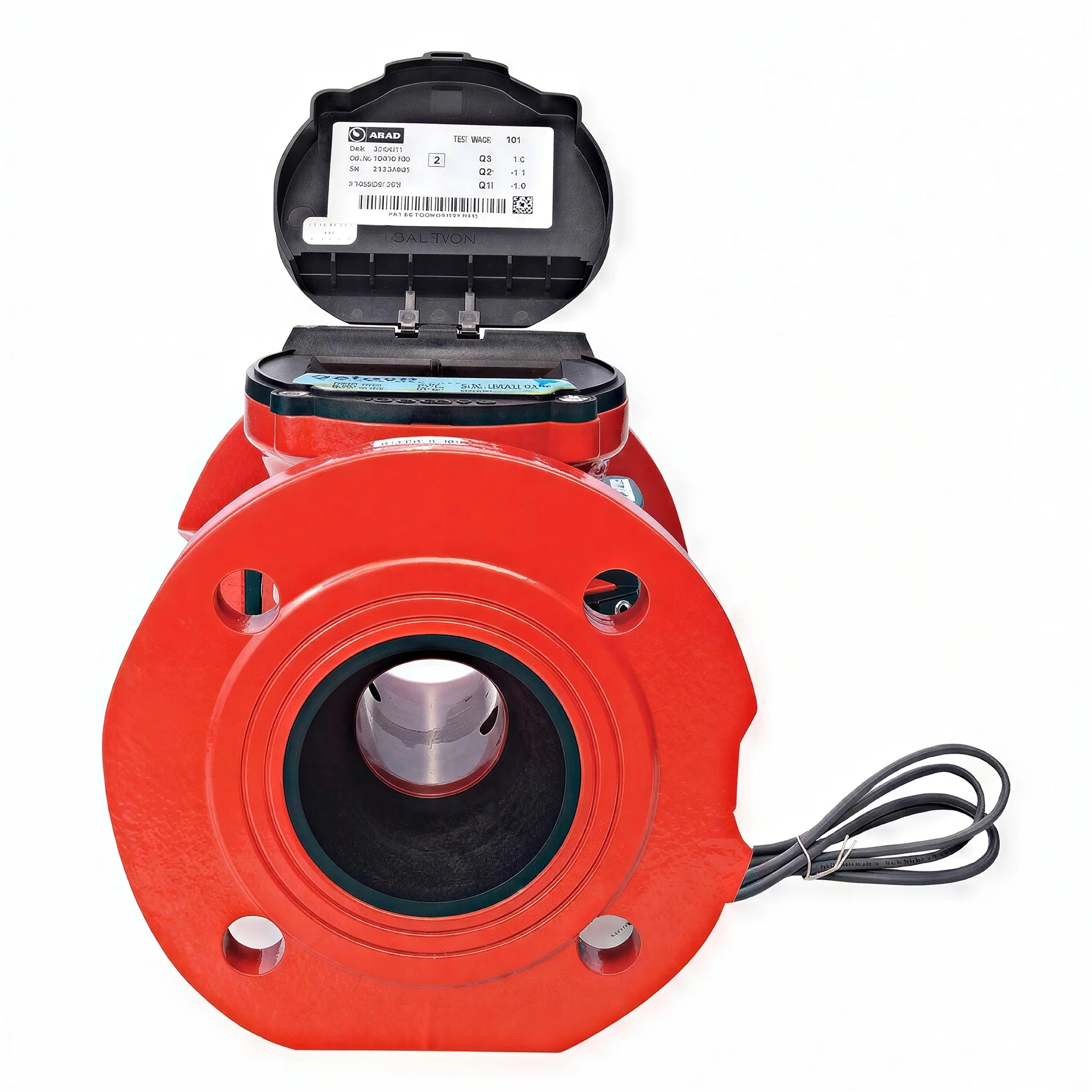

What version is Netafim Octave Water Meter 36OCTSST2NG?
Netafim Octave Water Meter, 2 Inch, No Output (36OCTSST2NG) is the no-output version.
