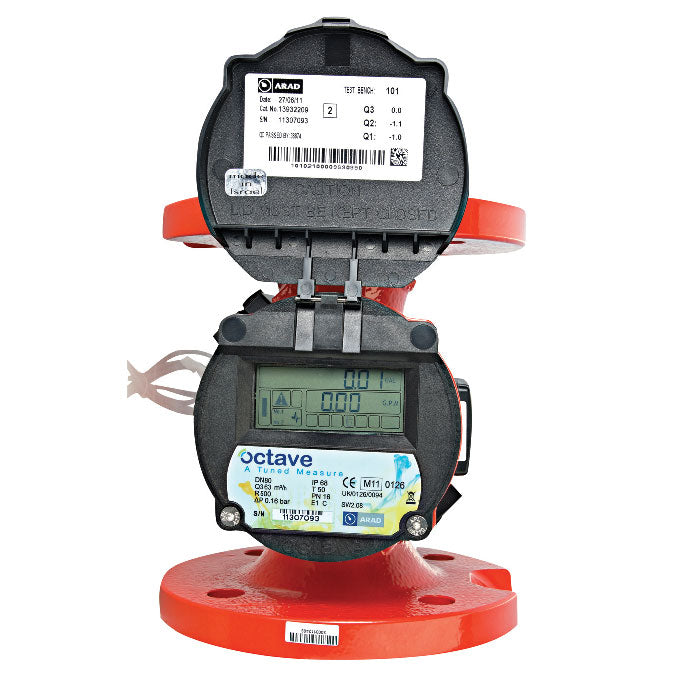

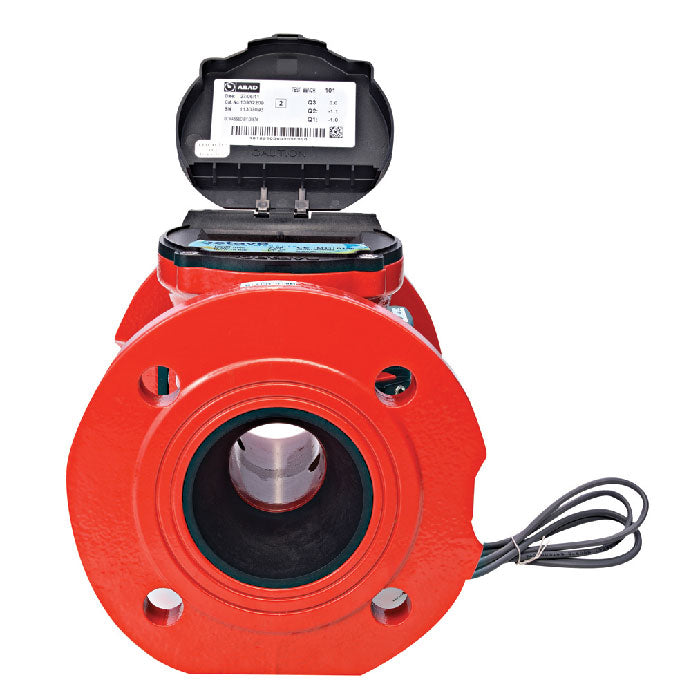

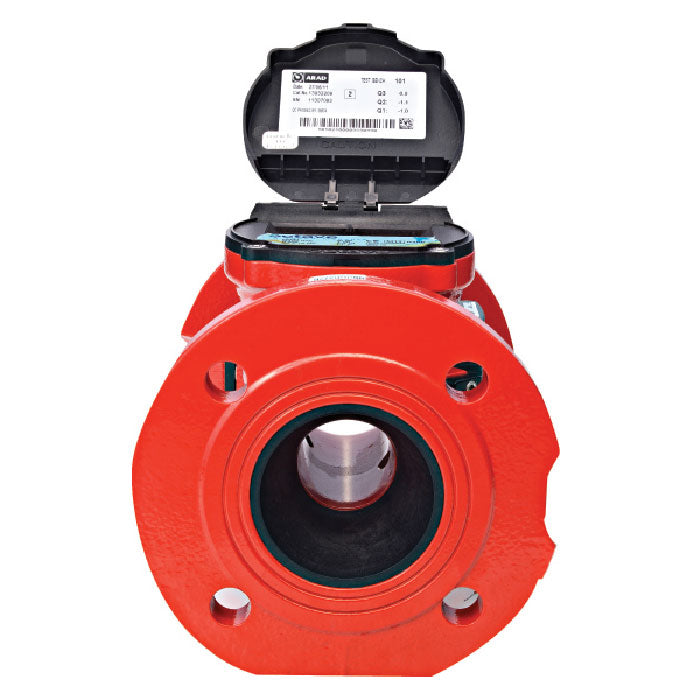

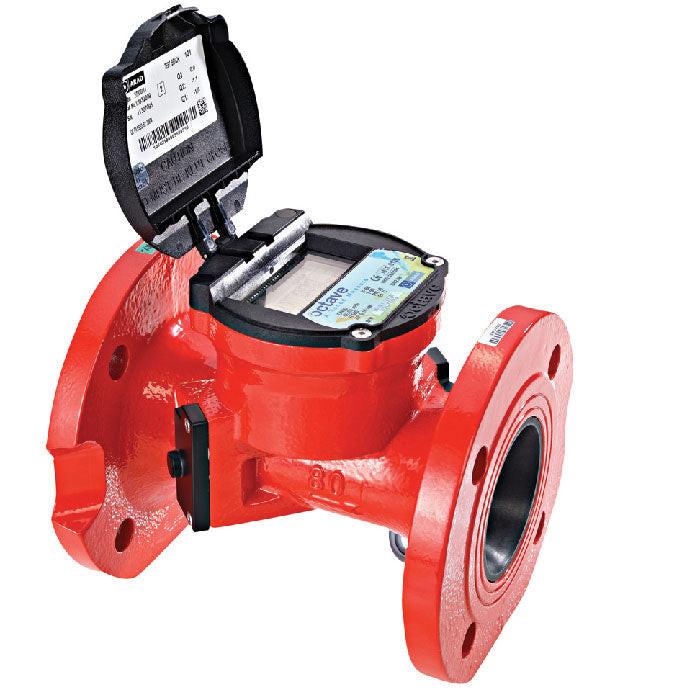

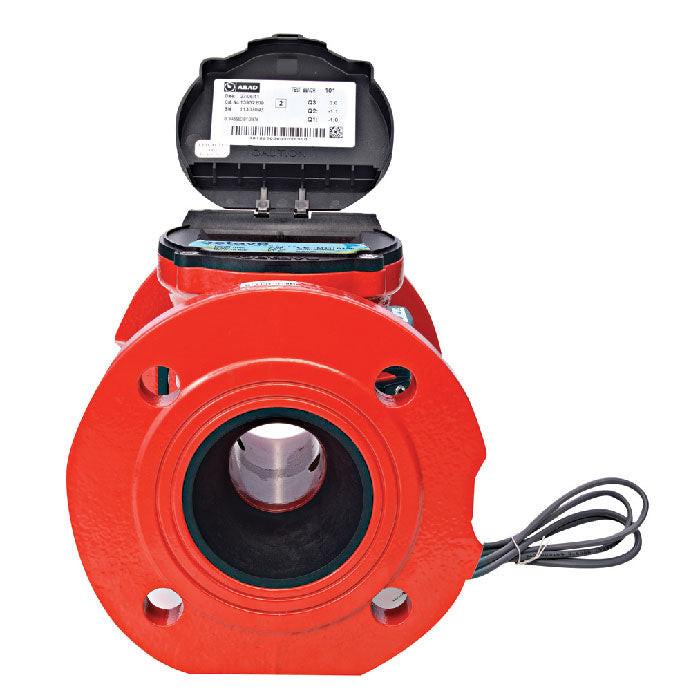

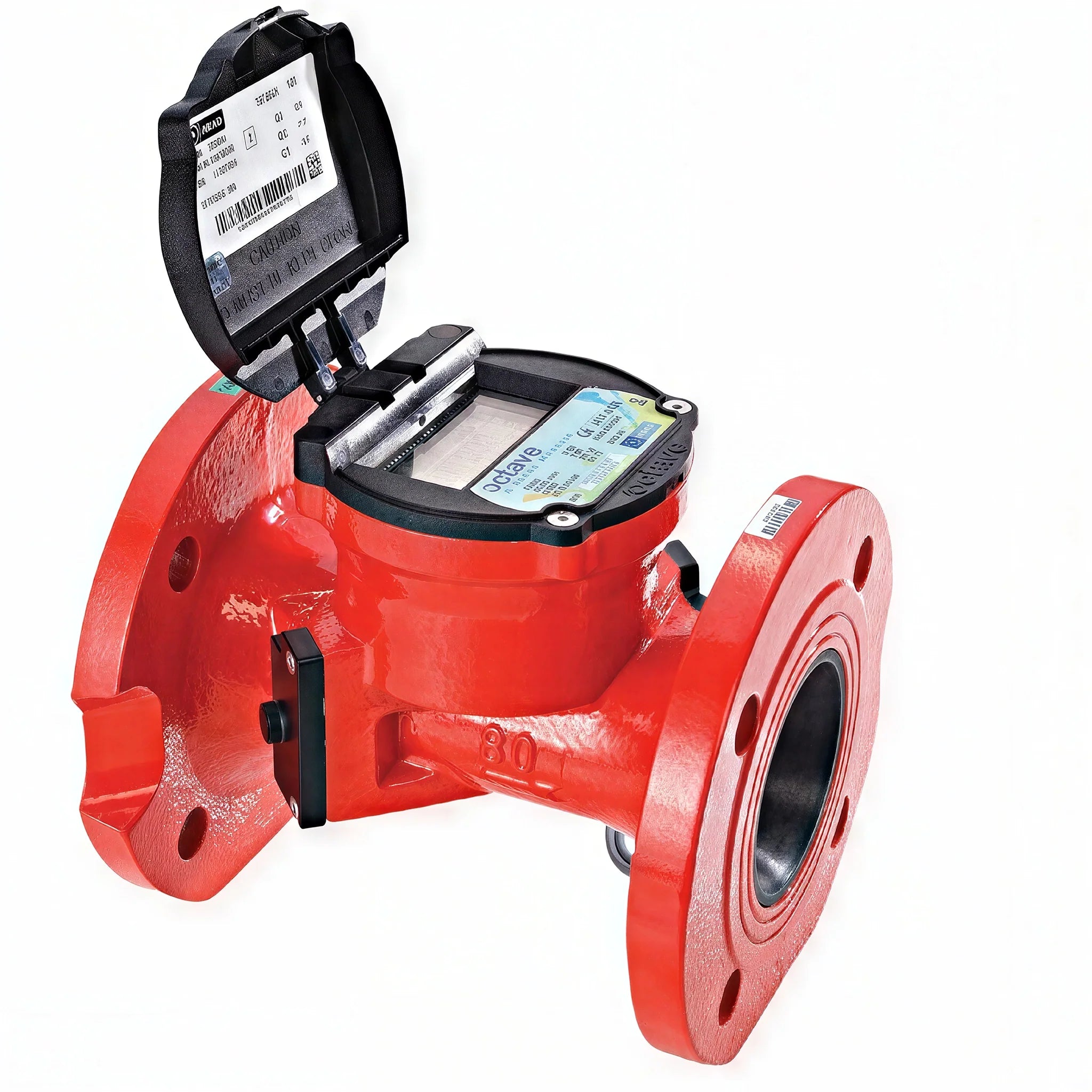

Netafim Octave Water Meter, 4 Inch, 10 & 100 Gallons/Pulse (36OCT4PG10)

Octave® Ultrasonic Water Meters

Octave® Ultrasonic Water Meters have a ± 1.5% accuracy for nominal flow rates. The vacuum sealed and tamper proof register provides durability and long-term performance. A multi-line digital readout display provides immediate reporting and visual indicators for critical conditions. Lithium batteries provide a 10 year life expectancy. Octave also offers a 5 year pro-rated warranty – the industry’s longest.

Why Octave Water Meters?

• Double-beam ultrasonic sensors provide highly accurate flow data and reliable operation.
• No impeller or moving parts in the flow path provides for unrestricted, low pressure loss flows.
• Reduced maintenance of wear-prone parts commonly found in other meters.
• Flow ranges from <1 GPM to 5,500 GPM.
• Multi-line readout screen provides complete flow and volume information along with :
  • Leak detection
  • Flow direction
  • Output mode
  • Battery level
  • Alarms and errors
  • Active communication mode
• Vacuum sealed and tamper proof IP68 register provides durability and long-term performance.
• Lithium batteries provide a 10 year life expectancy.

Product Advantages

• Each meter has a unique, unalterable bar-coded serial number for identification.
• Standard registers are programmed to log and display both forward and reverse flow. Physically reversing the meter will not decrease the forward flow totalizer.
• Each meter ships with a certificate verifying flow accuracy with a ± 1.5% accuracy for nominal flow rates.

Specifications

• Sizes: 2″, 3″, 4″, 6″, 8″, 10″, and 12″
• Body: Epoxy-coated cast iron with flange inlet and outlet
• Maximum working pressure: 230 psi
• Fluid Temperature Range: 32° to 122° F (0.1° to 50° C)
• Connection: Flanges ANSI ISO for AWWA Connection Standard
• Power Source: 2 ‘D’ Size non-replaceable Lithium batteries
• Environmental Protection: IP-68, Ambient operation temperature for display: -13 to 131° F (-25° to 55° C)
• Output (optional): Programmable single/dual open collector pulse output or externally powered 4-20 mA loop
