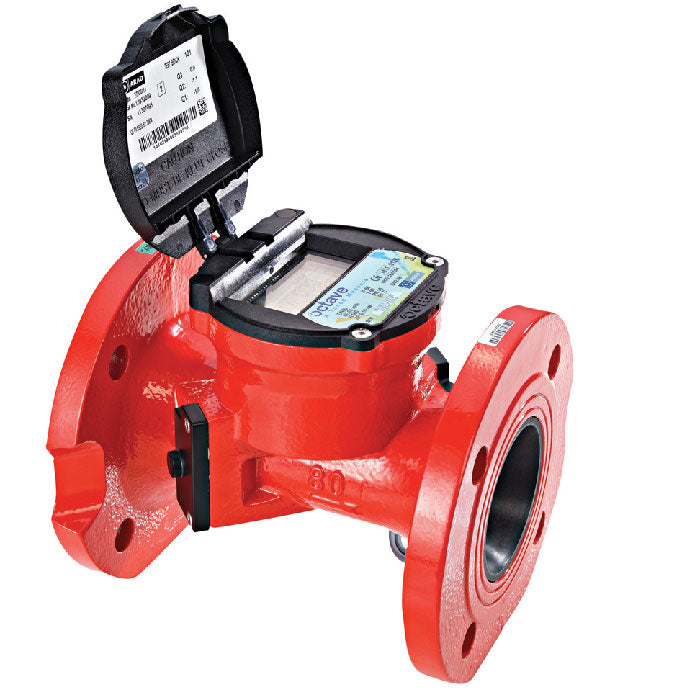

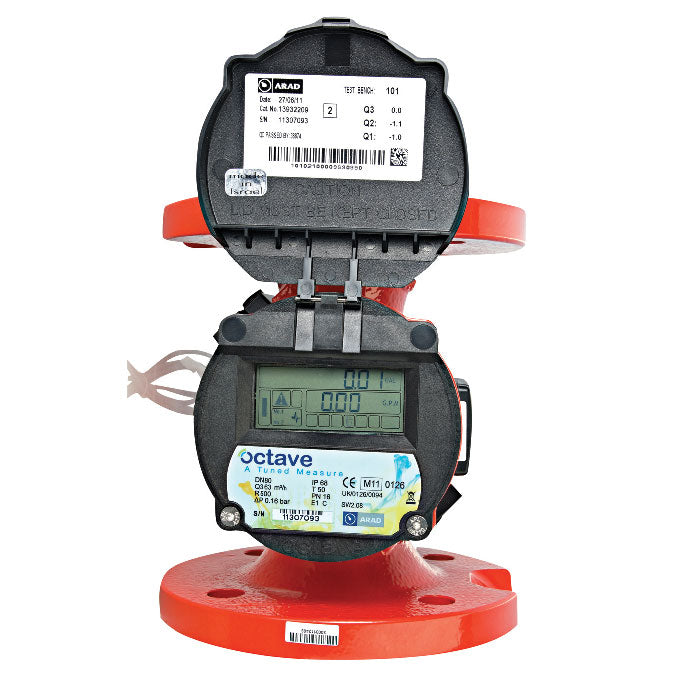

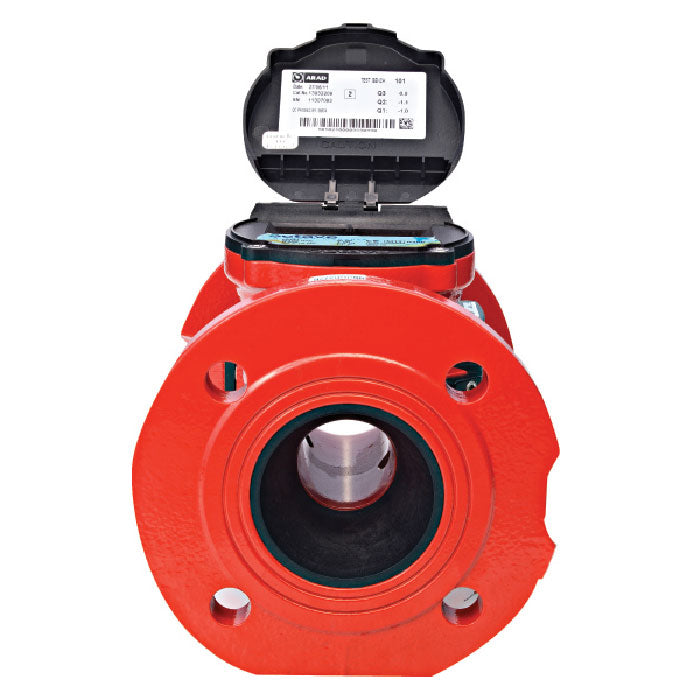

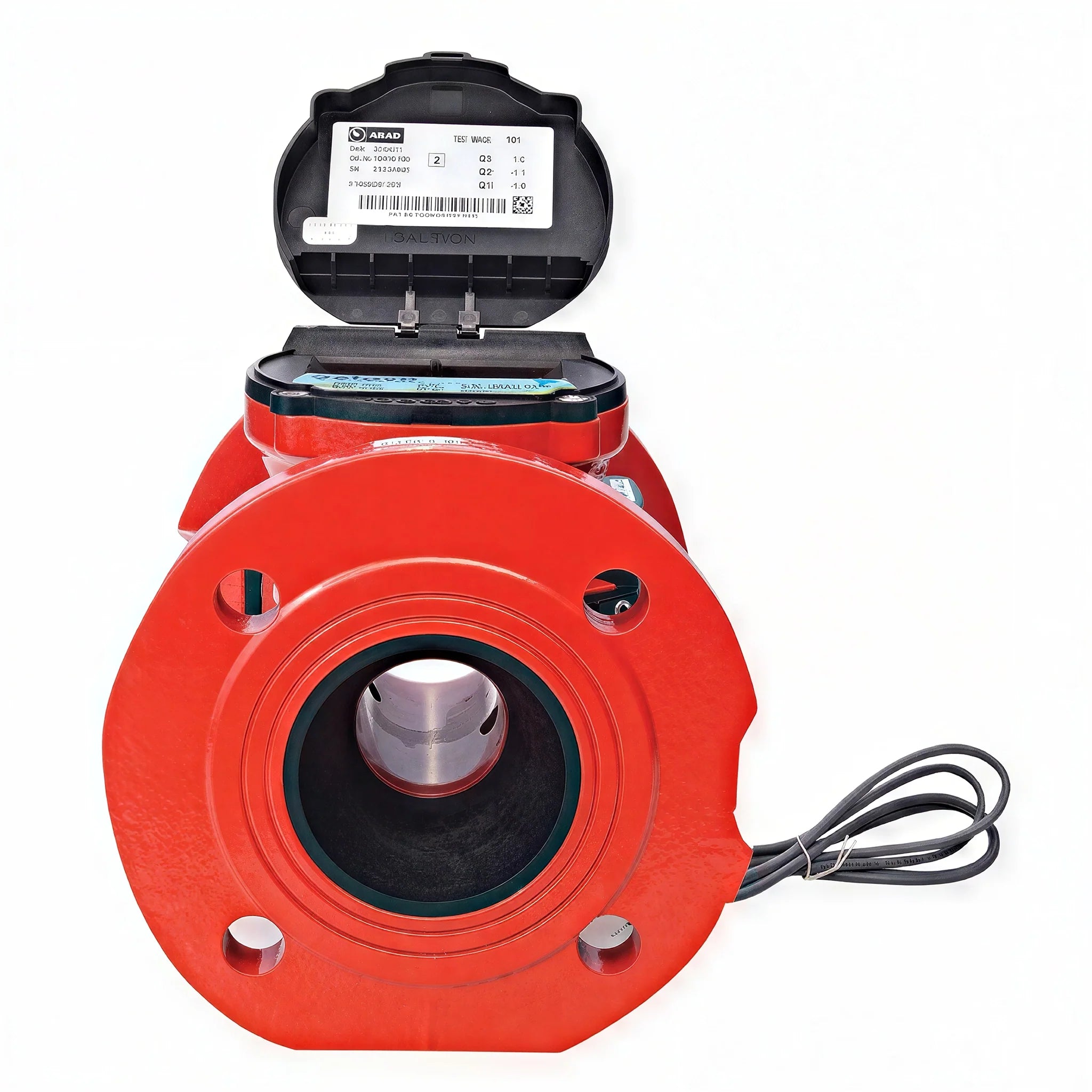

Octave® Ultrasonic Water Meters
Octave® Ultrasonic Water Meters have a ± 1.5% accuracy for nominal flow rates. The vacuum sealed and tamper proof register provides durability and long-term performance. A multi-line digital readout display provides immediate reporting and visual indicators for critical conditions. Lithium batteries provide a 10 year life expectancy. Octave also offers a 5 year pro-rated warranty – the industry’s longest.
Why Octave Water Meters?
- Double-beam ultrasonic sensors provide highly accurate flow data and reliable operation.
- No impeller or moving parts in the flow path provides for unrestricted, low pressure loss flows.
- Reduced maintenance of wear-prone parts commonly found in other meters.
- Flow ranges from <1 GPM to 5,500 GPM.
- Multi-line readout screen provides complete flow and volume information along with :
- Leak detection
- Flow direction
- Output mode
- Battery level
- Alarms and errors
- Active communication mode
- Vacuum sealed and tamper proof IP68 register provides durability and long-term performance.
- Lithium batteries provide a 10 year life expectancy.
Product Advantages
- Each meter has a unique, unalterable bar-coded serial number for identification.
- Standard registers are programmed to log and display both forward and reverse flow. Physically reversing the meter will not decrease the forward flow totalizer.
- Each meter ships with a certificate verifying flow accuracy with a ± 1.5% accuracy for nominal flow rates.
Specifications
- Sizes: 2″, 3″, 4″, 6″, 8″, 10″, and 12″
- Body: Epoxy-coated cast iron with flange inlet and outlet
- Maximum working pressure: 230 psi
- Fluid Temperature Range: 32° to 122° F (0.1° to 50° C)
- Connection: Flanges ANSI ISO for AWWA Connection Standard
- Power Source: 2 ‘D’ Size non-replaceable Lithium batteries
- Environmental Protection: IP-68, Ambient operation temperature for display: -13 to 131° F (-25° to 55° C)
- Output (optional): Programmable single/dual open collector pulse output or externally powered 4-20 mA loop
| Brand | Netafim |
|---|---|
| SKU | 00135-001433 |
| Weight (lb.) | 28.7000 |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Lead Time | extended lead times |
| Length (in.) | |
| Hazardous Material | false |
| UPC | 3661734264198 |
| UL Listed | No |
| ETL Listed | No |
| Irrigation Part Type | Water / Soil Meters |
| Hardware Diameter | 3 Inch |
What does Netafim Octave Water Meter help track in an irrigation system?
Netafim Octave Water Meter measures water flow and volume. The multi-line digital readout shows leak detection, flow direction, output mode, battery level, alarms and errors, and active communication mode.
How accurate is Netafim Octave Water Meter?
Netafim Octave Water Meter provides ± 1.5% accuracy for nominal flow rates. Each meter ships with a certificate verifying flow accuracy, and double-beam ultrasonic sensors support reliable flow data.
What connection style does Netafim Octave Water Meter use?
Netafim Octave Water Meter is a 3-inch meter with flange inlet and outlet. Netafim Octave Water Meter uses ANSI ISO flanges for AWWA connection standard.
What operating conditions can Netafim Octave Water Meter handle?
Netafim Octave Water Meter has a maximum working pressure of 230 psi and a fluid temperature range of 32° to 122° F (0.1° to 50° C). The IP-68 register and the display ambient operating range of -13 to 131° F (-25° to 55° C) add environmental durability.
What makes Netafim Octave Water Meter durable and low-maintenance?
Netafim Octave Water Meter uses an epoxy-coated cast iron body, a vacuum sealed tamper proof register, and no impeller or moving parts in the flow path. The lithium batteries provide a 10 year life expectancy.
Which size options does Netafim Octave Water Meter come in?
Netafim Octave Water Meter is available in 2-inch, 3-inch, 4-inch, 6-inch, 8-inch, 10-inch, and 12-inch sizes.
