2 / 4-8 Station F-Series Filter Backflush Controller
Product Overview and Features
- Standard features include a pressure differential switch, flush time setting and dwell time setting.
- Quick and easy programming.
- Some controllers have counters and alarm settings.
- Two Year Warranty
- Resetable backwash count
- Periodic, manual, or pressure differential actuated
- Accurate timing
- Output selectable to operate 24 VAC, 12 VDC, or 12 VDC latching solenoids
- Pressure differential (PDMU) gauge included
- 115 VAC Input (230 VAC option for 4-8 Station only), 50/60 Hz input available

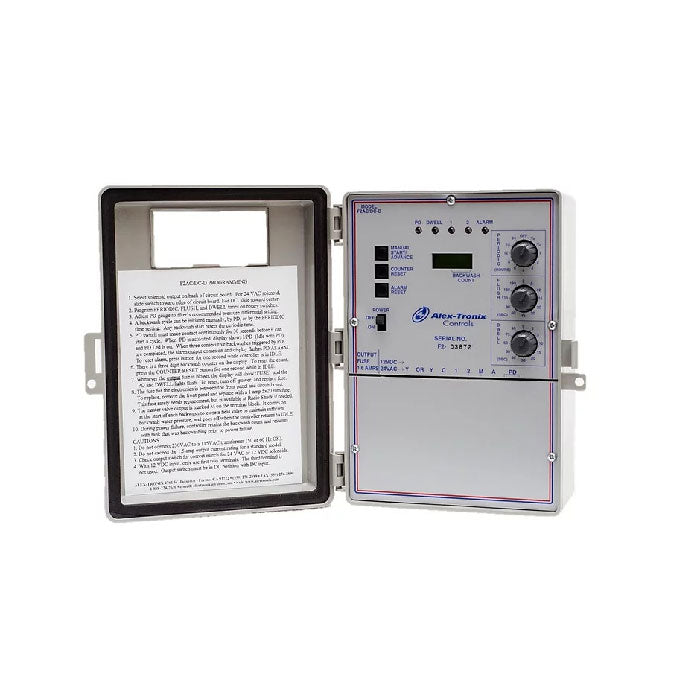

2 Station Controller Features
- 2 stations plus master valve
- 230 VAC (optional)
- Fixed PD delay
- Resettable alarm
- Plastic outdoor box
- 115-230 VAC
- 12-15 VDC
- Output: 24 VAC or 12VDC
2 Station Controller Electrical Specs
4 - 8 Station Controller Features
- 4 or 8 stations plus master valve
- Adjustable PD delay
- Fixed alarm
- Powder coated locking outdoor steel box
- Swing out, plug in front panel
- Adjustable pre-dwell
- Solar Panel, bracket, or battery for DCL models
- 115-130 VAC
- 12-15 VDC
- 220-250 VAC (optional)
- Output: 24 VAC or 12 VDC (with VDC latching)
4 - 8 Station Controller Options
4 - 8 Station Controller Electrical Specs
2 Station Dimensions: 9.5 X 7.8 X 4.0 in
4-8 Station Dimensions: 8.0 X 7.5 X 5.0 in w/o PD
| Brand | Netafim |
|---|---|
| SKU | NF-AT-BC-S |
| Hazardous Material | false |
