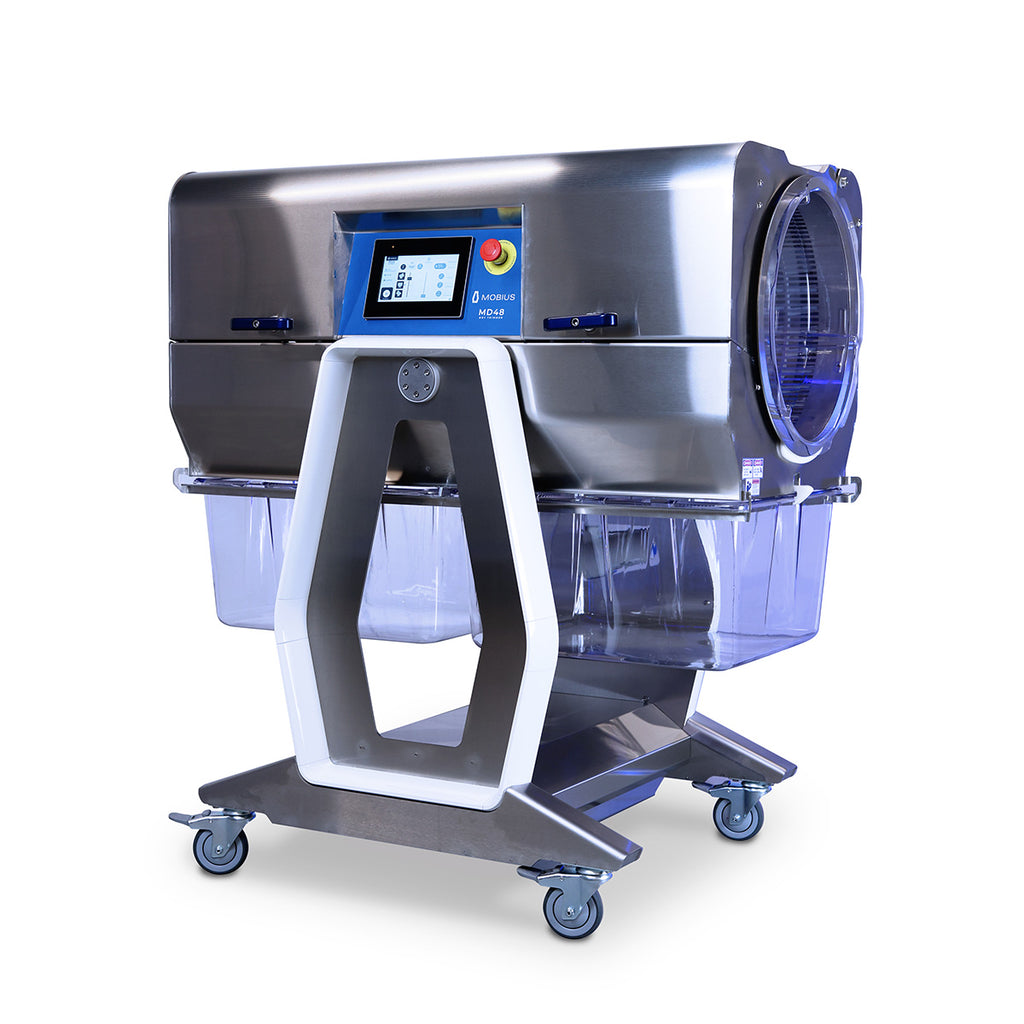

Mobius MD48 Dry Trimming Machine

Large-Scale Oscillating Dry Trimmer

The MD48 is specifically designed for dry trimming processes, with a capacity of up to 72 lbs per hour. Achieve faster and easier loading & unloading, all quietly and efficiently controlled by the touchscreen interface. The proprietary auto-tensioning shear band technology eliminates the need for lubricants and vacuums, keeping your flower trichome-rich and ready for the premium flower market.

Key Features

• Up to 72 LBS/HR
• HMI touchscreen controls
• GMP ready
• Pressure washable
• Lubricant free
• Motorized loading and unloading (actuator)
  • ±30 degree tilting for mixing/loading/unloading
  • Loads from both sides
  • Spring assisted top lid allowing easy access to drum and toolfree drum swap and cleaning
• Auto-tensioning shear band
• Kief kit available

Top Rated Safety Features

The MD48 boasts industry-leading safety features, including tote sensing and lid interlock to prevent unexpected start-ups and reduce the risk of injury.

Savable Settings

The touchscreen HMI allows you to create your own recipes for different strains, keeping track of tumbler speeds, timers, and tilting settings, then saving them for future harvests

Oscillating Technology

The system will pitch the unit back and forth, mixing the product more efficiently and speeding up the trimming process. The motorized pivot technology allows you to rotate the drum to load, run, and empty the machine ergonomically with the push of a button.

Auto-Tensioning System

Easily remove the drum for fast, tool-free cleaning, or to swap the trimming drum. Get non-stop trimming or optional kief extraction without having to re-tension your machine.

Reduce Operating Costs & Labor

Eliminate the hassles of staffing while reducing operating and labor costs and increasing trim consistency across every harvest. Deliver better product on a more consistent schedule.

Specifications

• Body Construction: Stainless Steel
• Tote: Polycarbonate
• Shear Band: Nylon 6/6, Autotensioning
• Speed Adjustments: 1 – 11
• Power Tilting: Yes
• Tumbler Oscillation While Trimming: Yes
• Motor: 90W
• HMI Control: Yes
• Saveable Settings: Yes
• Weight: 310 LBS (140.6 KG)
• Dimensions: 48” (122 cm) H x 32” (81 cm) W x 51” (130 cm) L
• Fits Through A 32" Door: Yes
• Recommended PPE: Eye Protection
• Dust Mask
• AC Voltage: NA (60Hz): 120 V, 6 A
• ITL (50Hz): 240 V, 3 A
• Warranty: 1 Year
• Motor Markings: UL, CSA, CCC, EN, CE
